781 Square Foot Garage Apartment with Parking for Three Cars
Heated S.F.
1,054
Beds
1
Baths
1.5
Stories
2
Cars
3
What's Included
Plan Details
  • Board and batten siding with shingles in the gable peak give this 1-bed garage apartment great curb appeal. A shed roof extends over the right side giving you 176 square feet of porch space.

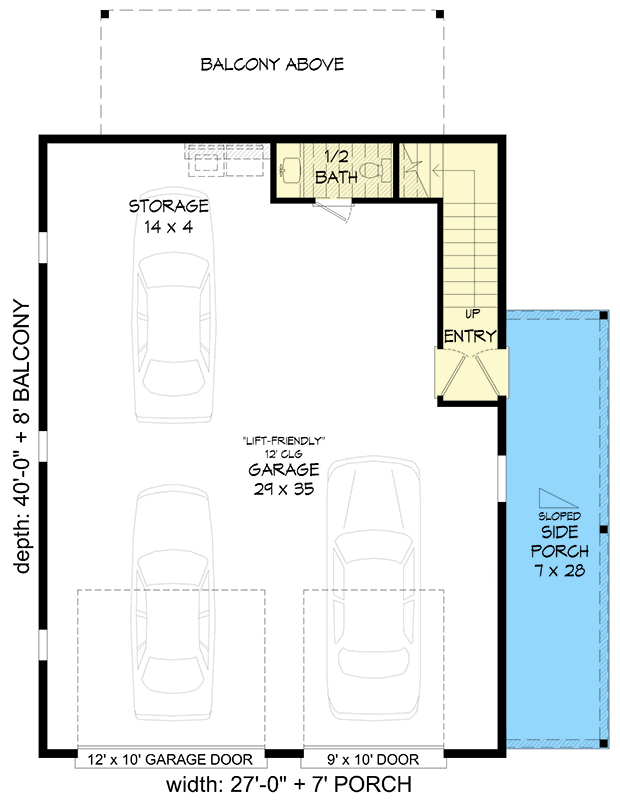

  • Inside, there is room for 3 cars with laundry and a powder room located against the back wall with stairs running along the right.

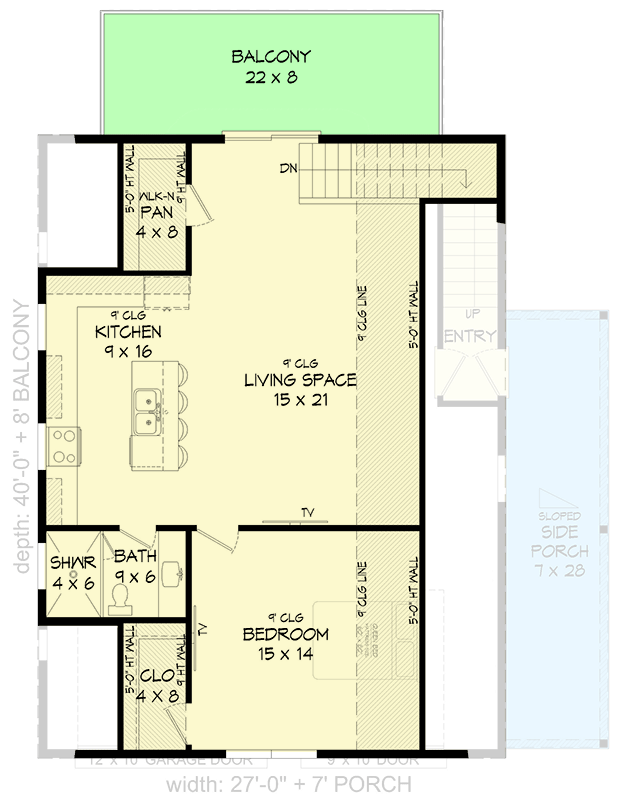

  • Upstairs, a kitchen with island and walk-in pantry is open to the living room. A bedroom is located in front.
  • There's room to park 3 cars if you park two of them in tandem fashion. The garage on the left has a 12' by 10' overhead garage door and the one on the right has a 9' by 10' overhead door.
  • Related Plans: Get alternate versions with raw space on the second floor with garage plans 68832VR, 68602VR and 680186VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

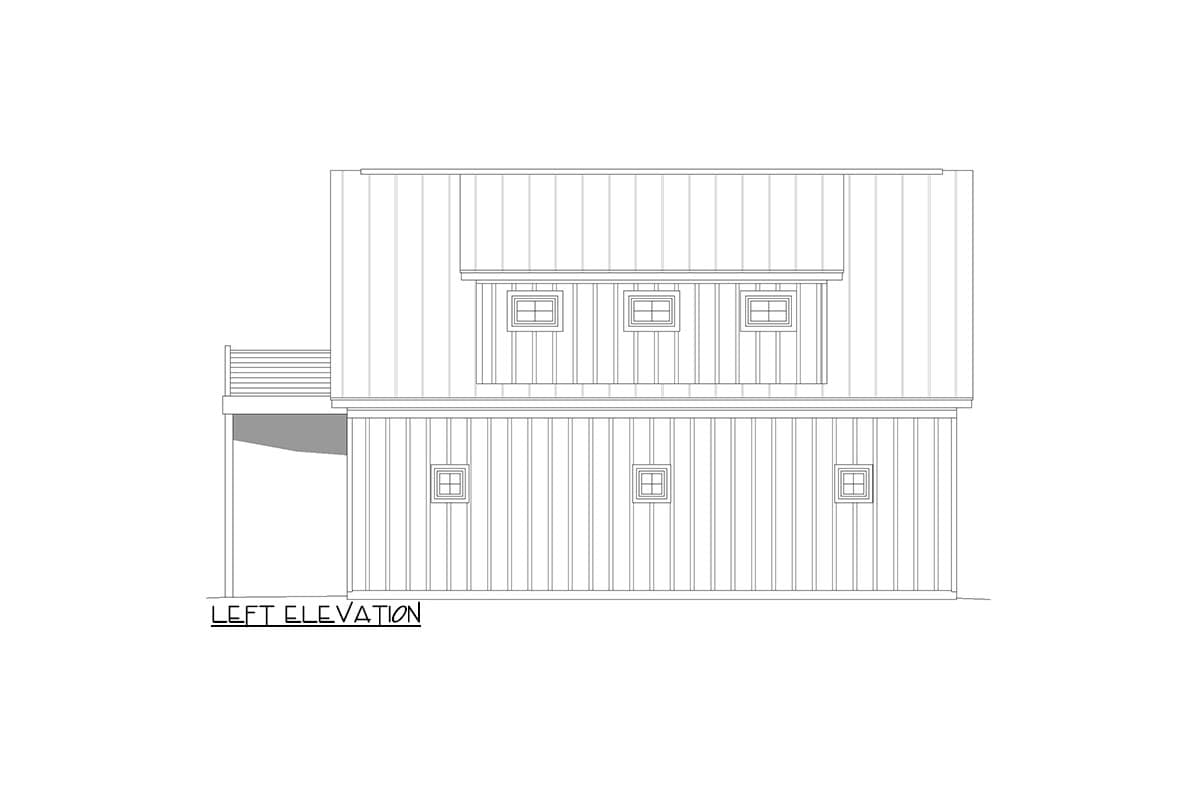

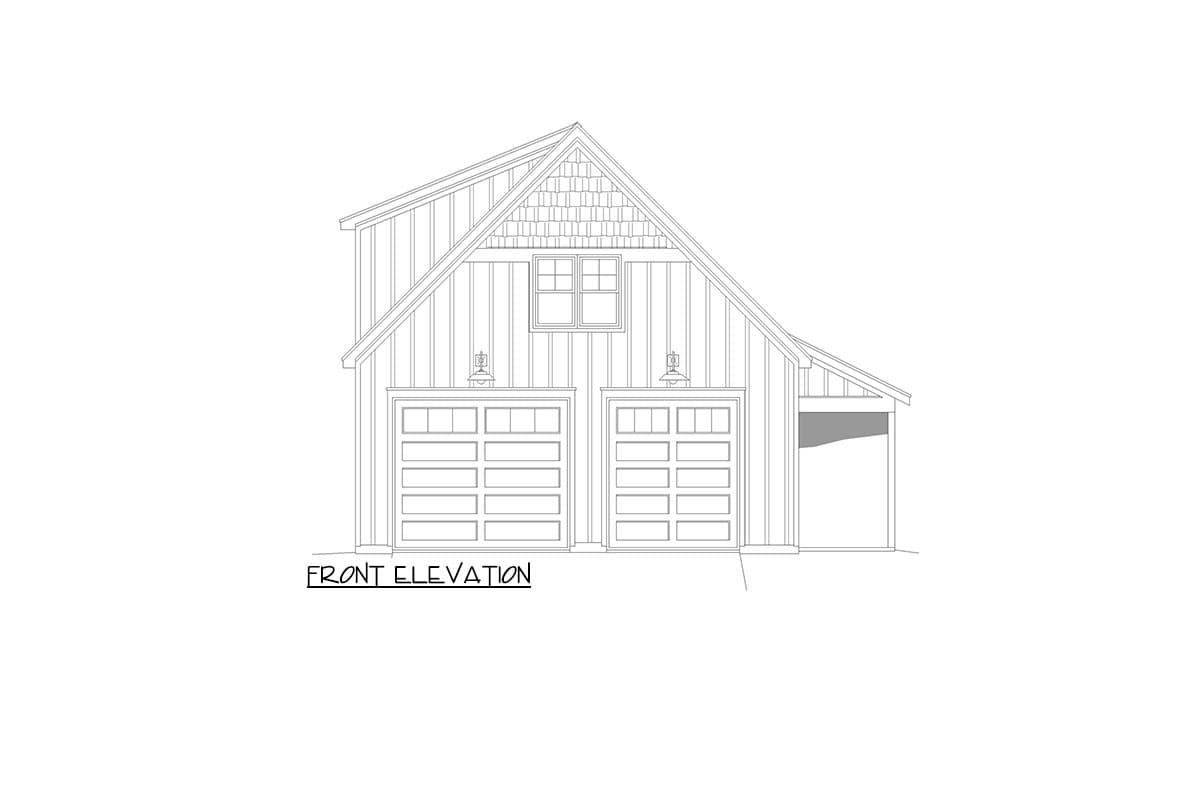

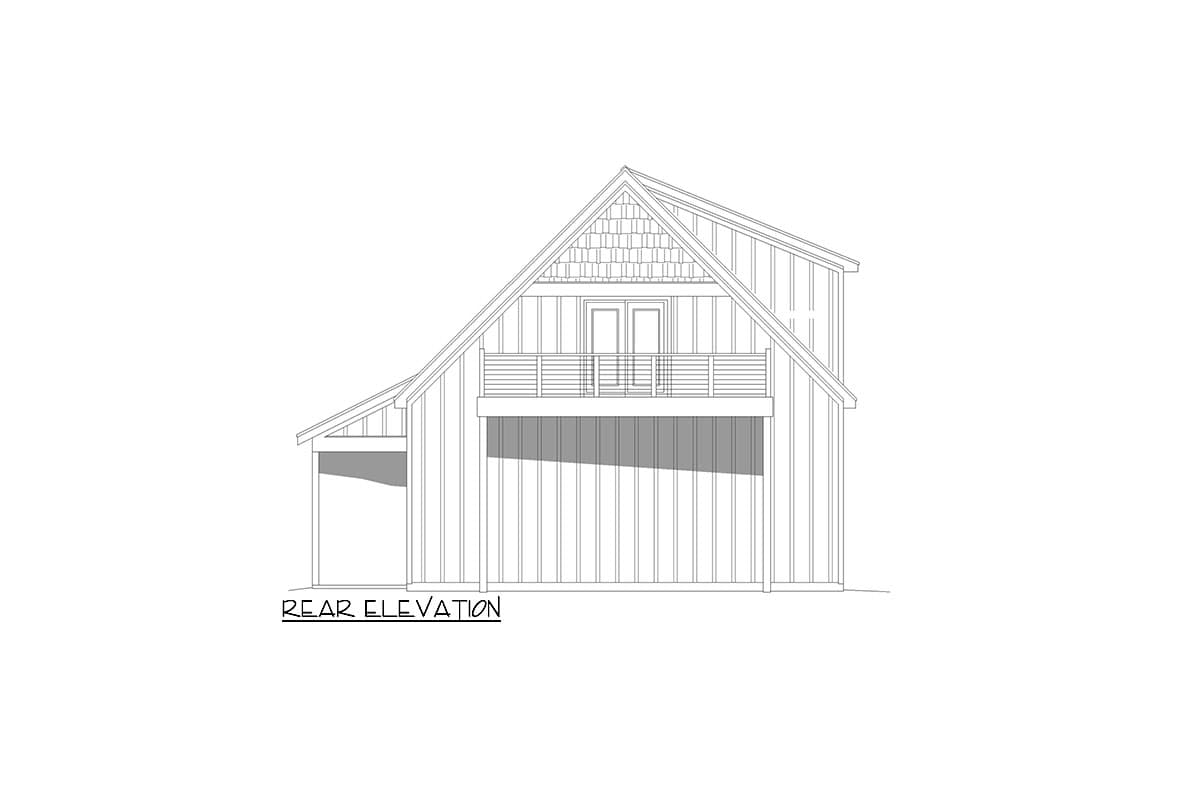

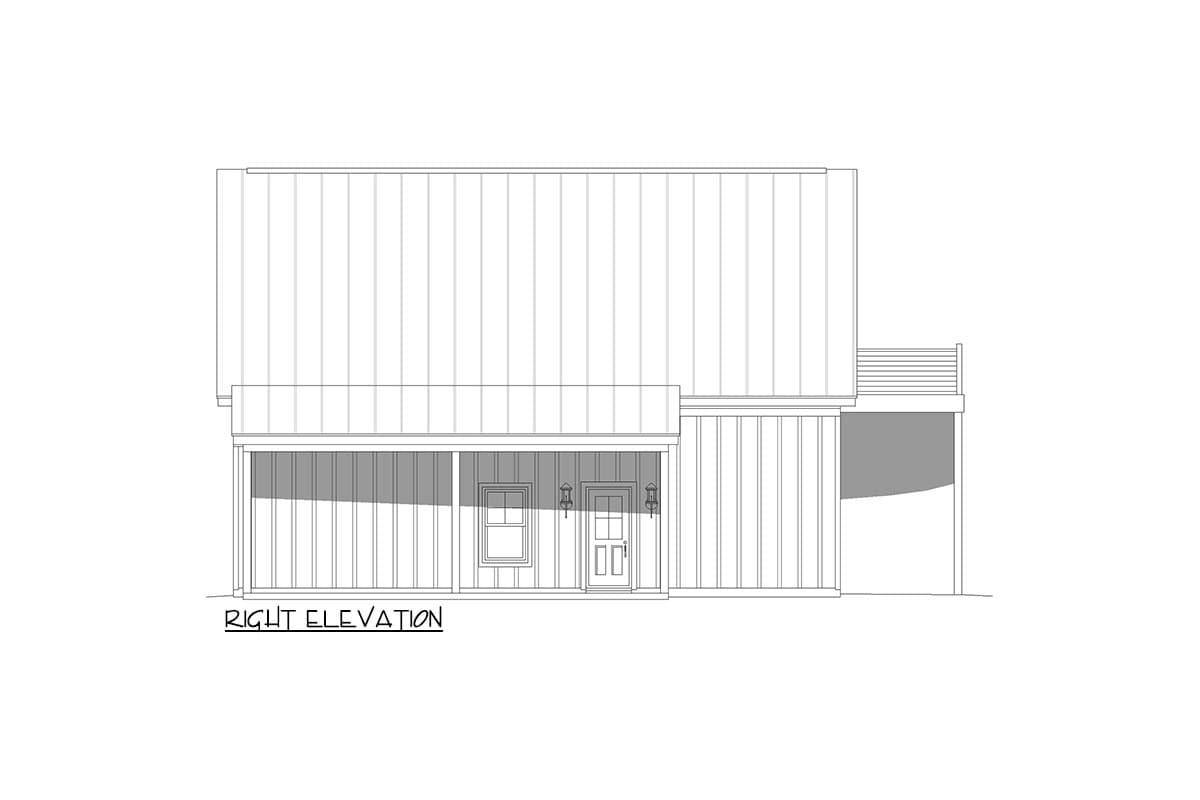

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
