Plan 21448DR

A Sense of Drama

2,527 3 3 1-2
Pageloader

A Sense of Drama

Plan 21448DR

  • 2,527

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • This home plan gives you dramatic spaces in a one-level of contemporary design.
  • An expensive kitchen cook and lunch counter plays a central role and flows to open dining and family room spaces. An angled fireplace in the dining room is a nice touch.
  • Just off the kitchen you'll find your own home theater - a perfect place to escape to.
  • The master bedroom suite is tucked away for privacy, and two secondary bedrooms gather around a shared shower room.
  • Below, the mezzanine watches dreamily over the exterior terrace.

Each plan includes the following:

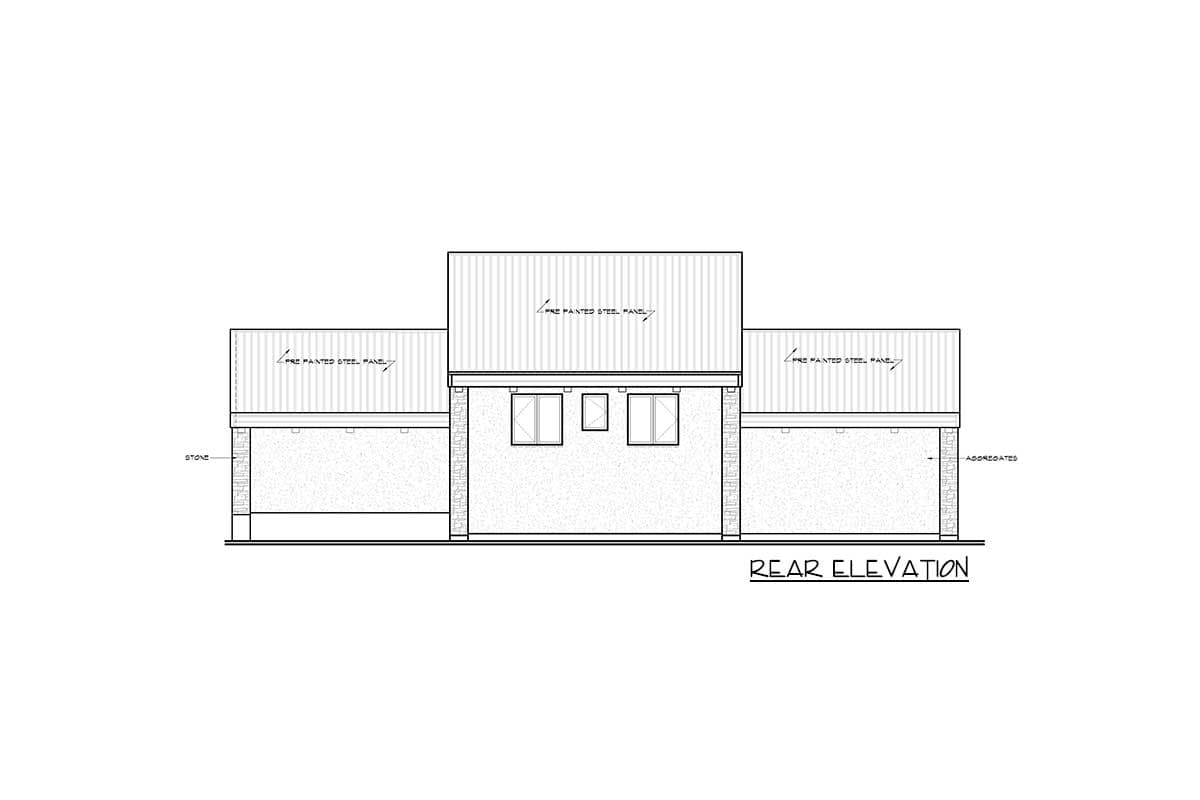

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

Plan details

Architectural Style

Plan Collections



A Sense of Drama

  • 2,527

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

Buy This Plan
  • 5 Sets $1,150
  • 8 Sets $1,180
  • PDF - single-use $1,230
  • Reproducible Set $1,230
  • CAD $1,880
  • View all purchase option online

About This Plan

  • This home plan gives you dramatic spaces in a one-level of contemporary design.
  • An expensive kitchen cook and lunch counter plays a central role and flows to open dining and family room spaces. An angled fireplace in the dining room is a nice touch.
  • Just off the kitchen you'll find your own home theater - a perfect place to escape to.
  • The master bedroom suite is tucked away for privacy, and two secondary bedrooms gather around a shared shower room.
  • Below, the mezzanine watches dreamily over the exterior terrace.

Floor Plans

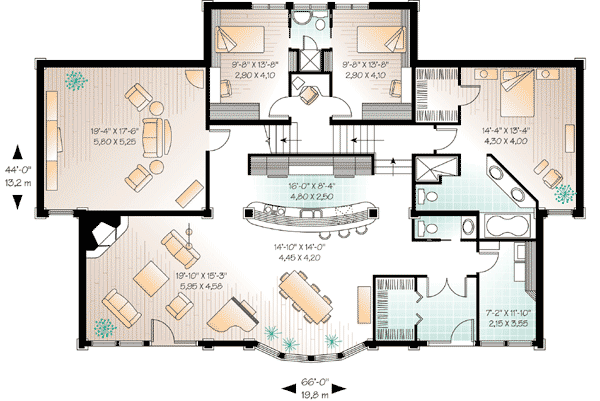

  • Main Level

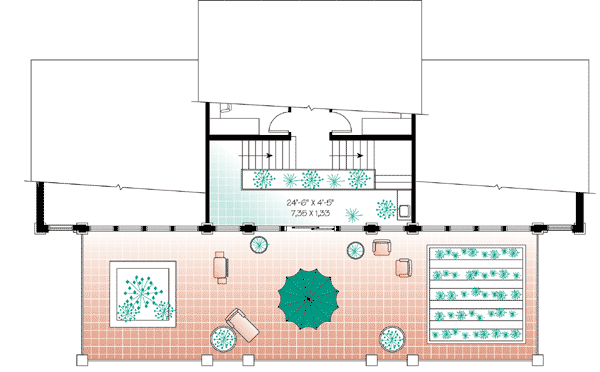

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,527 sq. ft.
  • 1st Floor: 2,357 sq. ft.
  • 2nd Floor: 170 sq. ft.
  • Basement Unfinished: 2,357 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 44' 0"
  • Max ridge height: 25' 10"

Ceiling Heights

  • Floor / Height: First Floor / 9' 6"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
