A Touch of Tudor

Plan 9333EL

  • 1,959

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The exterior of this home has a Tudor style design with an arched stone entry and is reminiscent of homes in the English countryside. The entry foyer is flanked by a formal space to the left that can be used as a dining room and the gathering room is just ahead.
  • An island kitchen is open to the family room for easy entertaining and an informal dining area has views to the back yard. A laundry room and mud room with garage access are conveniently located off the kitchen.
  • The second level of this home plan has a spacious master suite with spa bath and walk-in closet. There are two additional bedrooms on this level that share a full bath. Gain a bonus room or an additional suite by converting the space above the two-story great room.
  • Related Plans: Get more space with house plans 9363EL and 9362EL (three bedrooms and a bonus room).

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

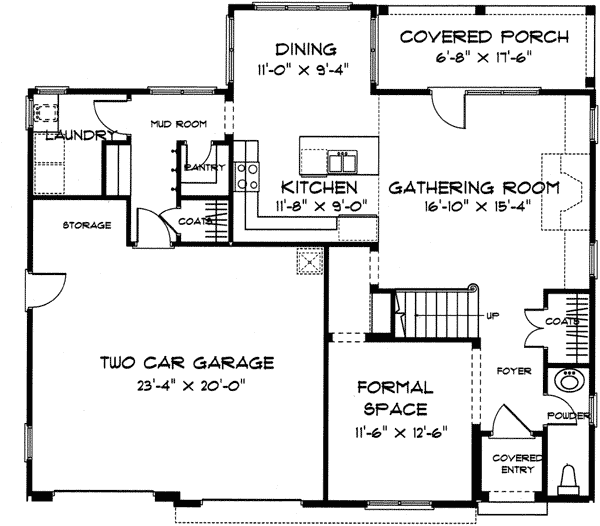

A Touch of Tudor - 9333EL floor plan - Main Level
