A Touch of Tudor

Plan 9362EL

  • 2,241

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The exterior of this home plan has a Tudor style design with an arched stone entry and is reminiscent of homes in the English countryside. The entry foyer is flanked by a formal space to the left that can be used as a dining room and the gathering room is just ahead.
  • An island kitchen is open to the family room for easy entertaining and an informal dining area has views to the back yard. A laundry room and mud room with garage access are conveniently located off the kitchen.
  • The second level of this home plan has a spacious master suite with spa bath and walk-in closet. There are three additional bedrooms and two full baths on this level.
  • Related Plans: Don't need four bedrooms? See house plan 9362EL which replaces the fourth suite with a bonus room.
  • Need less space? See house plan 9333EL (1,959 s.f.) with a two-story gathering room.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

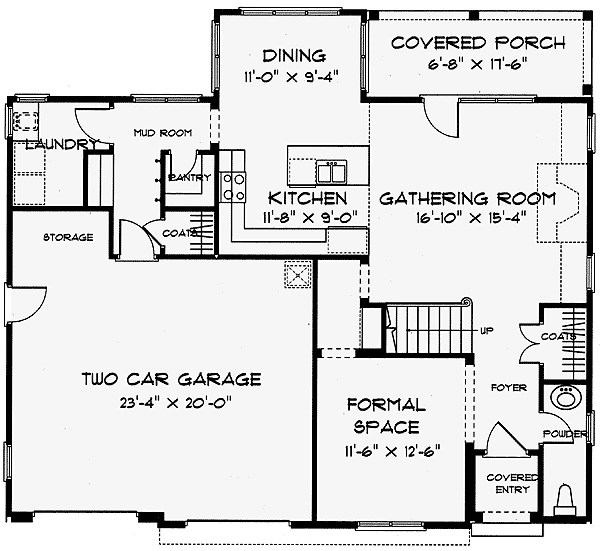

A Touch of Tudor - 9362EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

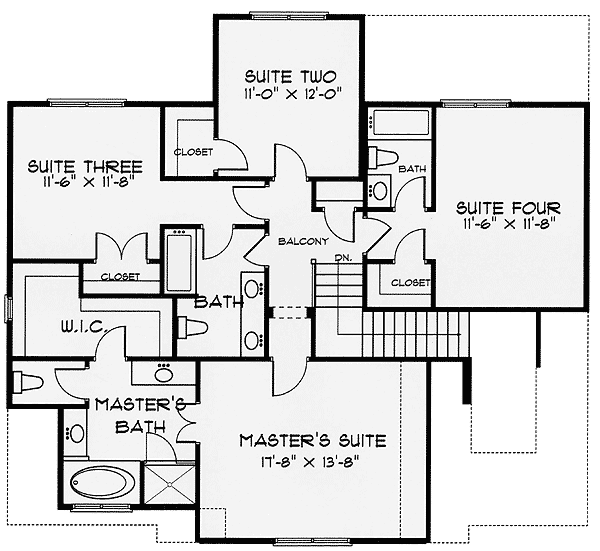

A Touch of Tudor - 9362EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,241 sq. ft.
  • 1st Floor: 1,015 sq. ft.
  • 2nd Floor: 1,226 sq. ft.
  • Entry: 26 sq. ft.
  • Porch, Combined: 116 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 2"
  • Depth: 39' 8"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 511 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12

Architectural Style

Special features

Plan Collections

A Touch of Tudor

  • 2,241

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD+PDF - Single-Build $2,395
  • PDF - Unlimited Build $2,745
  • CAD - Unlimited Build $3,245
  • View all purchase option online

About This Plan

  • The exterior of this home plan has a Tudor style design with an arched stone entry and is reminiscent of homes in the English countryside. The entry foyer is flanked by a formal space to the left that can be used as a dining room and the gathering room is just ahead.
  • An island kitchen is open to the family room for easy entertaining and an informal dining area has views to the back yard. A laundry room and mud room with garage access are conveniently located off the kitchen.
  • The second level of this home plan has a spacious master suite with spa bath and walk-in closet. There are three additional bedrooms and two full baths on this level.
  • Related Plans: Don't need four bedrooms? See house plan 9362EL which replaces the fourth suite with a bonus room.
  • Need less space? See house plan 9333EL (1,959 s.f.) with a two-story gathering room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,241 sq. ft.
  • 1st Floor: 1,015 sq. ft.
  • 2nd Floor: 1,226 sq. ft.
  • Entry: 26 sq. ft.
  • Porch, Combined: 116 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 2"
  • Depth: 39' 8"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 511 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
Plan 9362EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9362EL
|
