Plan 9363EL
EXCLUSIVE
A Touch of Tudor
Heated S.F.
2,241
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

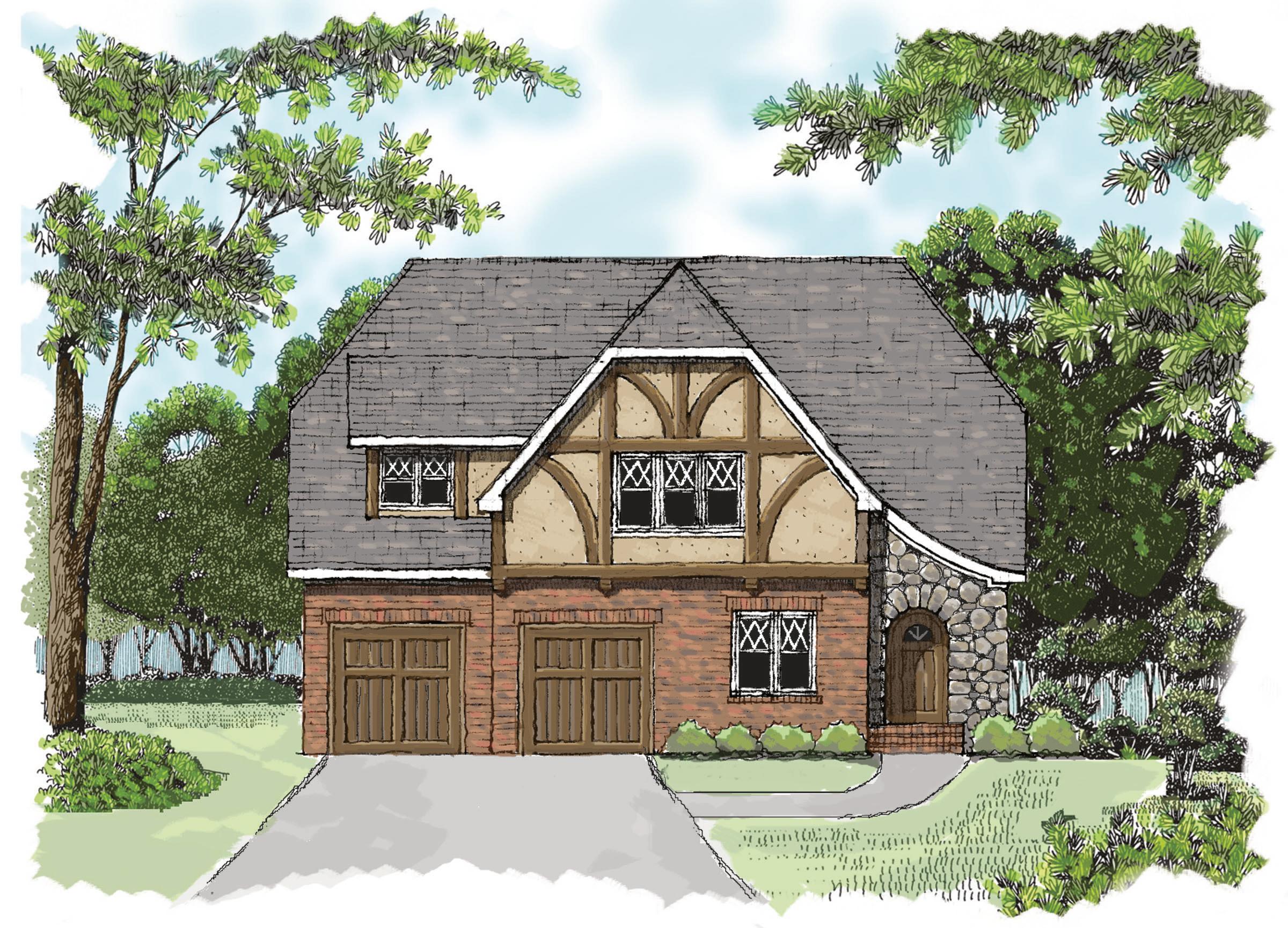

  • The exterior of this home plan has a Tudor style design with an arched stone entry and is reminiscent of homes in the English countryside. The entry foyer is flanked by a formal space to the left that can be used as a dining room and the gathering room is just ahead.
  • An island kitchen is open to the family room for easy entertaining and an informal dining area has views to the back yard. A laundry room and mud room with garage access are conveniently located off the kitchen.
  • The second level of this home plan has a spacious master suite with spa bath and walk-in closet. There are two additional bedrooms and a full bath on this level. A bonus room can be used for future expansion.
  • Related Plans: Need a fourth bedroom? See house plan 9362EL which replaces the bonus room with a fourth suite.
  • Need less space? See house plan 9333EL (1,959 s.f.) with a two-story gathering room.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet

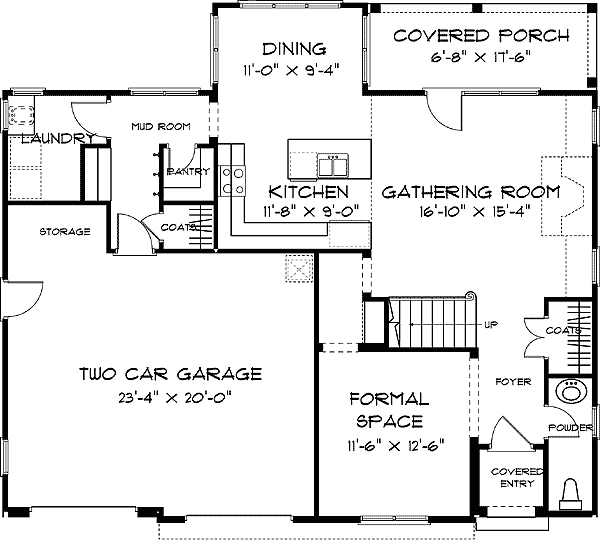

  • First Floor Plan

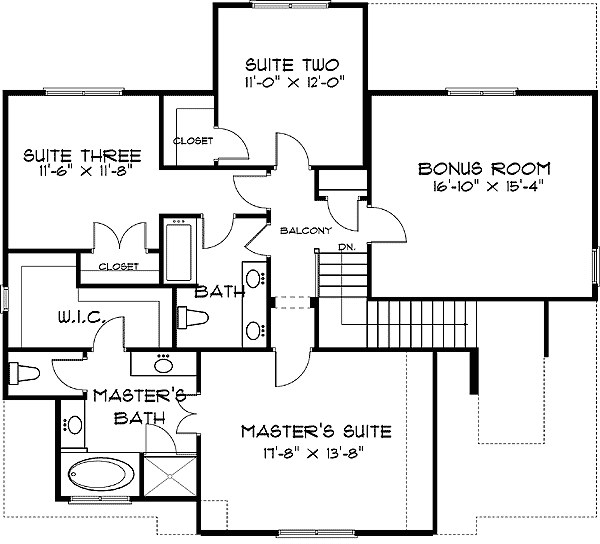

  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

A Touch of Tudor

  • 2,241

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,241 sq. ft.
  • 1st Floor: 1,015 sq. ft.
  • 2nd Floor: 1,226 sq. ft.

Dimensions

  • Width: 45' 2"
  • Depth: 39' 8"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 511 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
