A Very Special Mountain Home Plan

Plan 81616AB

  • 4,473

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Rugged on outside, this Mountain home plan is filled with elegant details inside.
  • A circular foyer with tray ceiling opens to a dramatic T-shaped staircase.
  • Even the den has a tray ceiling and wall of windows that face front.
  • The kitchen is massive with a huge island that gives you extra work space.
  • Choose from an open sun deck or a covered deck with grilling area.
  • All the bedrooms on the second floor are huge and a vaulted bonus room has a cozy fireplace.

Plans include the following:

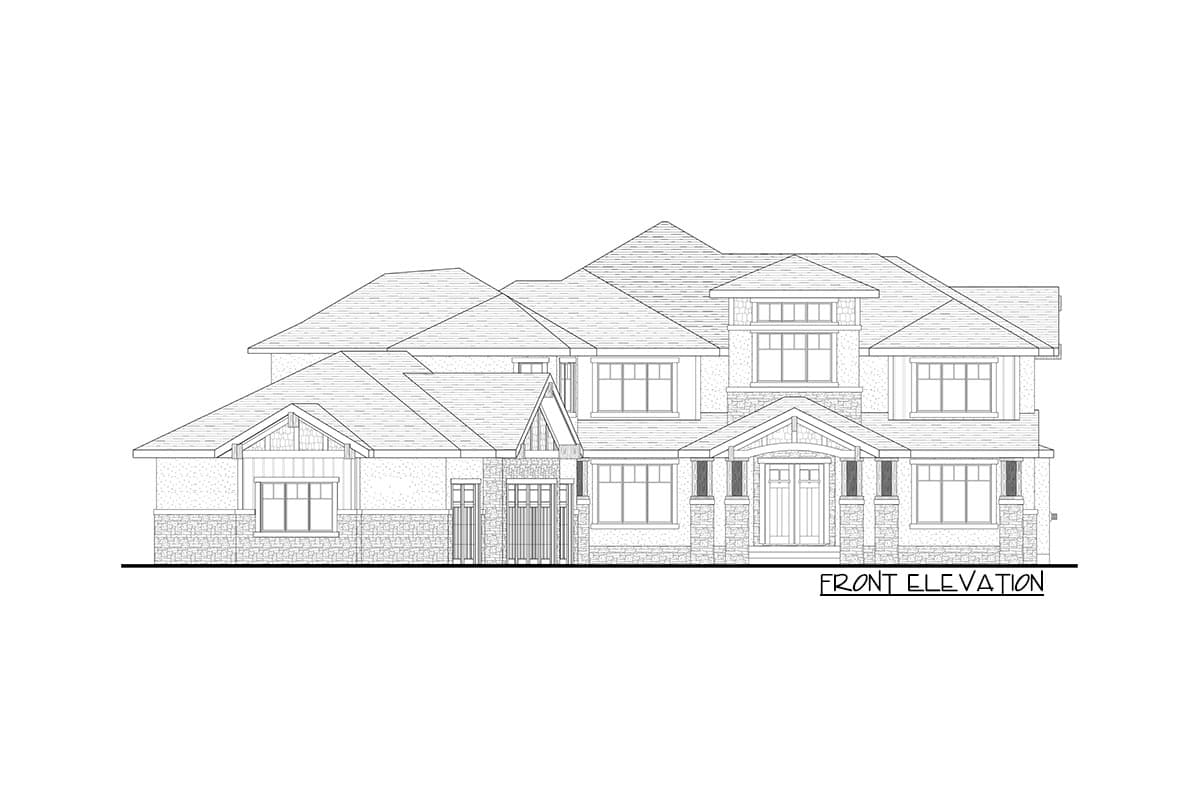

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

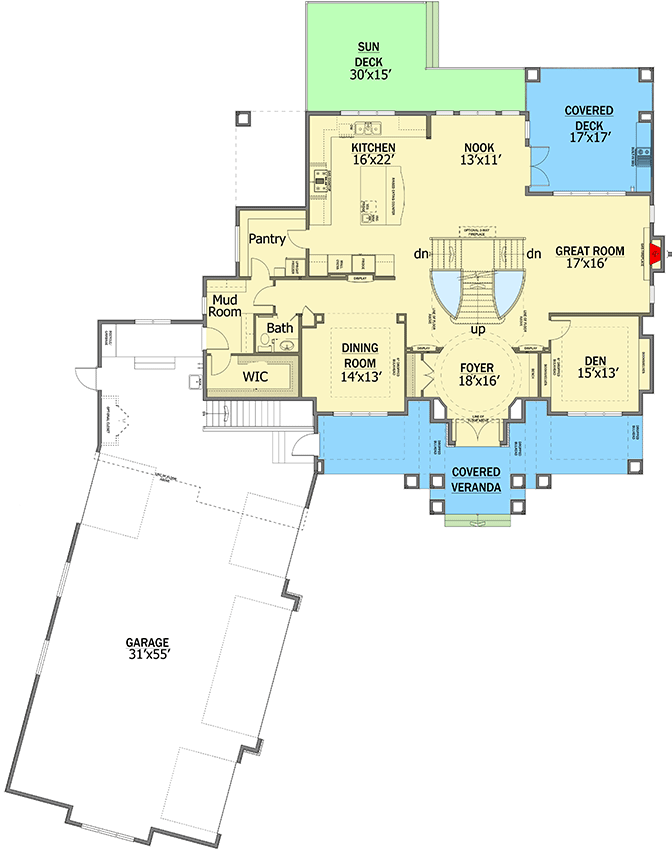

A Very Special Mountain Home Plan - 81616AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

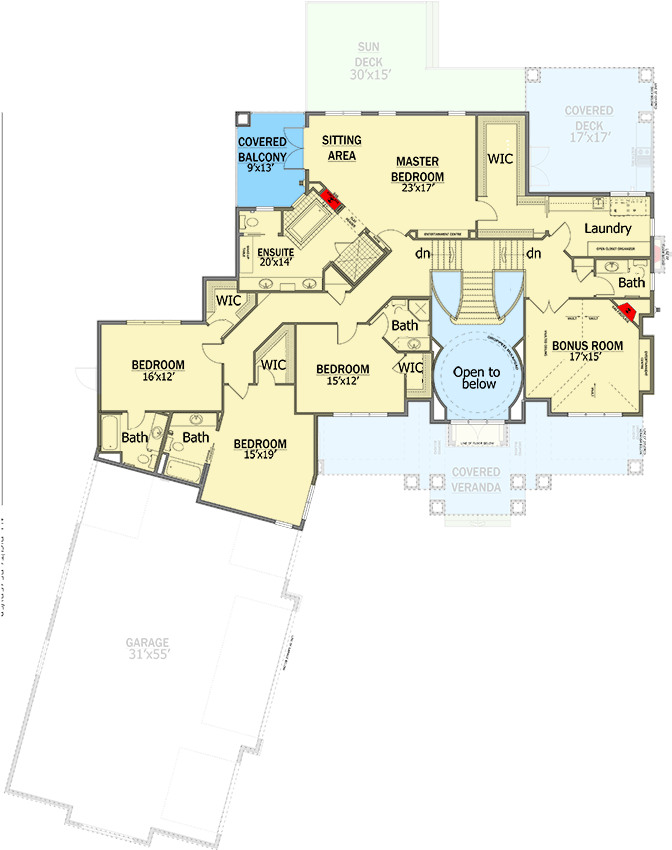

A Very Special Mountain Home Plan - 81616AB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,473 sq. ft.
  • 1st Floor: 2,134 sq. ft.
  • 2nd Floor: 2,339 sq. ft.
  • Balcony / Veranda: 117 sq. ft.
  • Deck: 625 sq. ft.
  • Basement Unfinished: 1,726 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 89' 0"
  • Depth: 116' 0"
  • Max ridge height: 34' 5"

Garage

  • Type: Attached
  • Area: 2001 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

A Very Special Mountain Home Plan

  • 4,473

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,300
  • CAD + PDF - Single Build $3,000
  • CAD Unlimited + PDF $3,500
  • View all purchase option online

About This Plan

  • Rugged on outside, this Mountain home plan is filled with elegant details inside.
  • A circular foyer with tray ceiling opens to a dramatic T-shaped staircase.
  • Even the den has a tray ceiling and wall of windows that face front.
  • The kitchen is massive with a huge island that gives you extra work space.
  • Choose from an open sun deck or a covered deck with grilling area.
  • All the bedrooms on the second floor are huge and a vaulted bonus room has a cozy fireplace.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,473 sq. ft.
  • 1st Floor: 2,134 sq. ft.
  • 2nd Floor: 2,339 sq. ft.
  • Balcony / Veranda: 117 sq. ft.
  • Deck: 625 sq. ft.
  • Basement Unfinished: 1,726 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 89' 0"
  • Depth: 116' 0"
  • Max ridge height: 34' 5"

Garage

  • Type: Attached
  • Area: 2001 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
