Plan 623274DJ Adobe-Style One-Story 3 Bed House Plan Under 1900 Square Feet

Adobe-Style One-Story 3 Bed House Plan Under 1900 Square Feet

Plan 623274DJ

  • 1,873

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 bed, 2 bath house plan seamlessly blends Spanish and Adobe styles, merging tradition with modern functionality, and gives you 1,873 square feet of heated living space.
  • Inside, the designer fosters connection with the layout of the kitchen, dining, and great room area into an entertaining space.
  • The private master occupies the entire right side and gives you the luxury of direct laundry room access. Across the home, Beds 2 and 3 share a well-appointed bathroom.
  • Pergola porches front and back enhance outdoor living, while a courtyard-load garage adds charm.
  • The 2-car courtyard-entry garage accesses the house through the mud room with a closet, a bench with hooks and a catch-all area.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

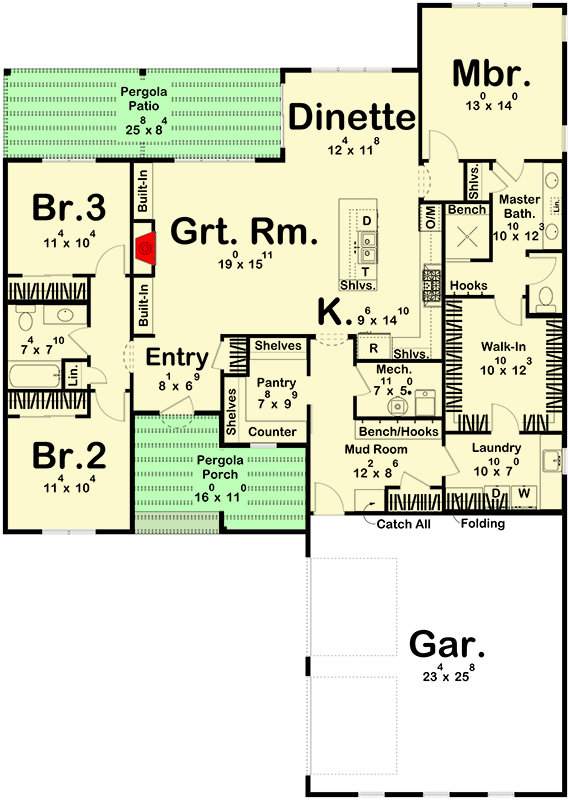

Adobe-Style One-Story 3 Bed House Plan Under 1900 Square Feet - 623274DJ floor plan - Main Level

Plan details

Adobe-Style One-Story 3 Bed House Plan Under 1900 Square Feet

  • 1,873

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,800
  • CAD + PDF - Single-Build $1,800
  • CAD Unlimited + PDF $2,300
  • View all purchase option online

About This Plan

  • This 3 bed, 2 bath house plan seamlessly blends Spanish and Adobe styles, merging tradition with modern functionality, and gives you 1,873 square feet of heated living space.
  • Inside, the designer fosters connection with the layout of the kitchen, dining, and great room area into an entertaining space.
  • The private master occupies the entire right side and gives you the luxury of direct laundry room access. Across the home, Beds 2 and 3 share a well-appointed bathroom.
  • Pergola porches front and back enhance outdoor living, while a courtyard-load garage adds charm.
  • The 2-car courtyard-entry garage accesses the house through the mud room with a closet, a bench with hooks and a catch-all area.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,873 sq. ft.
  • 1st Floor: 1,873 sq. ft.
  • Porch, Combined: 352 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 73' 4"
  • Max ridge height: 13' 2"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
