Plan 67799NWL

Alpine-style Garage with Loft Apartment

Heated S.F.
393
Beds
0
Baths
1
Stories
2
Cars
1

Floor Plan

Plan 67799NWL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 67799NWL

M-F 9am-5pm EST |

1-203-761-8500

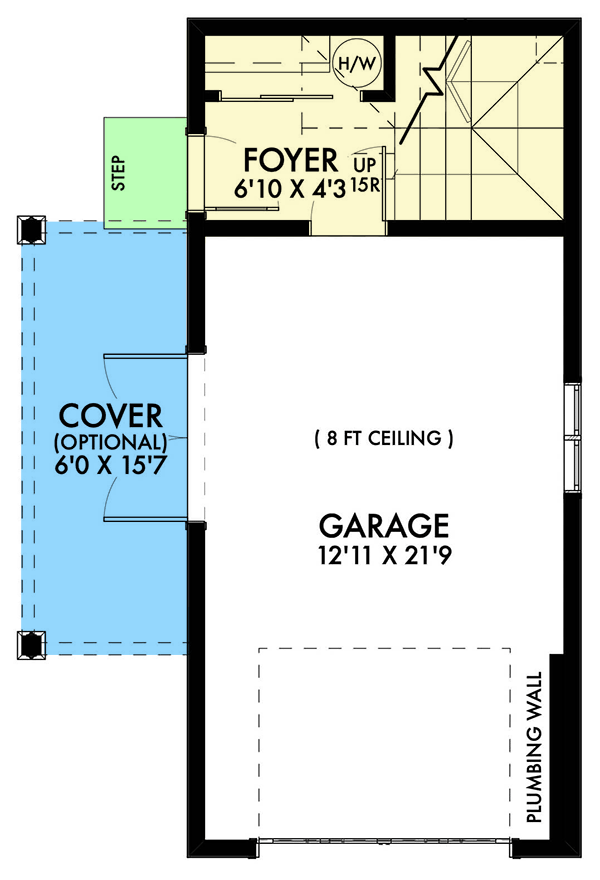

Main Level

Plan 67799NWL: Alpine-style Garage with Loft Apartment - Floor Plan - Main Level - Carriage, Mountain, Rustic

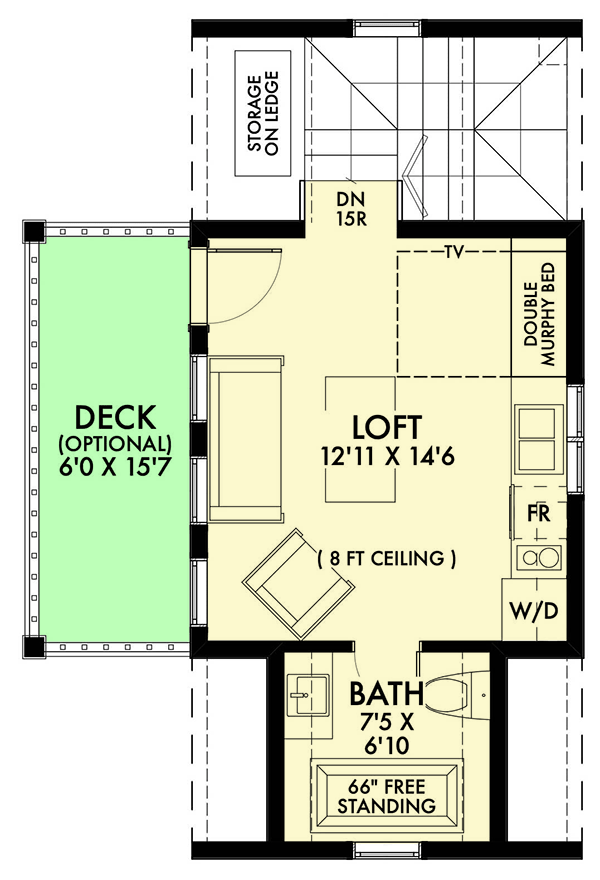

2nd Floor

Plan 67799NWL: Alpine-style Garage with Loft Apartment - Floor Plan - 2nd Floor - Carriage, Mountain, Rustic

Plan Details

  • This charming alpine-style garage apartment plan features a 1-bedroom, 1 bathroom loft above a 1-car garage. A convenient ground-level foyer (total 393 SF finished ).
  • French doors - optional - open on the left side to give you a covered patio beneath the upstairs deck.

What's Included

  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

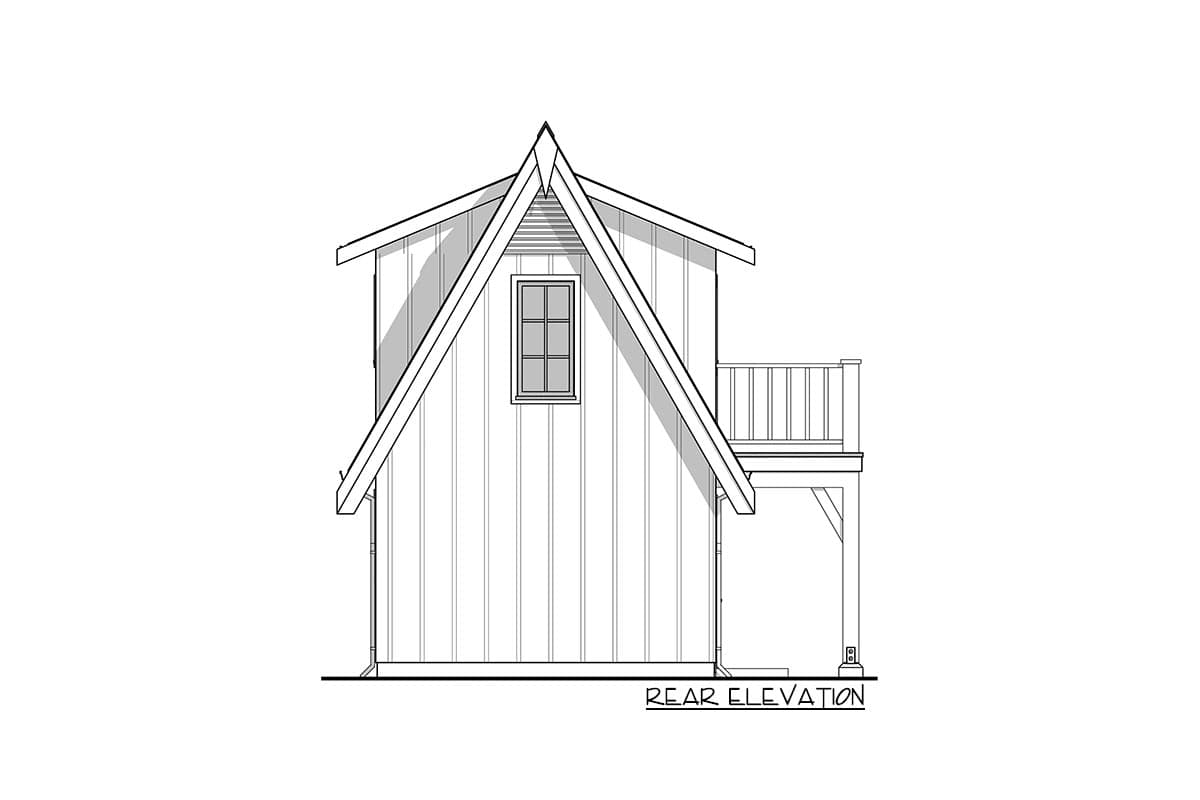

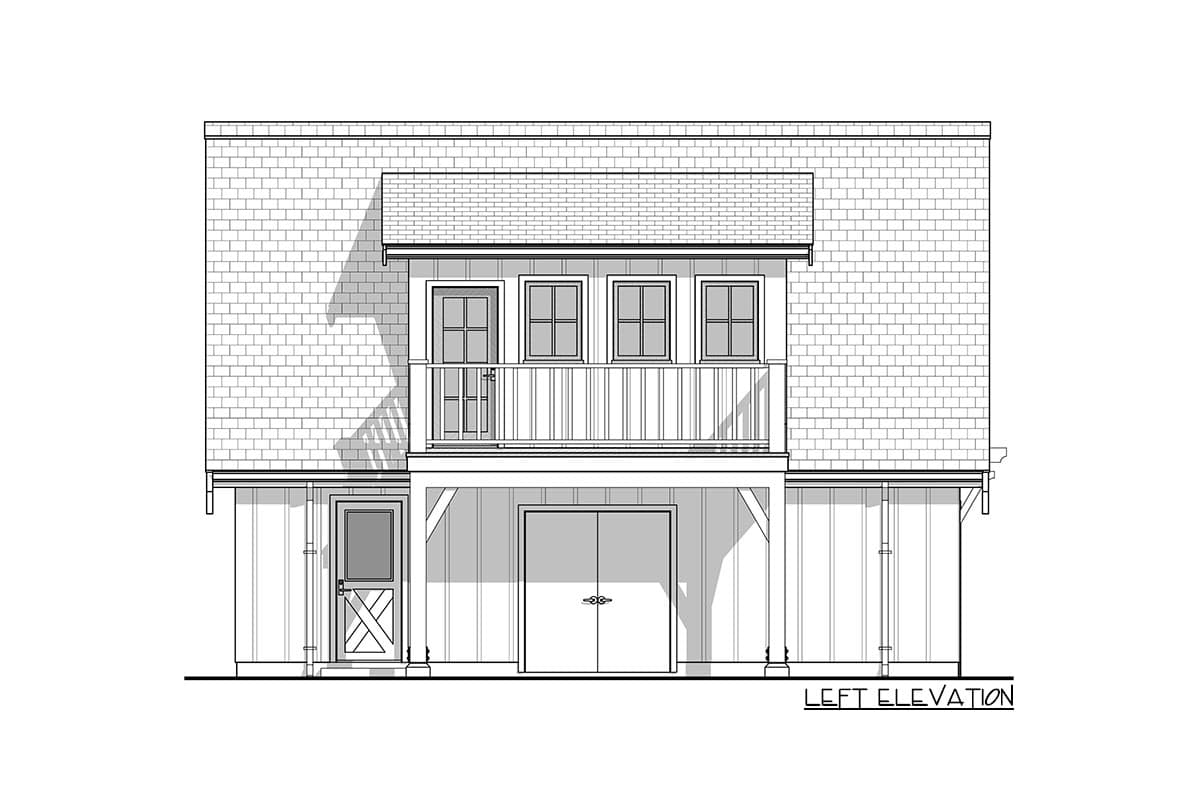

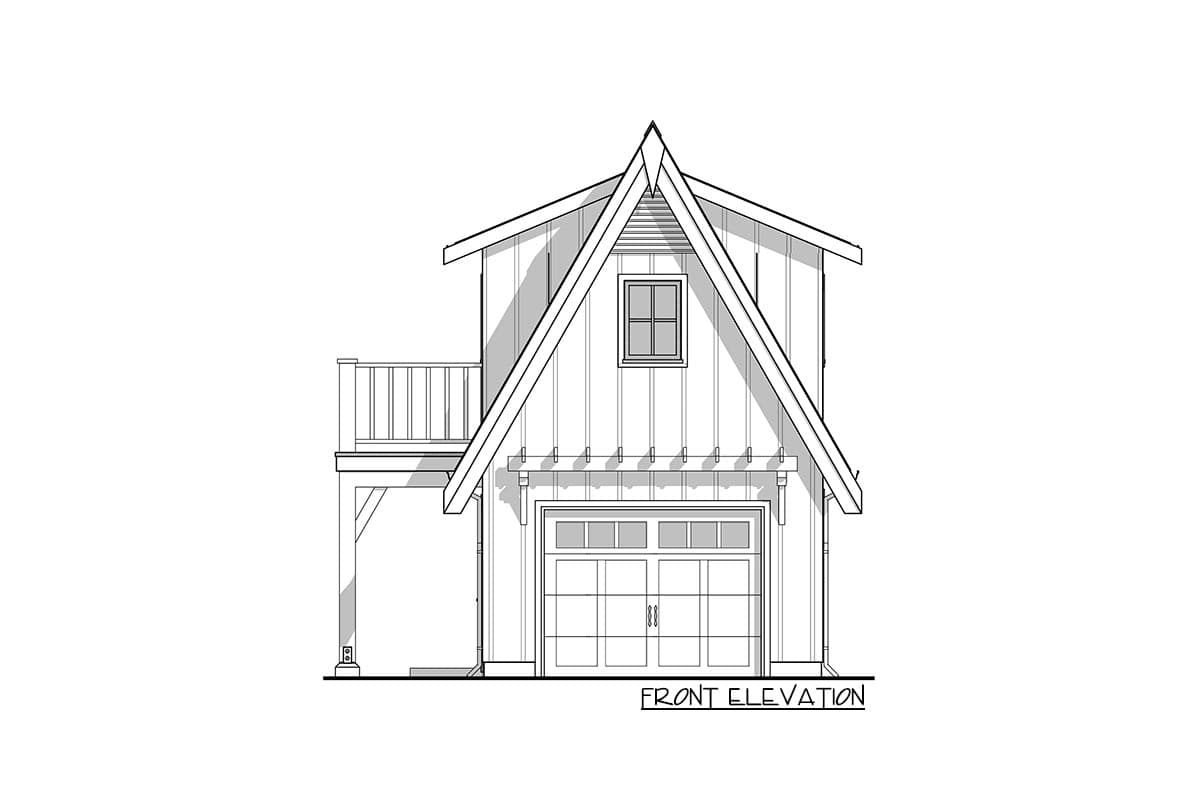

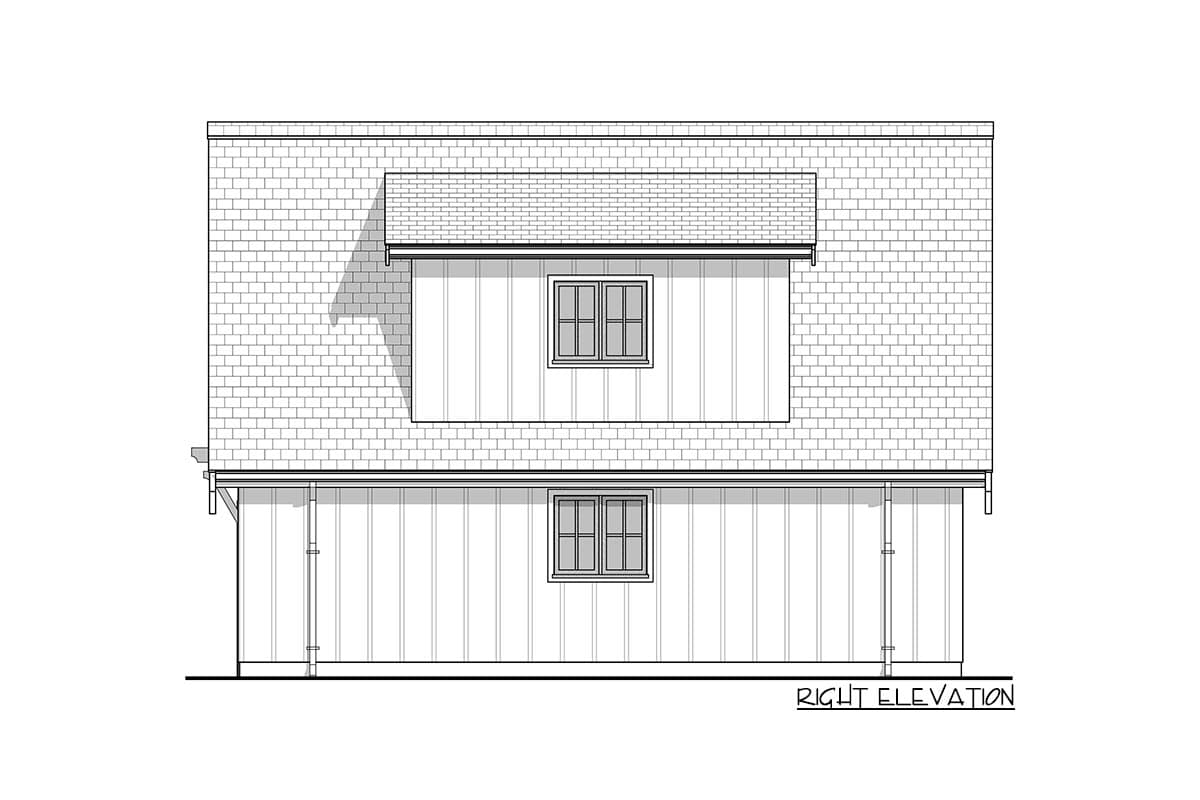

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

393 sq. ft.

1st Floor

109 sq. ft.

2nd Floor

284 sq. ft.

Balcony / Veranda

93 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

14' 0"

Depth

30' 0"

Max Ridge Height

22' 3"

Garage

Type

Detached

Area

311 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

21 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Mountain

Rustic

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Plan Collections

ADU

Canadian House Plans

Tiny Home House Plans
