Plan 25639GE

Angled Garage with Bonus Space Above

Pageloader

Angled Garage with Bonus Space Above

Plan 25639GE

  • 2,947

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Elegant gables with decorative wood trim and a beautiful covered entry flanked by two matching dormers greet you to this house plan with upstairs expansion.
  • Richly detailed on the interior, the home offers impressive ceiling treatments, built-ins and a barrel vaulted master bathroom.
  • The floor plan is an open layout that brings gorgeous sight lines from room to room.
  • In back, the vaulted covered deck boasts an outdoor fireplace.
  • Set away from the luxurious master suite, the other wing of the home offers two bedrooms and a study.
  • A bonus second floor gives you a large space over the garage and an extra bath.
  • Related Plans: Get alternate versions with house plans 25636GE25676GE and 25668GE.

The plan set includes the following:

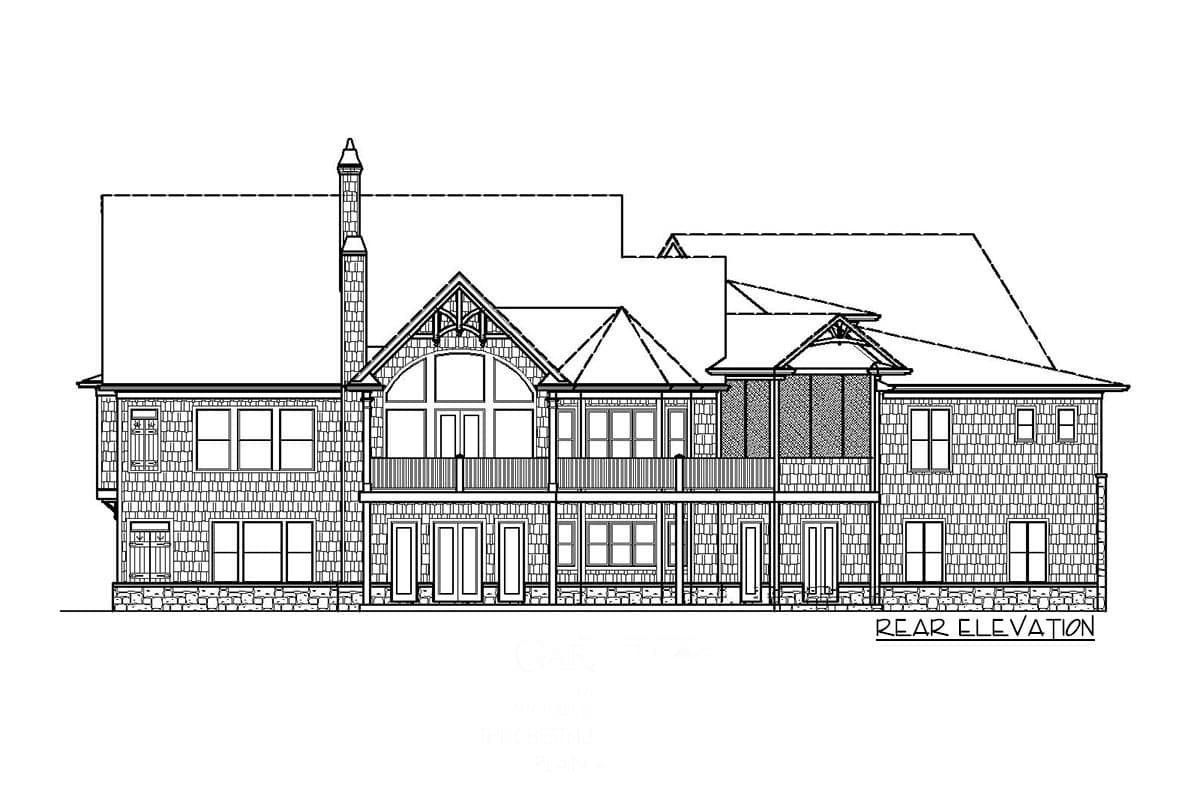

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.



Floor Plan

Optional Lower Level

Pinit white

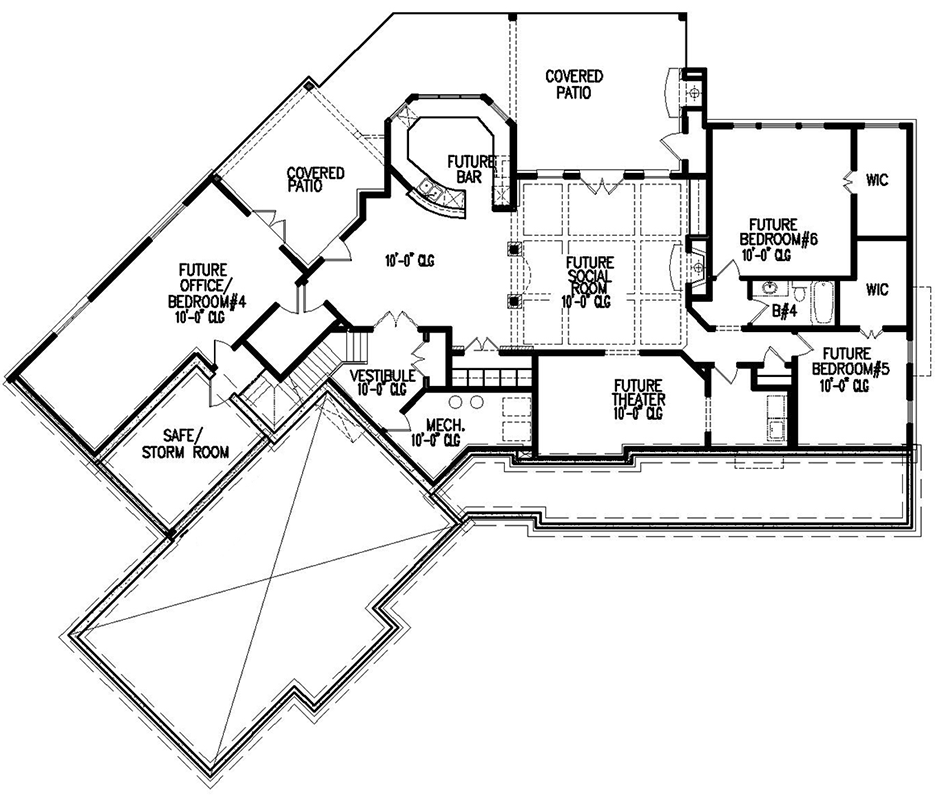

Angled Garage with Bonus Space Above - 25639GE floor plan - Optional Lower Level

Plan details



Angled Garage with Bonus Space Above

  • 2,947

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,495
  • CAD $3,345
  • View all purchase option online

About This Plan

  • Elegant gables with decorative wood trim and a beautiful covered entry flanked by two matching dormers greet you to this house plan with upstairs expansion.
  • Richly detailed on the interior, the home offers impressive ceiling treatments, built-ins and a barrel vaulted master bathroom.
  • The floor plan is an open layout that brings gorgeous sight lines from room to room.
  • In back, the vaulted covered deck boasts an outdoor fireplace.
  • Set away from the luxurious master suite, the other wing of the home offers two bedrooms and a study.
  • A bonus second floor gives you a large space over the garage and an extra bath.
  • Related Plans: Get alternate versions with house plans 25636GE25676GE and 25668GE.

Floor Plans

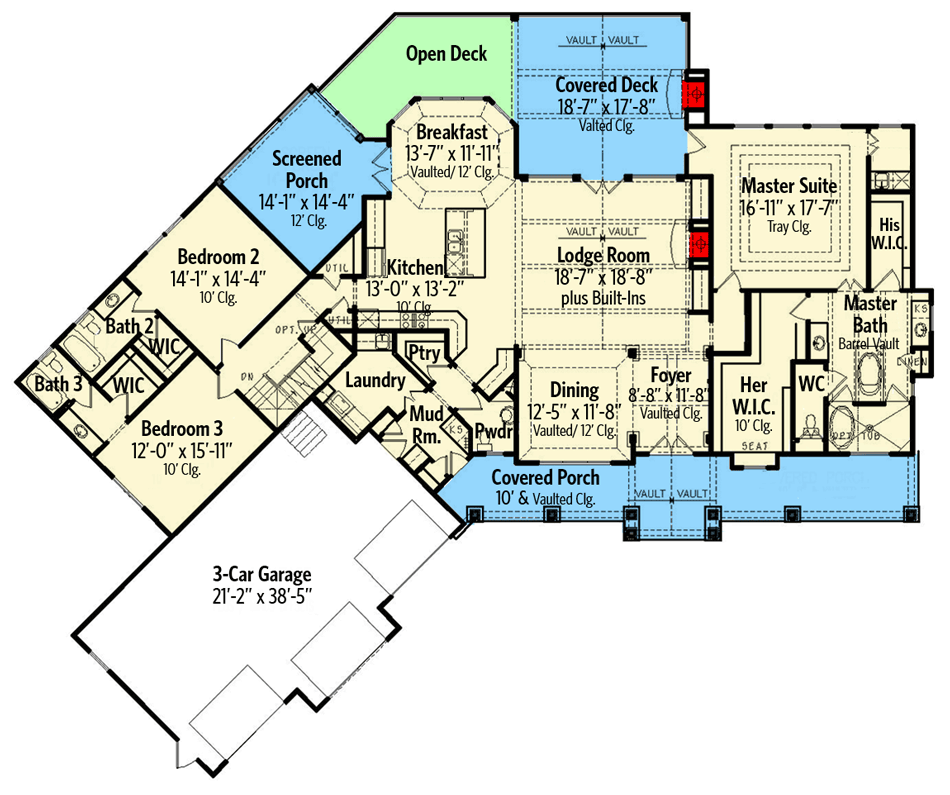

  • Main Level

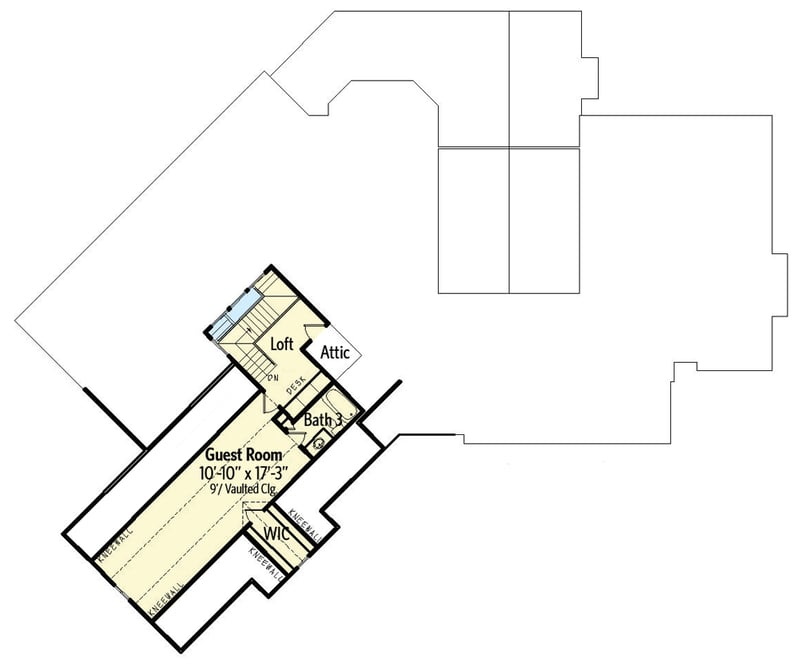

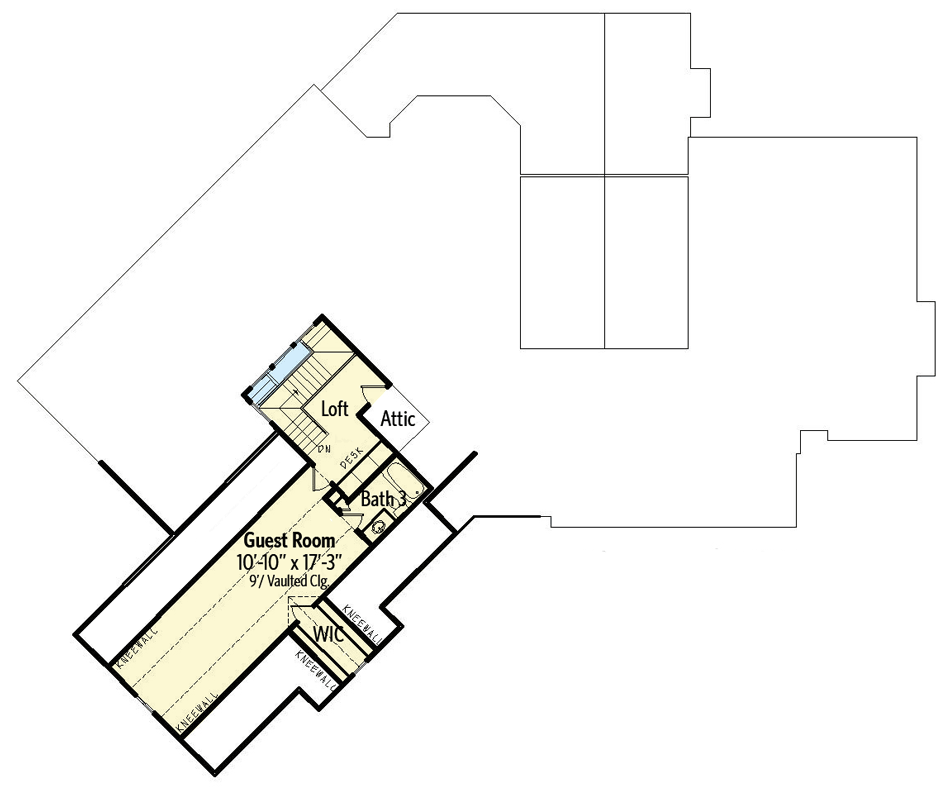

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,947 sq. ft.
  • 1st Floor: 2,947 sq. ft.
  • Bonus: 543 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 100' 10"
  • Depth: 86' 4"
  • Max ridge height: 29' 10"

Garage

  • Type: Attached
  • Area: 860 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Framing Type: Stick
