Attractive Contemporary House Plan

Plan 80866PM

  • 1,092

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • A wonderful blend of exterior materials and a lovely hip roof line make this Contemporary house plan stand out.
  • Transom windows are used throughout the home to bring in extra light.
  • From the large foyer, you step right into the open concept great room that combines the cooking, living and eating areas.
  • Two steps up and you have the bedroom level where two bedrooms share a four piece bathroom.
  • NOTICE:  Please note that there will be a 3 week delivery delay for this plan.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

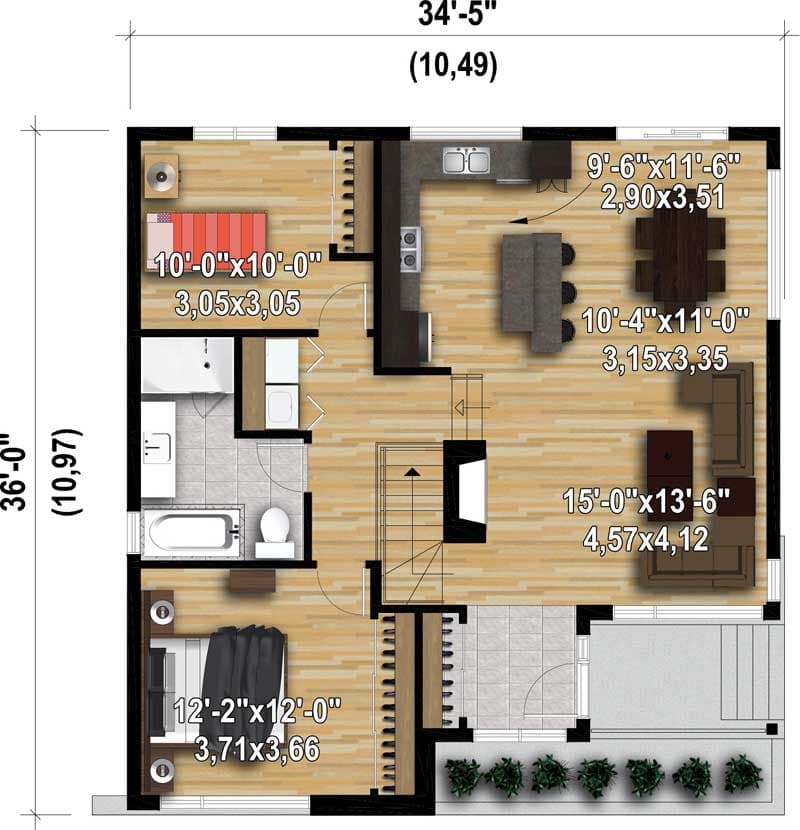

Attractive Contemporary House Plan - 80866PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,092 sq. ft.
  • 1st Floor: 1,092 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 5"
  • Depth: 36' 0"
  • Max ridge height: 21' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room 11' 0"
Dining Room 11' 0"
Kitchen 11' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Attractive Contemporary House Plan

  • 1,092

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors
