Plan 5105MM

Attractive Traditional Ranch Home Plan - 1400 Sq Ft

Heated S.F.
1,400
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 5105MM

Main Level
Main Level
Basement Option
Basement Option

Plan 5105MM

M-F 9am-5pm EST |

1-203-761-8500

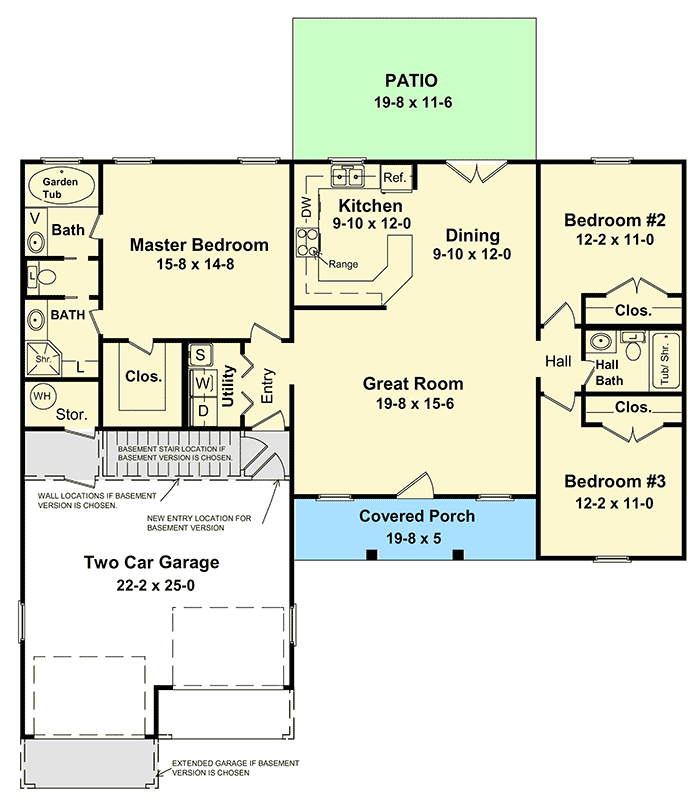

Main Level

Plan 5105MM: Attractive Traditional Ranch Home Plan - 1400 Sq Ft - Floor Plan - Main Level - Ranch, Southern, Traditional

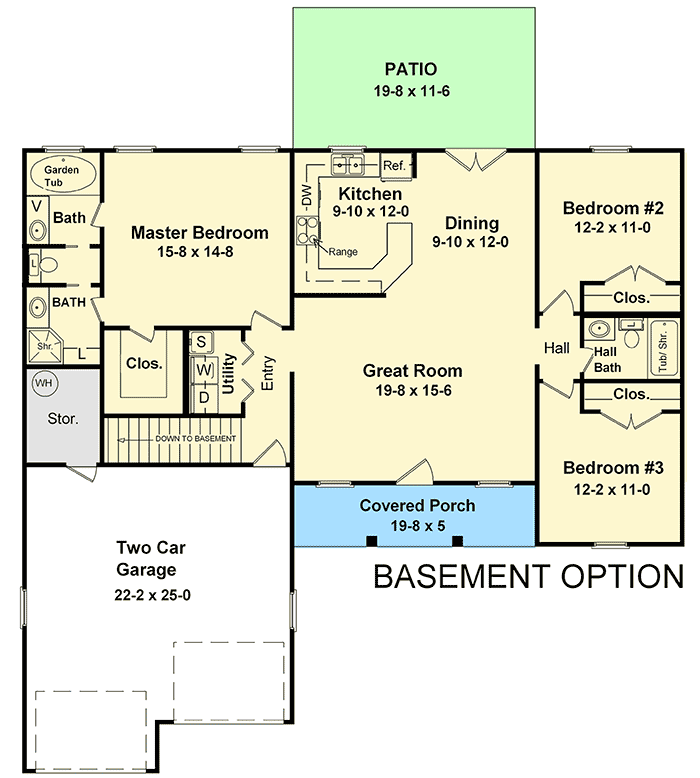

Basement Option

Plan 5105MM: Attractive Traditional Ranch Home Plan - 1400 Sq Ft - Floor Plan - Basement Option - Ranch, Southern, Traditional

Plan Details

  • This attractive ranch home plan offers a lot for its compact size.
  • A gabled front porch with railings adds to the curb appeal and extends the living space along with the rear patio.
  • The main living area is a large open space comprised of the living room, kitchen and dining area.
  • The kitchen features a raised bar and lots of counter space.
  • The master suite maintains its privacy on one side and contains his and her baths.
  • Two additional bedrooms share a bath on the other side of the home plan.
  • Related Plans: Get siding exterior with house plans 51115MM (1,200 sq. ft.), 5107MM and 5108MM and get a brick exterior with house plans 5104MM and 5106MM.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

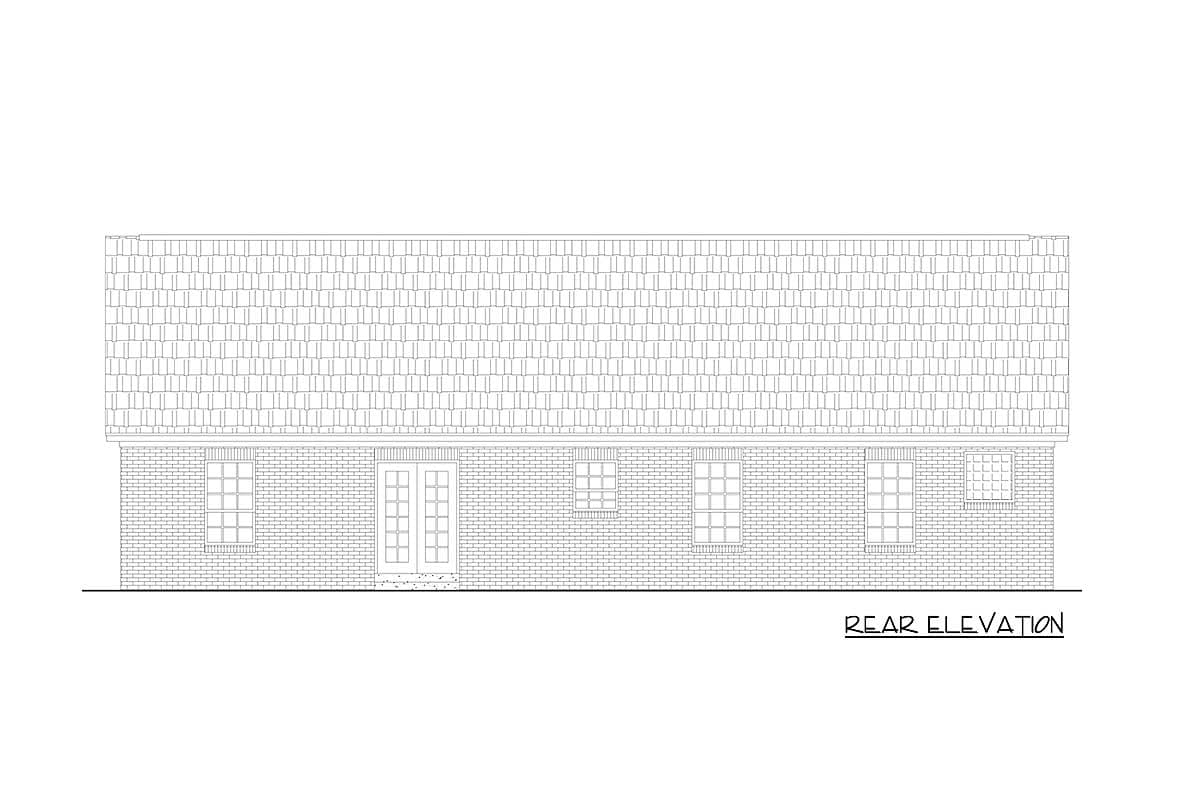

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,400 sq. ft.

1st Floor

1,400 sq. ft.

Porch, Front

98 sq. ft.

Storage

25 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

47' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,400 sq. ft.

1st Floor

1,400 sq. ft.

Porch, Front

98 sq. ft.

Storage

25 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

47' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

USDA Approved
