Attractive Vacation Retreat

Plan 72062DA

  • 1,844

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • While this house plan's rear elevation has the richly windowed, A-frame look typical of a vacation retreat, its front facade and full-featured interior make it equally well suited for year-round residency.
  • Painted shutters and a wide-railed porch give the home a welcoming look. An old-fashioned, wooden porch swing can fit in nicely here. The covered porch wraps around to span the entire left side, and transitions into a V-shaped deck at the rear.
  • Entering, you'll see a stairway on your right, and an expansive, vaulted, two-story great room to your left. A handsome square post connected to an exposed beam marks the passageway into the L-shaped kitchen, straight ahead.
  • Abundant natural light washes into the great room through a bank of windows, stacked three high, plus two atrium doors that provide deck access. Across the room from the doors is a home entertainment center.
  • This home plan's master suite is upstairs, as is a study linked to the vaulted loft.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

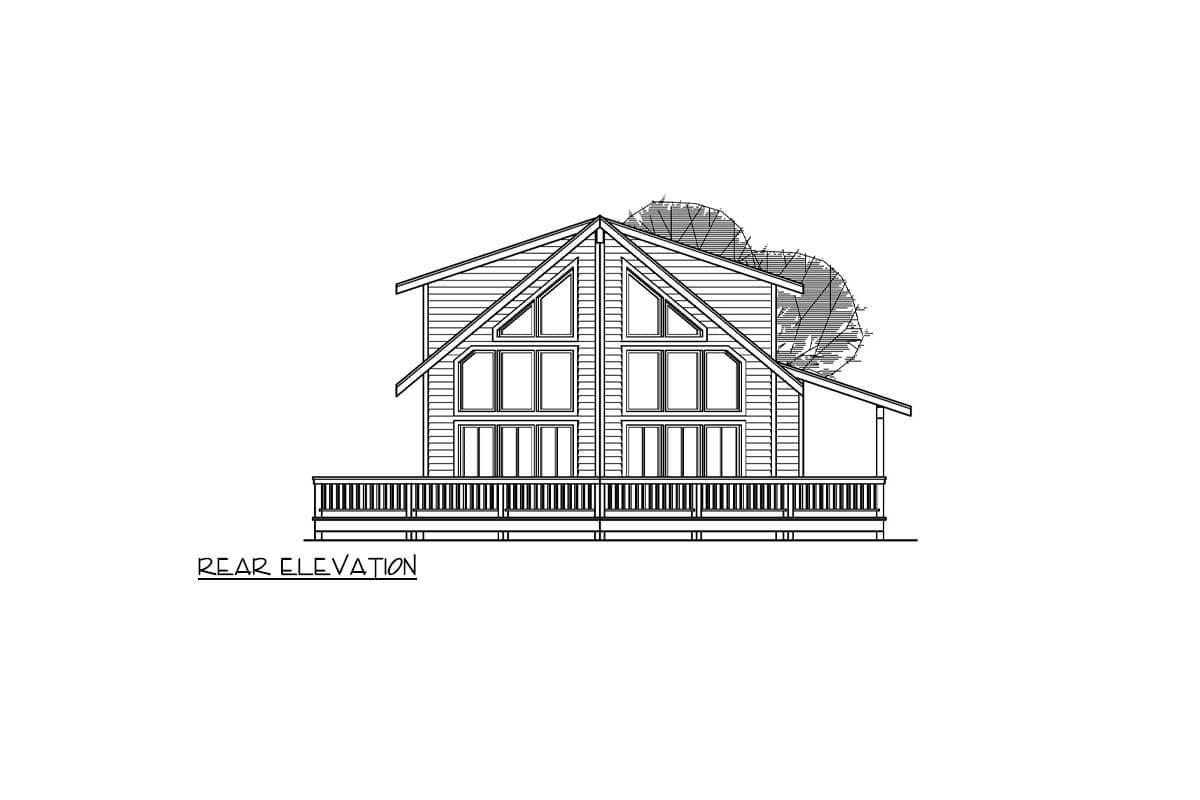

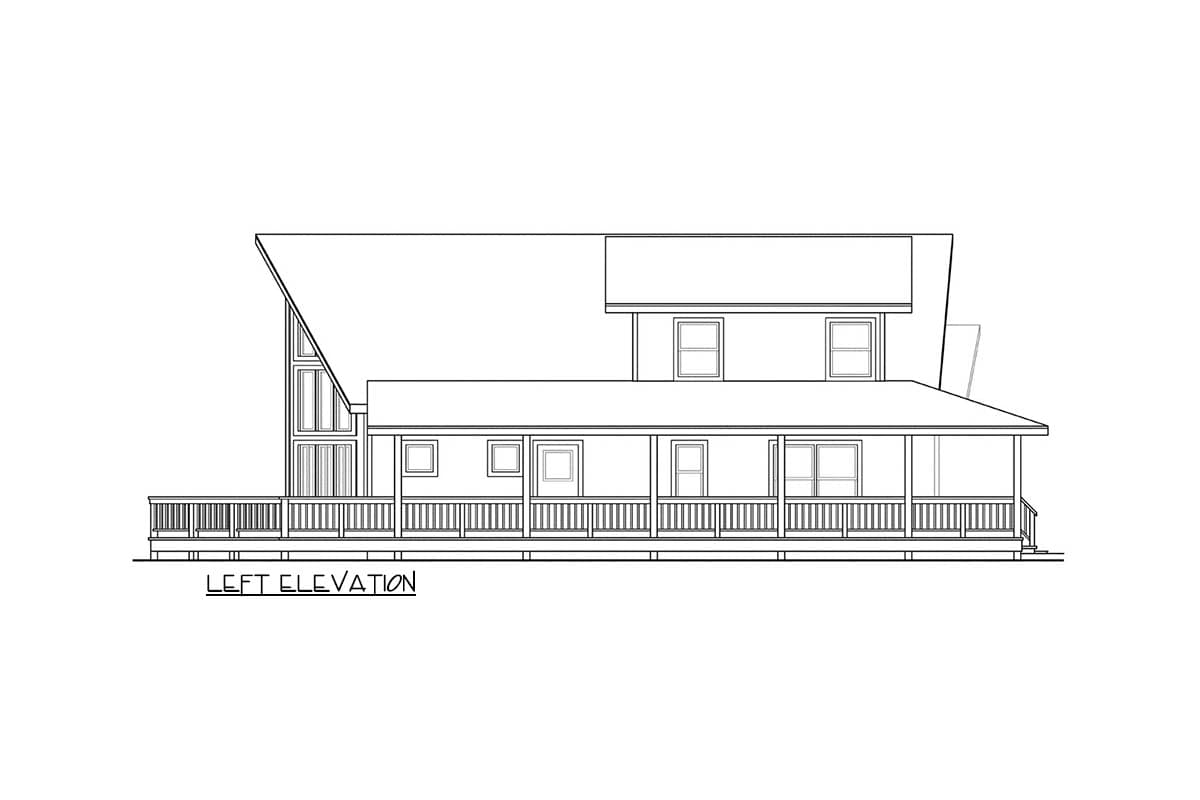

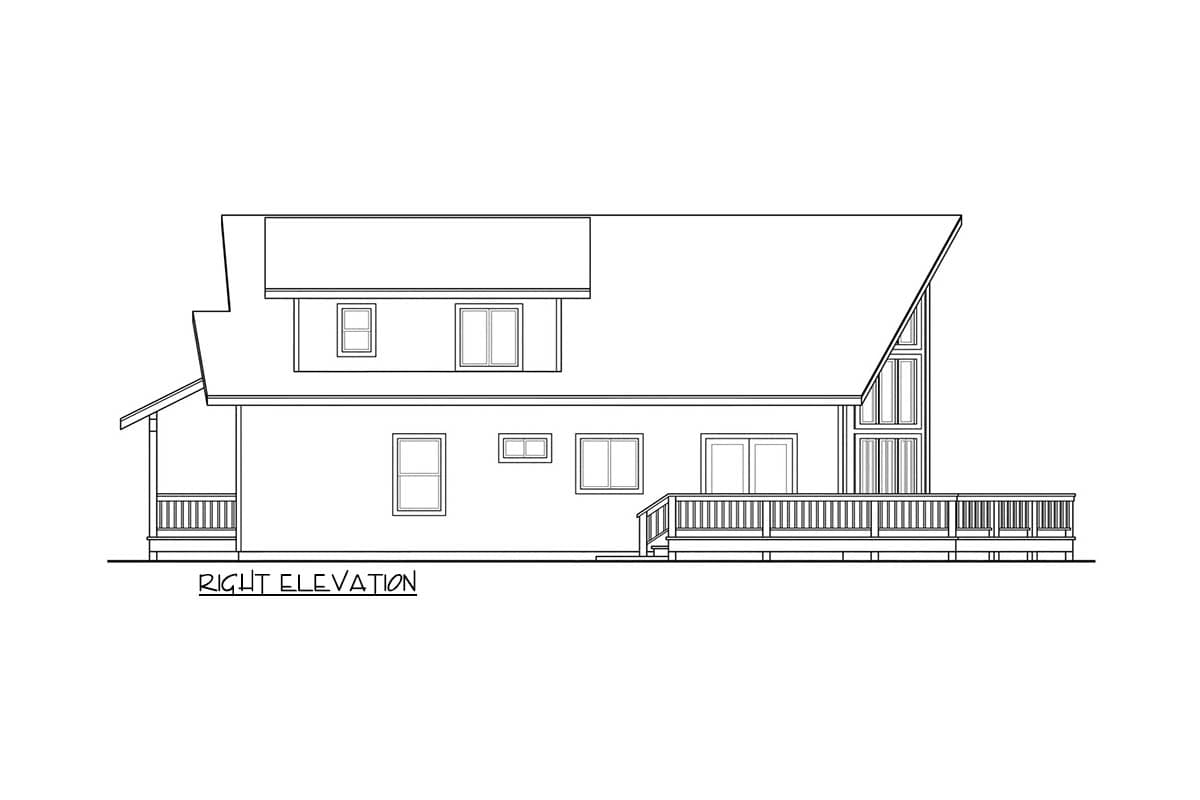

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Plan details



Attractive Vacation Retreat

  • 1,844

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 8 Sets $1,070
  • PDF Plus $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • While this house plan's rear elevation has the richly windowed, A-frame look typical of a vacation retreat, its front facade and full-featured interior make it equally well suited for year-round residency.
  • Painted shutters and a wide-railed porch give the home a welcoming look. An old-fashioned, wooden porch swing can fit in nicely here. The covered porch wraps around to span the entire left side, and transitions into a V-shaped deck at the rear.
  • Entering, you'll see a stairway on your right, and an expansive, vaulted, two-story great room to your left. A handsome square post connected to an exposed beam marks the passageway into the L-shaped kitchen, straight ahead.
  • Abundant natural light washes into the great room through a bank of windows, stacked three high, plus two atrium doors that provide deck access. Across the room from the doors is a home entertainment center.
  • This home plan's master suite is upstairs, as is a study linked to the vaulted loft.

Floor Plans

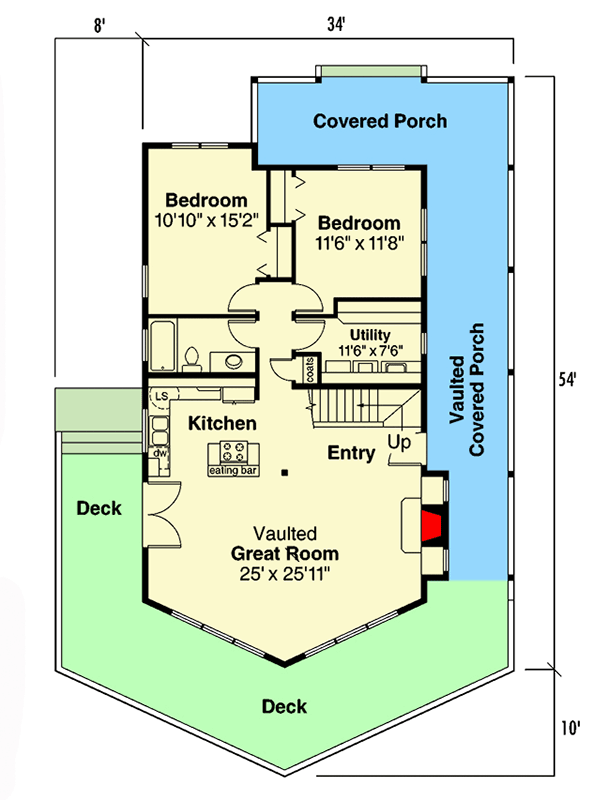

  • Main Level

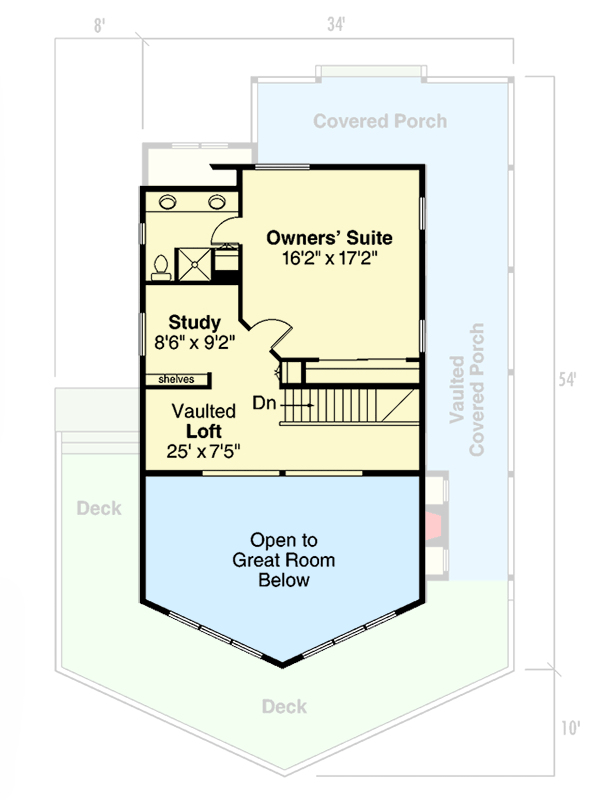

  • 2nd Floor

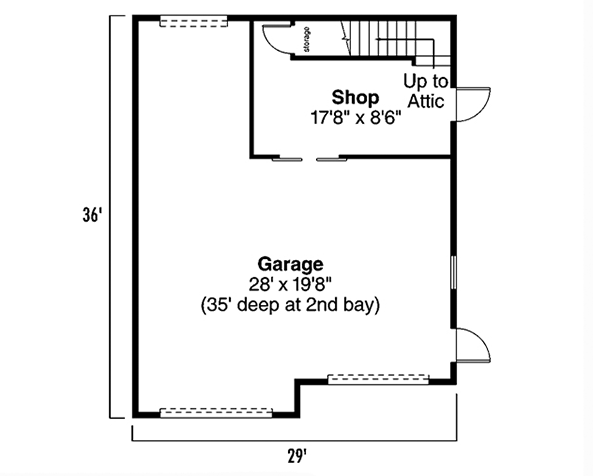

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,844 sq. ft.
  • 1st Floor: 1,159 sq. ft.
  • 2nd Floor: 685 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 54' 0"
  • Max ridge height: 24' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

  • Contemporary
  • Mountain
  • Vacation

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Loft
  • PDF
  • Wrap Around Porch
