Back Woods 3 Bed House Plan

Plan 68401VR

  • 1,814

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

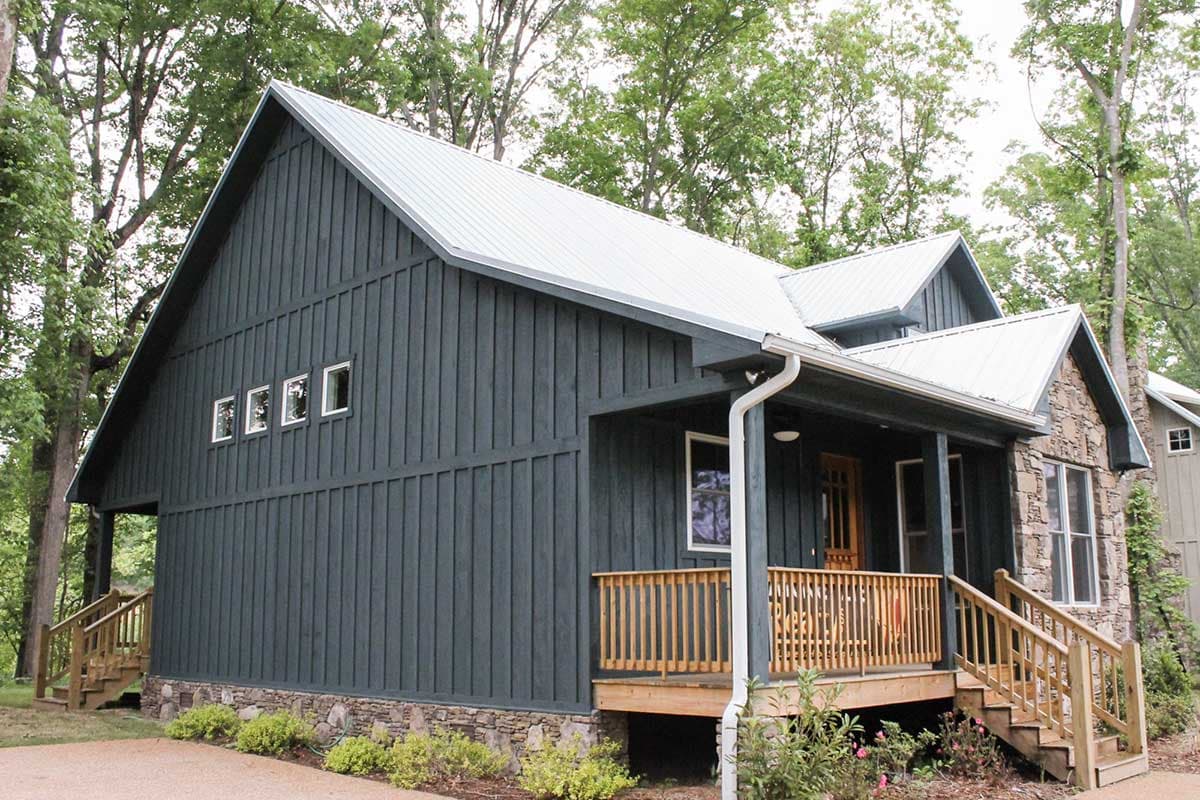

  • This 3 bed house plan has two master suites and is perfectly suited for your back woods lot. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.

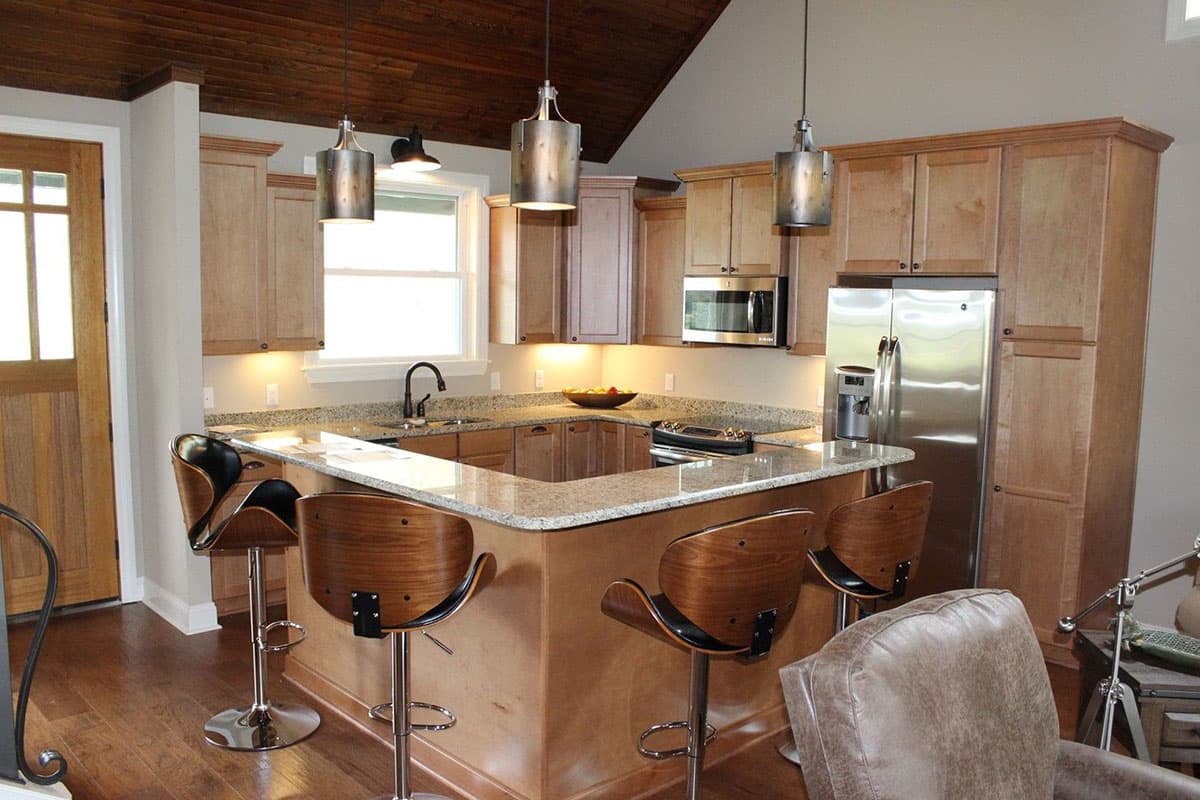

  • The main entry is off the front porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has views on all three walls.
  • The main floor master has back porch access through sliding doors. And the upstairs masters has its own private balcony. Upstairs, a loft area overlooks the vaulted great room below.
  • Related Plans: Get more room with house plan 68505VR and 68540VR (with carport) and an alternate version with house plan 68636VR68431VR and 68539VR in reverse. Get an attached garage with house plans 68430VR 68469VR and 68631VR.

Cover Page

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

Floor Plan

Plan details

Architectural Style

Plan Collections



Back Woods 3 Bed House Plan

  • 1,814

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • Digital Study Set $695
  • PDF - single-use $795
  • 5 Sets $825
  • CAD $1,345
  • View all purchase option online

About This Plan

  • This 3 bed house plan has two master suites and is perfectly suited for your back woods lot. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.
  • The main entry is off the front porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has views on all three walls.
  • The main floor master has back porch access through sliding doors. And the upstairs masters has its own private balcony. Upstairs, a loft area overlooks the vaulted great room below.
  • Related Plans: Get more room with house plan 68505VR and 68540VR (with carport) and an alternate version with house plan 68636VR68431VR and 68539VR in reverse. Get an attached garage with house plans 68430VR 68469VR and 68631VR.

Floor Plans

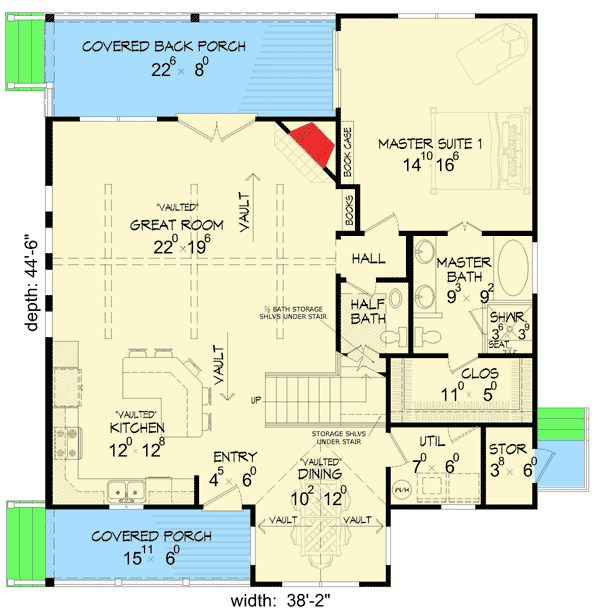

  • Main Level

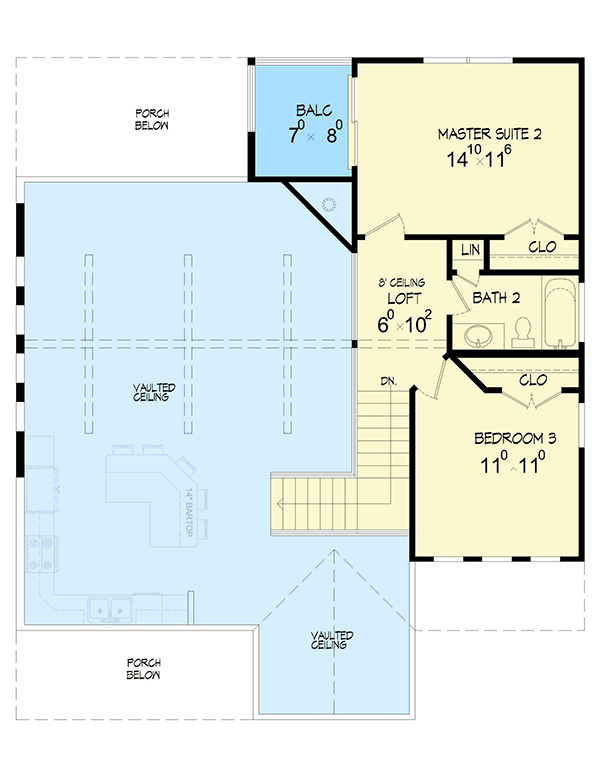

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,814 sq. ft.
  • 1st Floor: 1,329 sq. ft.
  • 2nd Floor: 485 sq. ft.
  • Storage: 26 sq. ft.
  • Balcony / Veranda: 56 sq. ft.
  • Porch, Combined: 276 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 2"
  • Depth: 44' 6"
  • Max ridge height: 26' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
