Plan 68683VR
Barn-Like Detached 1400 Sq Ft RV-Friendly Garage Plan with Storage Above
Heated S.F.
913
Stories
2
Cars
4
What's Included
Plan Details

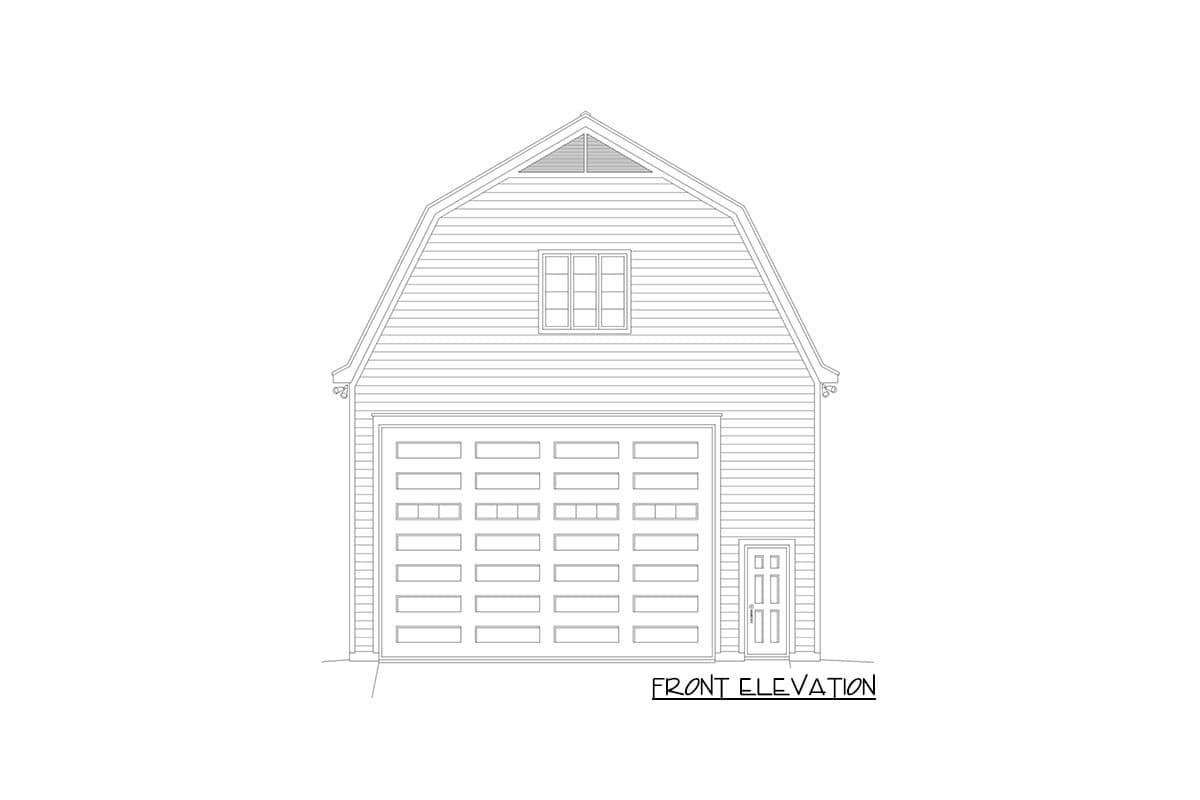

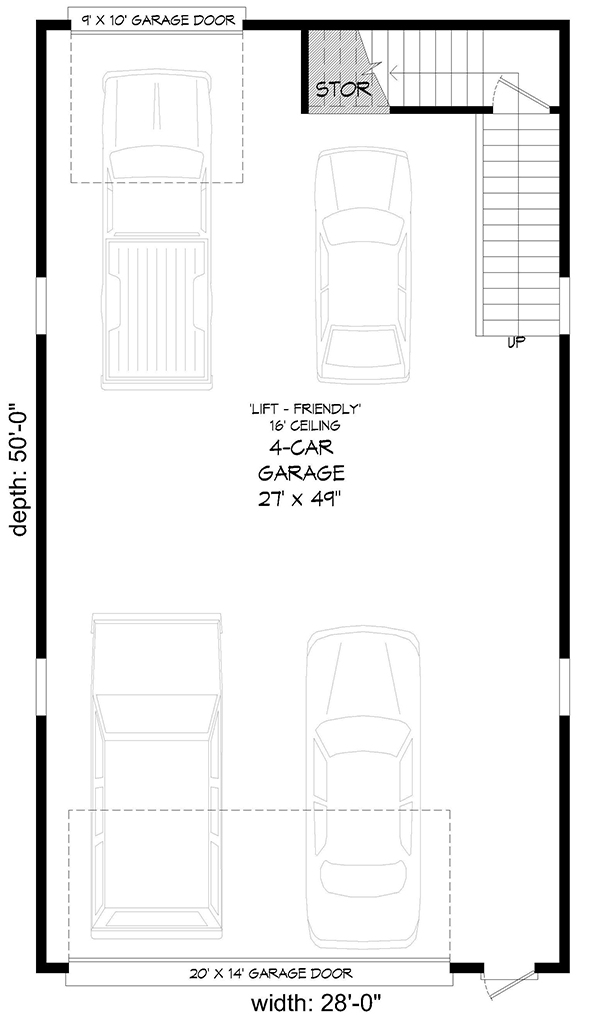

  • This detached RV-friendly garage plan has a barn-like appearance and gives you space to comfortably park your RV with its 14'-high door and 16' clearance inside.

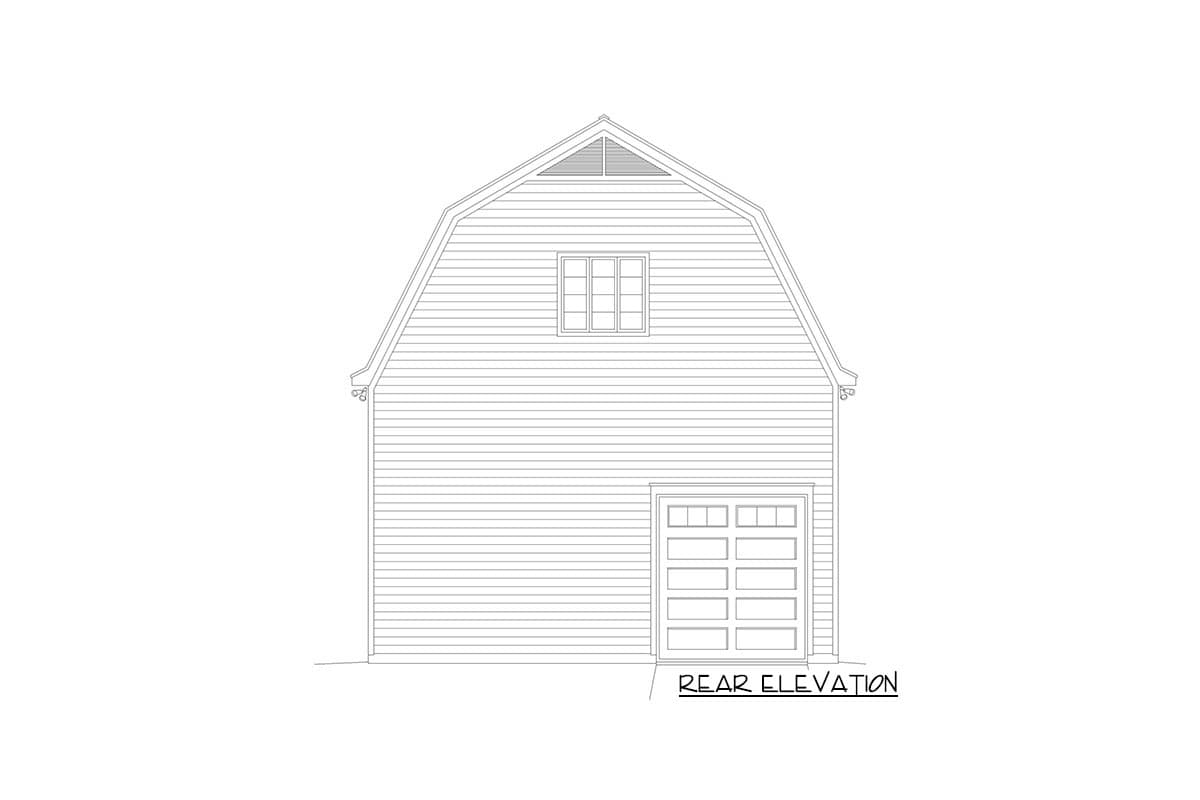

  • A single 20' by 14' garage door  in front and a 9' by 10' garage door in back gives you drive through capability.

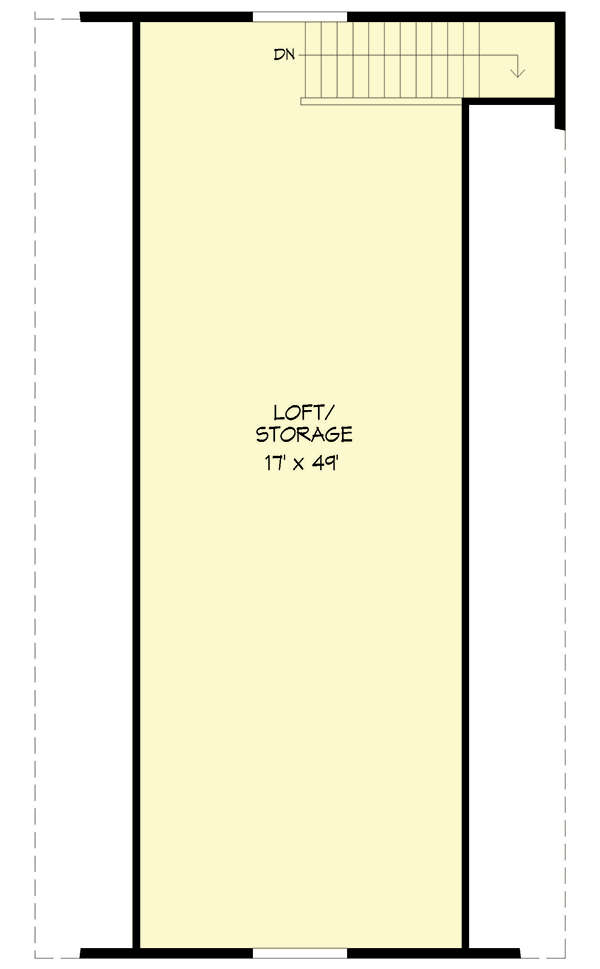

  • Stairs along the right wall take you to a large open loft.
  • Related Plans: Get two 9' by 10' garage doors with garage plan 68684VR and get a 1-bed apartment above the garage with plan 680177VR and a 2-bed apartment with 680179VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barn-Like Detached 1400 Sq Ft RV-Friendly Garage Plan with Storage Above

  • 913

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 913 sq. ft.
  • 2nd Floor: 913 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 50' 0"
  • Max ridge height: 31' 10"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: RV Garage, Detached
  • Area: 1400 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 16' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 24 on 12
  • Framing Type: Truss
