Barn-like Detached Garage Plan with Storage Above

Plan 68684VR

  • 913

    Heated s.f.

  • 2

    Stories

  • 4

    Cars

  • This detached garage plan has a barn-like appearance and gives you space to comfortably park 4 vehicles in tandem fashion.
  • Two 9' by 10' garage doors are located in front and a third 9' by 10' garage door in the back-left wall gives you drive-through accessibility.
  • Stairs along the right wall take you to a large open loft.
  • Related Plans: Get a single 20' by 14' garage door in front with garage plan 68683VR. Get a 1-bed apartment above the garage with plan 680177VR and a two bed apartment with plan 680179VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

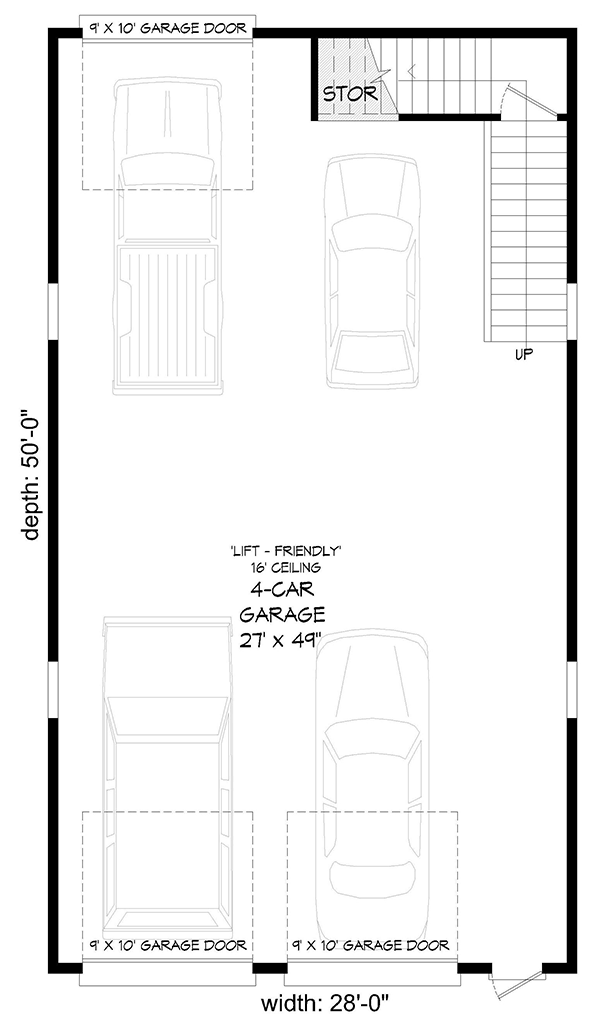

Barn-like Detached Garage Plan with Storage Above - 68684VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

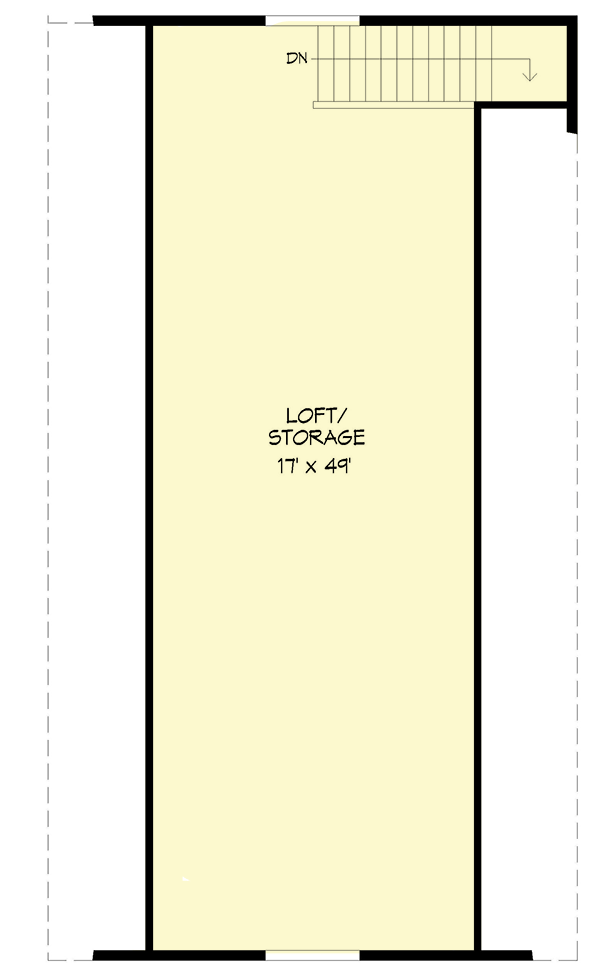

Barn-like Detached Garage Plan with Storage Above - 68684VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 913 sq. ft.
  • 2nd Floor: 913 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 50' 0"
  • Max ridge height: 31' 10"

Garage

  • Type: RV Garage, Detached
  • Area: 1400 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 16' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 24 on 12
  • Framing Type: Truss
