Plan 680179VR
RV Garage with 1062 Square Foot 2-Bed Apartment Above
Heated S.F.
1,062
Beds
2
Baths
1
Stories
2
Cars
4
What's Included
Plan Details

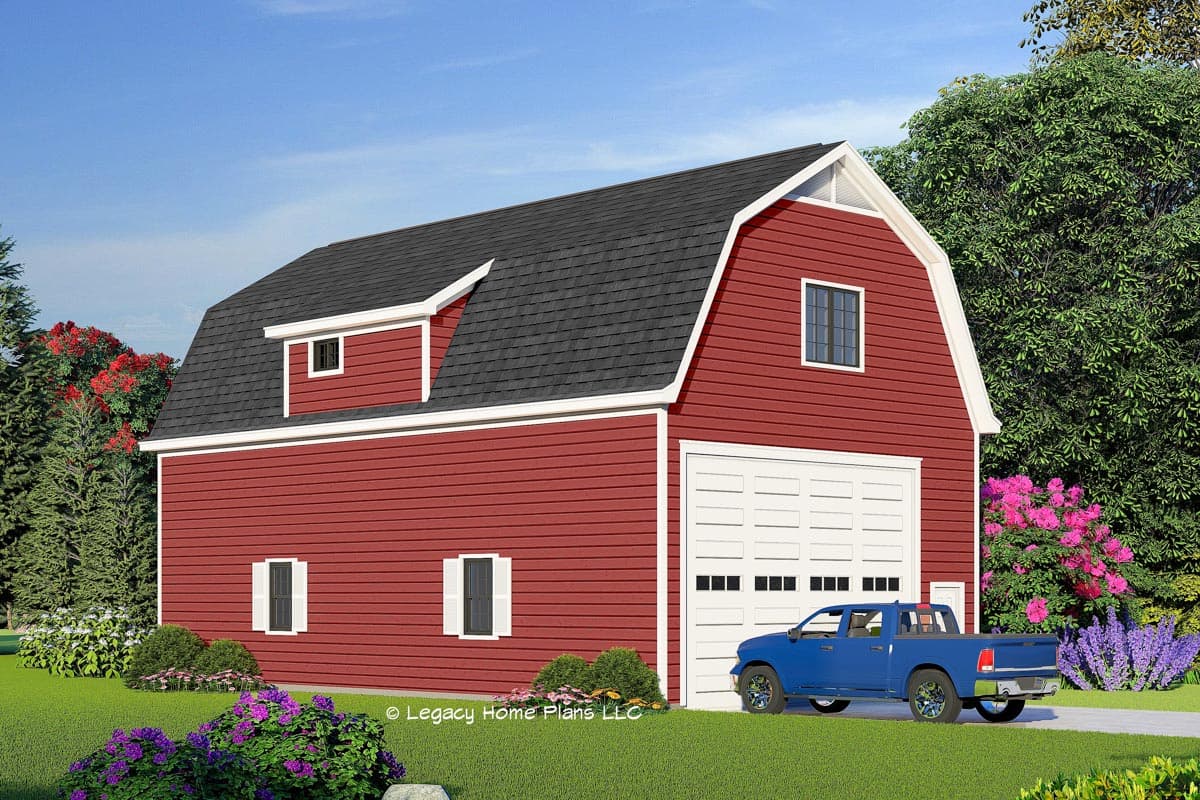

  • This detached garage apartment plan has a barn-like appearance and gives you 1400 square feet of RV-friendly parking space - accessed through a 20'-wide and 14'-high overhead door - with a 1062 square foot 2-bed apartment above.

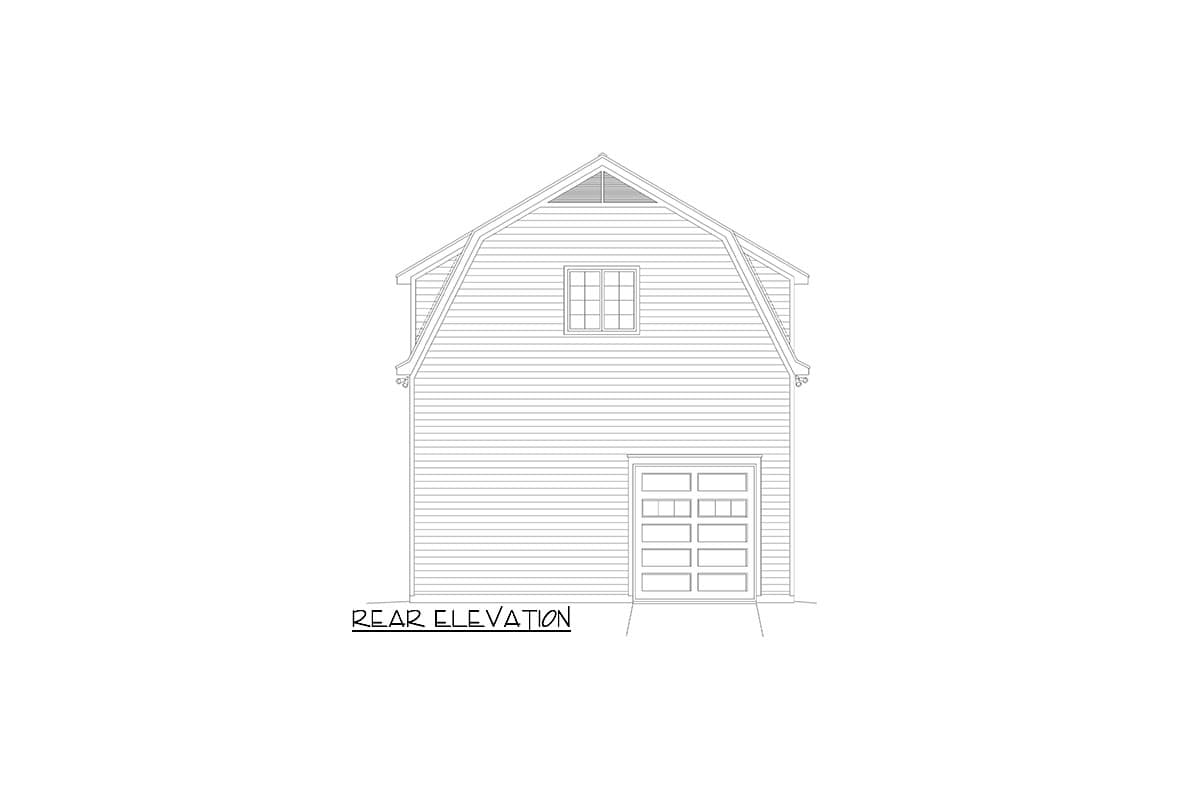

  • A 9' by 10' overhead door in back gives you drive through capability.
  • Stairs along the right wall take you to a large upper level living space that can serve as an ADU for family or guests.
  • Related Plans: Get a one bedroom version with house plan 680177VR. Replace the living space with a loft/storage area with 68683VR and 68684VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

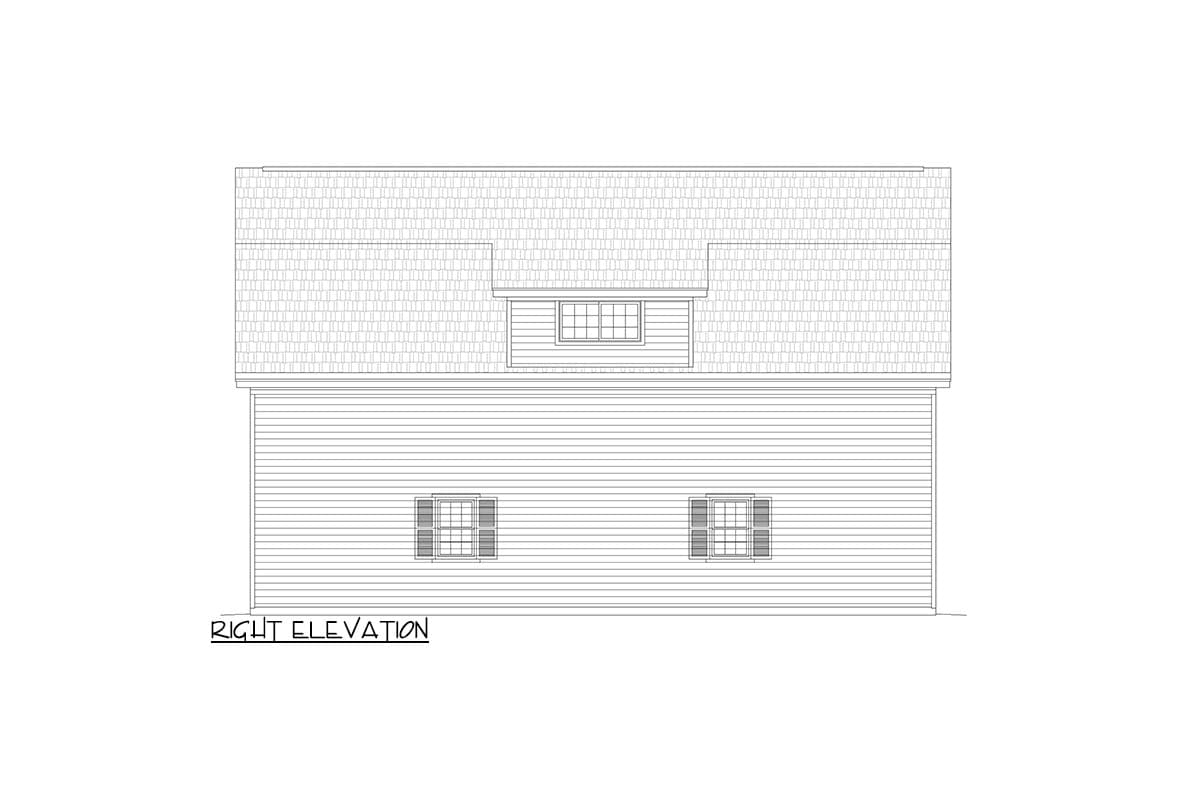

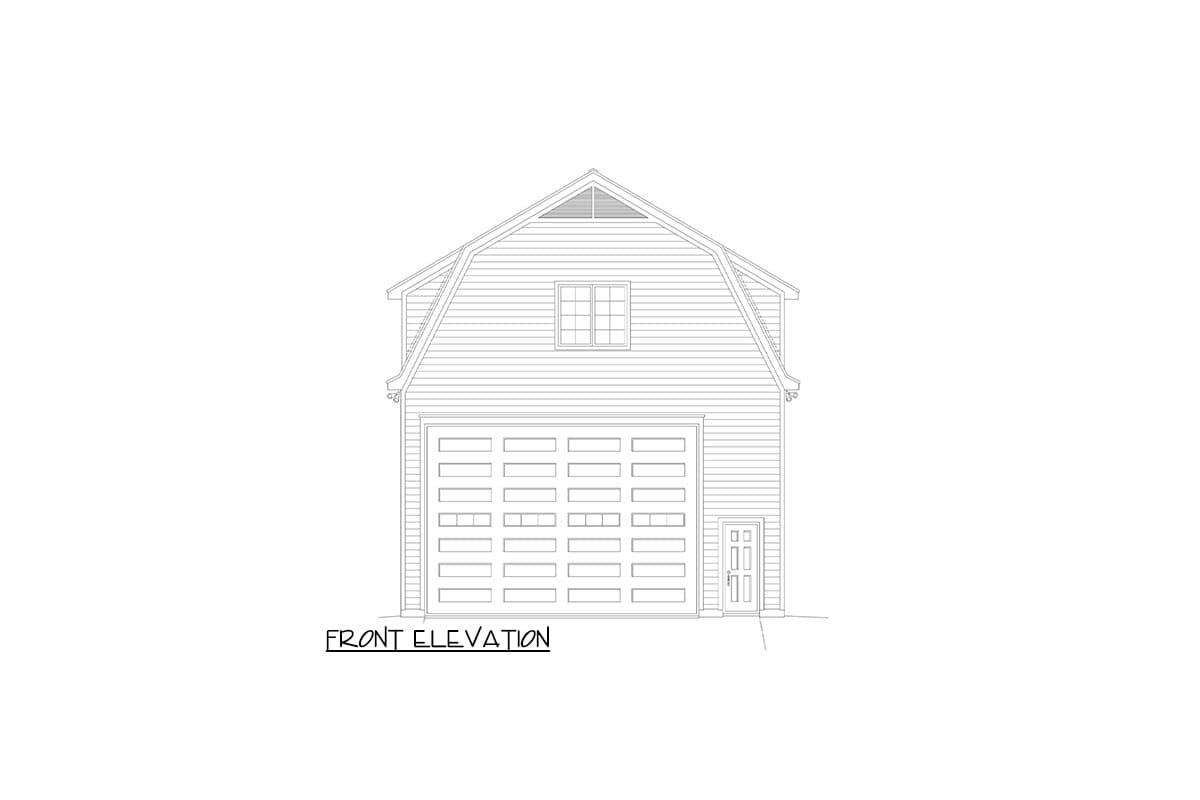

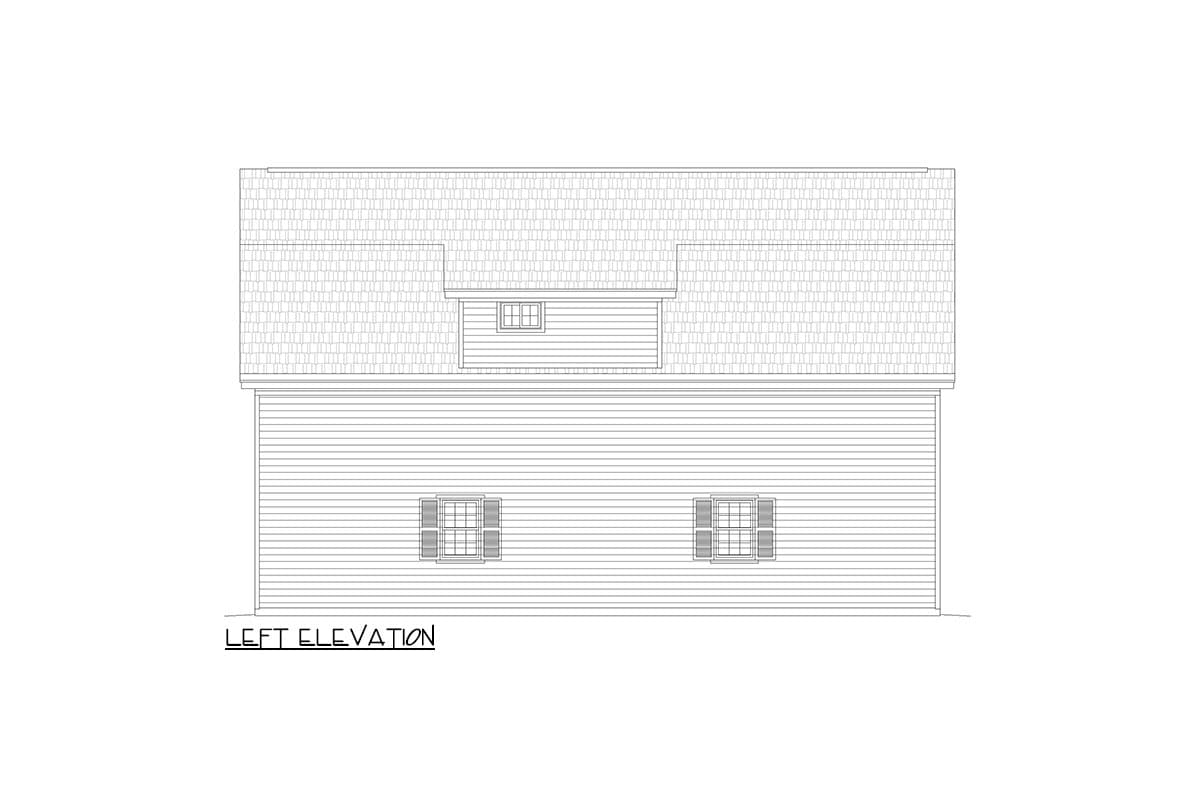

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

RV Garage with 1062 Square Foot 2-Bed Apartment Above

  • 1,062

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

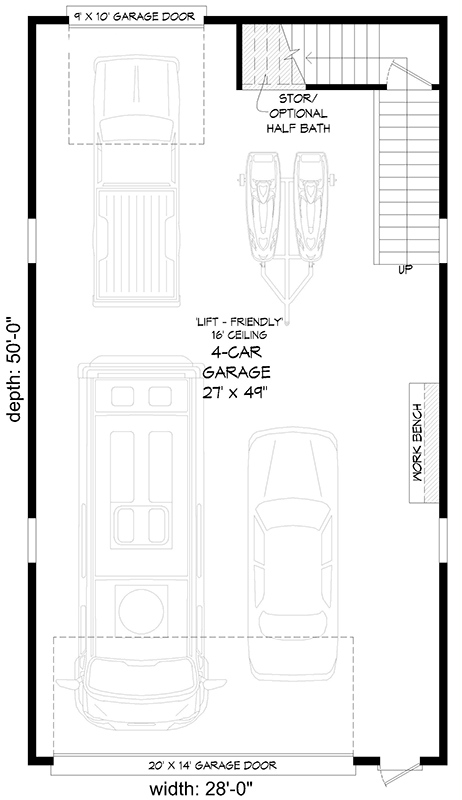

  • Main Level

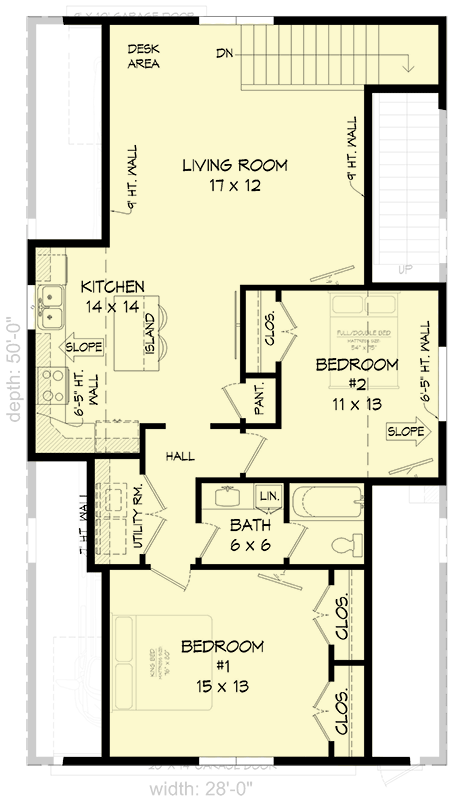

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,062 sq. ft.
  • 2nd Floor: 1,062 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 50' 0"
  • Max ridge height: 31' 10"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 1400 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 16' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 24 on 12
  • Framing Type: Truss
