Plan 72344DA Barn-style Garage Apartment with Office and 3 Actual Stalls

3,096 2 3 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Barn-style Garage Apartment with Office and 3 Actual Stalls

Plan 72344DA

  • 3,096

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Stories

  • This traditional-style barn design features 3 stalls, generous storage, and an office all on the main floor. The mud room contains the laundry room area and has a full bath with a shower as well as a space for a fridge for animal medications.
  • On the second floor there is a full-sized apartment with two bedrooms, each with a connecting full bathroom, bringing the total number of bathrooms in this dual use barn space to three.
  • An open concept kitchen is home to an island for eating, as well as direct access to the second-floor balcony.
  • There is one large 16’ x 10’ garage door in the front, with a pull through 10’ x 10’ garage door in the rear.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

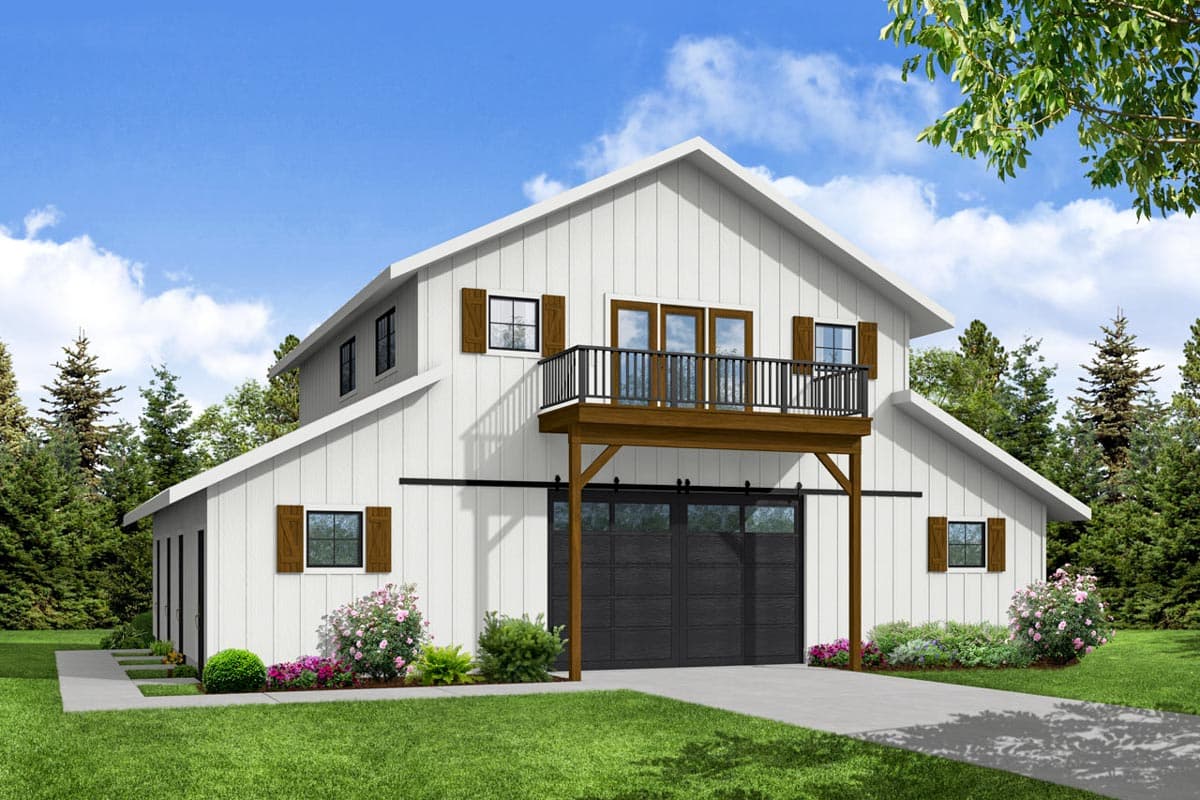

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

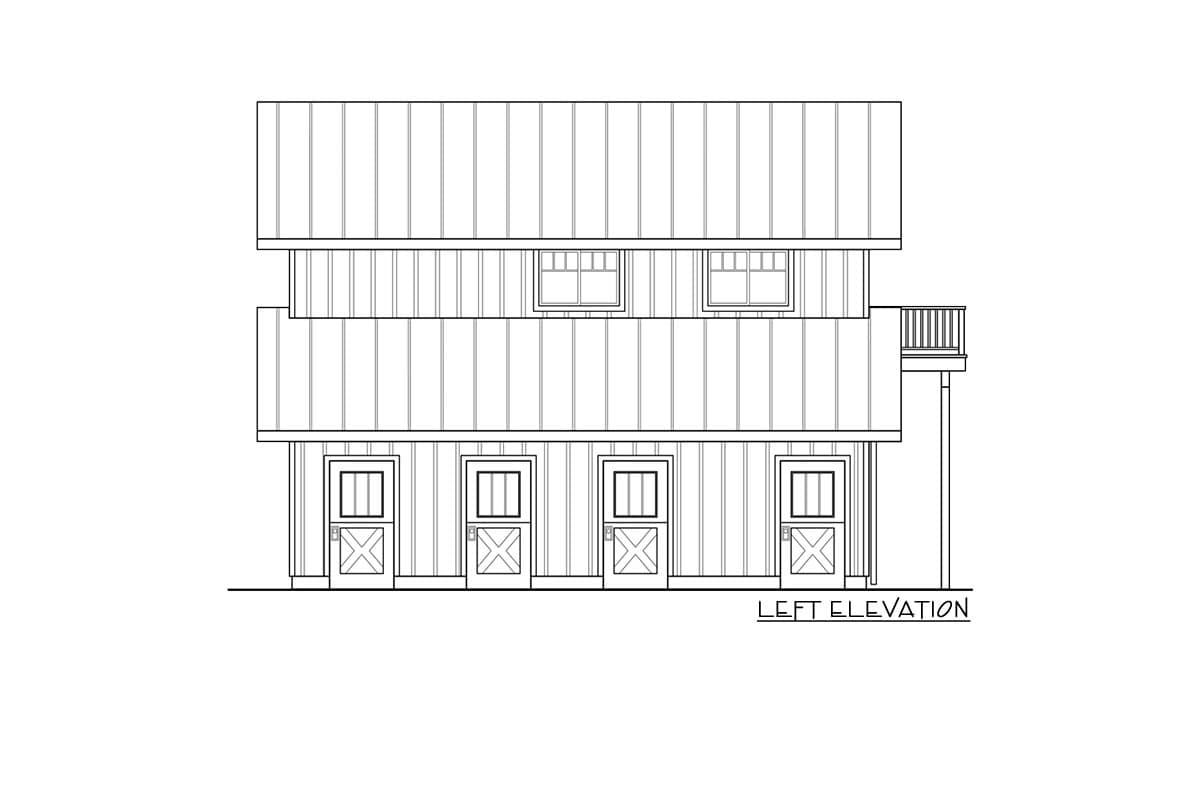

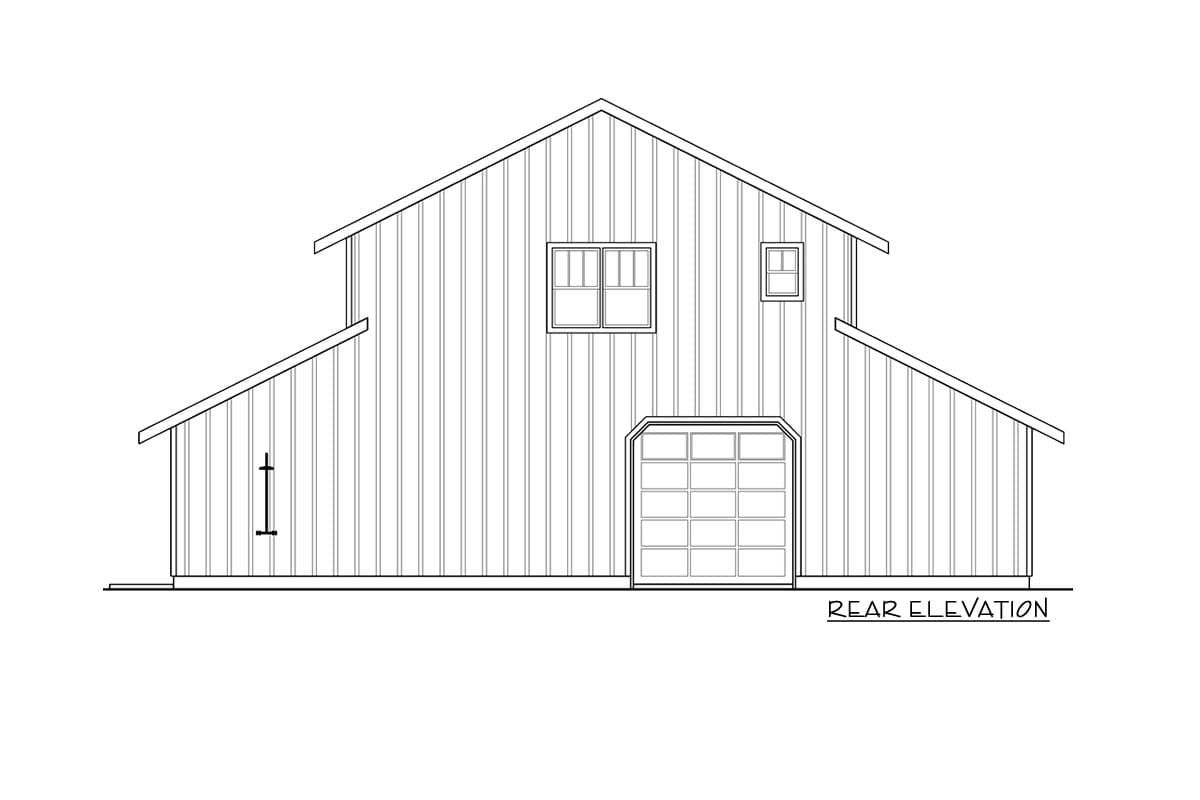

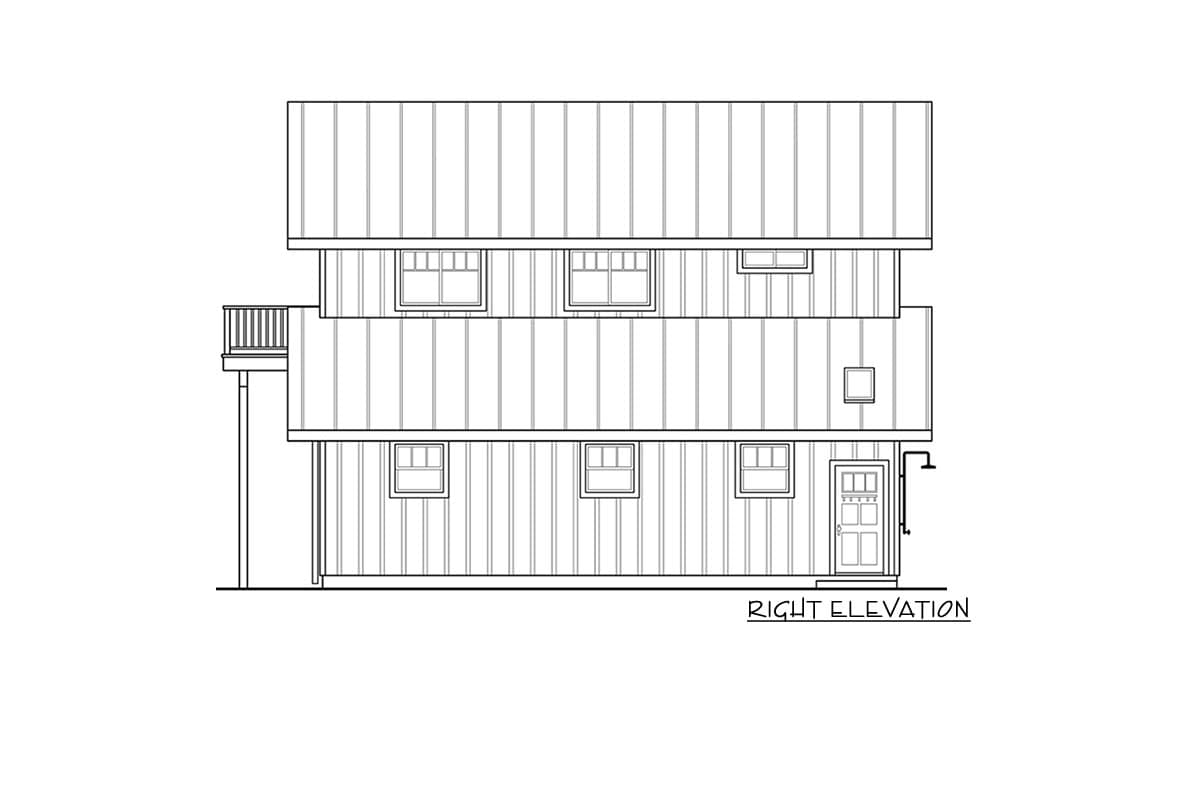

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

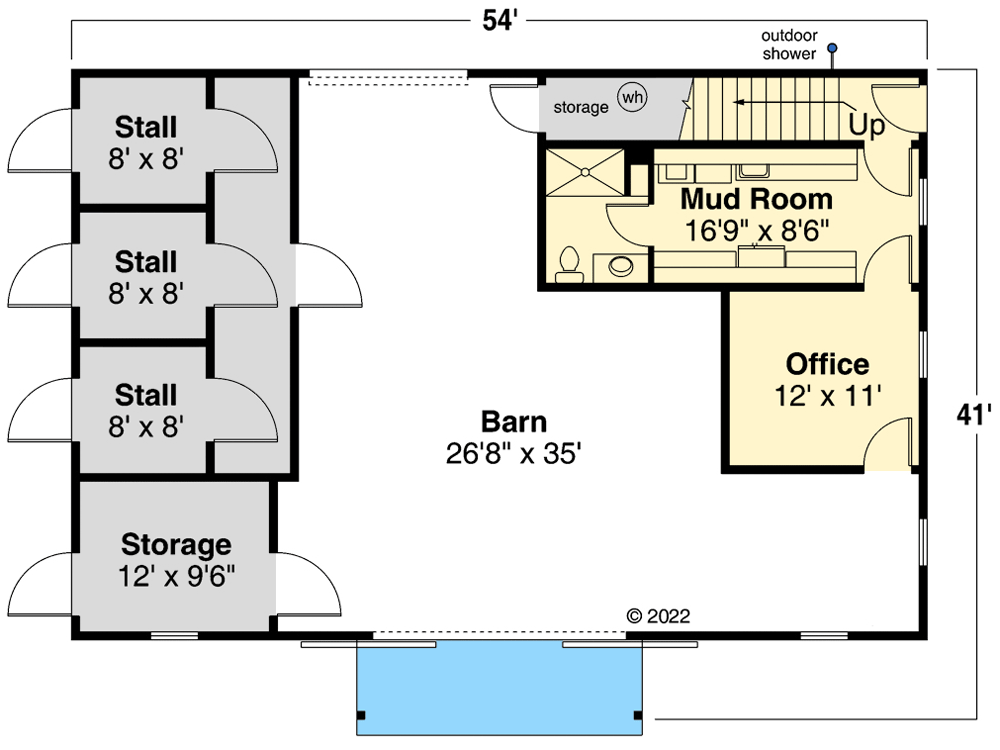

Barn-style Garage Apartment with Office and 3 Actual Stalls - 72344DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

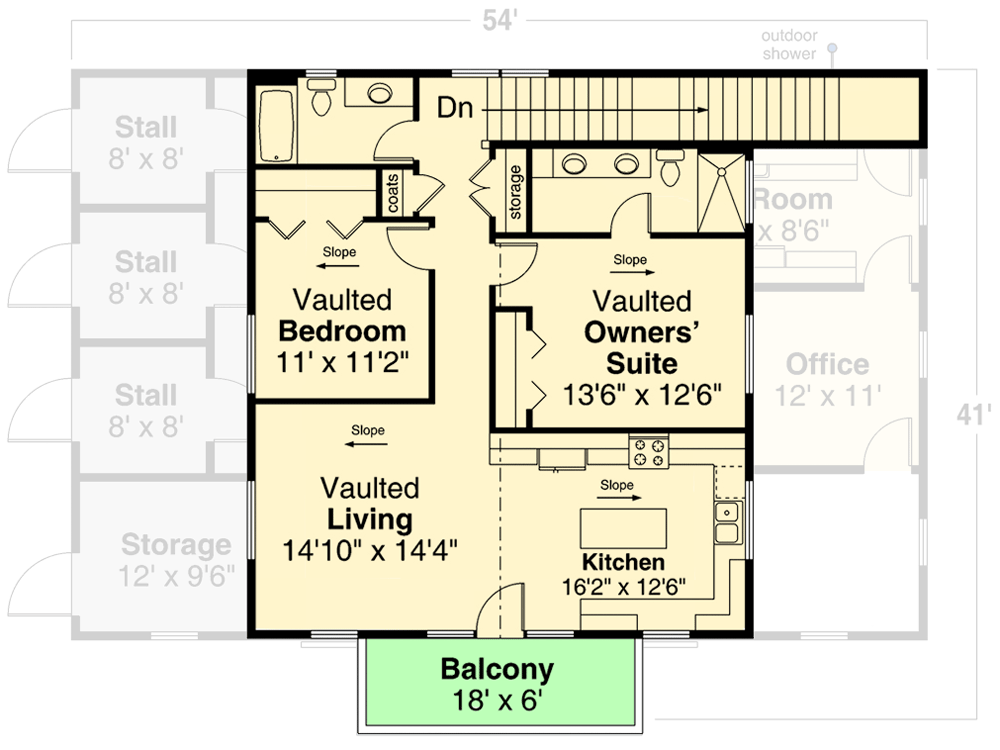

Barn-style Garage Apartment with Office and 3 Actual Stalls - 72344DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,096 sq. ft.
  • 1st Floor: 433 sq. ft.
  • 2nd Floor: 1,152 sq. ft.
  • Barn: 1,511 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 10"

Garage

  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Barn-style Garage Apartment with Office and 3 Actual Stalls

  • 3,096

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF Light $515
  • 5 Sets + PDF Light $630
  • PDF - Single-Build $985
  • CAD - Single-Build $1,095
  • CAD - Unlimited Build $1,205
  • View all purchase option online

About This Plan

  • This traditional-style barn design features 3 stalls, generous storage, and an office all on the main floor. The mud room contains the laundry room area and has a full bath with a shower as well as a space for a fridge for animal medications.
  • On the second floor there is a full-sized apartment with two bedrooms, each with a connecting full bathroom, bringing the total number of bathrooms in this dual use barn space to three.
  • An open concept kitchen is home to an island for eating, as well as direct access to the second-floor balcony.
  • There is one large 16’ x 10’ garage door in the front, with a pull through 10’ x 10’ garage door in the rear.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,096 sq. ft.
  • 1st Floor: 433 sq. ft.
  • 2nd Floor: 1,152 sq. ft.
  • Barn: 1,511 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 10"

Garage

  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
Plan 72344DA
