Barndominium-Style Craftsman Carriage House With 2-Beds and Dedicated Workshop Bay
Heated S.F.
1,339
Beds
2
Baths
2.5
Stories
2
Cars
4
What's Included
Plan Details
  • This carriage house plan features a rustic barn-style craftsman exterior, a generous 1,339 square foot 2-bedroom apartment above a 4-car tandem garage with oversized attached workshop.

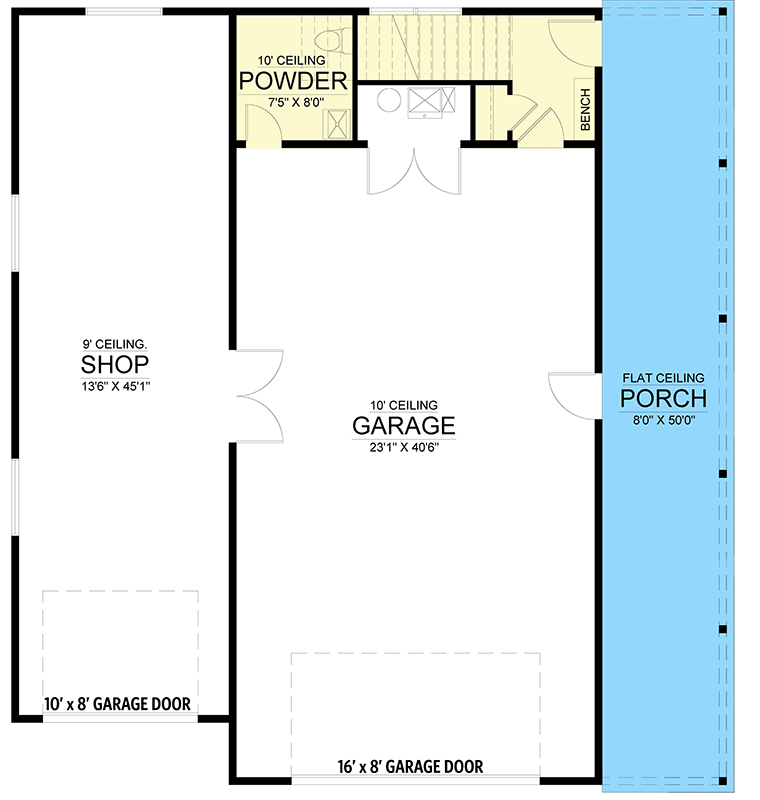

  • The garage is partitioned off from the workshop bay, with entry through a double door. At the rear of the garage there is a dedicated 1/2 bath with a separate entrance from the apartment.
  • Enter the apartment mudroom living space through the garage or from the exterior side door. A coat closet and drop-zone bench offer ample storage.

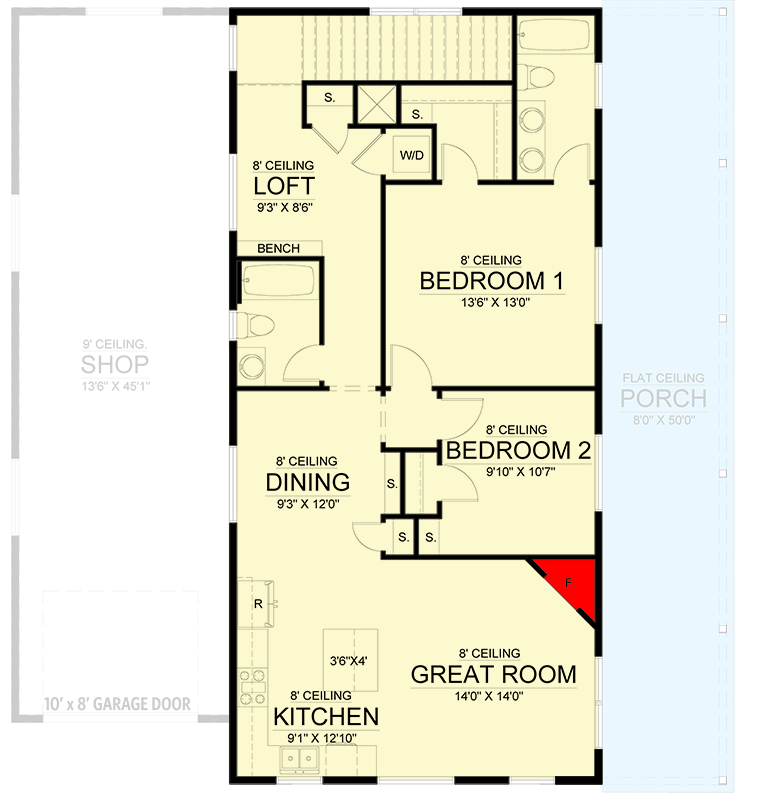

  • At the top of the stairs you enter the living area though a flexible loft space with built in bench could be used as an office or reading nook.
  • Two closets are located in in the loft, one for storage and the other for a stacked washer/dryer provide laundry for the unit.
  • You pass a full bath and enter the dedicated dining area, complete with built-in shelving for convenient dish storage and extra pantry space and is open to the kitchen.
  • An L-shaped kitchen features a center island with room for seating. The cozy corner fireplace warms the great room with sight-lines kitchen.
  • Bedrooms are accessed from a shared vestibule off the dining area.
  • The primary bedroom includes walk-in closet and private ensuite bath. The second bedroom features built-in shelving and a closet.
What's Included
  • Cover sheet with general information
  • Detailed floor plans for each floor

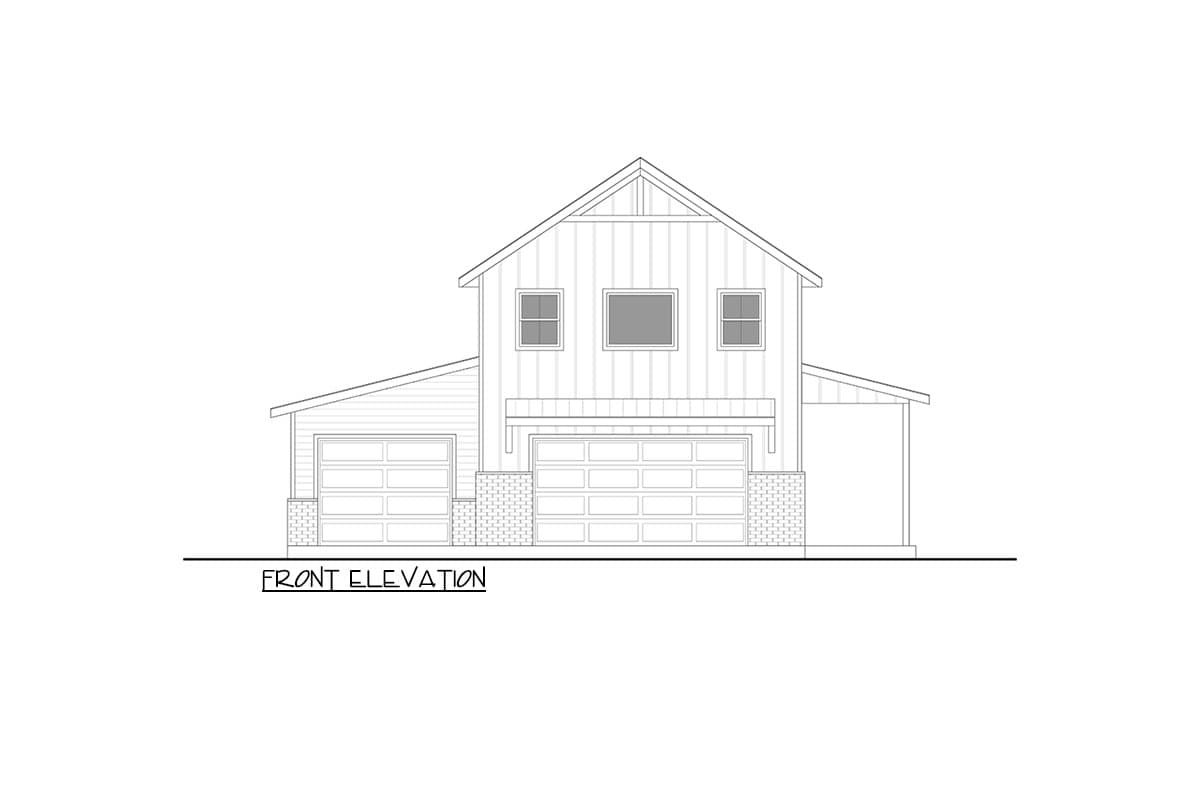

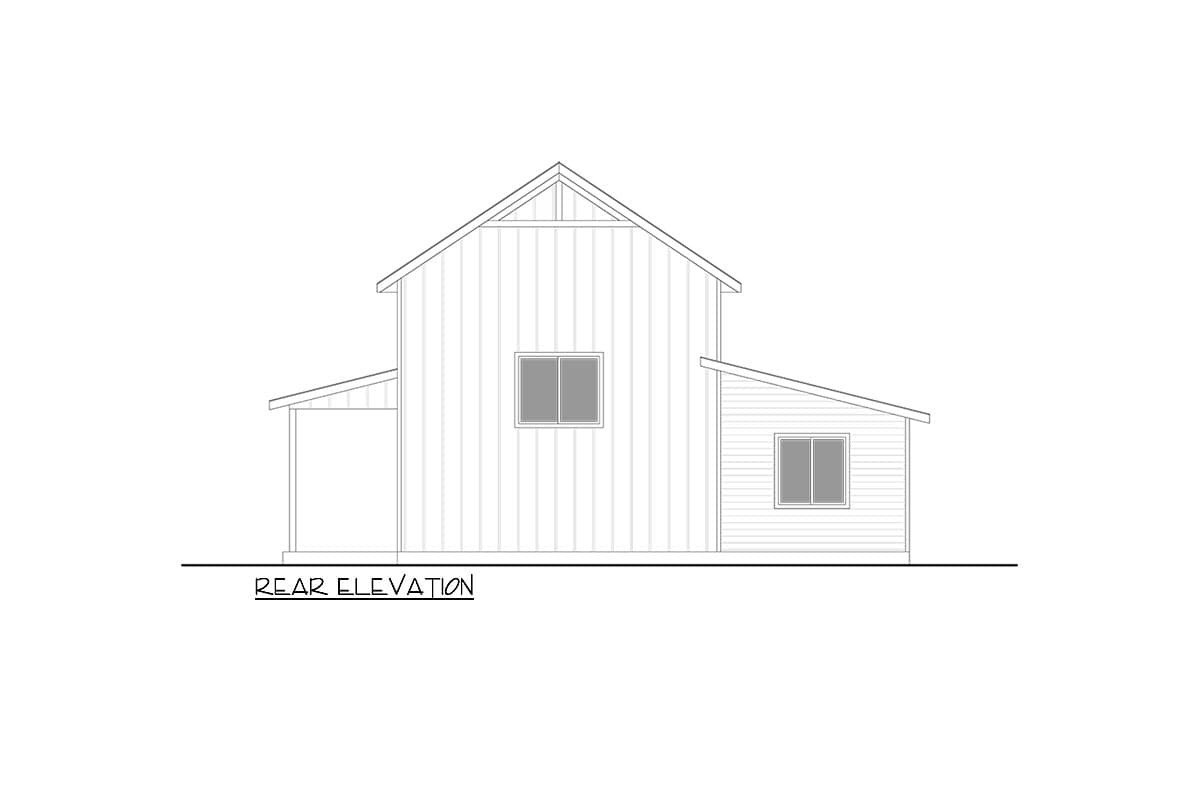

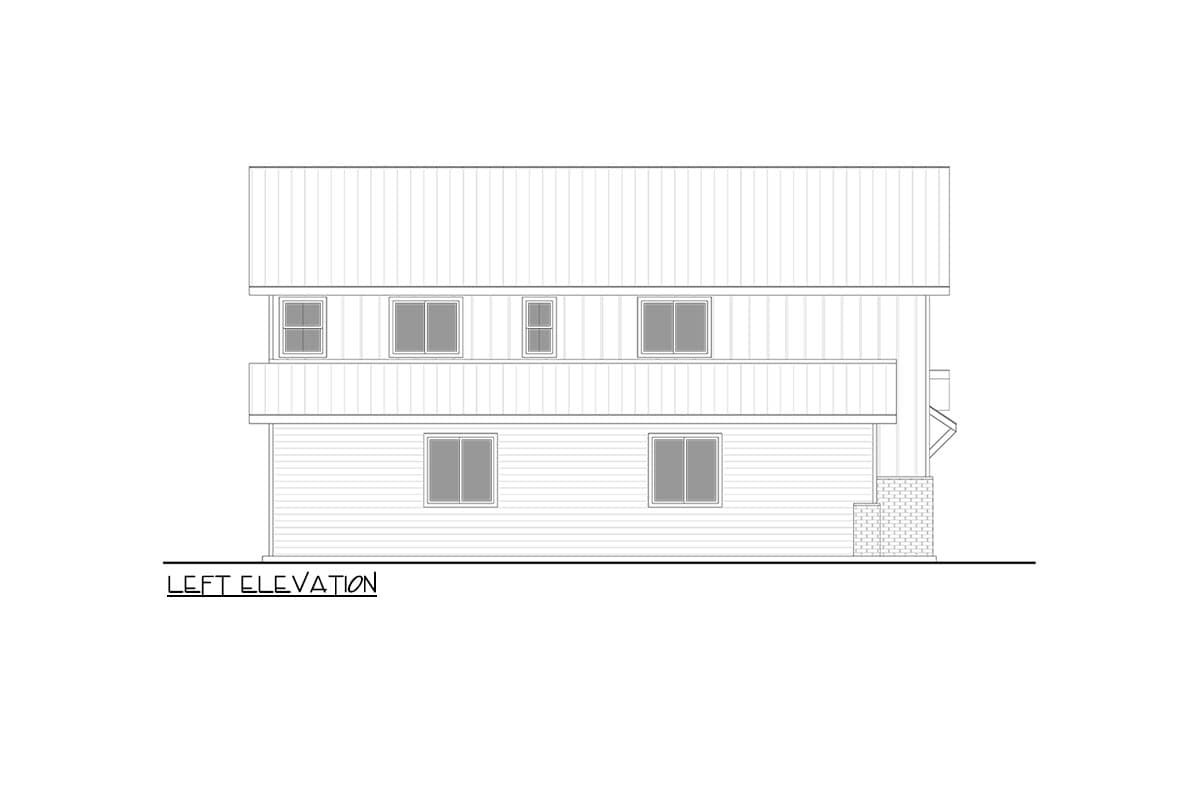

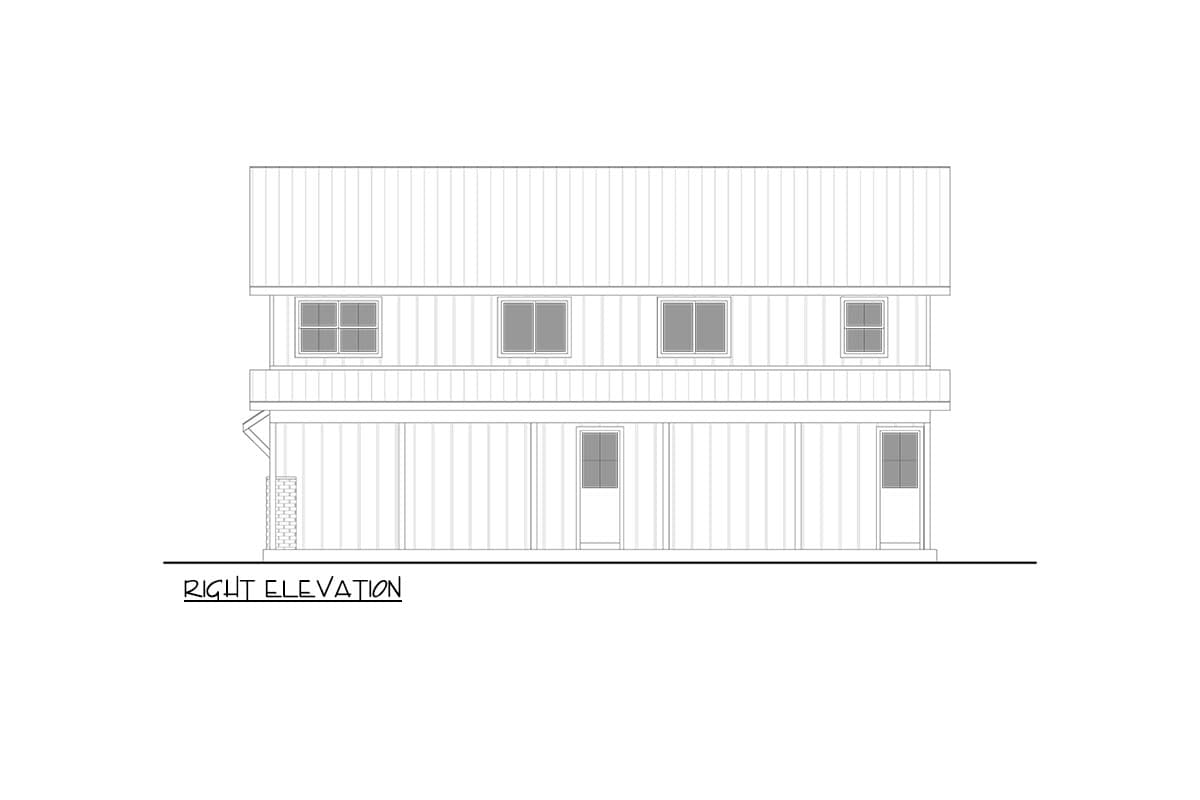

  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
