Barndominium-Style House Plan with Two Open-To-Below Spaces Under 3500 Square Feet
Heated S.F.
3,465
Beds
3
Baths
2.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details
  • Front and rear porches extend from both sides of this Barndominium-style house plan that delivers just under 3,500 square feet of living space.
  • The spacious living room features a two-story ceiling, while a double-sided fireplace serves as a focal point and provides warmth to the living room and eat-in kitchen.
  • A large island with an eating bar invites family and guests to keep the cook company and the nearby service areas are clustered near the garage entrance with plenty of cabinetry for additional storage.
  • A loft and built-in library greet you at the top of the stairs and guide you to three bedrooms. The primary suite includes a 5-fixture bathroom, and 2 family bedrooms share a Jack-and-Jill bath.
  • Above the garage, a vaulted mezzanine overlooks the double garage below and provides a multi-purpose space for the family.
  • Related Plan: Get an alternate version with house plan 270102AF (3,450 sq. ft.).
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

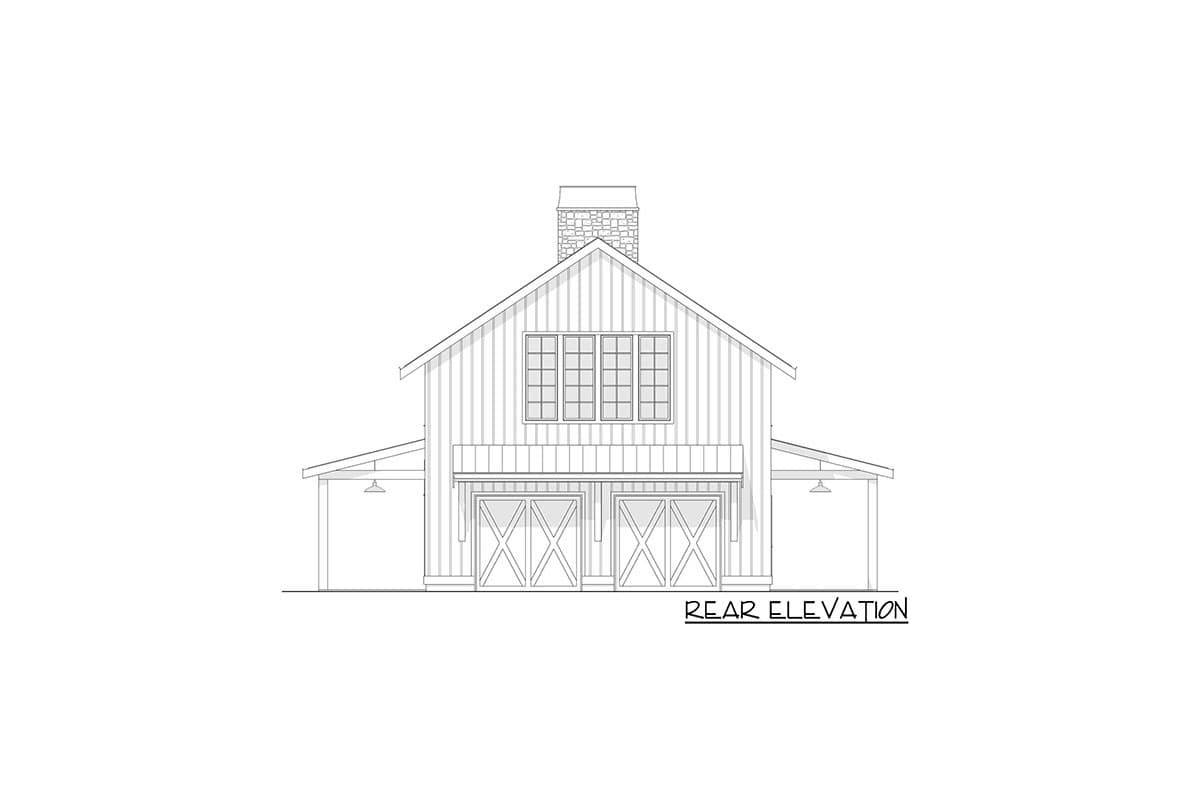

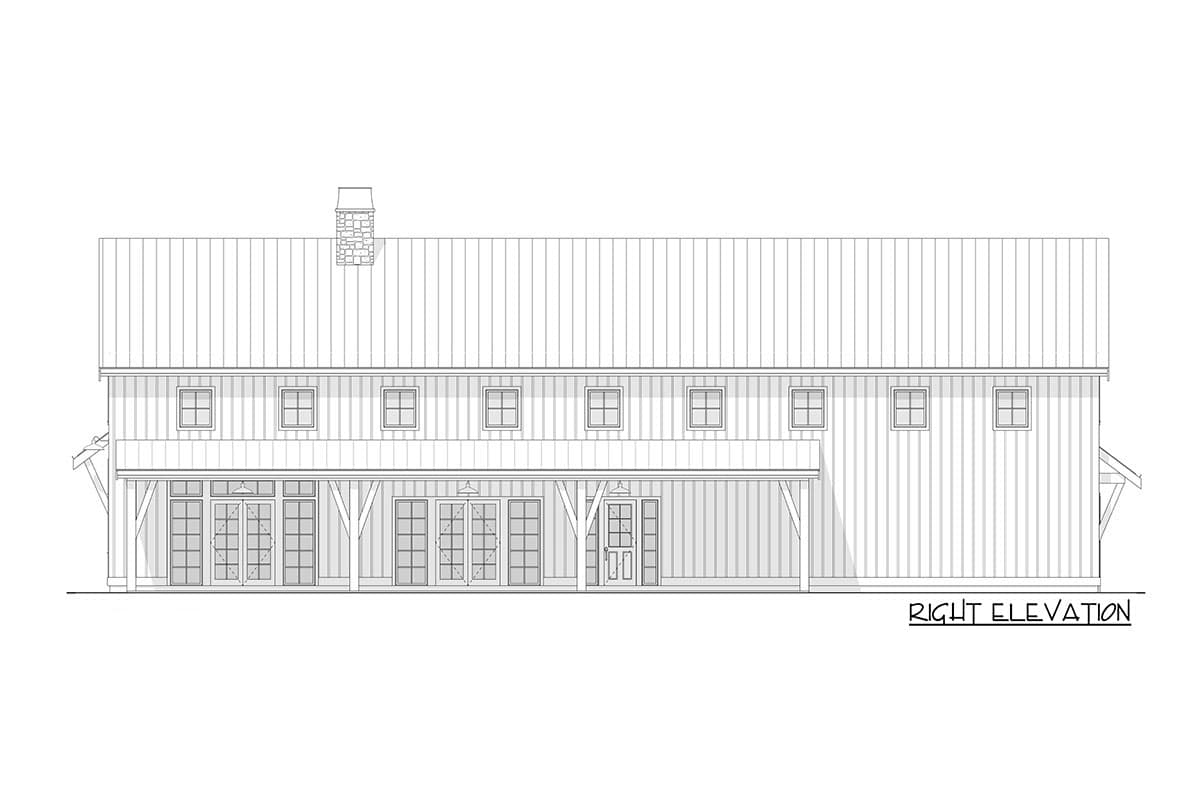

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barndominium-Style House Plan with Two Open-To-Below Spaces Under 3500 Square Feet

  • 3,465

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

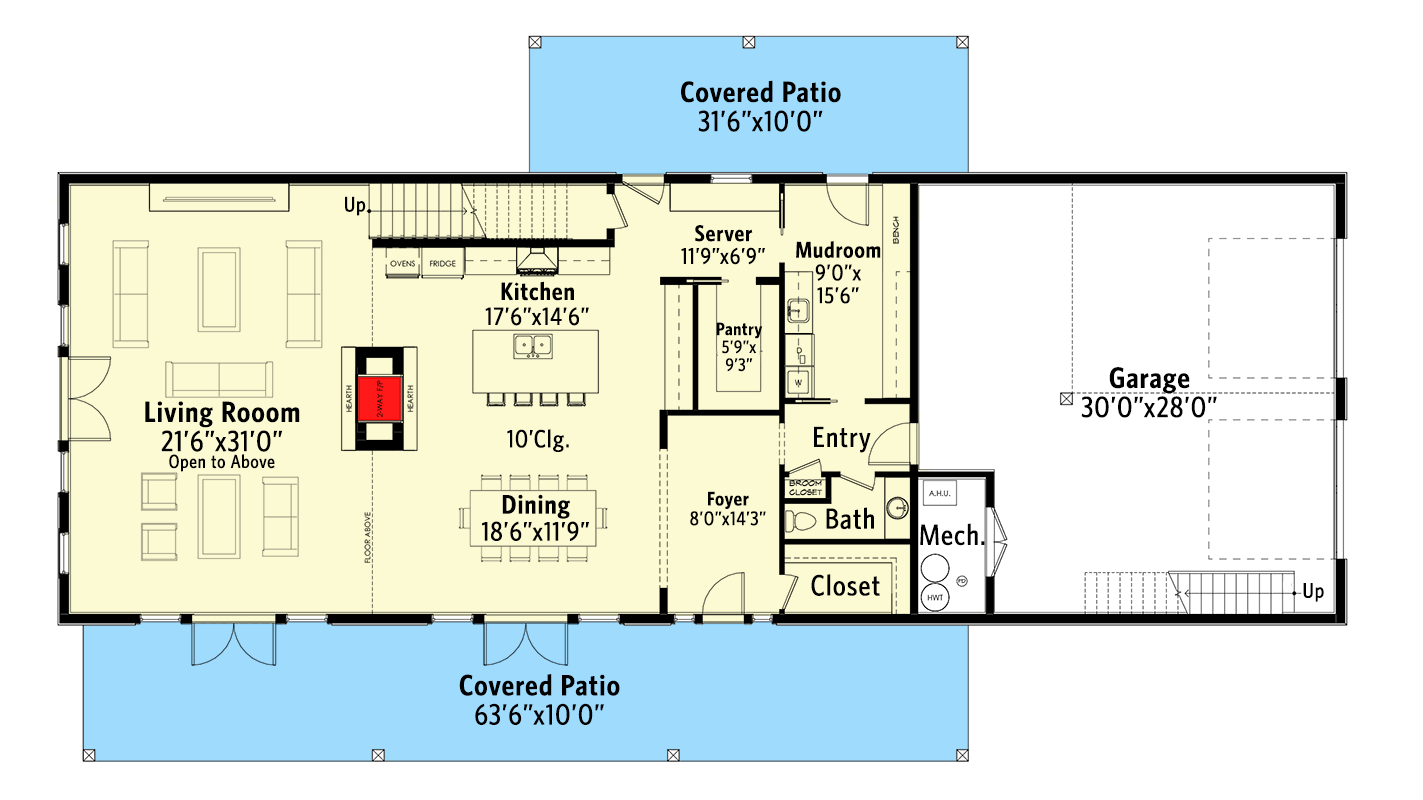

  • Main Level

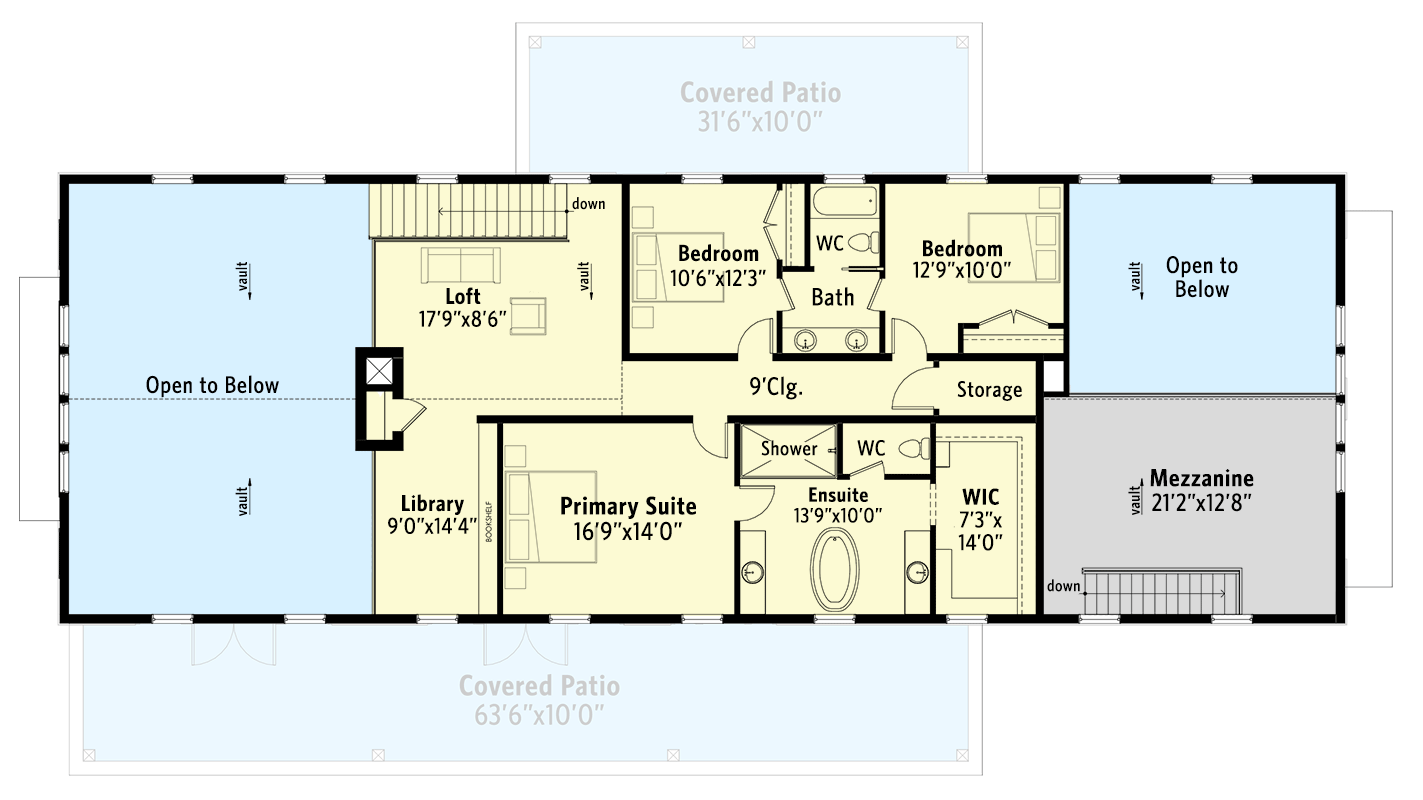

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,465 sq. ft.
  • 1st Floor: 1,967 sq. ft.
  • 2nd Floor: 1,498 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 92' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 977 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
