Beautiful 4-Bed House Plan with Split Bedrooms

Plan 860025MCD

  • 1,931

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Horizontal siding and brick come together to fashion this beautiful, 4-bedroom house plan. Window shutters, a barn-like garage door, and metal roof accents contribute to the character-rich exterior.
  • The living room, kitchen, and dining room are all connected, creating the open-concept floor plan homeowners desire today. A large rear porch extends living space outdoors, as well as providing a space for a grill.
  • Retreat to the privately situated master suite for peace and quiet, which features a 5-fixture bath and a sizable walk-in closet that allows access to the laundry room for added convenience.
  • Three bedrooms occupy the right side of the home, which share a full bath.
  • Entry from the 2-car garage leads into a mudroom, and the nearby walk-in pantry makes unloading groceries a breeze.

This set of working drawings contains the following components

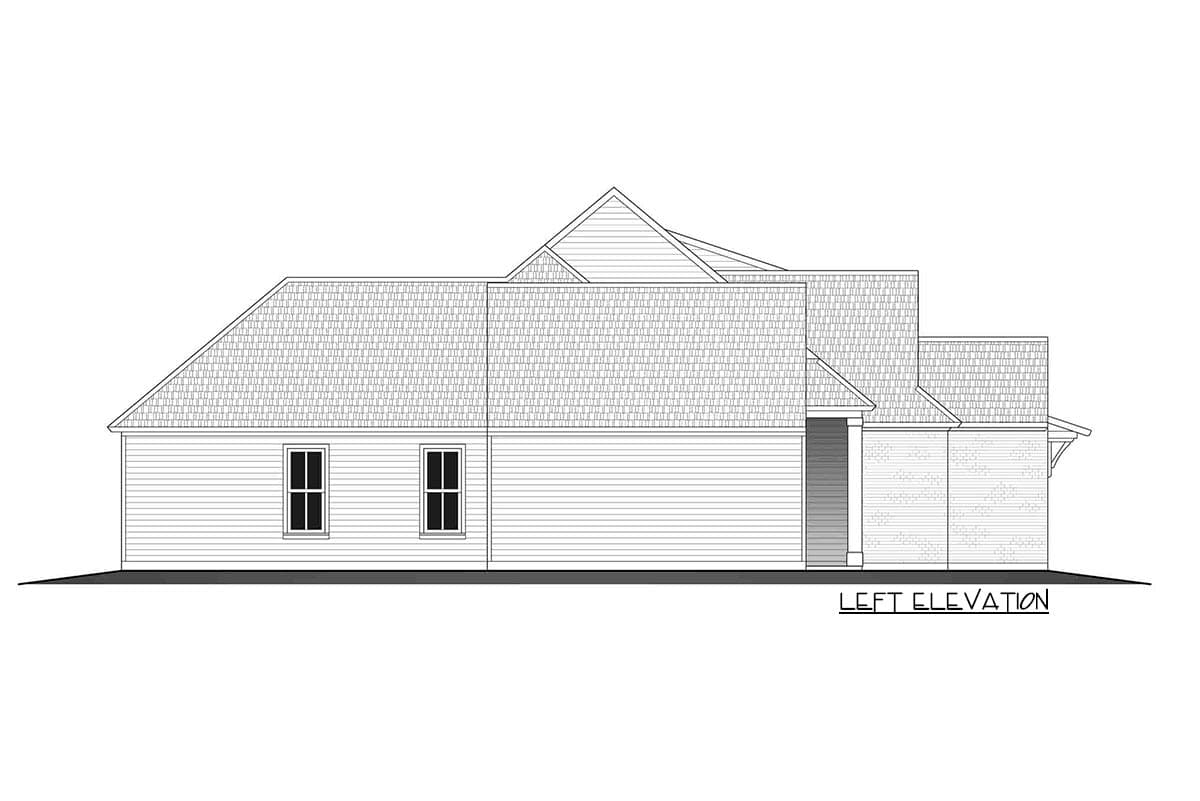

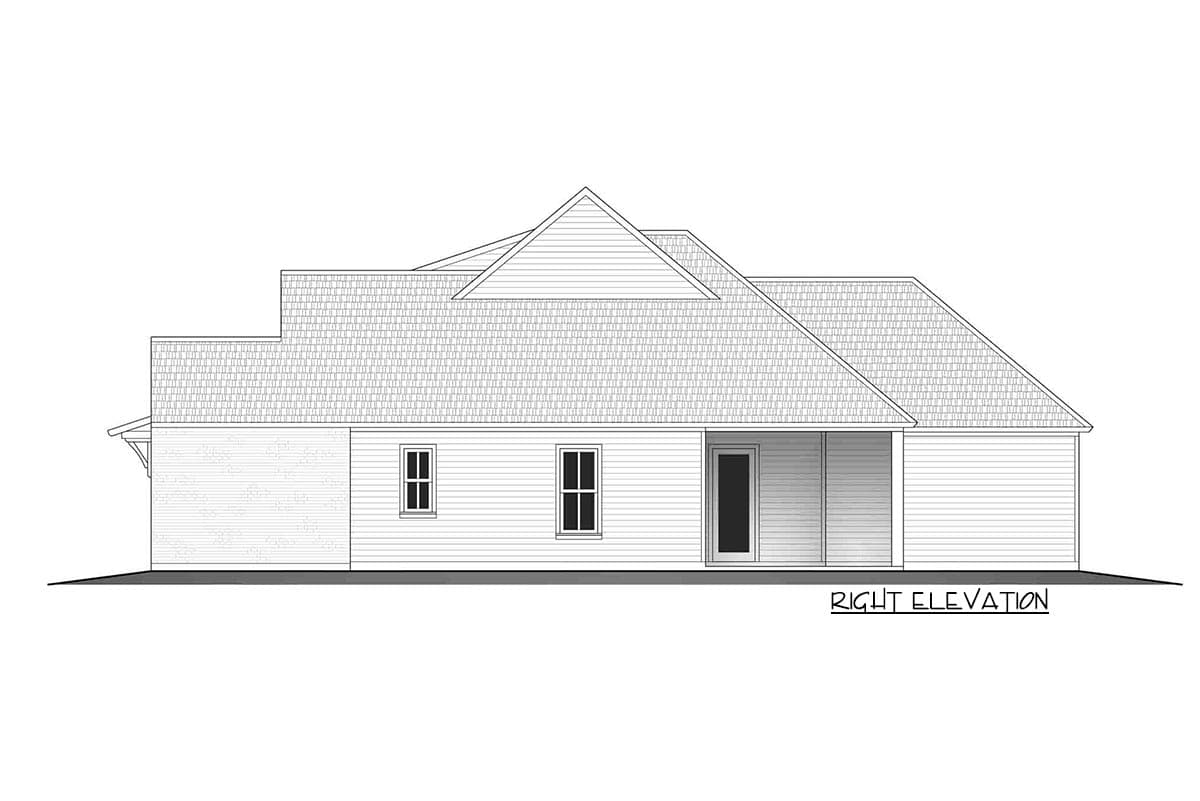

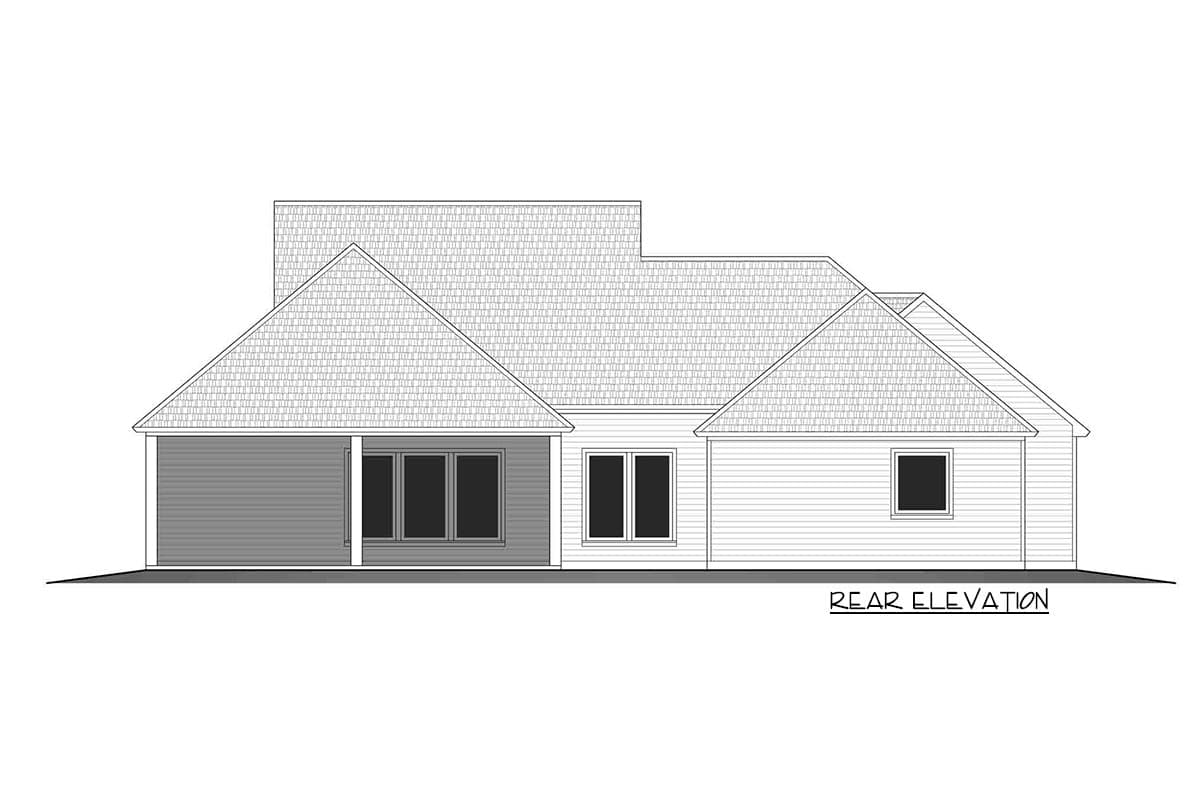

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

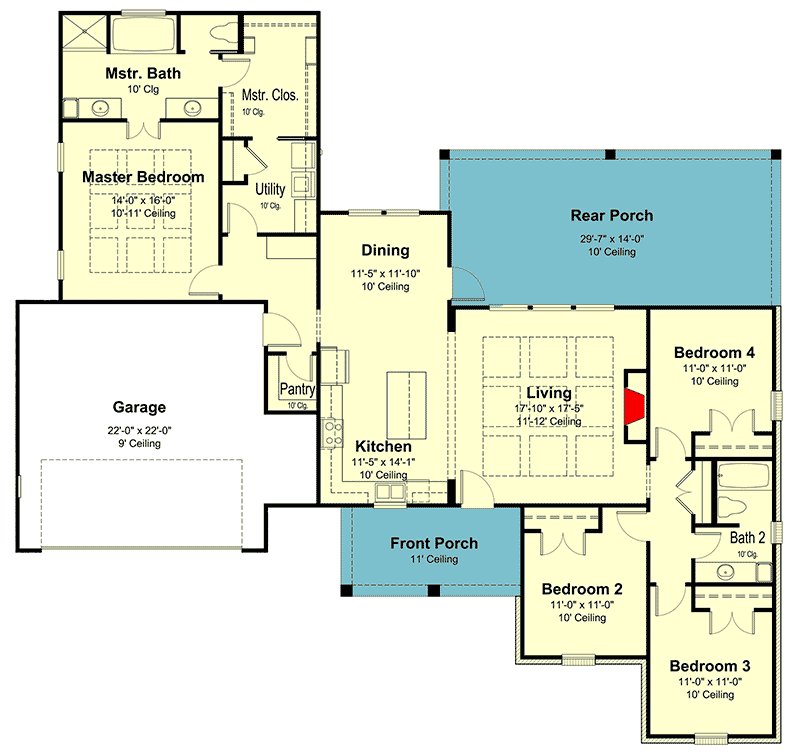

Beautiful 4-Bed House Plan with Split Bedrooms - 860025MCD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,931 sq. ft.
  • 1st Floor: 1,931 sq. ft.
  • Porch, Combined: 548 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 69' 1"
  • Depth: 65' 8"
  • Max ridge height: 27' 2"

Garage

  • Type: Attached
  • Area: 563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Beautiful 4-Bed House Plan with Split Bedrooms

  • 1,931

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,120
  • 5 Sets + PDF $1,220
  • 8 Sets + PDF $1,300
  • CAD - Single-Build $1,920
  • PDF - Unlimited Build $2,240
  • CAD - Unlimited Build $3,040
  • View all purchase option online

About This Plan

  • Horizontal siding and brick come together to fashion this beautiful, 4-bedroom house plan. Window shutters, a barn-like garage door, and metal roof accents contribute to the character-rich exterior.
  • The living room, kitchen, and dining room are all connected, creating the open-concept floor plan homeowners desire today. A large rear porch extends living space outdoors, as well as providing a space for a grill.
  • Retreat to the privately situated master suite for peace and quiet, which features a 5-fixture bath and a sizable walk-in closet that allows access to the laundry room for added convenience.
  • Three bedrooms occupy the right side of the home, which share a full bath.
  • Entry from the 2-car garage leads into a mudroom, and the nearby walk-in pantry makes unloading groceries a breeze.
