Plan 59452ND Beautiful Columns and French Doors Abound

3,391 3 2.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Beautiful Columns and French Doors Abound

Plan 59452ND

  • 3,391

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

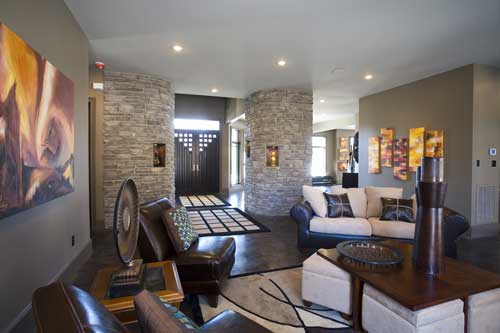

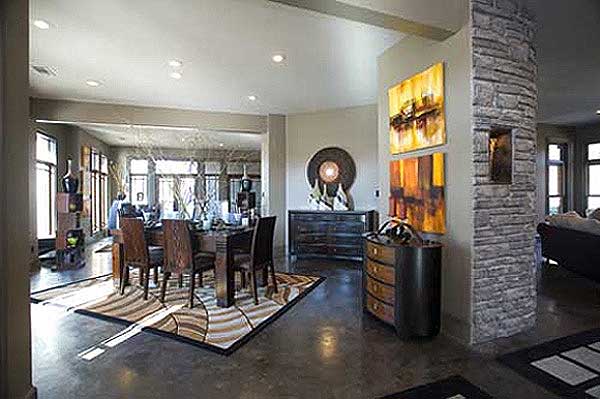

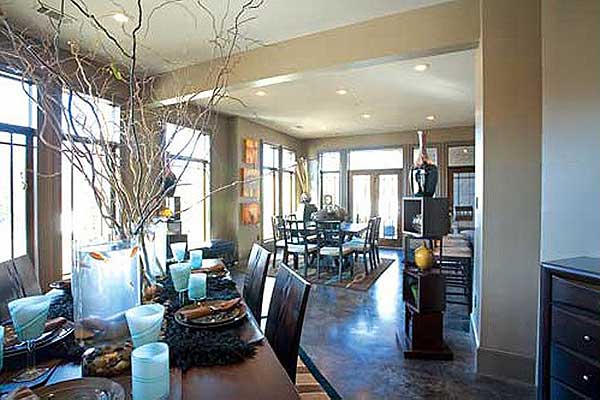

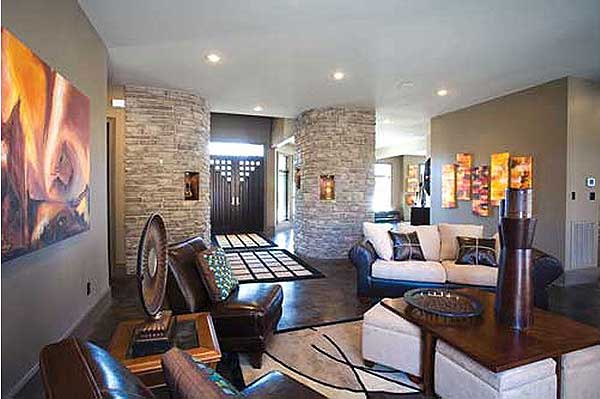

  • Walking into the foyer, you'll notice beautiful columns, French doors and a convenient wet bar located in the spacious dining room.

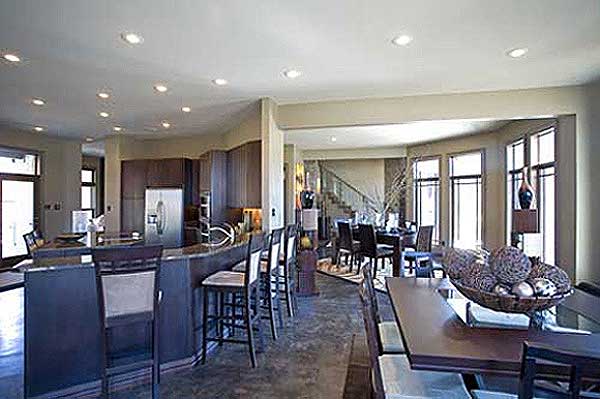

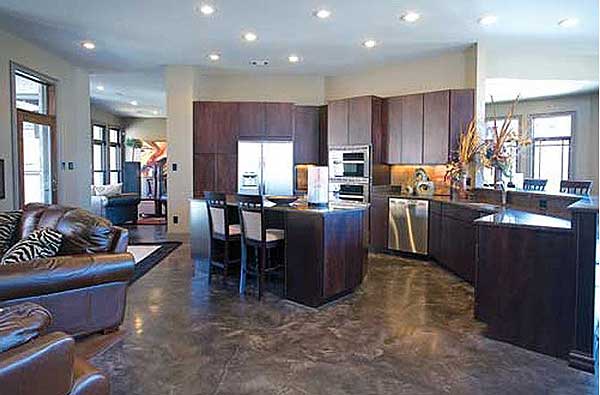

  • Your game room will provide countless hours of entertainment with fluid access to the kitchen for refreshments.

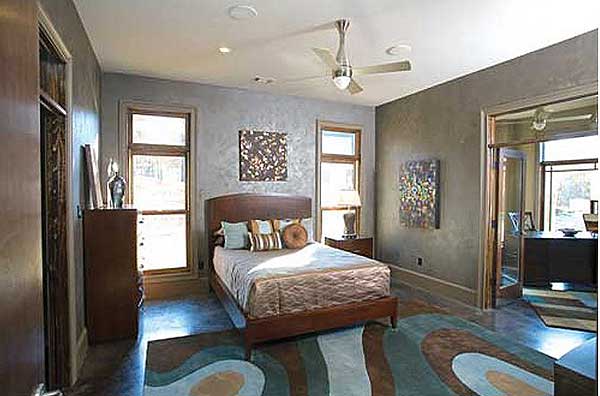

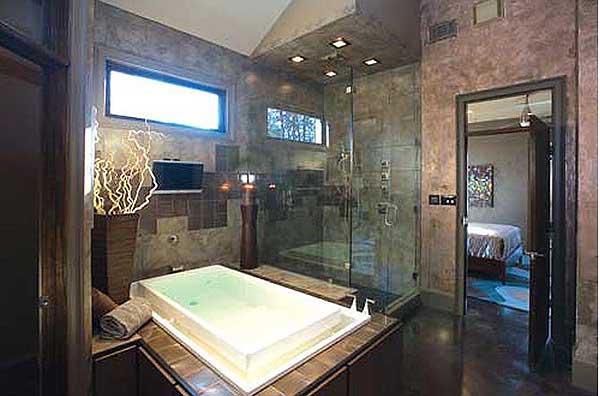

  • French doors access your master suite, complete with a huge master bath with "his and her" walk-in closets and an adjoining office.

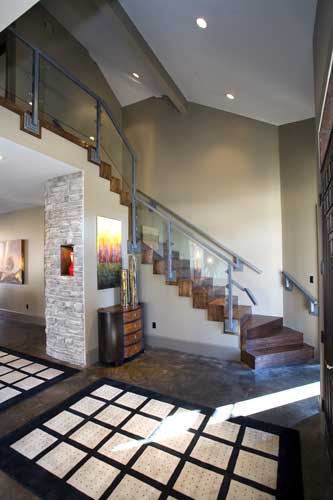

  • Traveling upstairs, you'll discover two more bedrooms and room to expand in the future.
  • Related Plan: Get a bonus room with house plan 59862ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

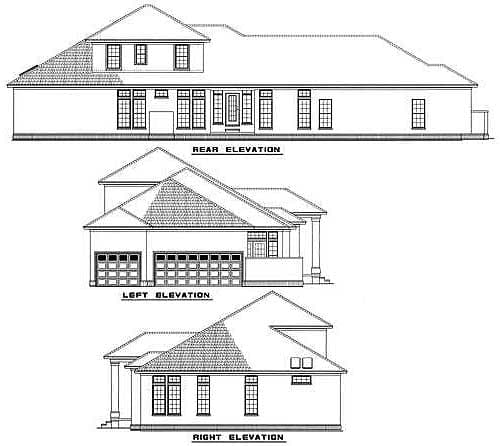

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

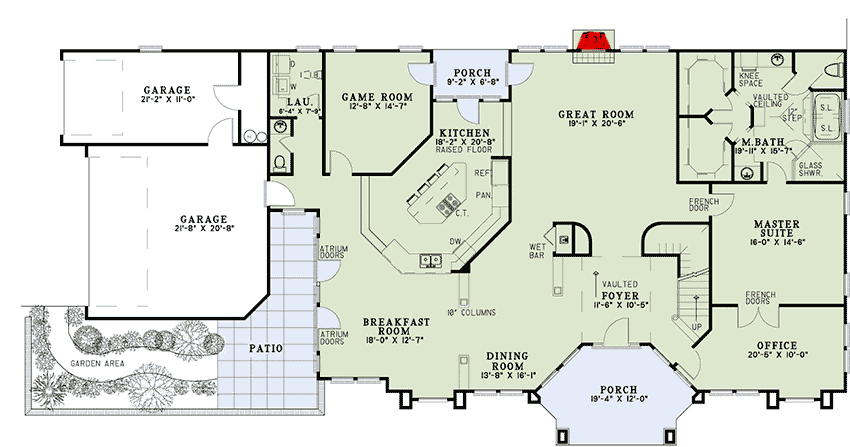

Beautiful Columns and French Doors Abound - 59452ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

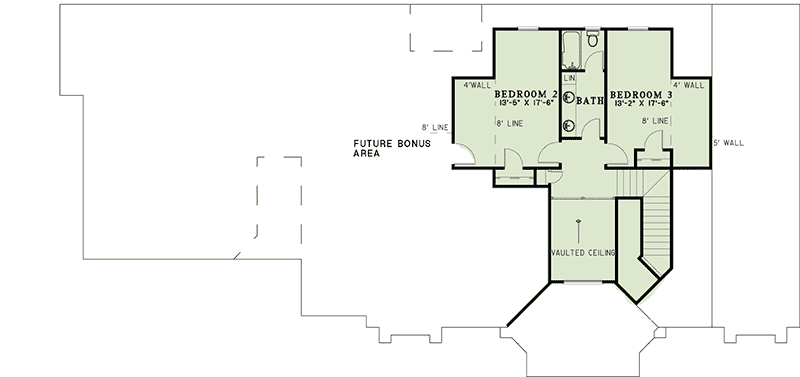

Beautiful Columns and French Doors Abound - 59452ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,391 sq. ft.
  • 1st Floor: 2,634 sq. ft.
  • 2nd Floor: 757 sq. ft.
  • Porch, Combined: 305 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 47' 9"
  • Max ridge height: 26' 2"

Garage

  • Type: Attached
  • Area: 681 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Beautiful Columns and French Doors Abound

  • 3,391

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,400
  • View all purchase option online

About This Plan

  • Walking into the foyer, you'll notice beautiful columns, French doors and a convenient wet bar located in the spacious dining room.
  • Your game room will provide countless hours of entertainment with fluid access to the kitchen for refreshments.
  • French doors access your master suite, complete with a huge master bath with "his and her" walk-in closets and an adjoining office.
  • Traveling upstairs, you'll discover two more bedrooms and room to expand in the future.
  • Related Plan: Get a bonus room with house plan 59862ND.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,391 sq. ft.
  • 1st Floor: 2,634 sq. ft.
  • 2nd Floor: 757 sq. ft.
  • Porch, Combined: 305 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 47' 9"
  • Max ridge height: 26' 2"

Garage

  • Type: Attached
  • Area: 681 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
Plan 59452ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59452ND
|
