Beautiful Cottage Design

Plan 59181ND

  • 2,288

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This beautiful cottage house plan resembles a home that your grandfather might have built.
  • Double columns atop brick pillars enhance the front covered porch. An open foyer leads through a great room with corner fireplace and built in media center.
  • A formal Dining Room accesses the cozy hearth room and kitchen divided by a bar counter for additional seating.
  • Also on the main floor are the master suite, an additional bedroom and a full bathroom.
  • Foyer stairs lead up to a large bedroom with private bath as well as an optional bonus area.
  • The upper floor has attic storage and an optional bonus/bedroom.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

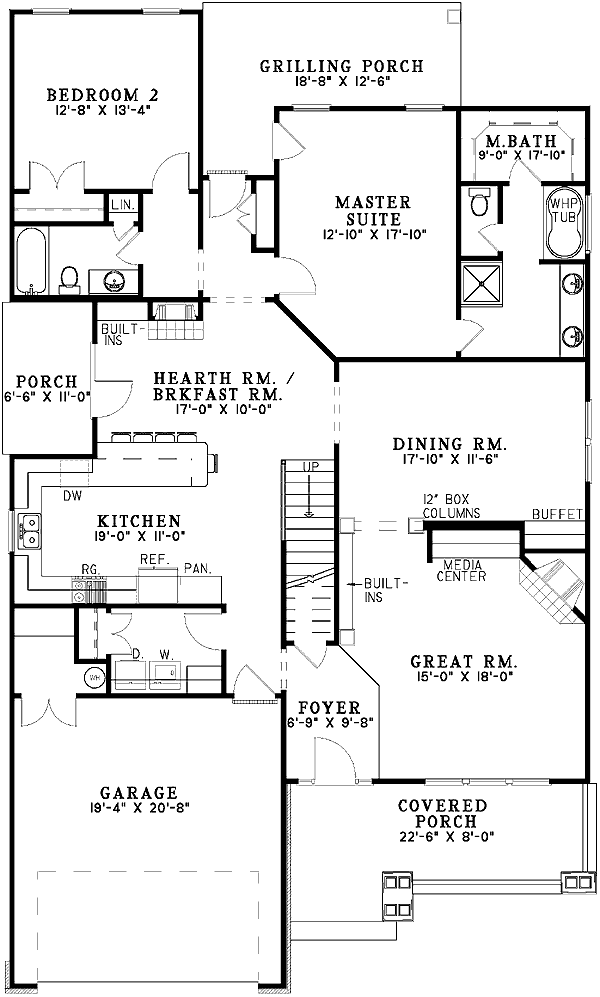

Beautiful Cottage Design - 59181ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

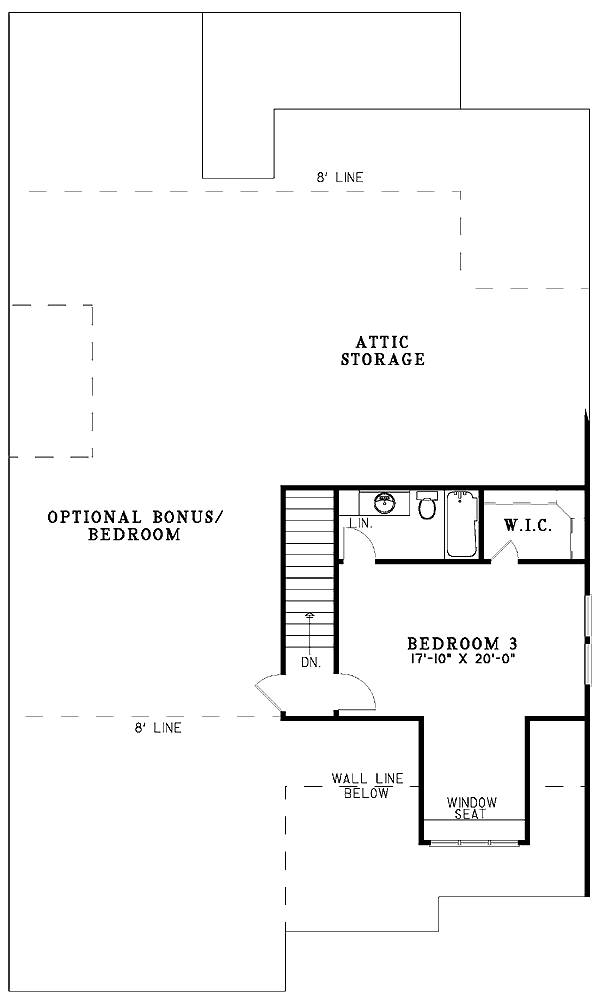

Beautiful Cottage Design - 59181ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,288 sq. ft.
  • 1st Floor: 1,903 sq. ft.
  • 2nd Floor: 385 sq. ft.
  • Porch, Combined: 425 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 70' 10"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Beautiful Cottage Design

  • 2,288

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,700
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • This beautiful cottage house plan resembles a home that your grandfather might have built.
  • Double columns atop brick pillars enhance the front covered porch. An open foyer leads through a great room with corner fireplace and built in media center.
  • A formal Dining Room accesses the cozy hearth room and kitchen divided by a bar counter for additional seating.
  • Also on the main floor are the master suite, an additional bedroom and a full bathroom.
  • Foyer stairs lead up to a large bedroom with private bath as well as an optional bonus area.
  • The upper floor has attic storage and an optional bonus/bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,288 sq. ft.
  • 1st Floor: 1,903 sq. ft.
  • 2nd Floor: 385 sq. ft.
  • Porch, Combined: 425 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 70' 10"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
