Bold, Clean Lines

Plan 90230PD

  • 2,072

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Bold, clean lines and tall windows command your attention with this Contemporary home plan.
  • An air lock entry keeps the cold air out and ushers you into the foyer.
  • The living and dining rooms form one long space with the kitchen close by.
  • An arched entry divides the breakfast nook from the family room with its fireplace.
  • All the upstairs bedrooms share a huge bathroom with double sinks and a soaking tub.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Bold, Clean Lines - 90230PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

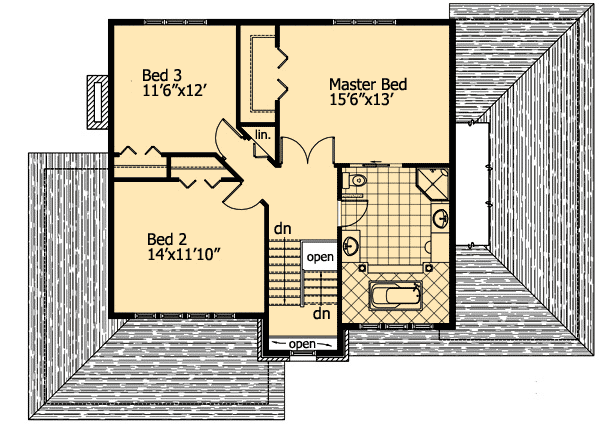

Bold, Clean Lines - 90230PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,072 sq. ft.
  • 1st Floor: 1,118 sq. ft.
  • 2nd Floor: 954 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Bold, Clean Lines

  • 2,072

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,389
  • 8 Sets $1,436
  • PDF - Single-Build $1,805
  • CAD - Single-Build $2,825
  • View all purchase option online

About This Plan

  • Bold, clean lines and tall windows command your attention with this Contemporary home plan.
  • An air lock entry keeps the cold air out and ushers you into the foyer.
  • The living and dining rooms form one long space with the kitchen close by.
  • An arched entry divides the breakfast nook from the family room with its fireplace.
  • All the upstairs bedrooms share a huge bathroom with double sinks and a soaking tub.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,072 sq. ft.
  • 1st Floor: 1,118 sq. ft.
  • 2nd Floor: 954 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front
