Boxes-Built Modern Tiny House Plan with Two Bedrooms and Loft

Name: Plan 431006BOX: Boxes-Built Modern Tiny House Plan with Two Bedrooms and Loft
Brand: Architectural Designs
SKU: 431006BOX
Price: 650.0 USD
Availability: InStock

Heated S.F.

650

Beds

Baths

Stories

Floor Plan

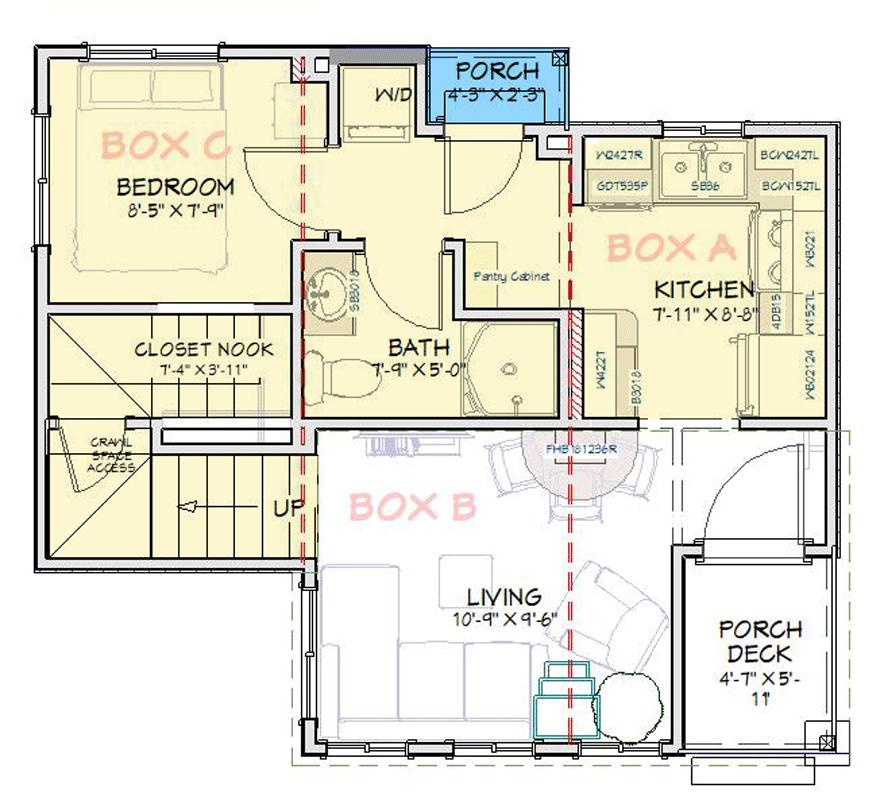

Main Level

2nd Level

Plan Details

Boxes System Build OptionWith the Boxes System, the structural shell is framed off-site as transportable modules, each shipping on a standard hot shot trailer within DOT limits — no oversize permits required. Modules arrive with ZIP System sheathing, roof decking, windows, and exterior doors pre-installed. A small crane and three-person crew can set and seal the home in under a day, with local contractors ready to begin the very next morning. Standard permitting and inspections apply throughout.Spec'd for Net Zero Ready performance — built for low operating costs and comfortable living. Visit boxesbuilt.com to learn more.

About This Plan

This efficient 650 square foot modern tiny home offers two bedrooms and two bathrooms across two levels of thoughtfully designed space.

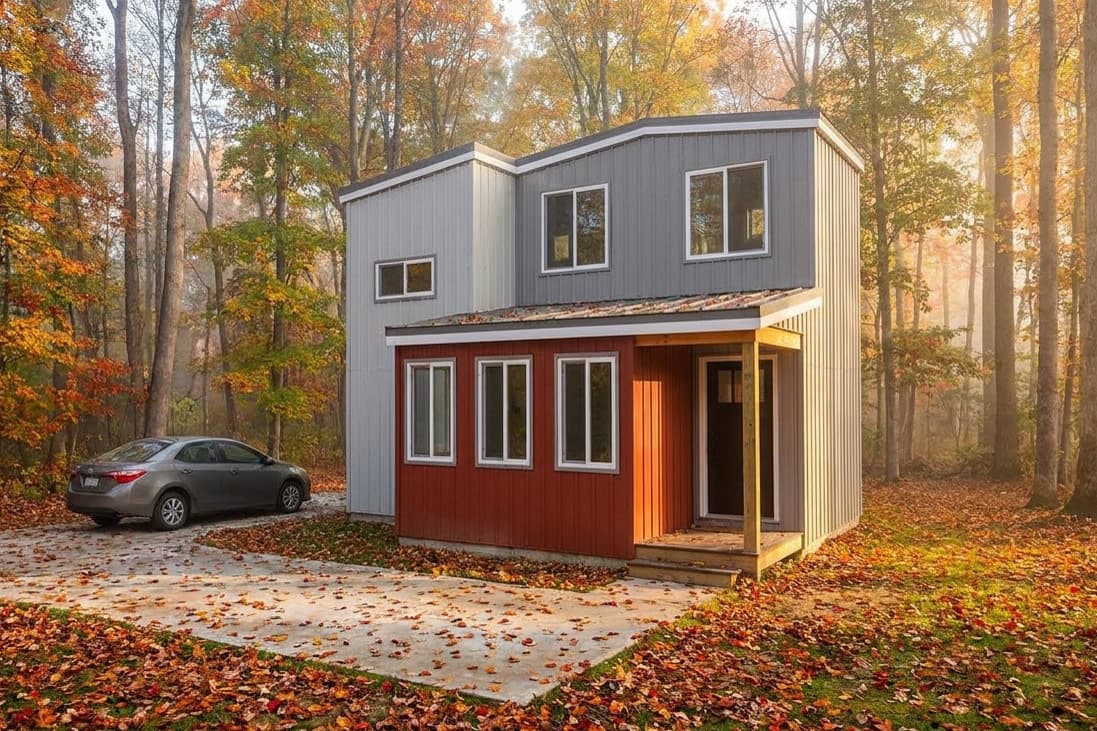

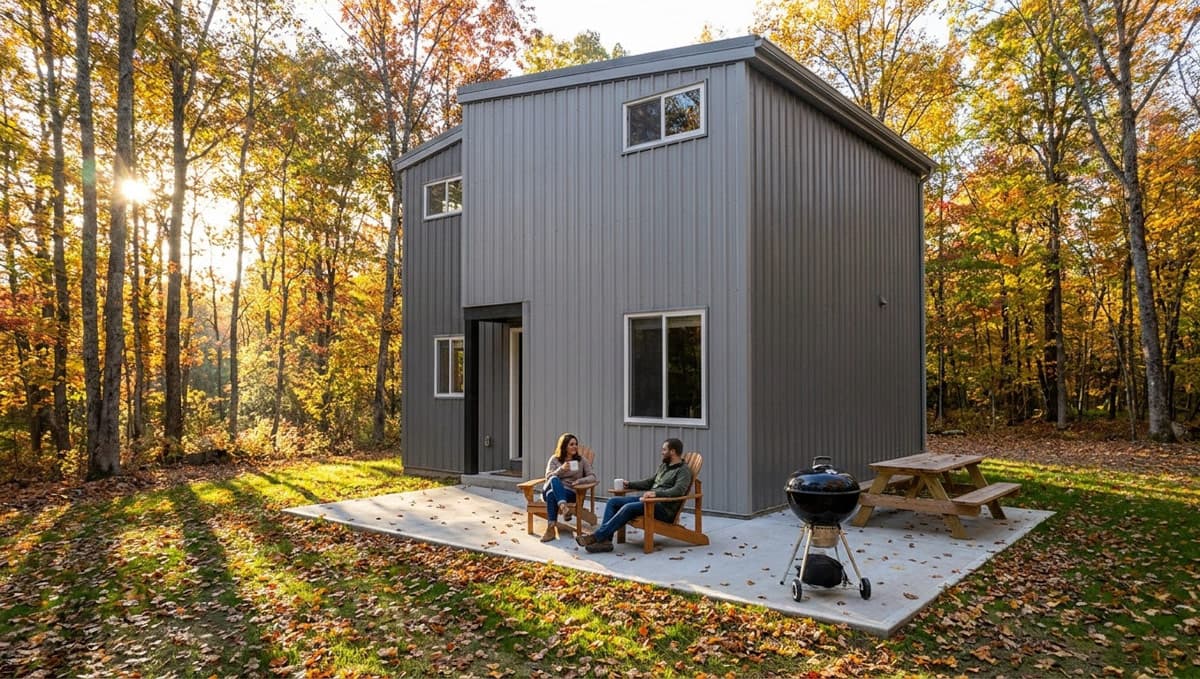

The exterior features a striking contemporary aesthetic with vertical metal siding and a low-pitch shed roof that blends seamlessly into wooded landscapes.

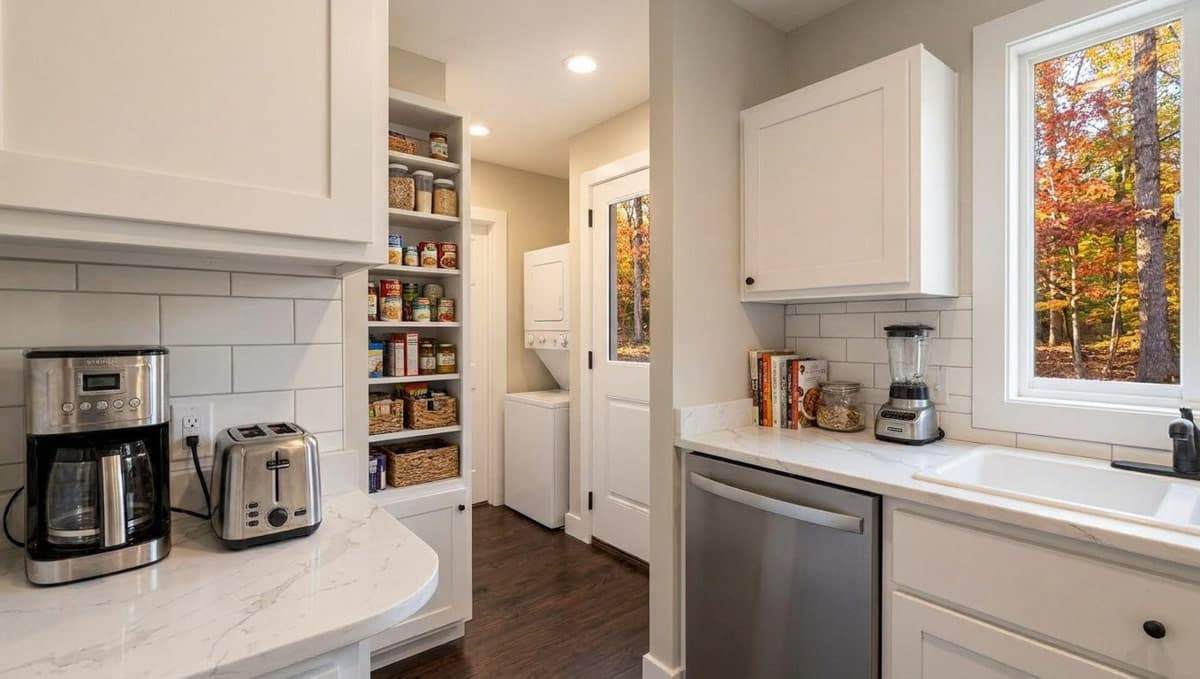

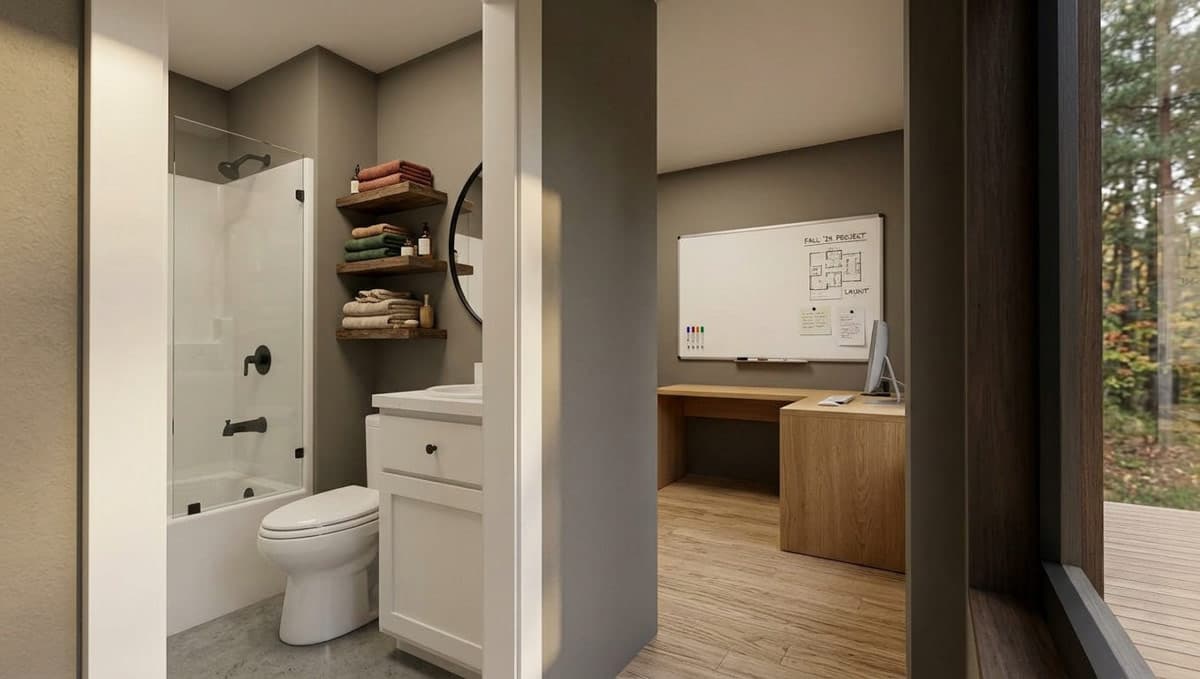

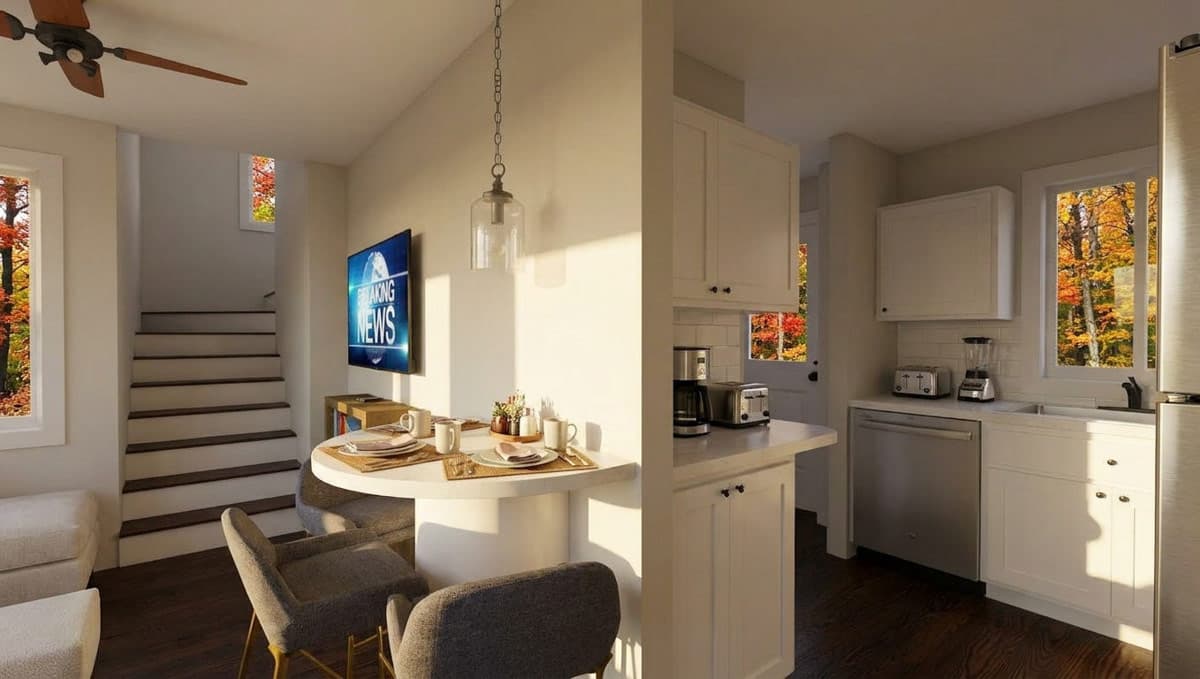

Upon entering, the main level reveals a functional floor plan that includes a convenient laundry area and a versatile space perfect for a home office.

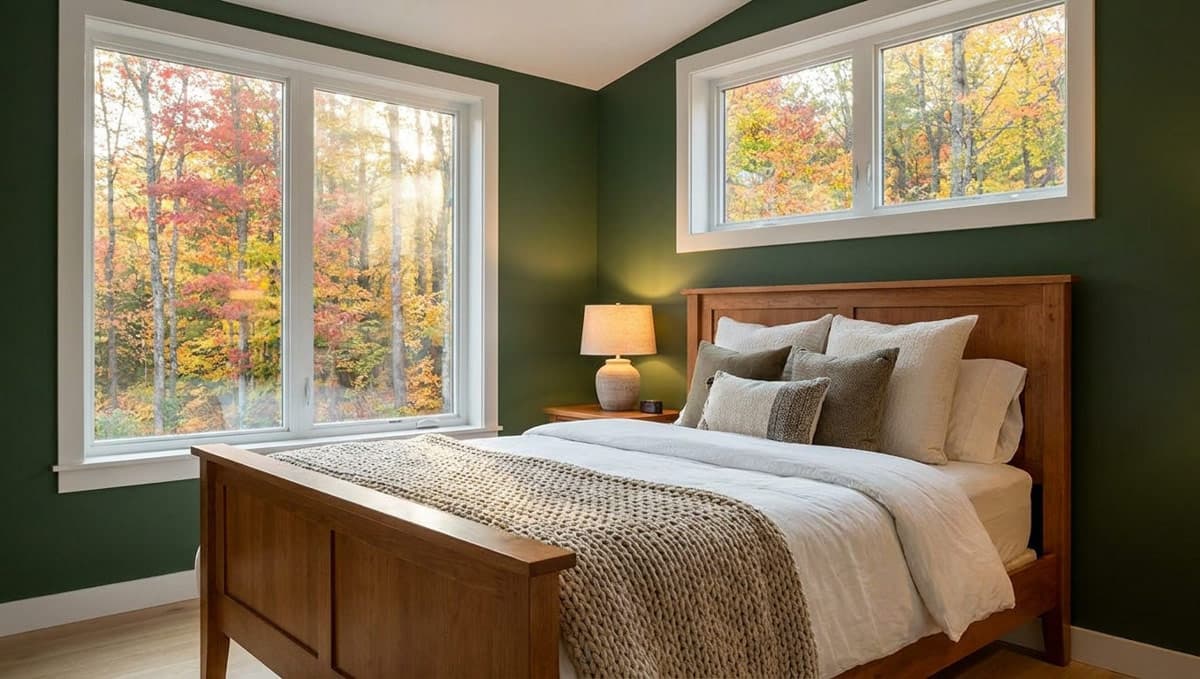

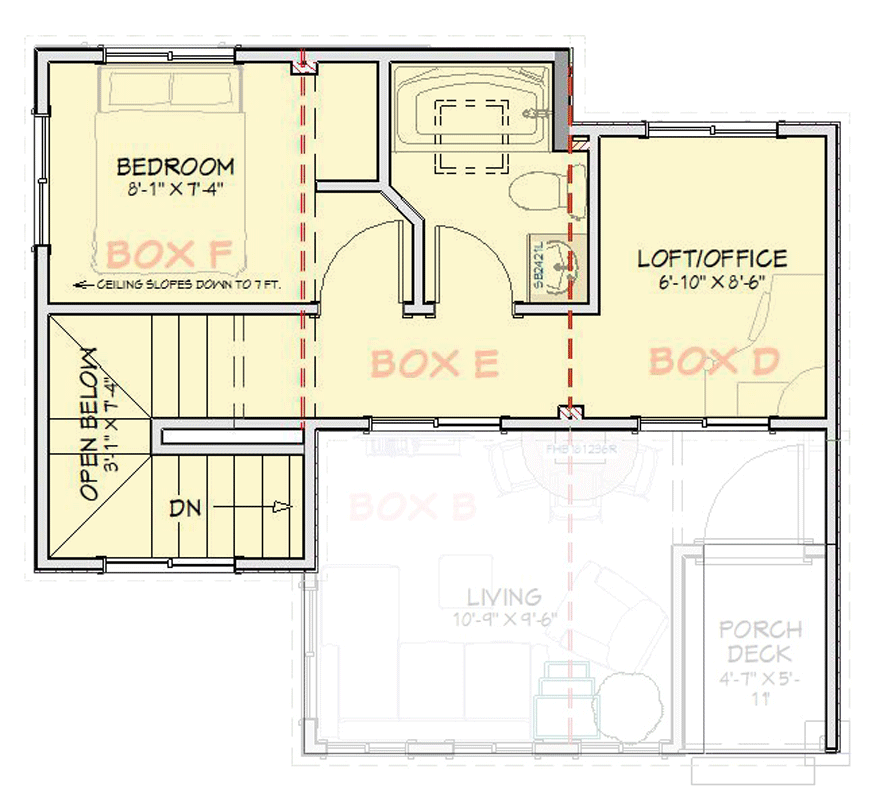

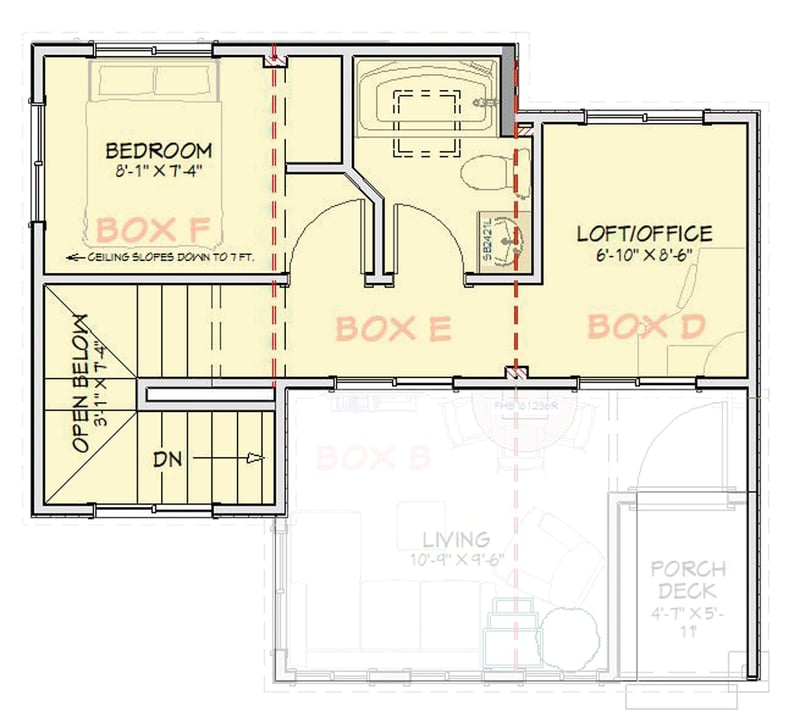

The second level hosts a private primary suite, providing a quiet retreat tucked away from the main living areas.

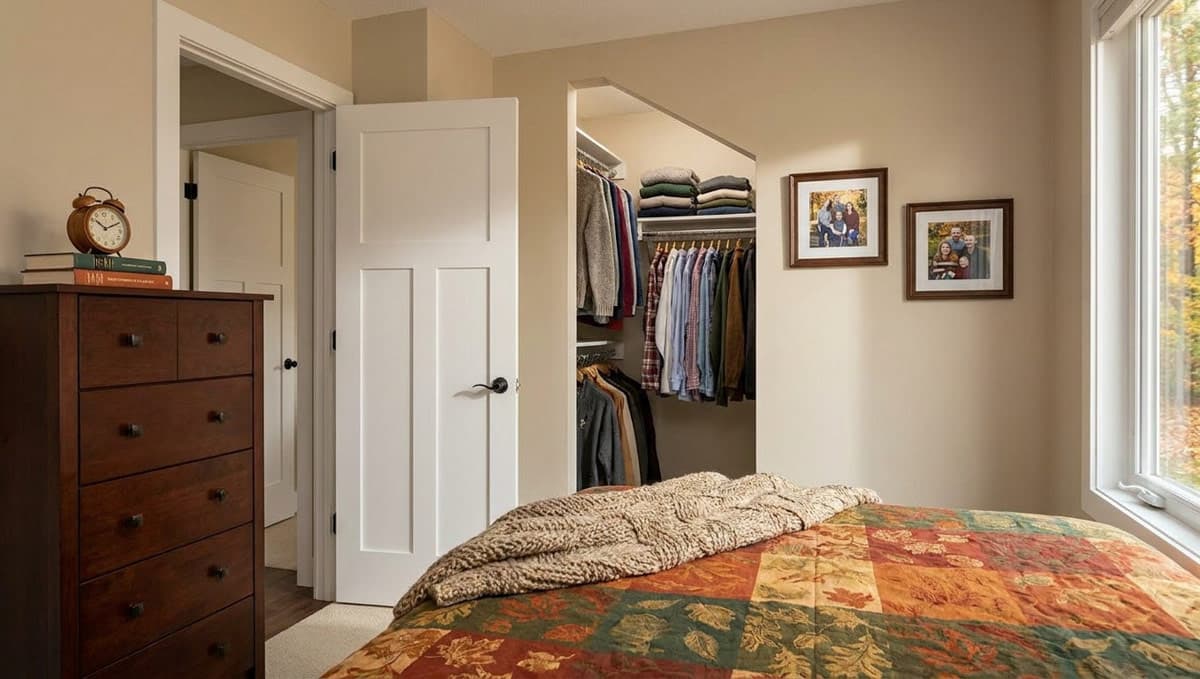

An additional second bedroom is complemented by a charming loft space, offering flexible room for reading, hobbies, or extra guests.

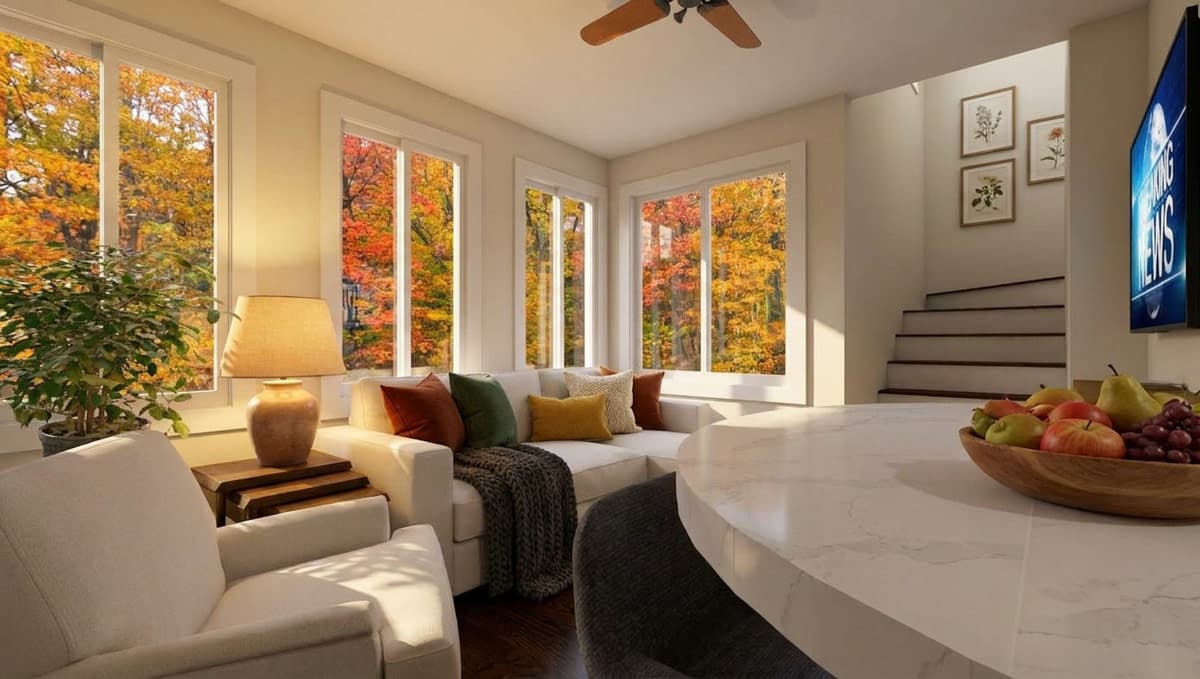

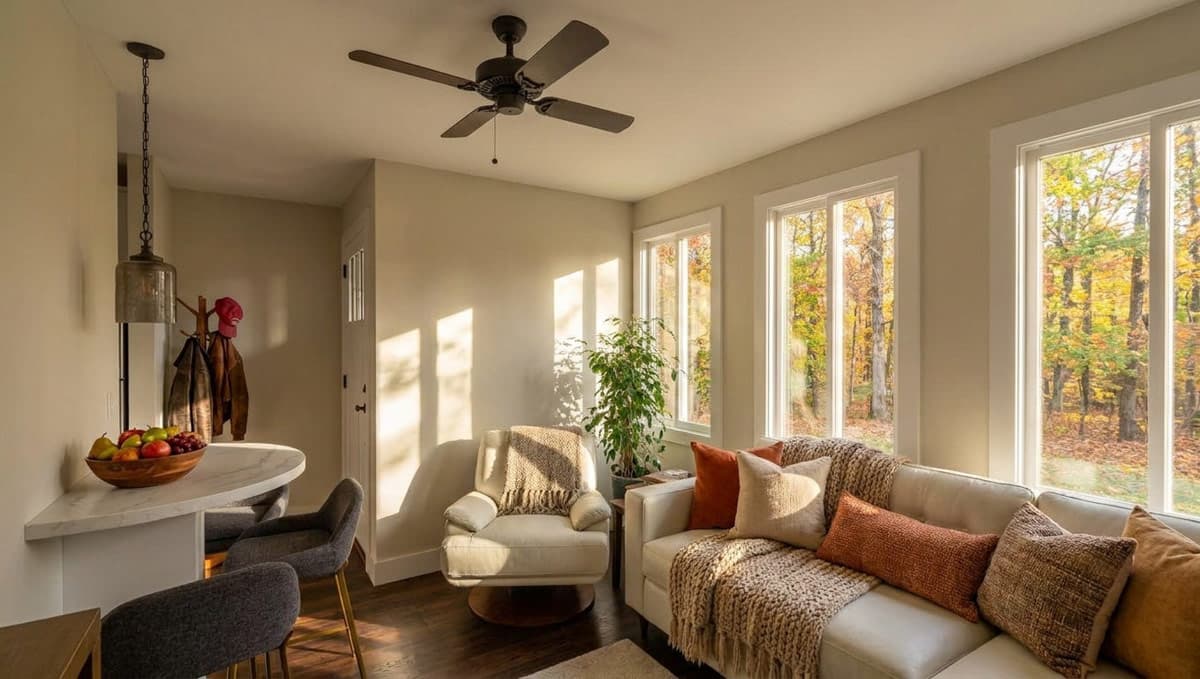

Large windows throughout the home invite natural light inside, creating a bright and airy atmosphere despite the efficient footprint.

What's Included

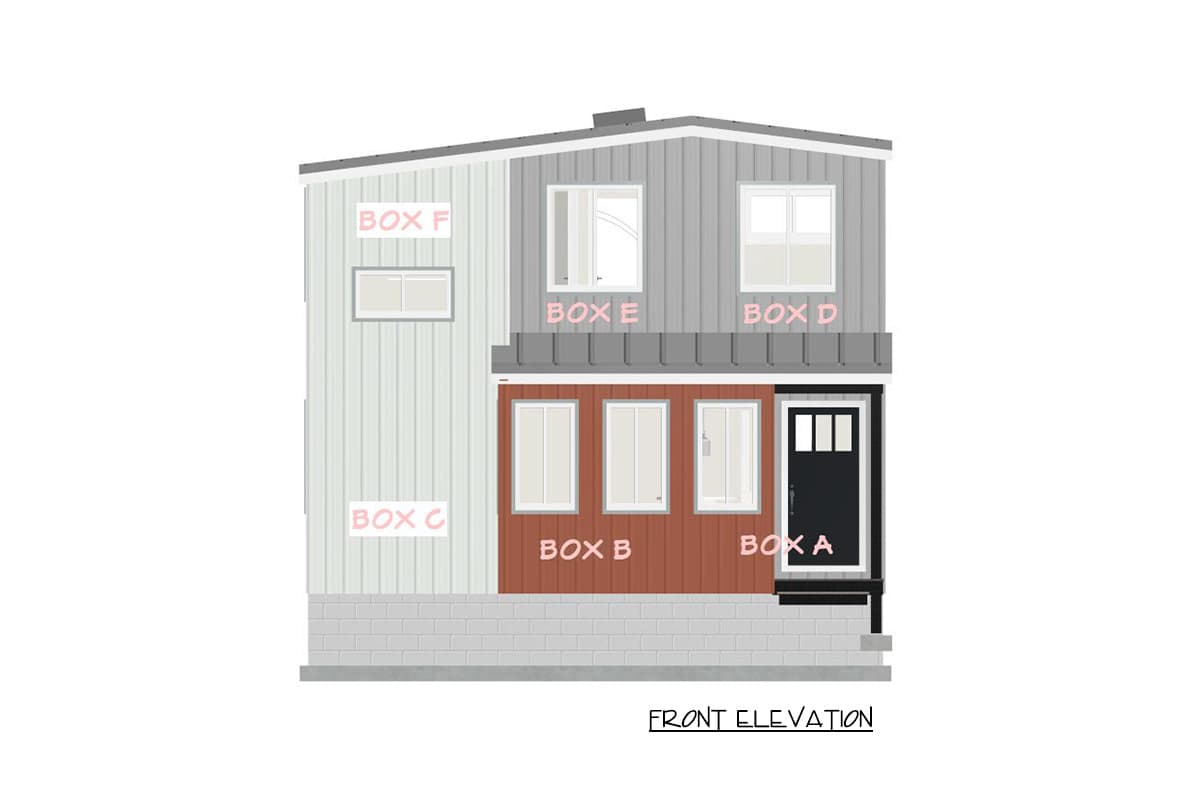

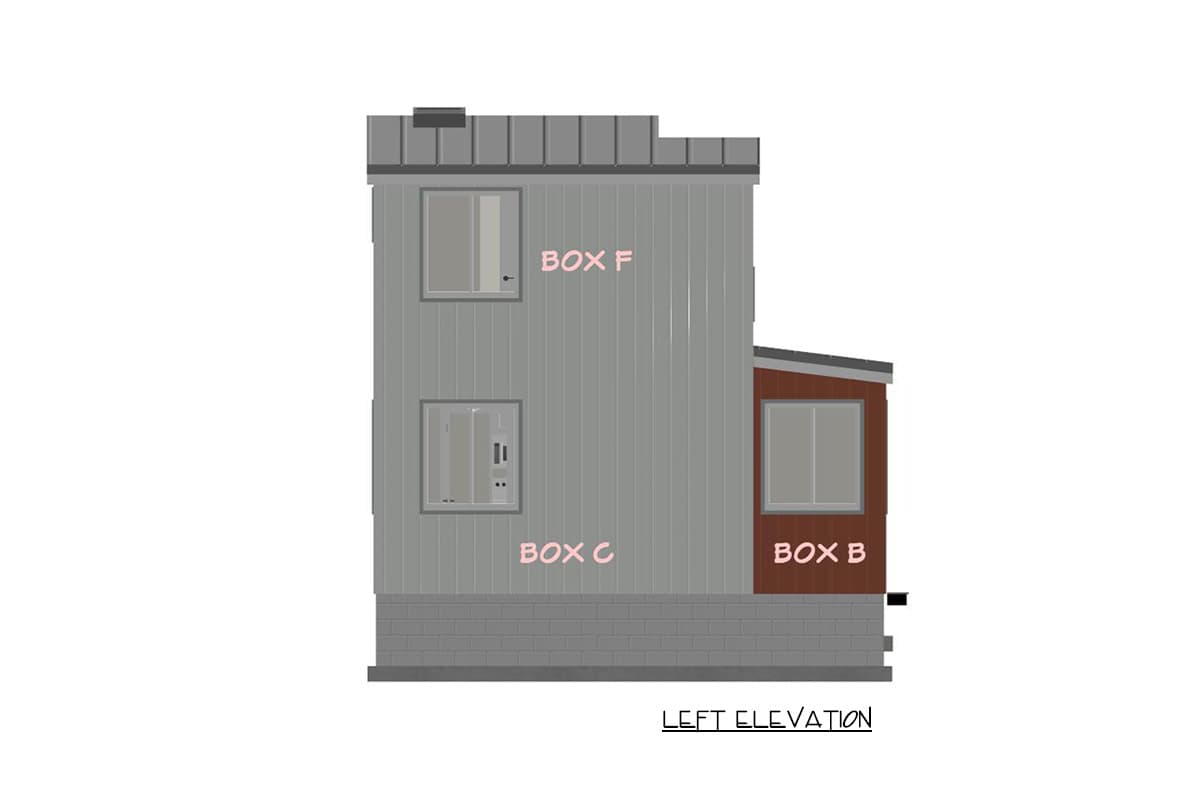

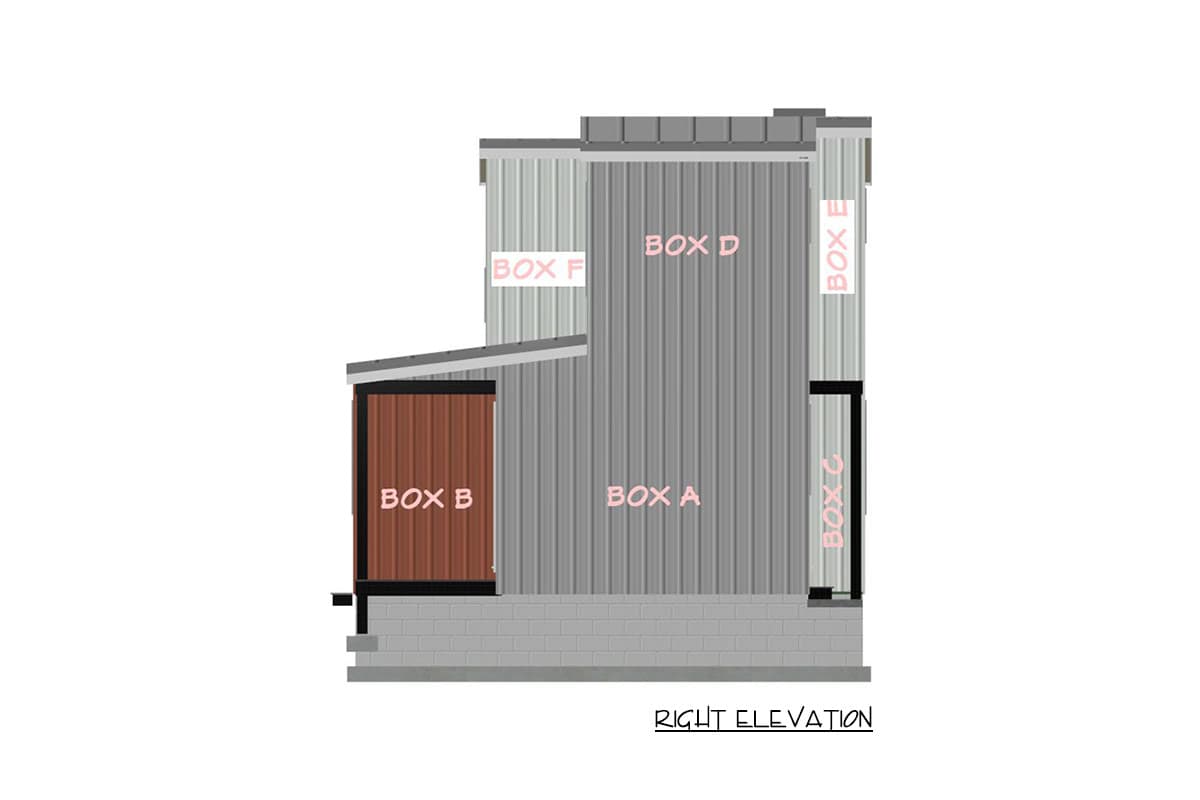

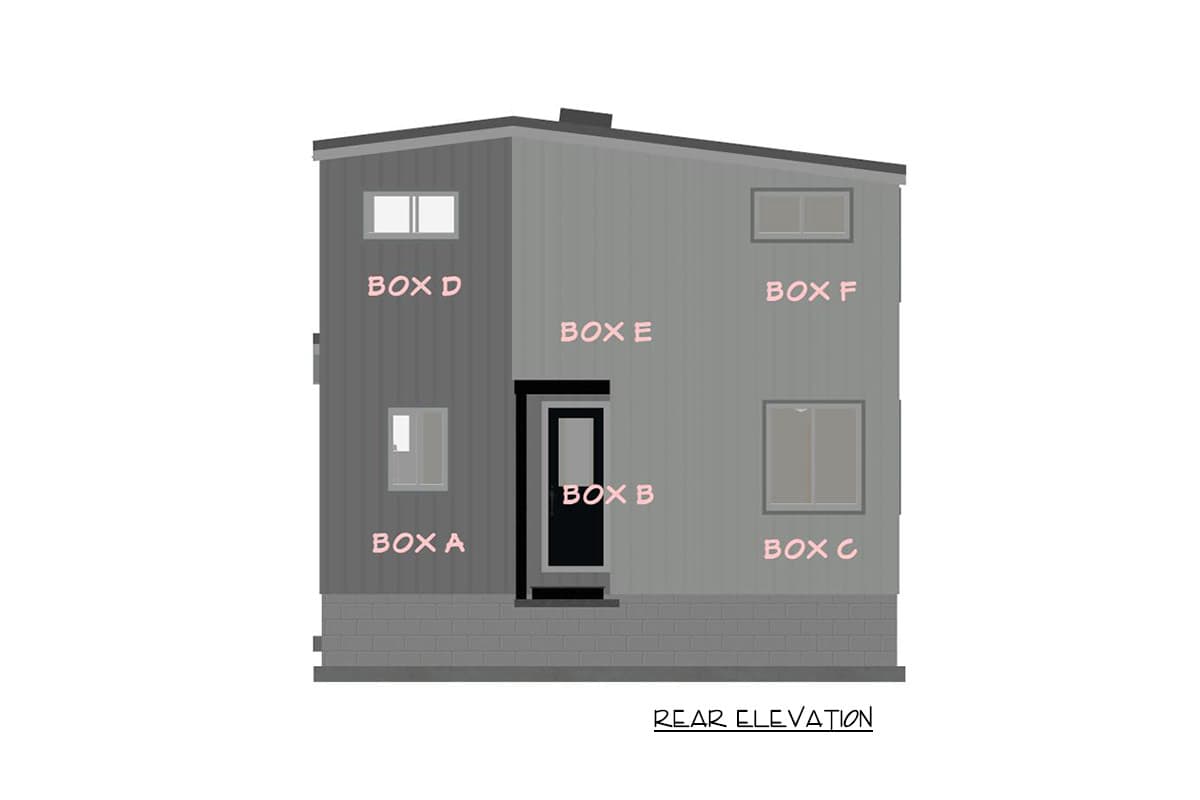

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls and piers/posts
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans.
Boxes System Build Details: ‘Marriage’ walls are highlighted on the plans. These walls are not necessary to build if using a fully on-site ‘stick build’ process.
Interior Details: These drawings show the specific details and design of special interior features such as cabinets.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
