Bright and Airy Vacation House Plan

Plan 21759DR

  • 1,400

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • Designed to maximize the views, this Vacation house plan is loaded with windows to bring in light.
  • Ideal for cold climates, the home comes with an air lock entry foyer that keeps cold air out of the main living areas.
  • The unusual kitchen has two peninsula eating bars that seat three people at each.
  • A huge gorgeous bay window floods the eating area with light and is just steps away from a big deck.
  • The master suite gets a private deck where you can sip your morning coffee or enjoy a glass of wine at the end of the day.

Each plan includes the following:

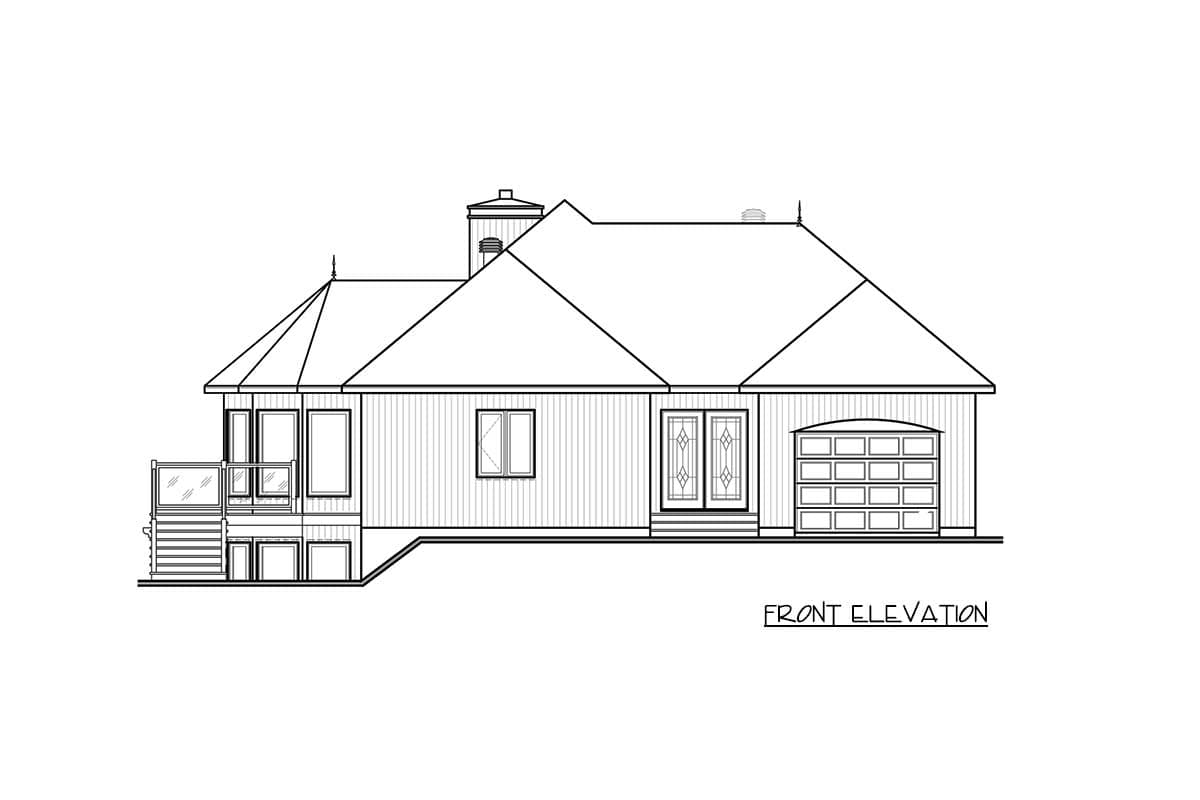

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

Plan details

Architectural Style

Plan Collections



Bright and Airy Vacation House Plan

  • 1,400

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $860
  • 8 Sets $890
  • Reproducible Set $945
  • PDF - single-use $945
  • CAD $1,590
  • View all purchase option online

About This Plan

  • Designed to maximize the views, this Vacation house plan is loaded with windows to bring in light.
  • Ideal for cold climates, the home comes with an air lock entry foyer that keeps cold air out of the main living areas.
  • The unusual kitchen has two peninsula eating bars that seat three people at each.
  • A huge gorgeous bay window floods the eating area with light and is just steps away from a big deck.
  • The master suite gets a private deck where you can sip your morning coffee or enjoy a glass of wine at the end of the day.

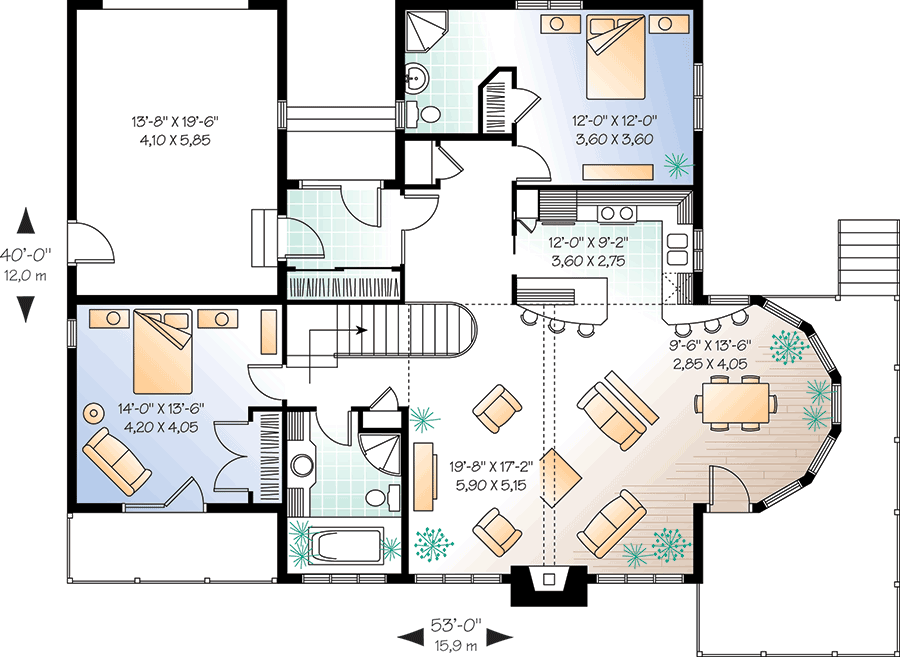

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,400 sq. ft.
  • 1st Floor: 1,400 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 40' 0"
  • Max ridge height: 31' 1"

Garage

  • Type: Attached
  • Area: 298 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
