Car Barn with 1296 Sq Ft of Vehicle Space with Tractor Port and 993 Sq Ft Loft

Plan 68766VR

  • 1,029

    Heated s.f.

  • 2

    Stories

  • 4

    Cars

  • This car barn measures 36' by 36' and includes a tractor port with a shed roof protecting it from the rain and snow in back.
  • Upstairs, the vaulted loft lends ample space for storage.
  • Related Plans: Get a smaller version with plan 68687VR (993 sq. ft. loft). Remove the tractor port with garage plan 68690VR. And get other versions with 68601VR (40' by 30'), 68462VR (36' by 24'), 68581VR (36' by 30'), 68899VR (30' by 36') and 680079VR 30' by 44').

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

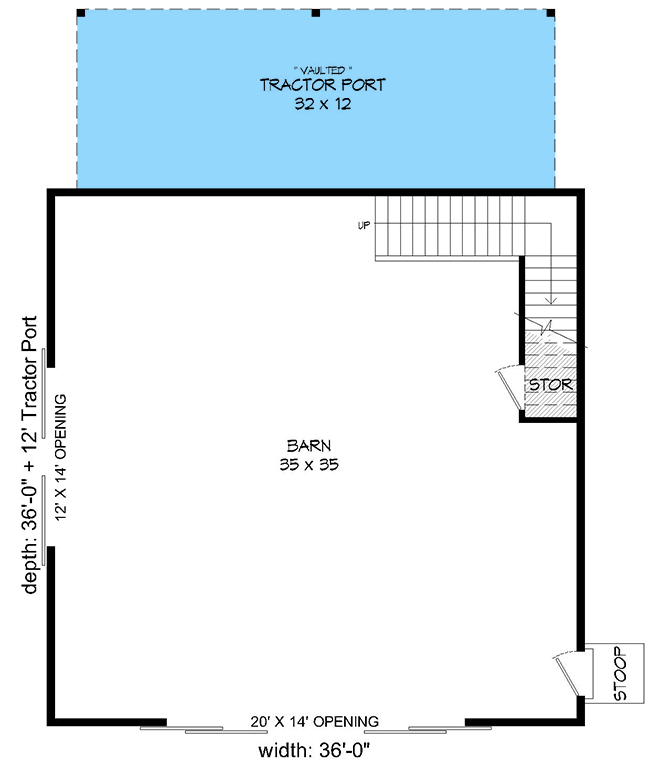

Car Barn with 1296 Sq Ft of Vehicle Space with Tractor Port and 993 Sq Ft Loft - 68766VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

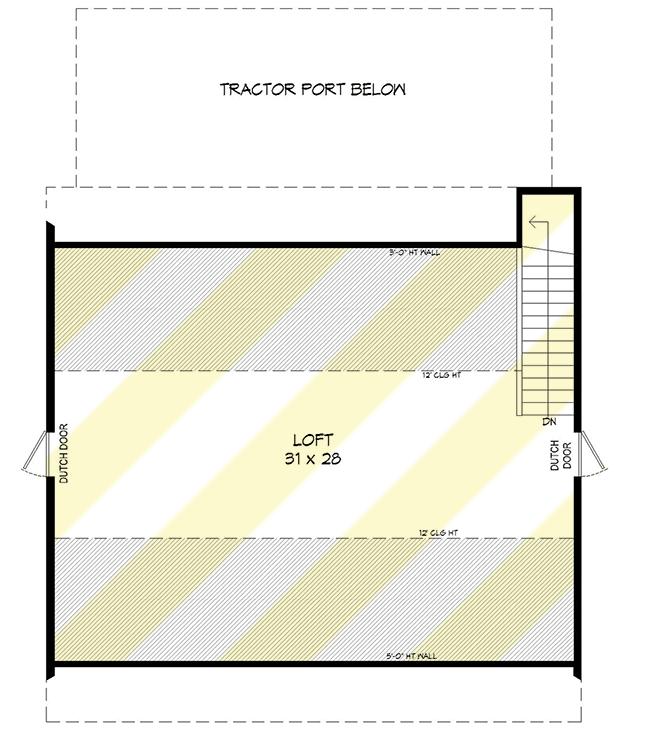

Car Barn with 1296 Sq Ft of Vehicle Space with Tractor Port and 993 Sq Ft Loft - 68766VR floor plan - 2nd Floor

Architectural Style

Special features

Car Barn with 1296 Sq Ft of Vehicle Space with Tractor Port and 993 Sq Ft Loft

  • 1,029

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,029 sq. ft.
  • 2nd Floor: 1,029 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 48' 0"
  • Max ridge height: 34' 10"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 1296 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 16' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
