Plan 51206MM

Center Entry Duplex with Matching 1245 Square Foot 2 Bed Units

Heated S.F.
2,490
Units
2
Width
Depth

Floor Plan

Plan 51206MM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51206MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

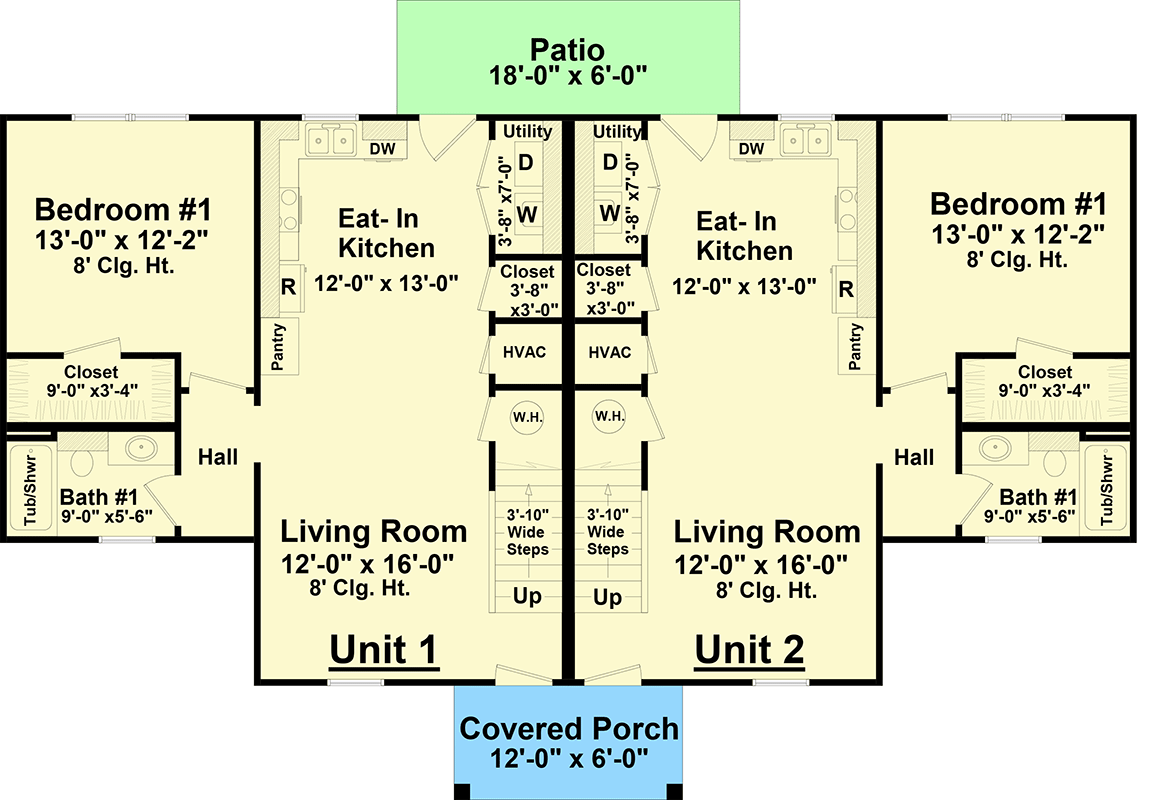

Plan 51206MM: Center Entry Duplex with Matching 1245 Square Foot 2 Bed Units - Floor Plan - Main Level - Traditional

2nd Floor

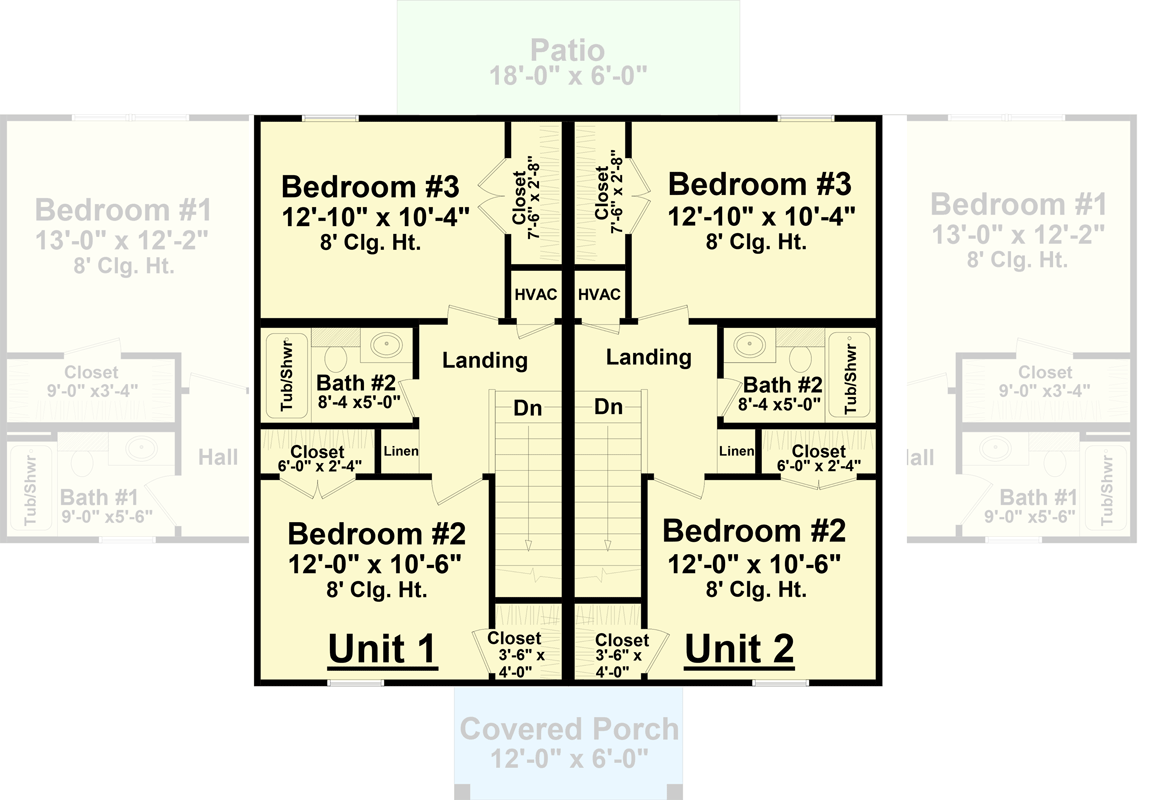

Plan 51206MM: Center Entry Duplex with Matching 1245 Square Foot 2 Bed Units - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This simple, full-featured duplex house plan gives you matching 3 beds, 2 baths units with 1,245 square feet of heated living space (795 square feet on the main floor and 450 square feet on the second floor).
  • Step in off the shared covered entry and discover an open floor plan with the living room in front and the kitchen in back.
  • The master suite occupies the entire left side of the home while Beds 2 and 3 are upstairs and share a bath.
  • Related Plan: Get a version with 2 bed units with house plan 51035MM.
Unit A
Heated Area
1,245Sq. Ft.
795 Sq. Ft. 1st
450 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
29' 10"width
36'depth
25' 3"height
Unit B
Heated Area
1,245Sq. Ft.
1590 Sq. Ft. 1st
900 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
29' 10"width
36'depth
25' 3"height

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,490 sq. ft.

1st Floor

1,590 sq. ft.

2nd Floor

900 sq. ft.

Porch, Front

72 sq. ft.

Porch, Combined

450 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 8"

Depth

36' 0"

Max Ridge Height

25' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,490 sq. ft.

1st Floor

1,590 sq. ft.

2nd Floor

900 sq. ft.

Porch, Front

72 sq. ft.

Porch, Combined

450 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 8"

Depth

36' 0"

Max Ridge Height

25' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor
