Plan 360012DK
Charming 4-Bed Country Craftsman Home with Bonus Over Garage - 3204 Sq Ft
Heated S.F.
3,204
Beds
4
Baths
3.5
Stories
1
Cars
3
Photos
Floor Plan

Plan 360012DK

Main Level
slide image 0
2nd Floor
slide image 1
Unfinished Basement
slide image 2

Plan 360012DK

1-800-854-7852

1-262-521-4596

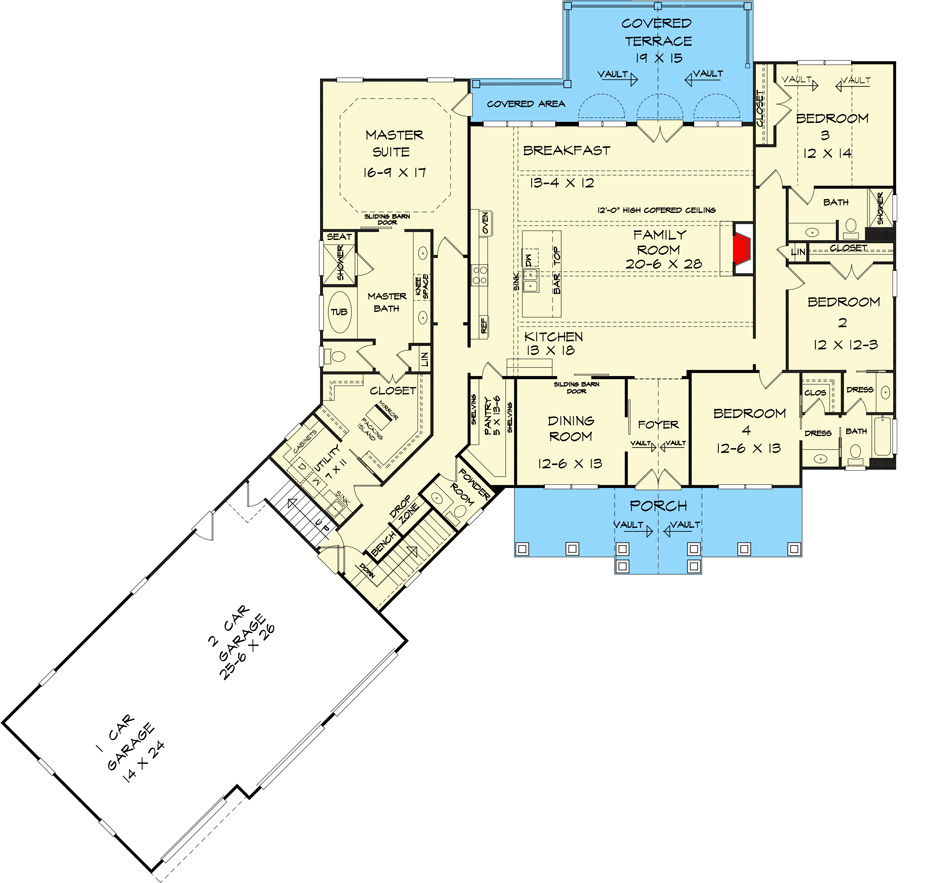

Main Level
floor plan image Main Level

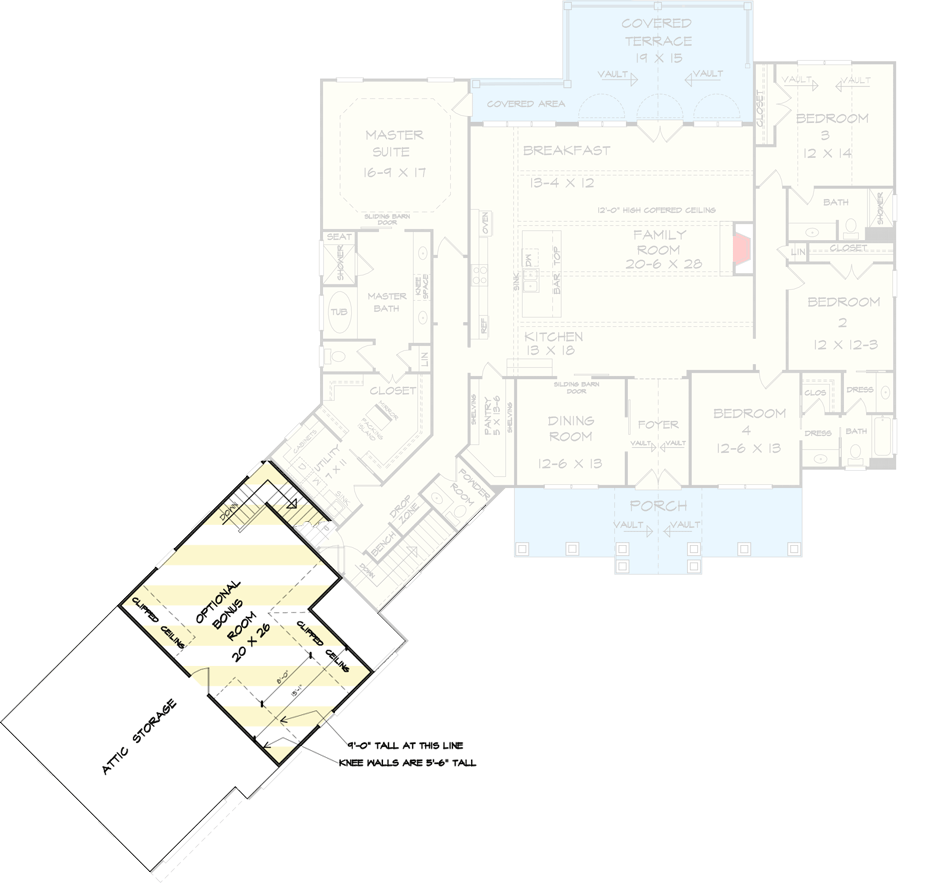

2nd Floor
floor plan image 2nd Floor

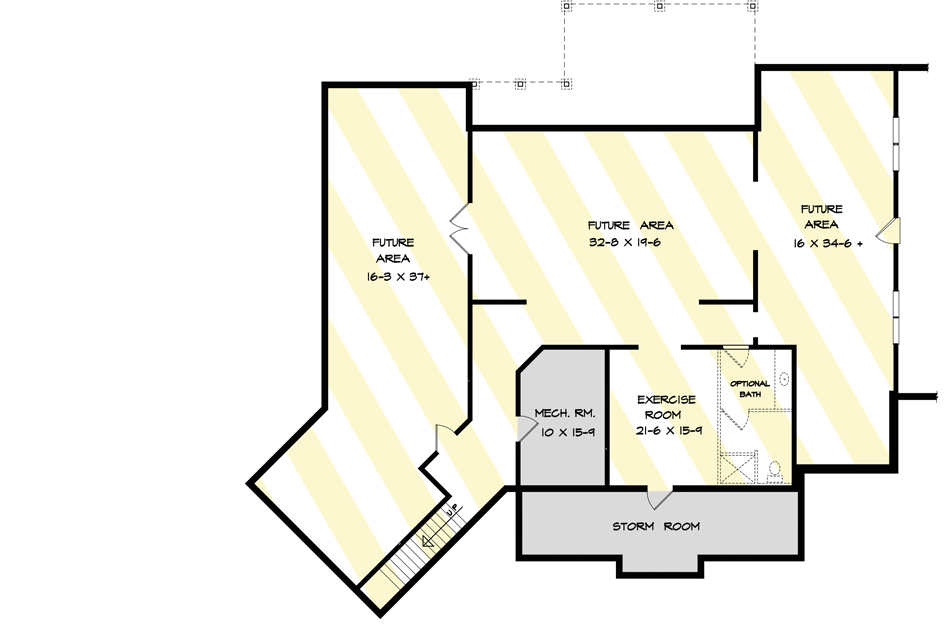

Unfinished Basement
floor plan image Unfinished Basement
Plan Details

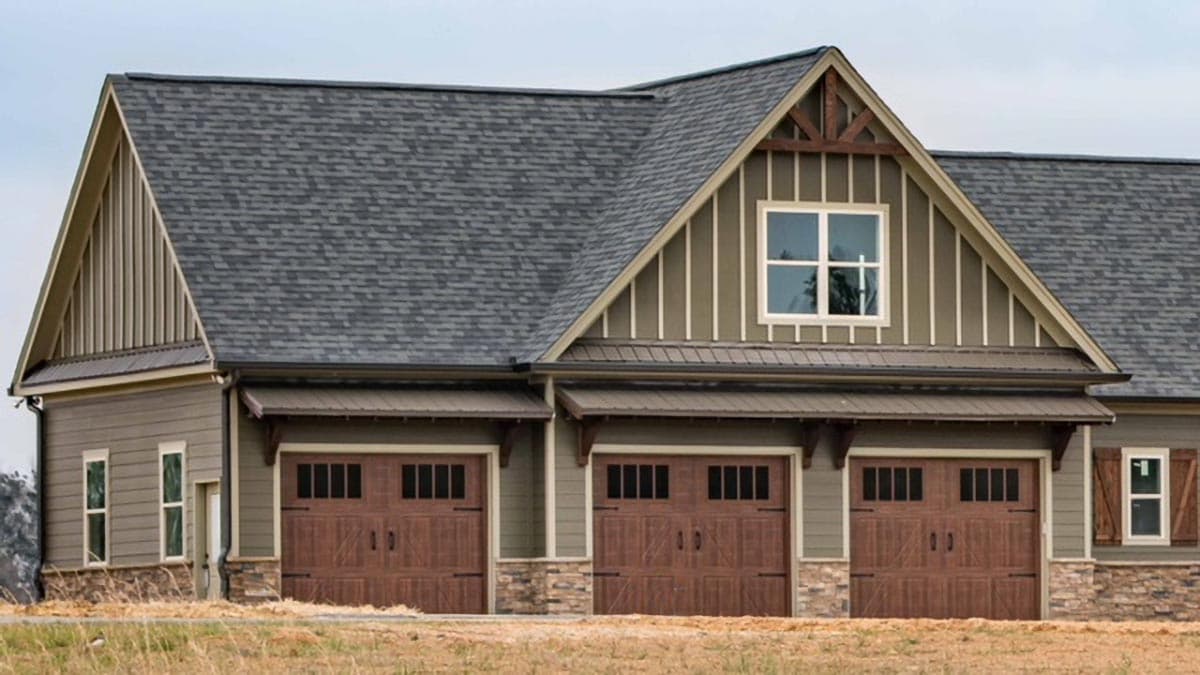

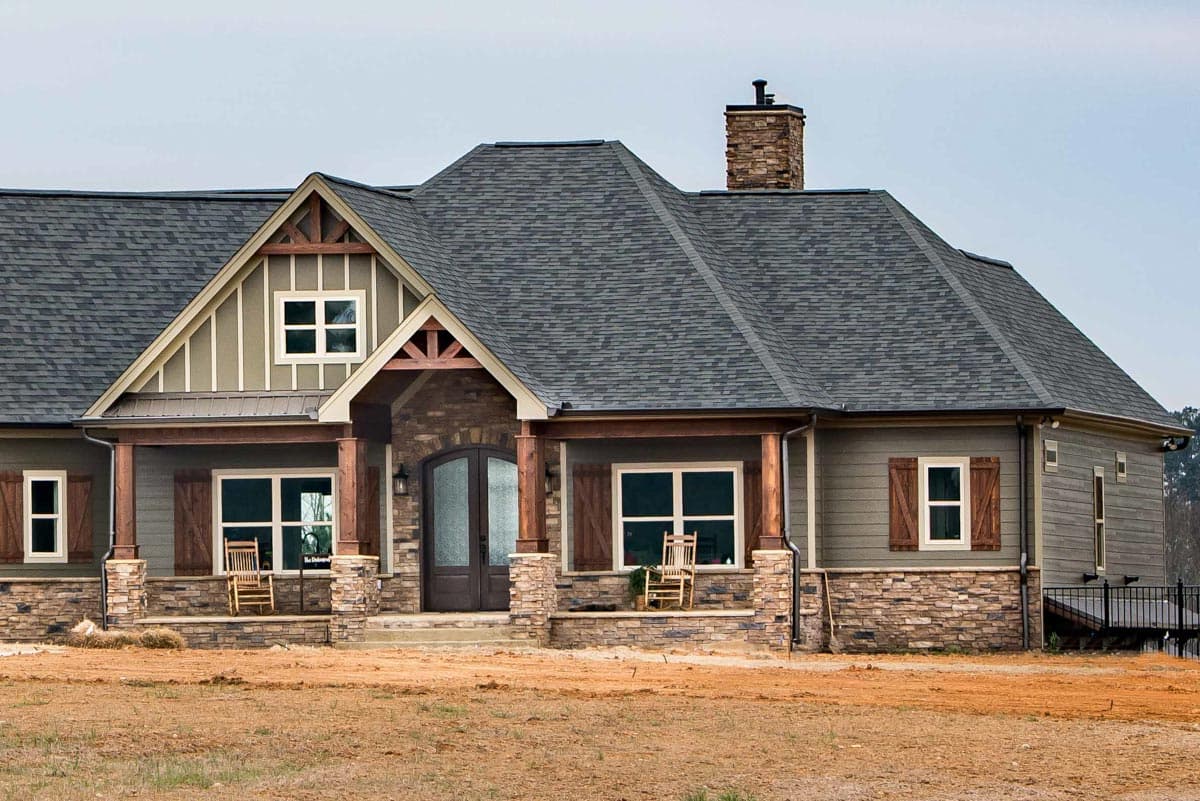

  • An angled 3-car garage adds visual interest to this high-end Craftsman house plan.

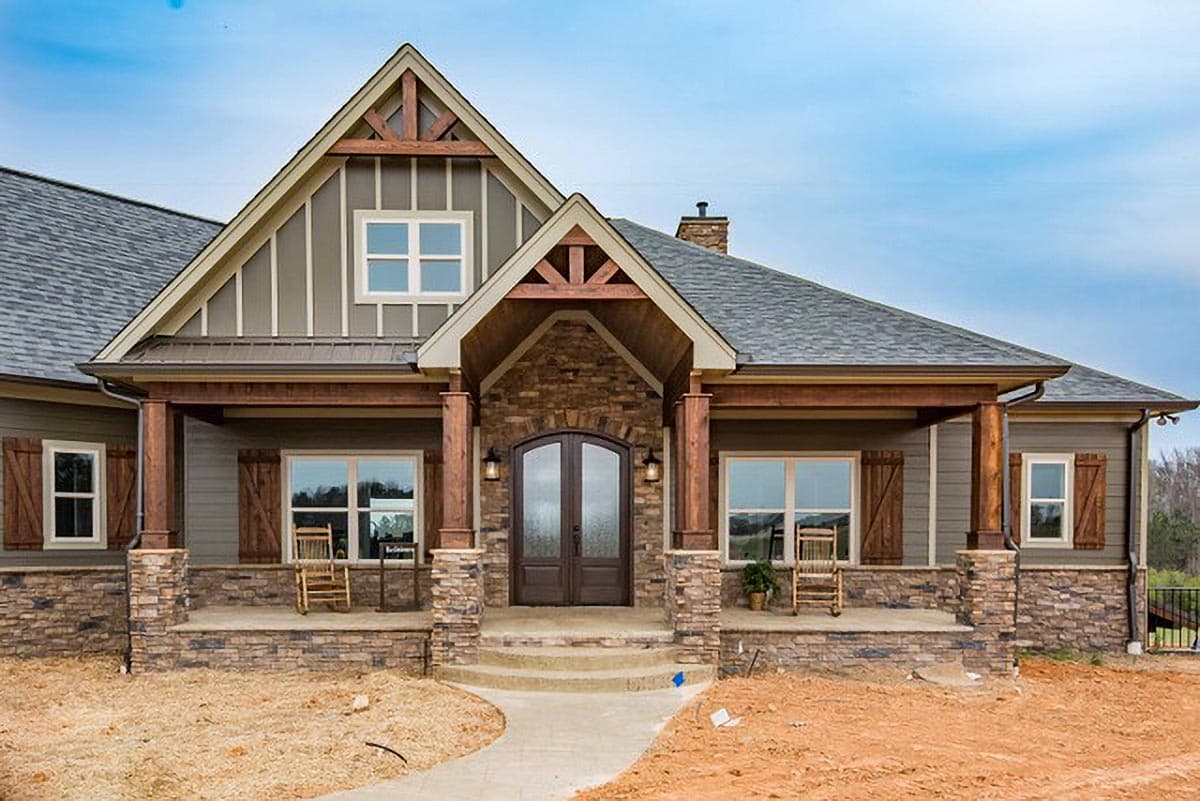

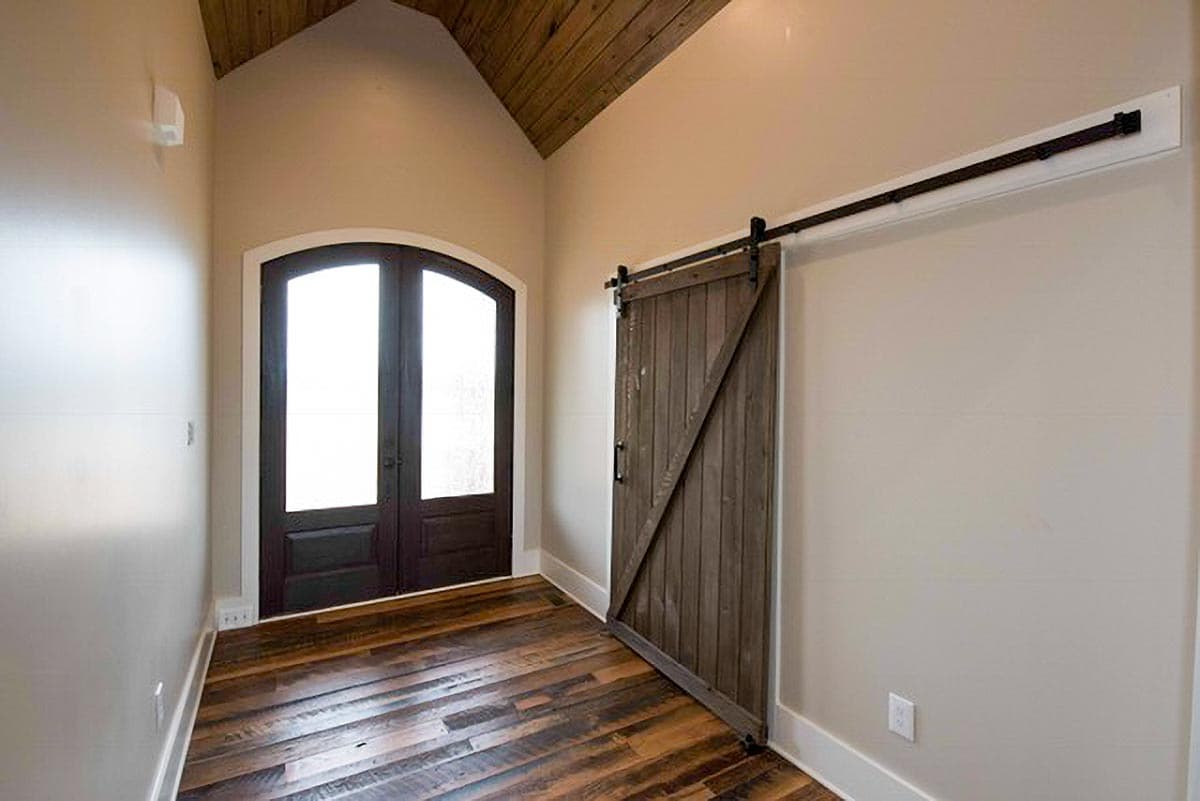

  • The vaulted entry porch gives way to the vaulted foyer that has the dining room and a bedroom to either side.

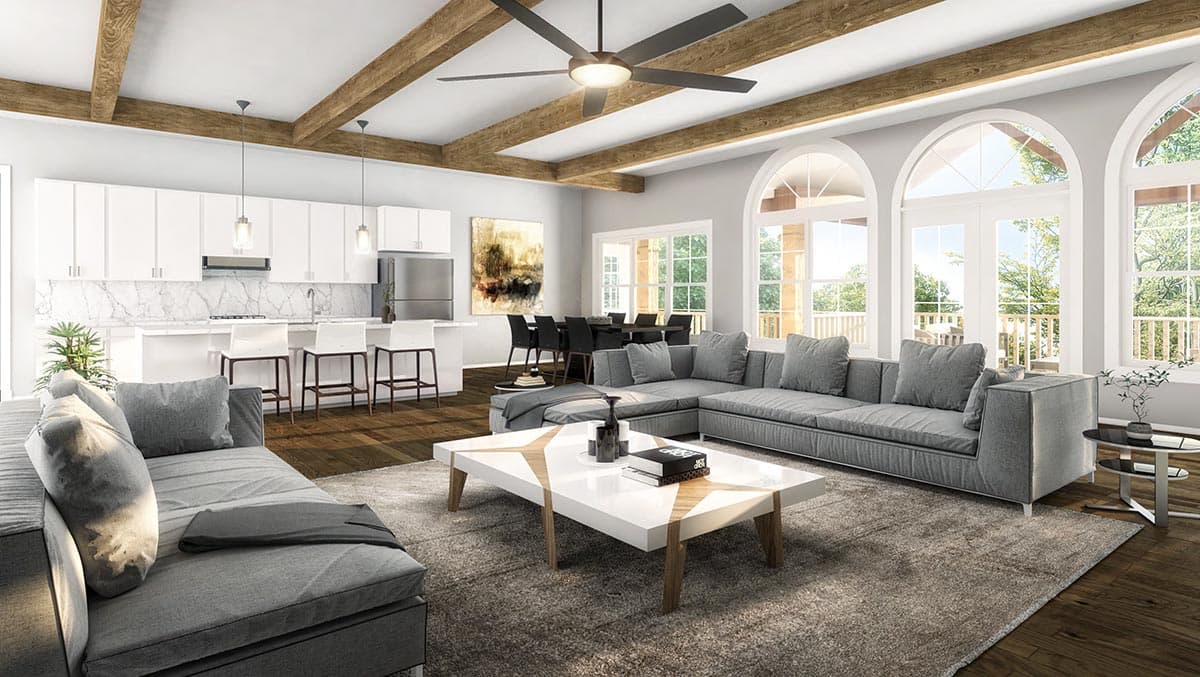

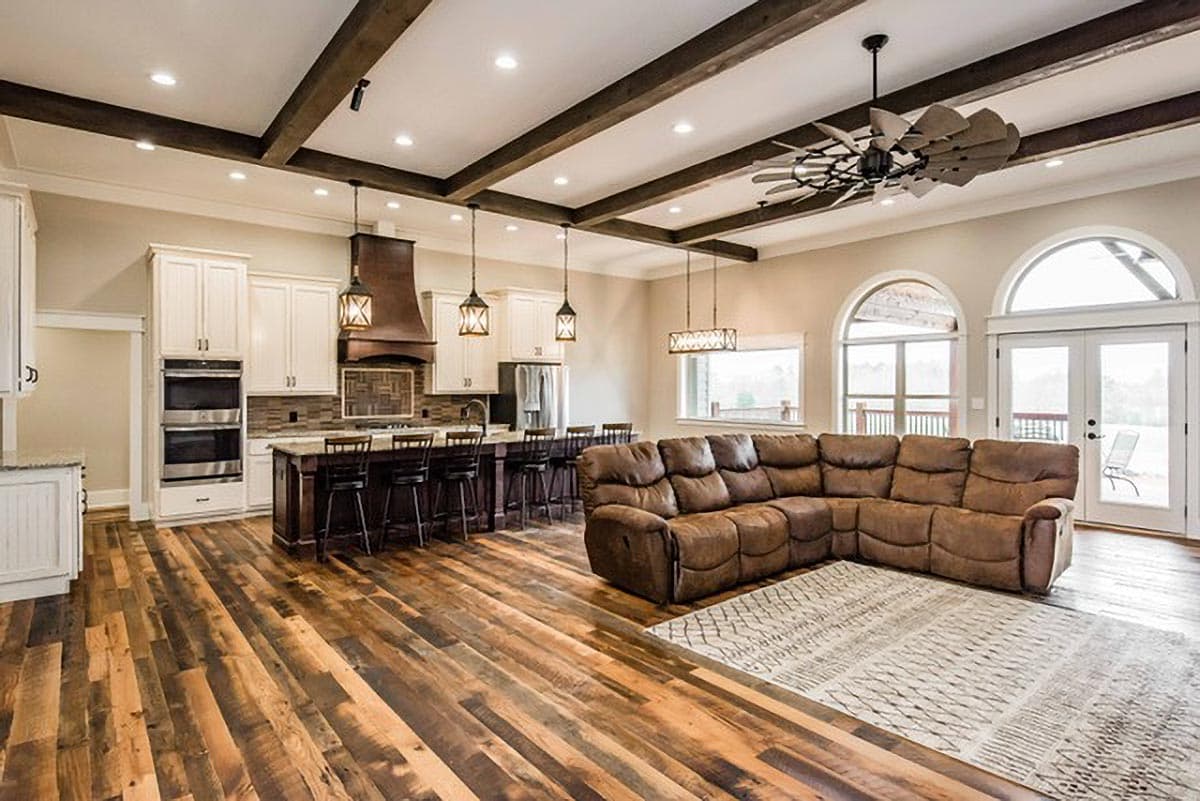

  • Further back, the family room ceiling vaults up in a different direction and has a big fireplace as the focal point.

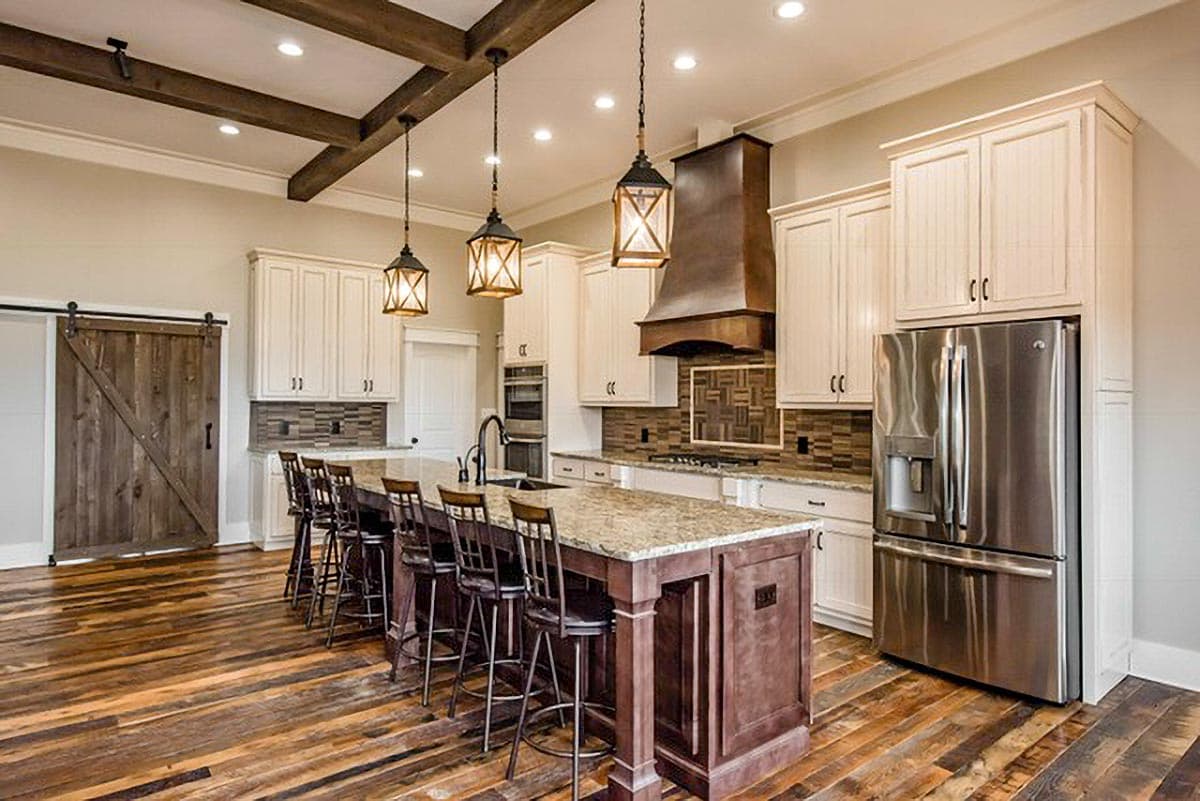

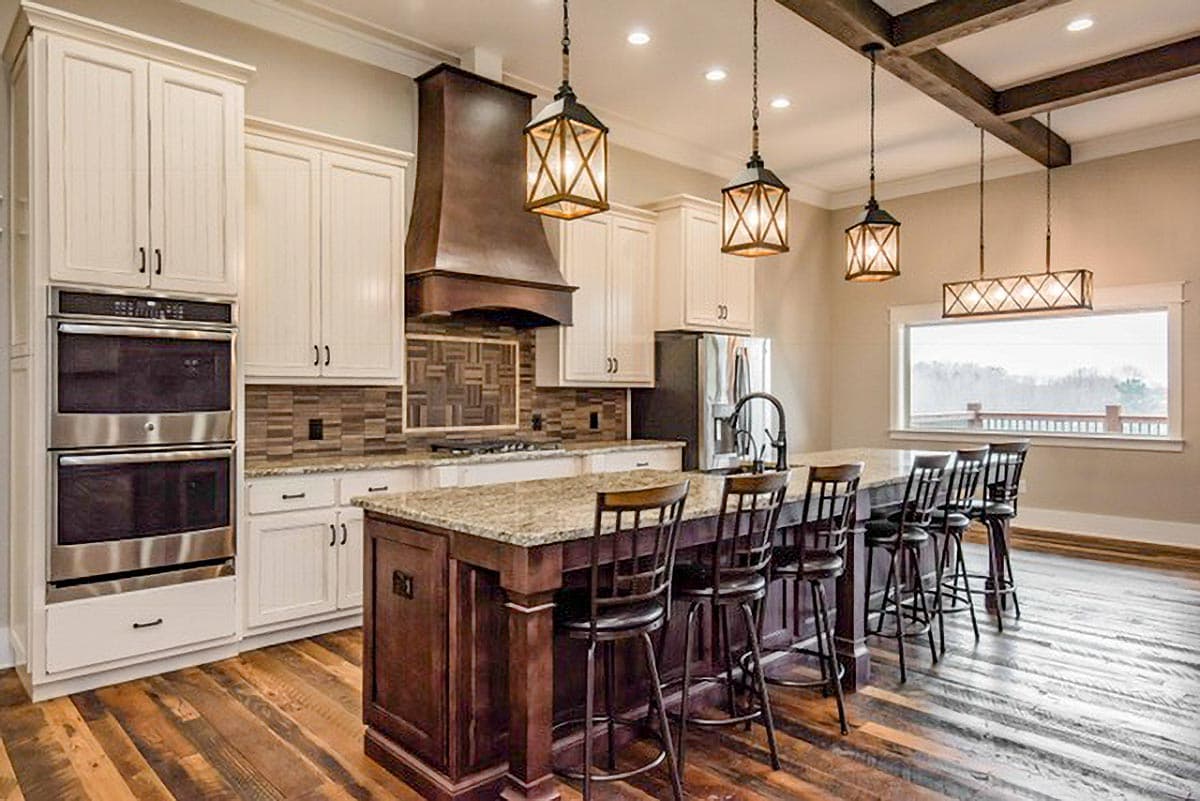

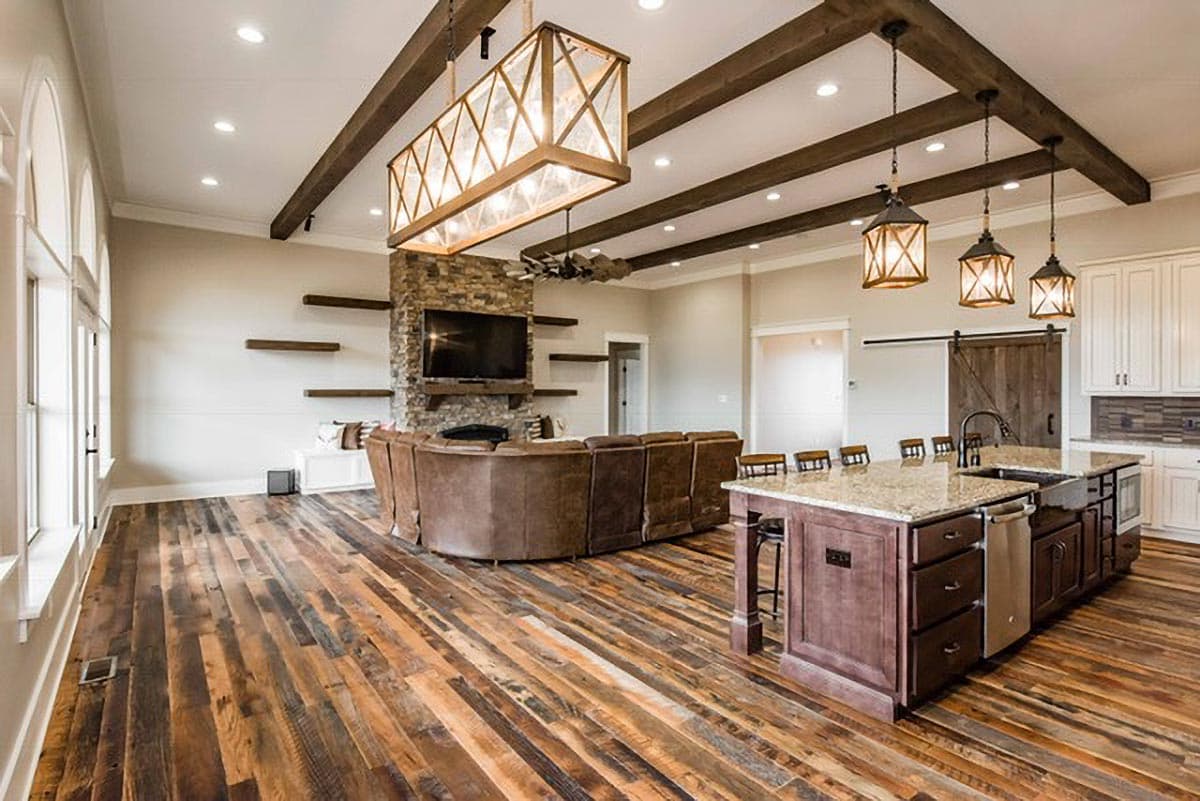

  • A island in the large kitchen faces the family room so you can enjoy view of the fire while cooking.

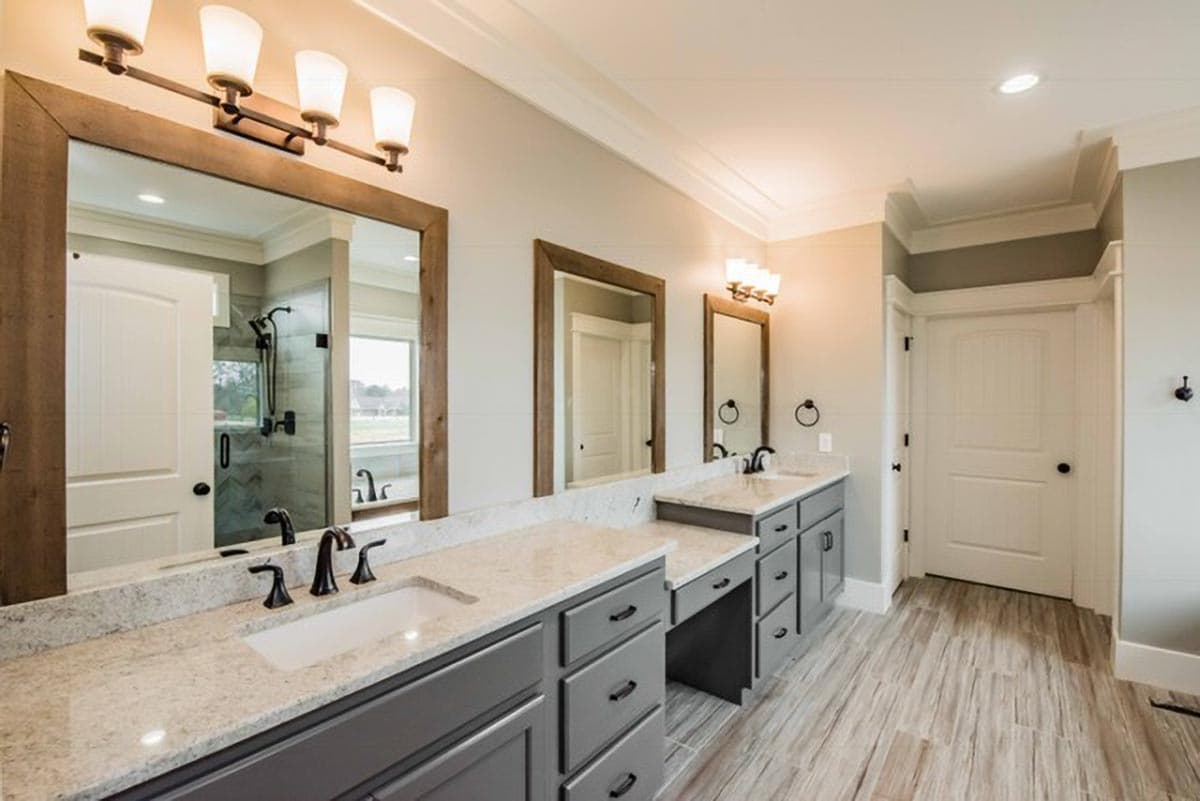

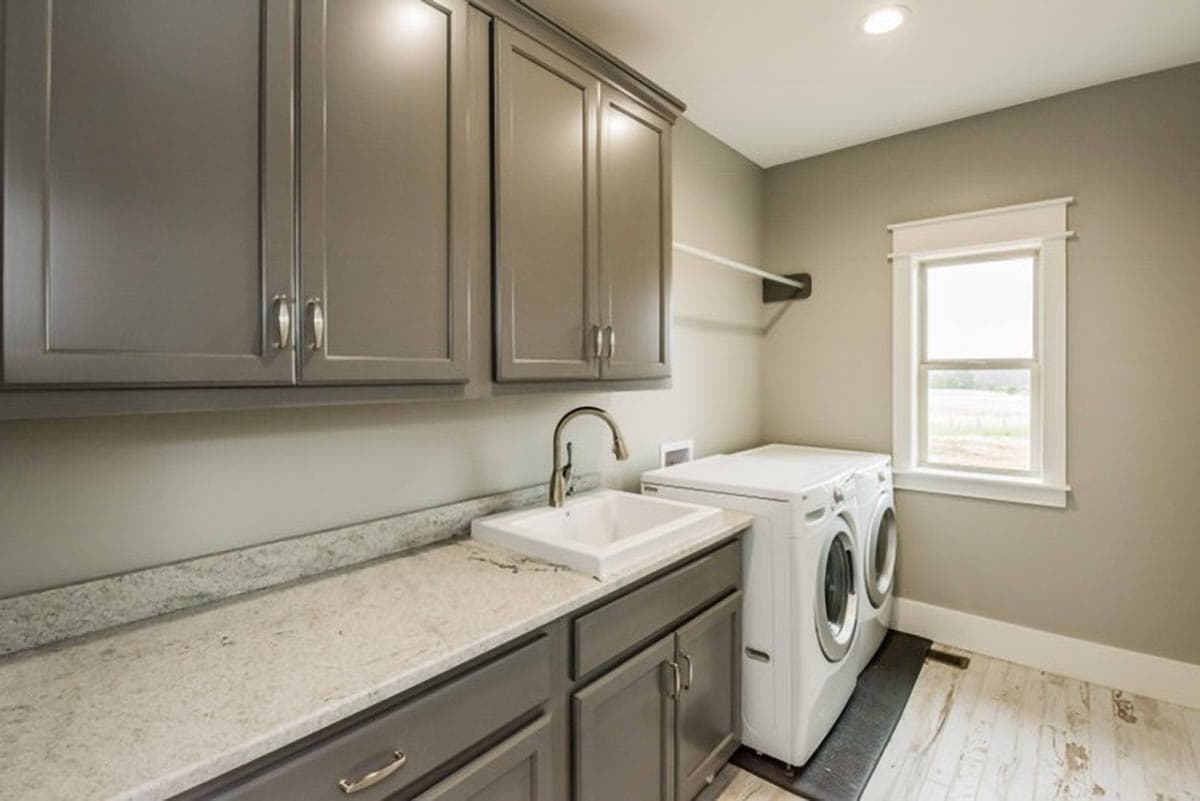

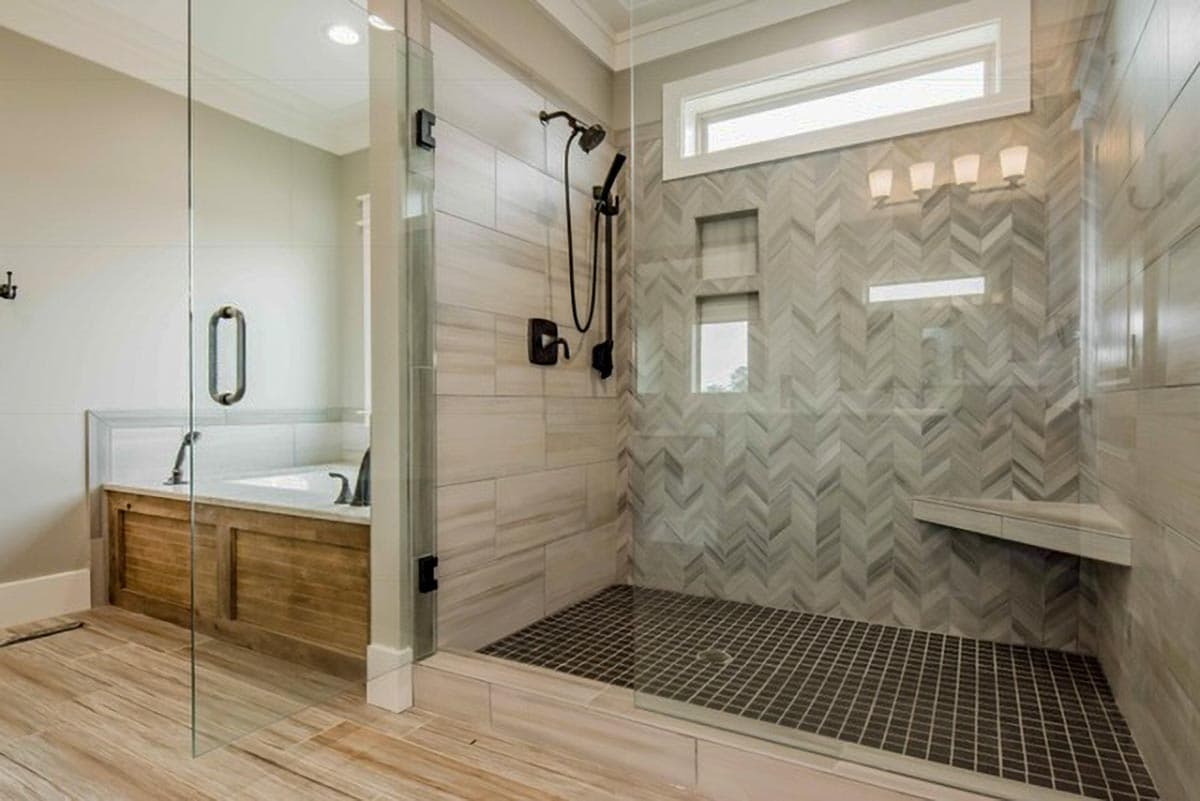

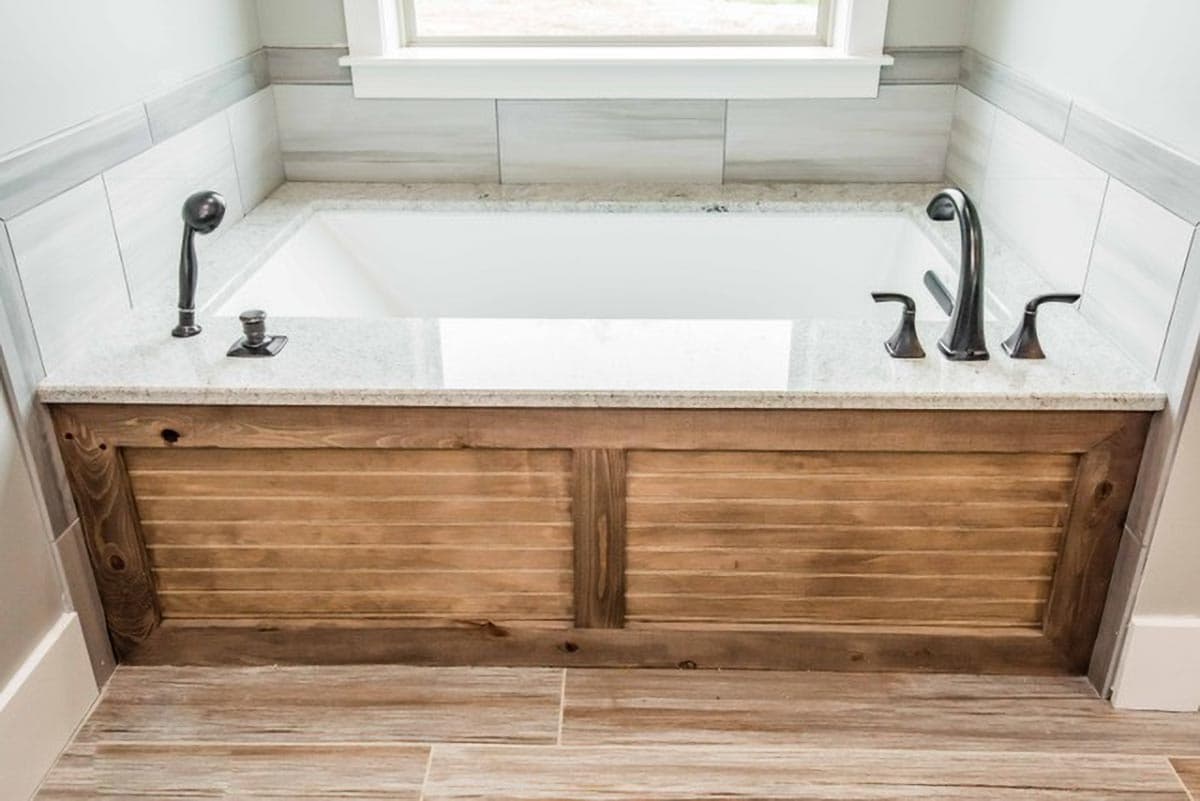

  • The master suite occupies the left wing of the home and has a tray ceiling and deluxe master bathroom with direct laundry room access.
  • Bonus space lies over the garage where any sound does not disturb any rooms below.
  • Walkout basement is on the right wing of the house
  • Related Plan: Get an alternate version with house plan 360080DK (3,206 sq. ft.). Get a smaller version with house plans 36075DK (2,971 sq. ft.) and 360042DK (3,038 sq. ft.). Get a 2-car garage with house plan 36032DK (2,900 sq. ft.).


Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Craftsman House Plan 360012DK Comes to Life in Alabama

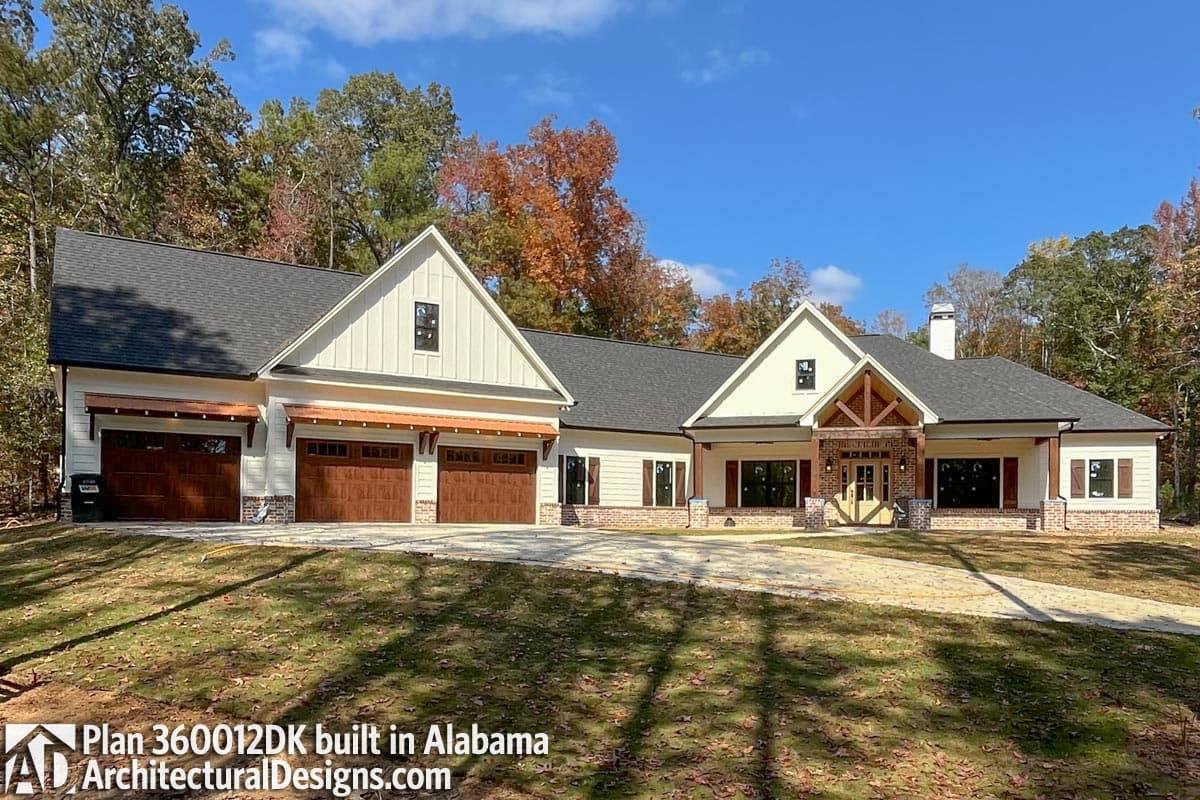

Craftsman House Plan 360012DK Comes to Life in Alabama

22

Photos

What's Included
This plan includes the following details:
  • Front Elevation

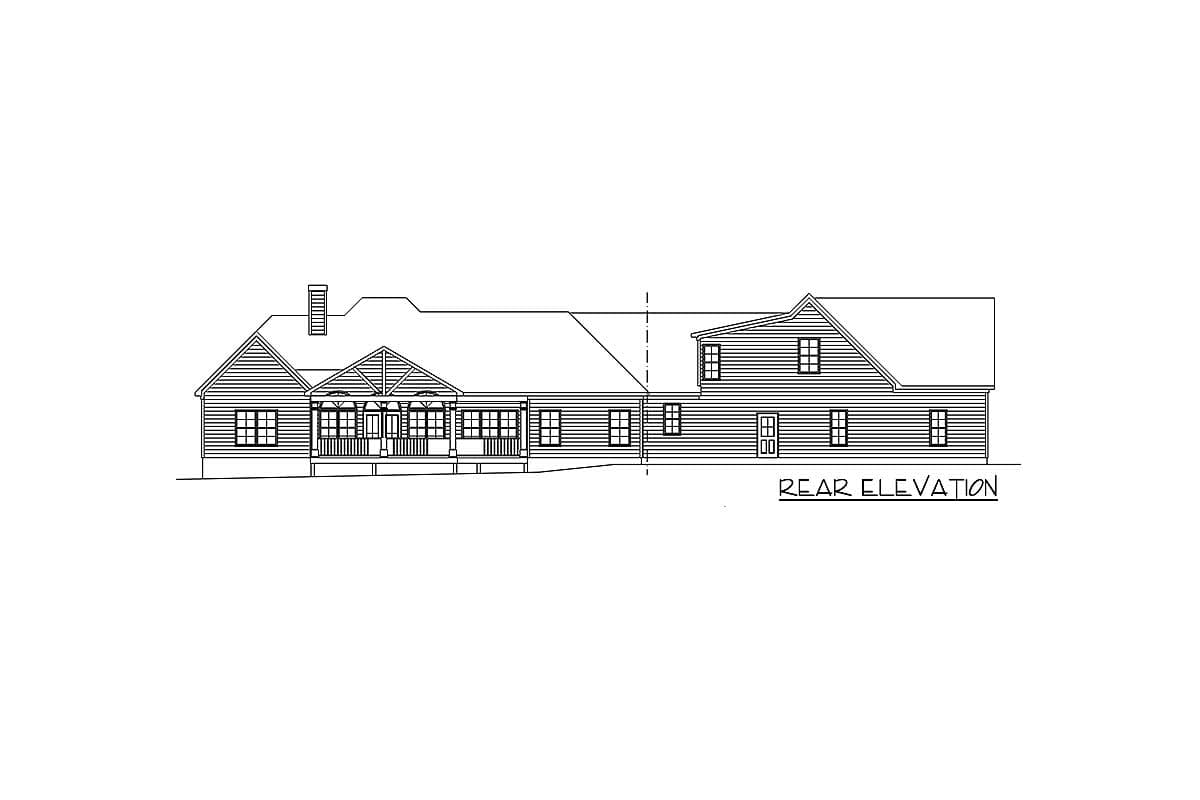

  • Rear Elevation

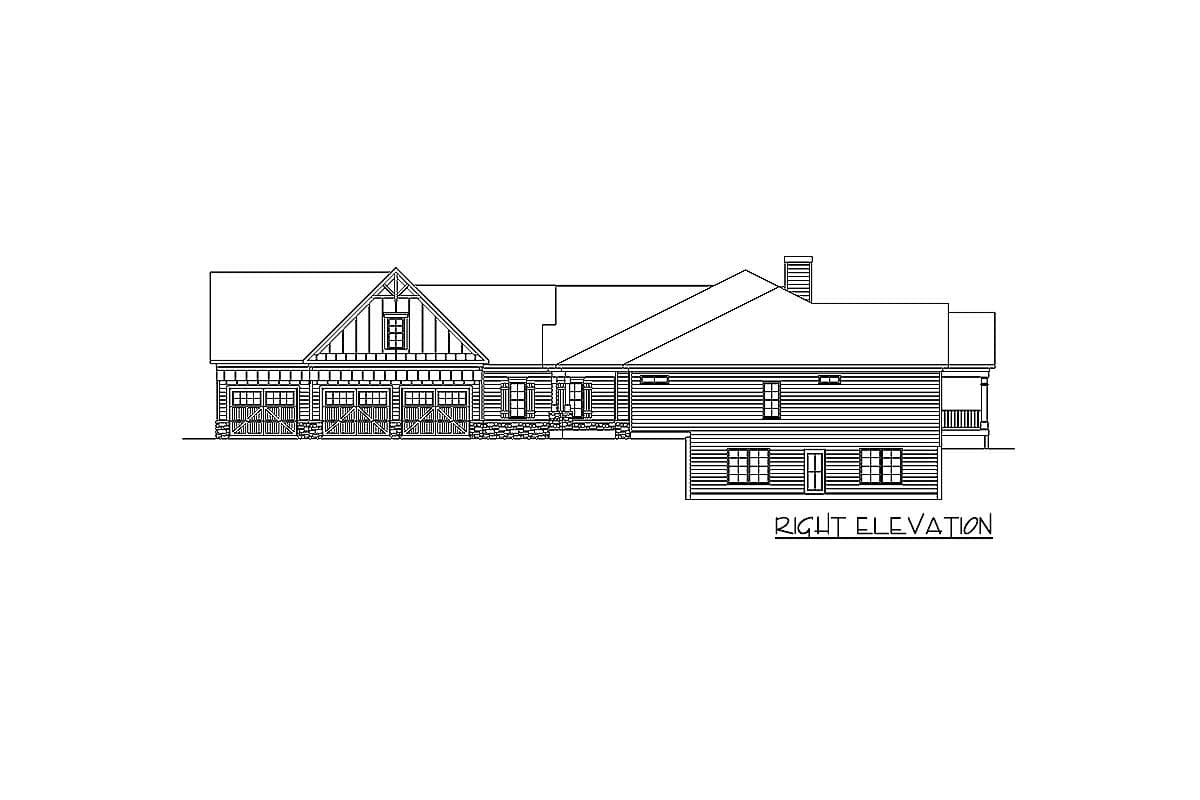

  • Right Side Elevation

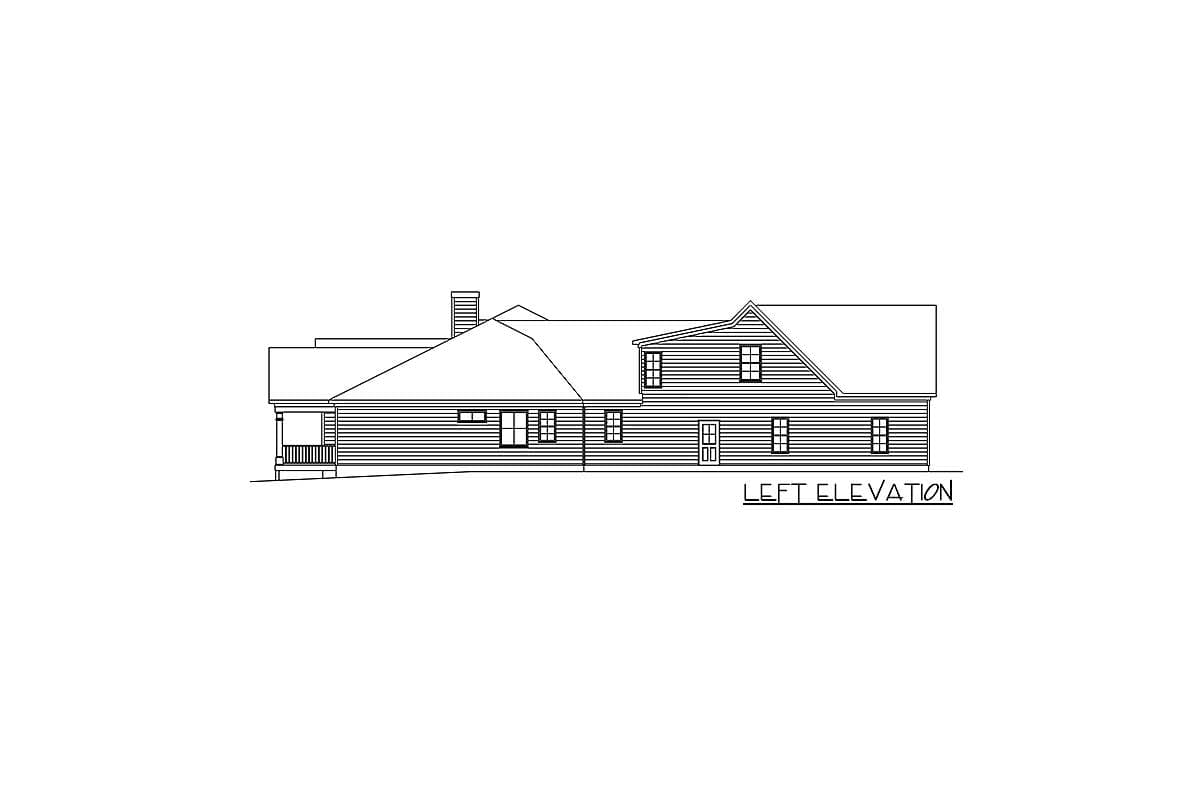

  • Left Side Elevation
  • Roof Plan Diagram with pitch designations
  • Quick View Floor Plan
  • Terrace Level Slab Foundation Plan
  • Terrace Level Floor Plan
  • Main Level Floor Plan with framing information
  • Upper Level Floor Plan with framing information
  • Electrical plans for all levels
  • Construction Detail Sheet
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,204 sq. ft.

1st Floor

3,204 sq. ft.

Bonus

583 sq. ft.

Porch, Front

286 sq. ft.

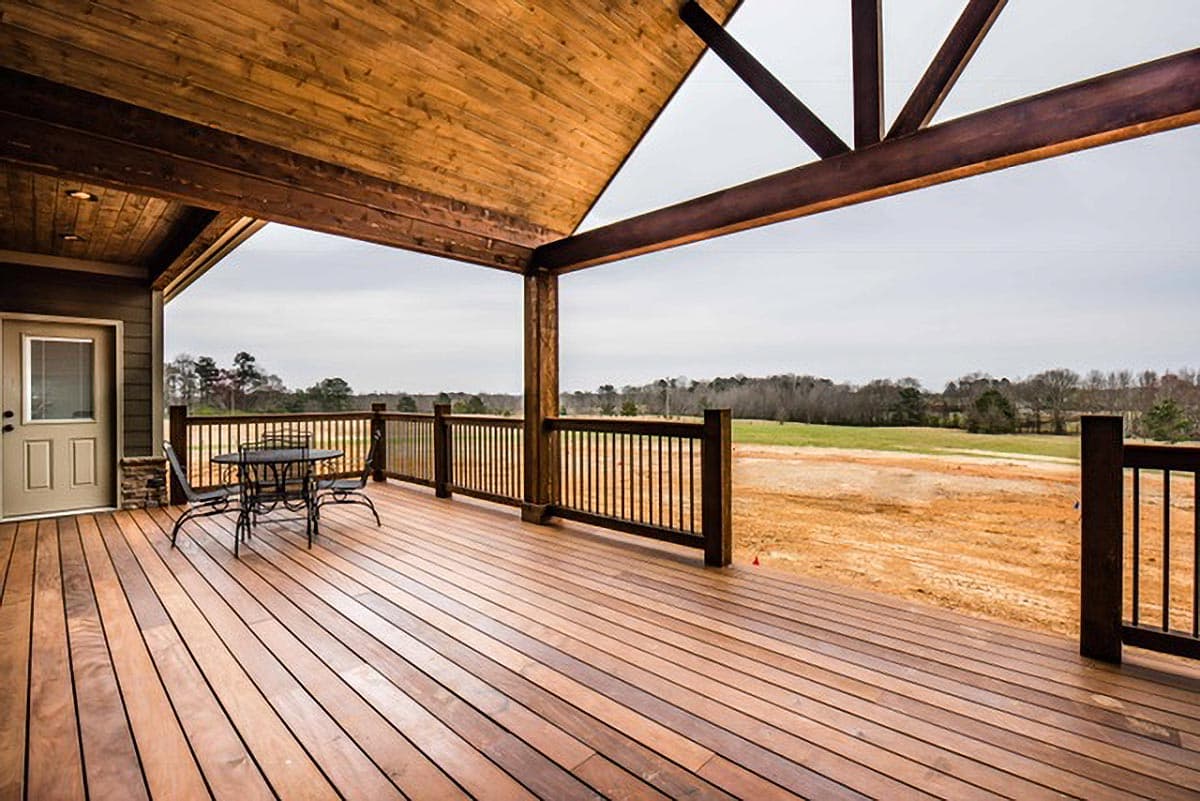

Porch, Rear

361 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

103' 5"

Depth

100' 10"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

1029 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Bonus Room

8' 0''

Room

Ceiling Type

Height

Family Room

Coffered

0' 0''

Foyer

Vaulted

0' 0''

Bedroom 3

Vaulted

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Plan Collections
