Charming Country Craftsman House Plan

Plan 6930AM

  • 2,001

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

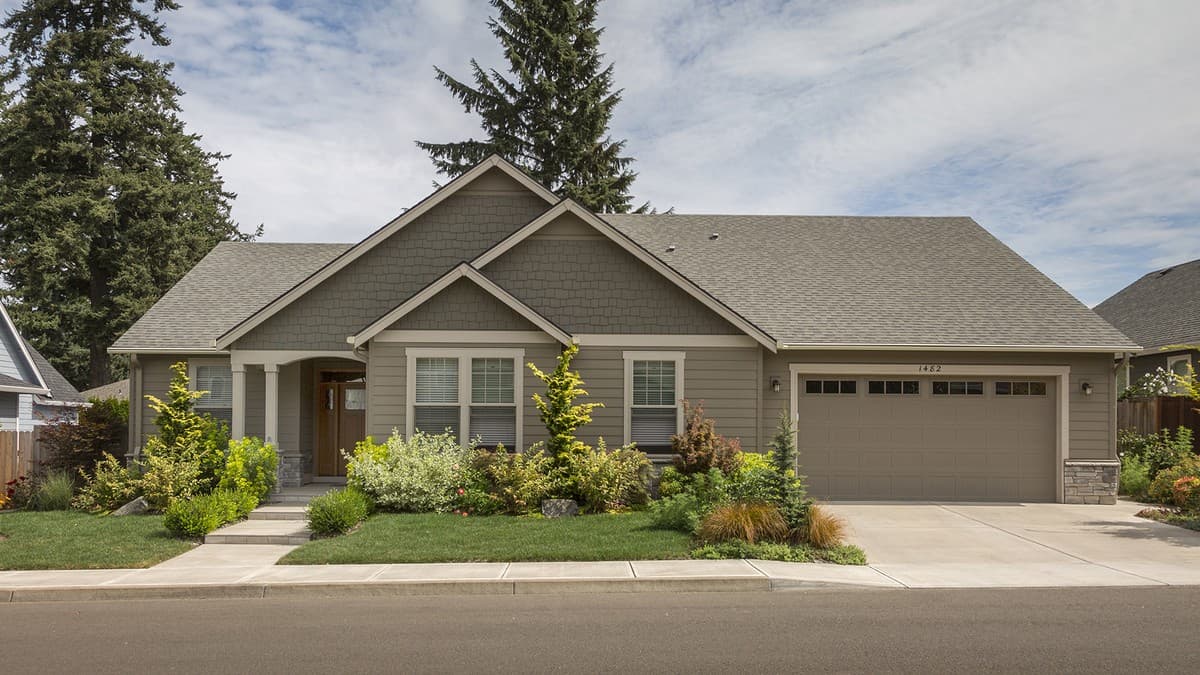

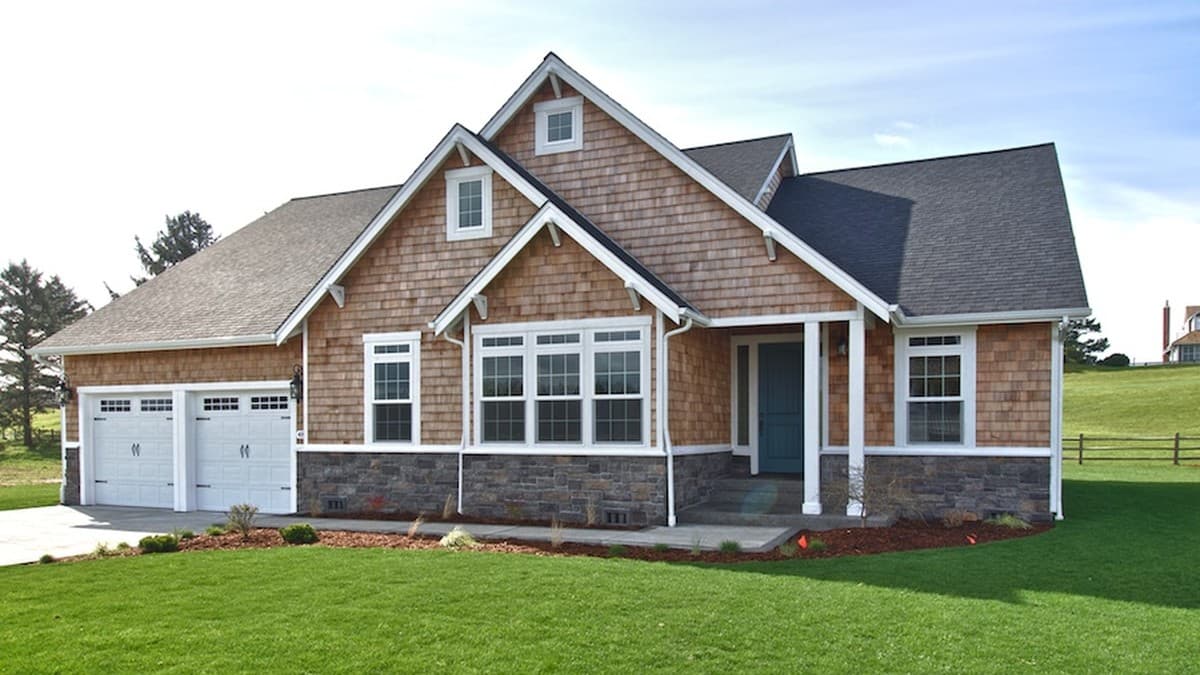

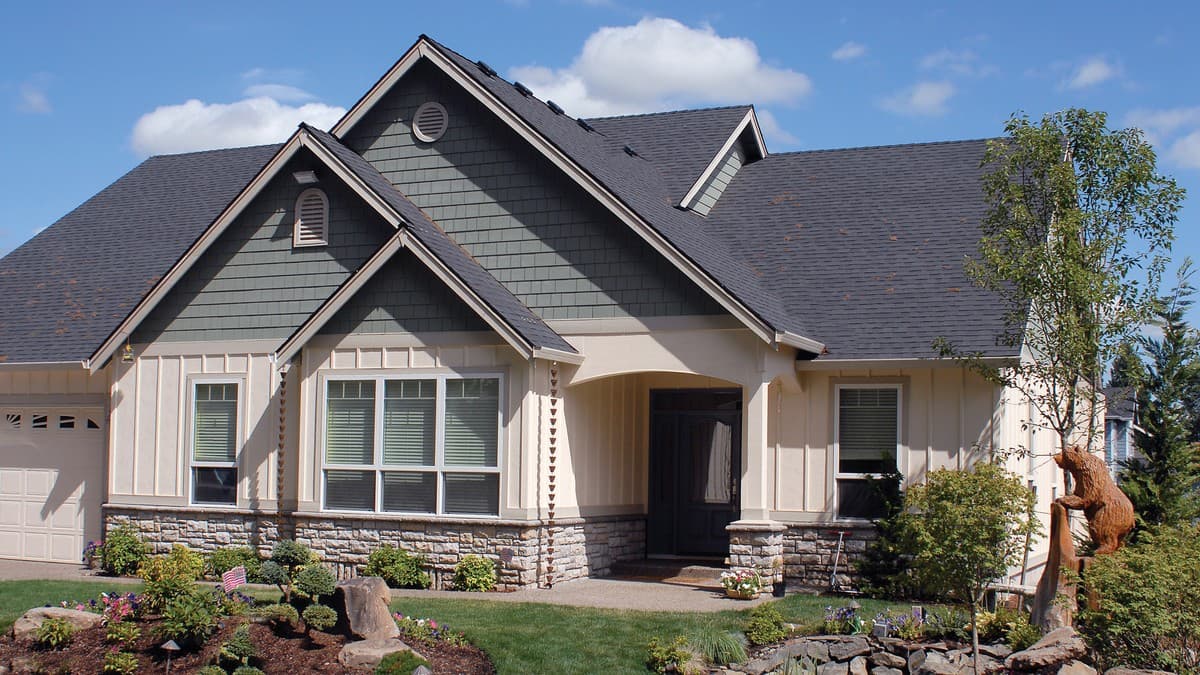

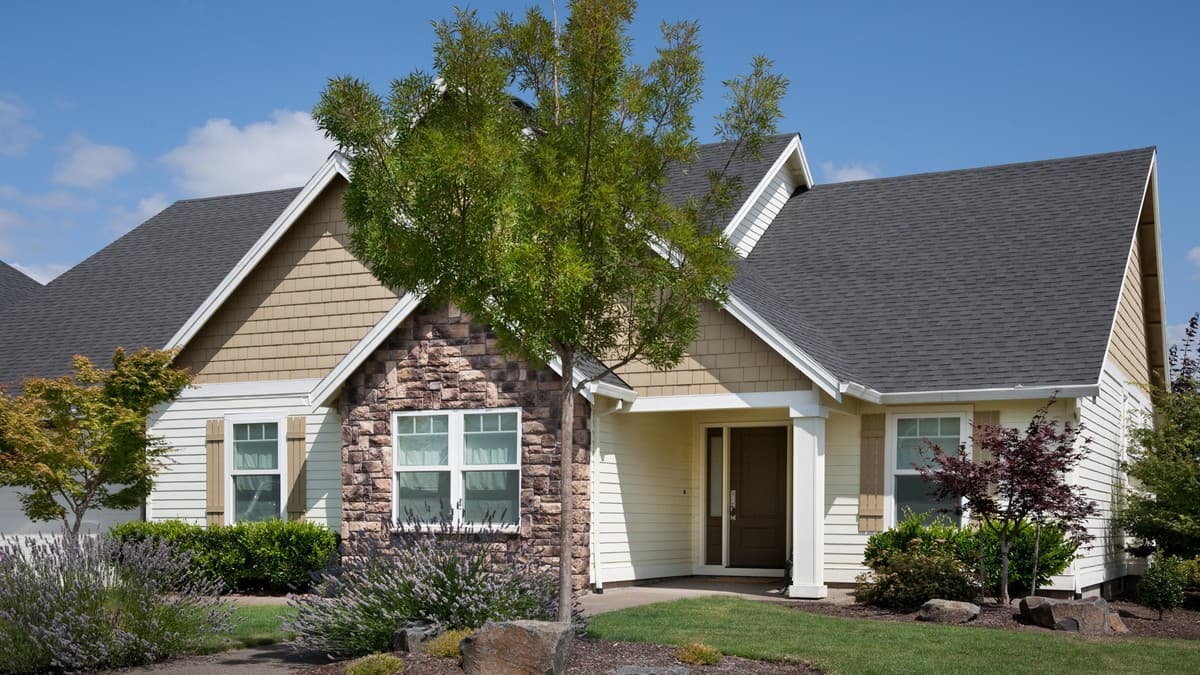

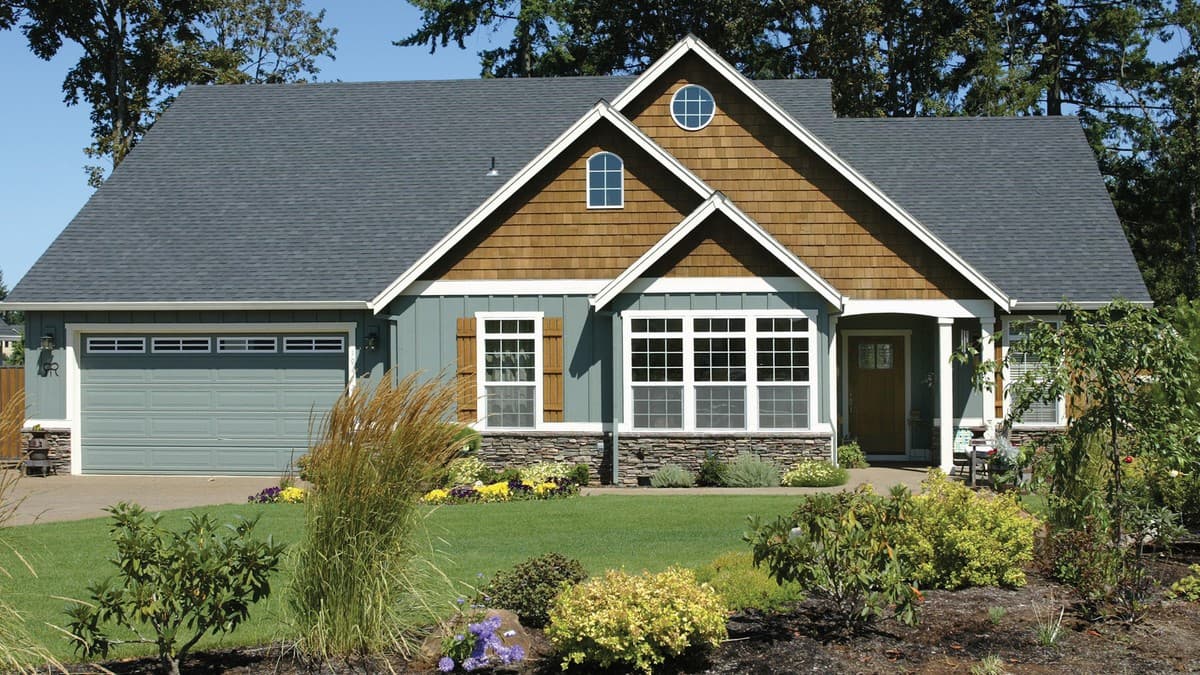

  • A fine house plan for a country setting, this plan offers a quaint covered porch at the entry, cedar shingles in the gables, and stonework at the foundation line.
  • To the right of the foyer, a den allows for either a desk or a closet. The hall to the left leads to three bedrooms, two for family and guests. In the master suite, the bedroom is nicely vaulted and opens to a large walk-in closet and a private bath with a spa tub.
  • Also vaulted is the great room, which rises to 14' and contains a fireplace and optional media center. The adjacent dining room has space for a hutch or built-ins, and the open kitchen is delineated by an angled island with an eating bar.
  • Extra space in the garage can be used for a third car, for storage or as a workshop.
  • Width of 60' does NOT include the bump-out for the chimney.  Chimney juts out 2' bringing the overall width to 62 feet.
  • Related Plans: Get alternate versions with house plans 69750AM, 69740AM, 69741AM69691AM69023AM, 6965AM and 69022AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

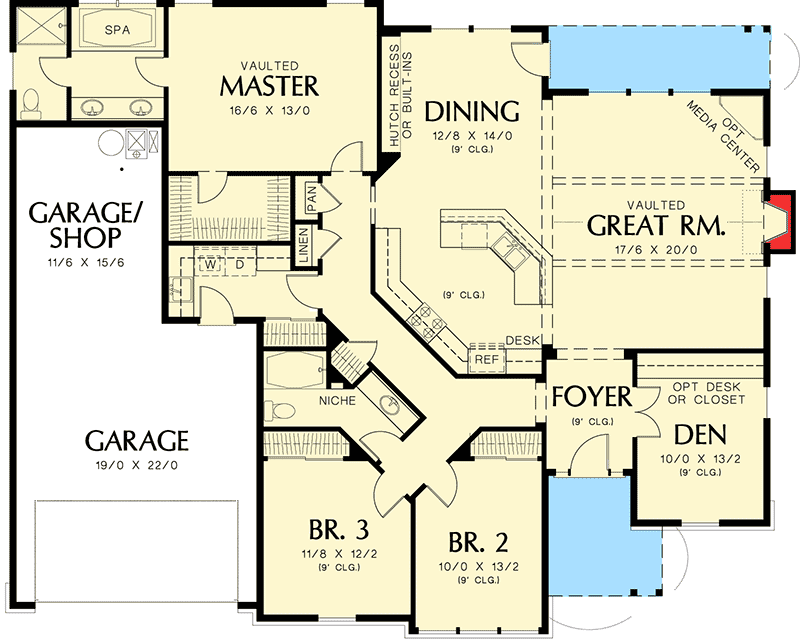

Charming Country Craftsman House Plan - 6930AM floor plan - Main Level

Basement Stairs

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

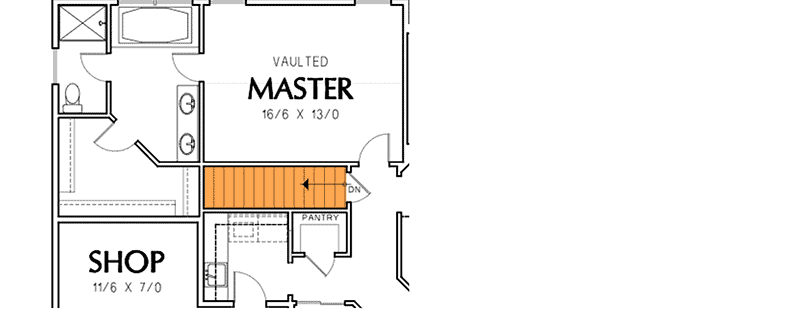

Charming Country Craftsman House Plan - 6930AM floor plan - Basement Stairs

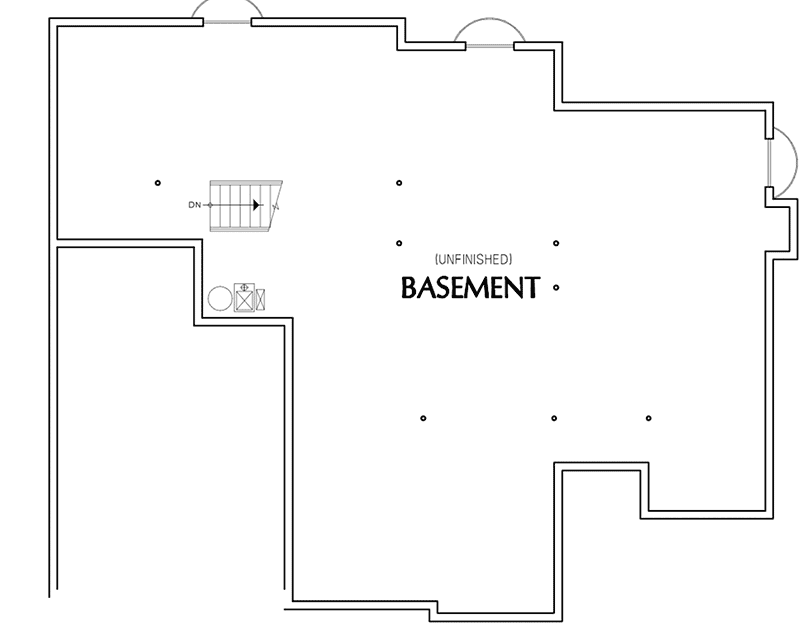

Unfinished Basement
