Plan 89670AH

Charming Craftsman Ranch Home Plan

2,107 2 3 1 3-4
Pageloader

Charming Craftsman Ranch Home Plan

Plan 89670AH

  • 2,107

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3-4

    Cars

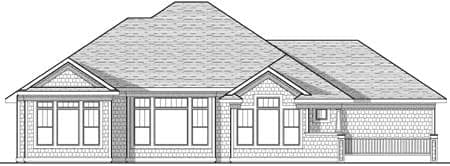

  • This charming craftsman ranch home plan has the perfect blend of stone and shingle siding as well as window boxes and shutters to give it a curb appeal all its own.
  • Twelve-foot ceilings greet you as you enter and lead you to through an arched opening to the main living area of the home where the kitchen and great rooms flow together to create a space that's large enough for entertaining.
  • At the rear window wall of the great room the wall height is 12' and from that point it slopes up towards the middle of the room and changes to a flat 15' height at the dashed line, then slopes back down again at the dashed line to the 12' height. "
  • A fireplace flanked by built-in cabinets and a large wall of windows warm the living area. The adjacent dining area features a cathedral ceiling and direct access to the back deck with built-in grill.
  • The bedroom wing is located on the right side of the home and includes a master suite complete with large walk-in closet, jacuzzi tub and step ceilings in the bedroom. The second bedroom has direct access to the full bath off the hallway.
  • A three-stall, split-load garage with extra storage rounds out the home plan.
  • Related Plans: Get a finished lower level with house plan 89671AH featuring a large family room with wet bar and adjacent game room, two additional bedrooms and a full bath.
  • Get an alternate exterior with house plan 89867AH.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



Charming Craftsman Ranch Home Plan

  • 2,107

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • 5 Sets $960
  • 8 Sets $1,005
  • PDF - single-use $1,210
  • Reproducible Set $1,210
  • CAD $1,915
  • View all purchase option online

About This Plan

  • This charming craftsman ranch home plan has the perfect blend of stone and shingle siding as well as window boxes and shutters to give it a curb appeal all its own.
  • Twelve-foot ceilings greet you as you enter and lead you to through an arched opening to the main living area of the home where the kitchen and great rooms flow together to create a space that's large enough for entertaining.
  • At the rear window wall of the great room the wall height is 12' and from that point it slopes up towards the middle of the room and changes to a flat 15' height at the dashed line, then slopes back down again at the dashed line to the 12' height. "
  • A fireplace flanked by built-in cabinets and a large wall of windows warm the living area. The adjacent dining area features a cathedral ceiling and direct access to the back deck with built-in grill.
  • The bedroom wing is located on the right side of the home and includes a master suite complete with large walk-in closet, jacuzzi tub and step ceilings in the bedroom. The second bedroom has direct access to the full bath off the hallway.
  • A three-stall, split-load garage with extra storage rounds out the home plan.
  • Related Plans: Get a finished lower level with house plan 89671AH featuring a large family room with wet bar and adjacent game room, two additional bedrooms and a full bath.
  • Get an alternate exterior with house plan 89867AH.

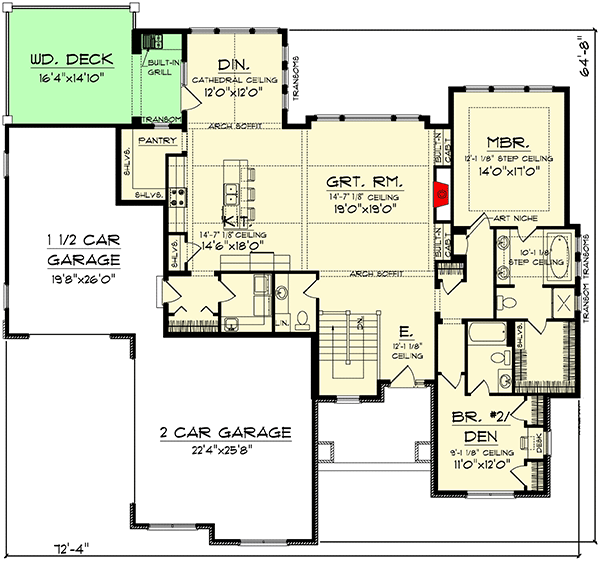

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,107 sq. ft.
  • 1st Floor: 2,107 sq. ft.
  • Screened Porch: 242 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 64' 8"
  • Max ridge height: 26' 7"

Garage

  • Type: Attached
  • Area: 1051 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • European
  • Ranch

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • PDF
