Plan 48243FM Classic Lines and Twin Fireplaces

Classic Lines and Twin Fireplaces

Plan 48243FM

  • 3,430

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A large two story foyer off the covered porch will impress your guests.
  • Flanking the entry is your formal dining room and living room with fireplace. Both have 10' ceilings. Entertain in style in the massive great room with a second fireplace and built-ins and views out the rear wall of windows.
  • The kitchen is open to the great room and you'll find access to the rear patio off the breakfast room. A built-in desk is there for keeping track of family matters. You also have the study for more private affairs.
  • Tucked in the rear, a quiet master retreat awaits the owners with a large walk-in closet and a huge spa bath. A private covered patio is a nice touch.
  • On the second floor, three bedrooms and a bonus room complete this home.
  • Related Plans: Need more space? See house plans 48239FM (3,696 sq. ft.) and 48013FM (3,984 sq. ft) and 48228FM (4,101 sq. ft).

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

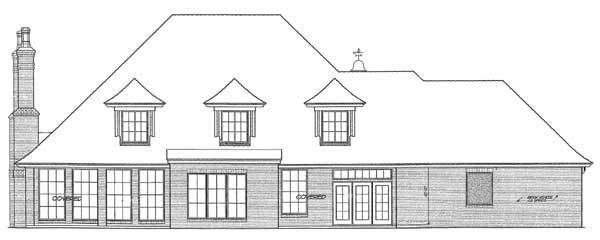

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

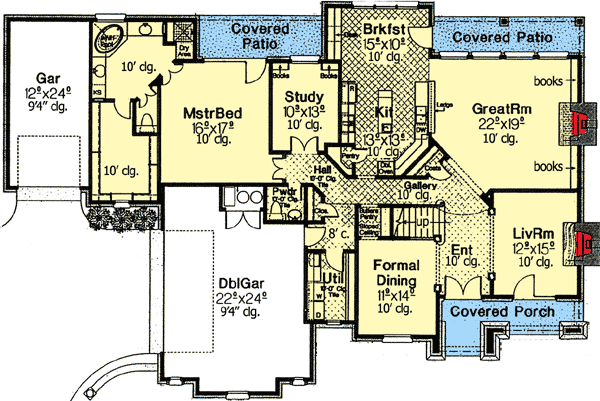

Classic Lines and Twin Fireplaces - 48243FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

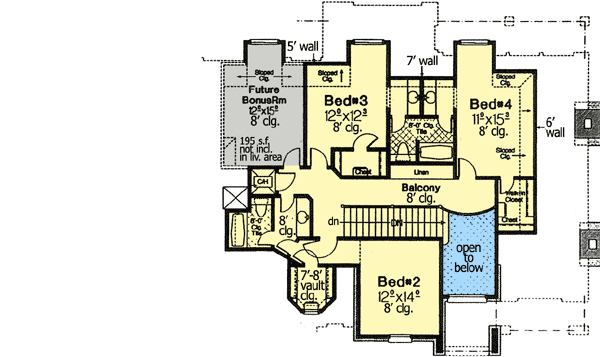

Classic Lines and Twin Fireplaces - 48243FM floor plan - 2nd Floor

Plan details

Classic Lines and Twin Fireplaces

  • 3,430

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • 8 Sets $1,535
  • PDF - Single-Build $1,685
  • CAD - Single-Build $2,610
  • View all purchase option online

About This Plan

  • A large two story foyer off the covered porch will impress your guests.
  • Flanking the entry is your formal dining room and living room with fireplace. Both have 10' ceilings. Entertain in style in the massive great room with a second fireplace and built-ins and views out the rear wall of windows.
  • The kitchen is open to the great room and you'll find access to the rear patio off the breakfast room. A built-in desk is there for keeping track of family matters. You also have the study for more private affairs.
  • Tucked in the rear, a quiet master retreat awaits the owners with a large walk-in closet and a huge spa bath. A private covered patio is a nice touch.
  • On the second floor, three bedrooms and a bonus room complete this home.
  • Related Plans: Need more space? See house plans 48239FM (3,696 sq. ft.) and 48013FM (3,984 sq. ft) and 48228FM (4,101 sq. ft).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,430 sq. ft.
  • 1st Floor: 2,339 sq. ft.
  • 2nd Floor: 1,091 sq. ft.
  • Bonus: 196 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 84' 0"
  • Depth: 55' 7"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 728 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
