Classic Two-story Craftsman Plan with In-law Suite

Plan 81737AB

  • 3,655

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A multitude of nested gables grace the front elevation of this Classic Two-story Craftsman home plan that boasts a 3-car garage with a private in-law suite overhead.
  • A covered lanai welcomes you inside where you'll find a great room to the left with easy access to the dining nook and kitchen. The butler area and walk-in pantry help you stay organized and conceal messes when entertaining.
  • The sizable home office and mudroom complete the main level.
  • Upstairs, the master bedroom provides a charming window seat, 5-fixture bathroom, and walk-in closet with access to the laundry room. Across the hall, two bedrooms share a Jack-and-Jill bath and the in-law suite with rec area / wet bar can be accessed via the garage or main home.
  • Finish the basement as designed and enjoy another gathering space with a wet bar, home theatre, fourth bedroom, and excercise room; a total of 1,253 square feet of living space.

Plans include the following:

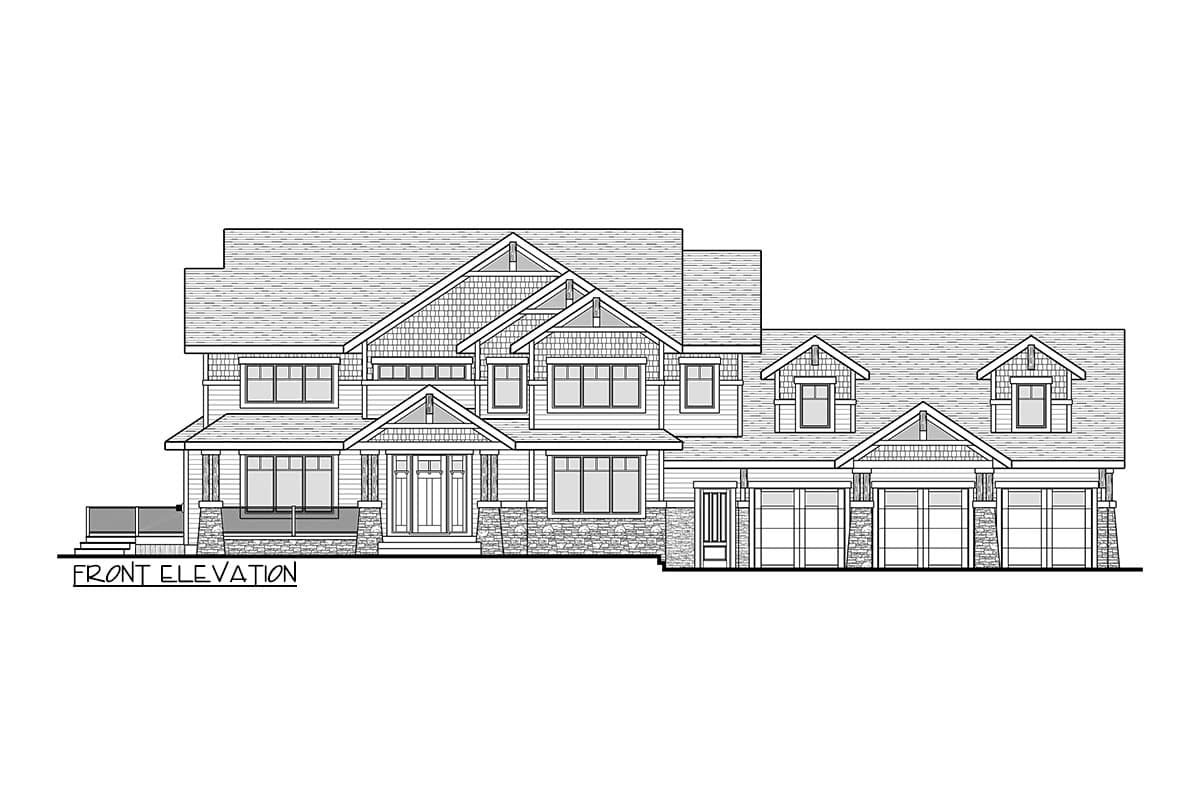

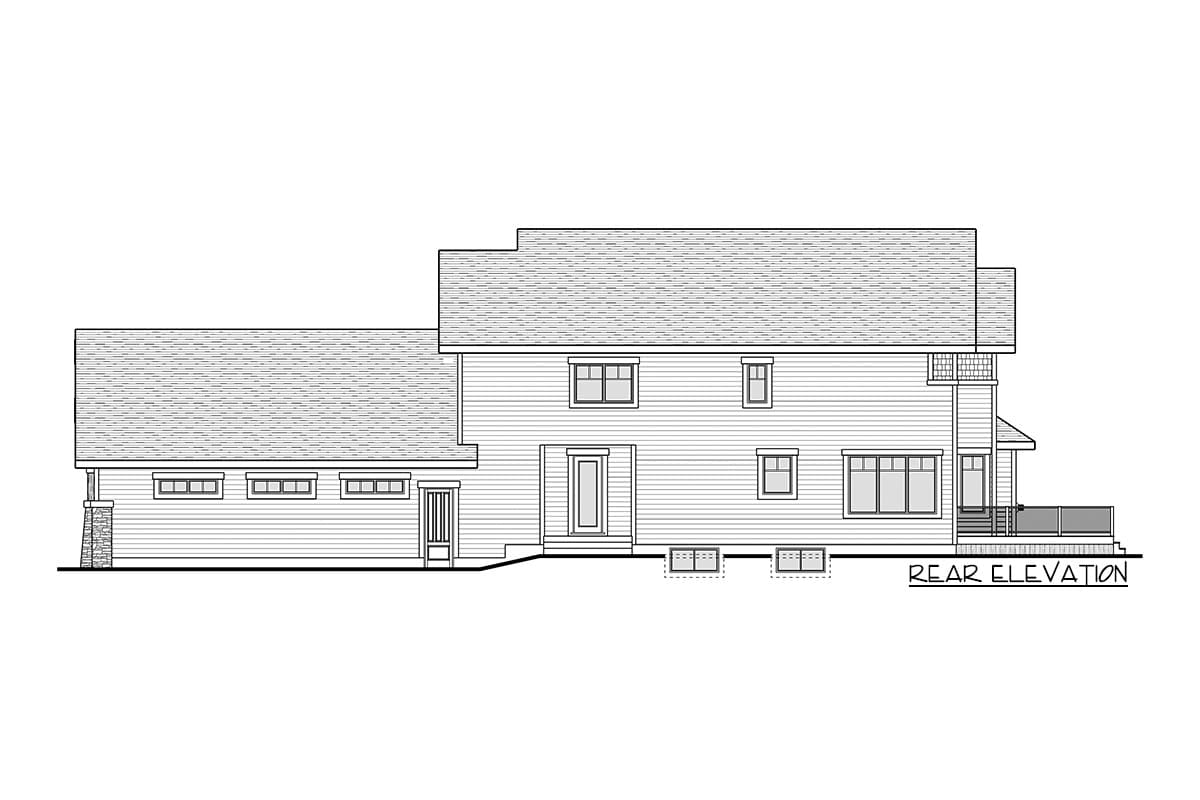

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

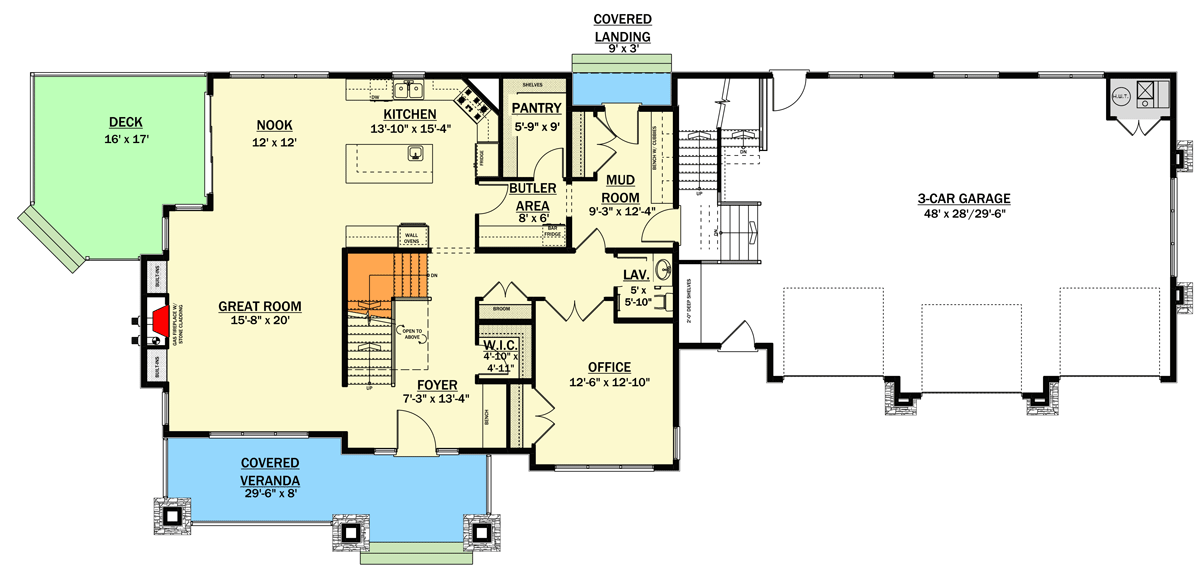

Classic Two-story Craftsman Plan with In-law Suite - 81737AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

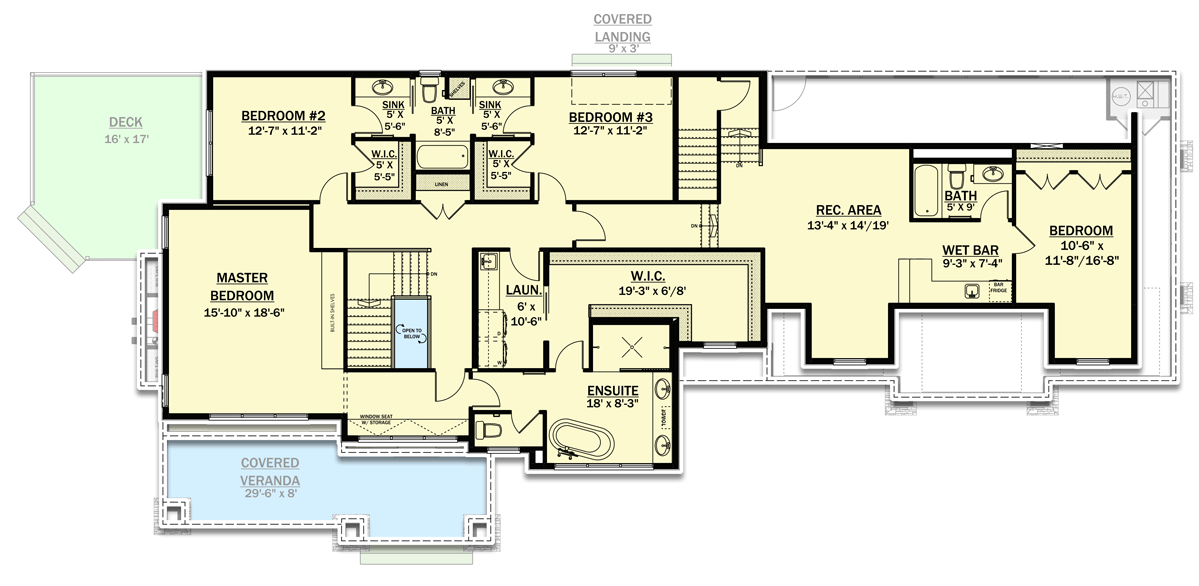

Classic Two-story Craftsman Plan with In-law Suite - 81737AB floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

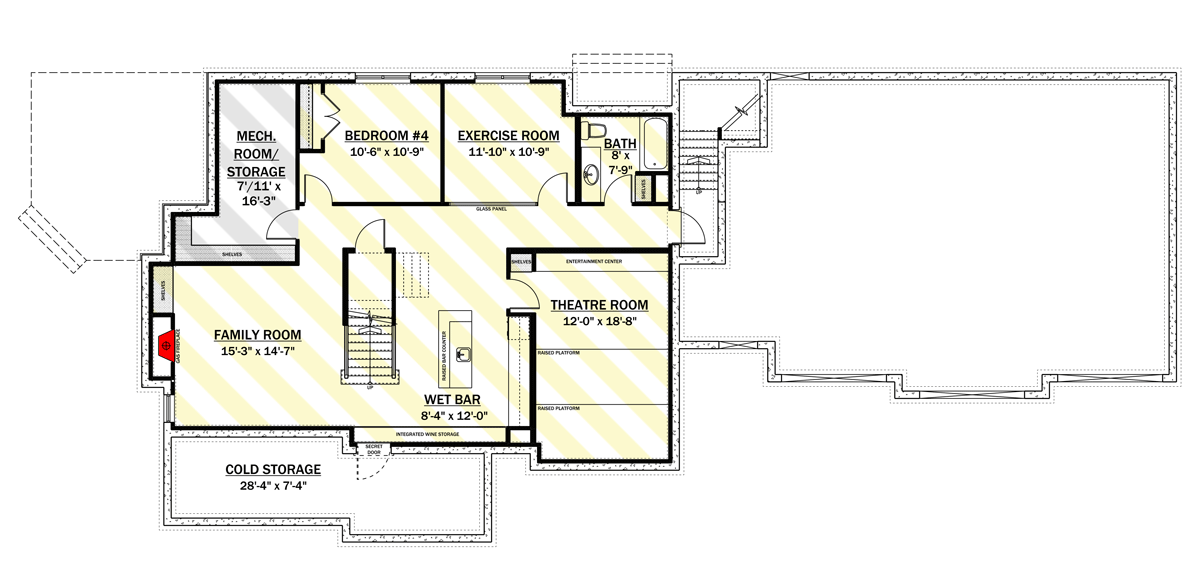

Classic Two-story Craftsman Plan with In-law Suite - 81737AB floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,655 sq. ft.
  • 1st Floor: 1,529 sq. ft.
  • 2nd Floor: 2,123 sq. ft.
  • Optional Lower Level: 1,253 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 93' 8"
  • Depth: 52' 6"
  • Max ridge height: 33' 1"

Garage

  • Type: Attached
  • Area: 1149 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Classic Two-story Craftsman Plan with In-law Suite

  • 3,655

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,655 sq. ft.
  • 1st Floor: 1,529 sq. ft.
  • 2nd Floor: 2,123 sq. ft.

Dimensions

  • Width: 93' 8"
  • Depth: 52' 6"
  • Max ridge height: 33' 1"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1149 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
