Plan 48088FM Classically French Country Style House Plan with Garage and Layout Options

Classically French Country Style House Plan with Garage and Layout Options

Plan 48088FM

  • 3,383

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This classic European house plan comes in side and rear garage options and in two different elevations. A popular house plan, all the versions share the same attractive features.
  • The large entry foyer opens to a formal living room with vaulted ceiling on one side and the formal dining room on the other.
  • Built-ins and an entertainment center await you in the great room with large fireplace and triple windows looking out the back. You'll also find plenty of natural light in the breakfast nook and kitchen, both open to the great room.
  • In the master wing lies the master bedroom with a sitting area and private lanai, Two walk-in closets and a luxurious master bath complete the suite..
  • Upstairs, three bedrooms with sloped ceilings each have their own walk-in closets. Two baths, a balcony, and a future bonus room that gives you expansion possibilities, complete this house plan.
  • Related Plans: Get an alternate exterior with house plan 48007FM. Get a side-entry garage with house plans 48001FM and 48026FM (same exterior) and a rear-entry garage with house plan 48058FM.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

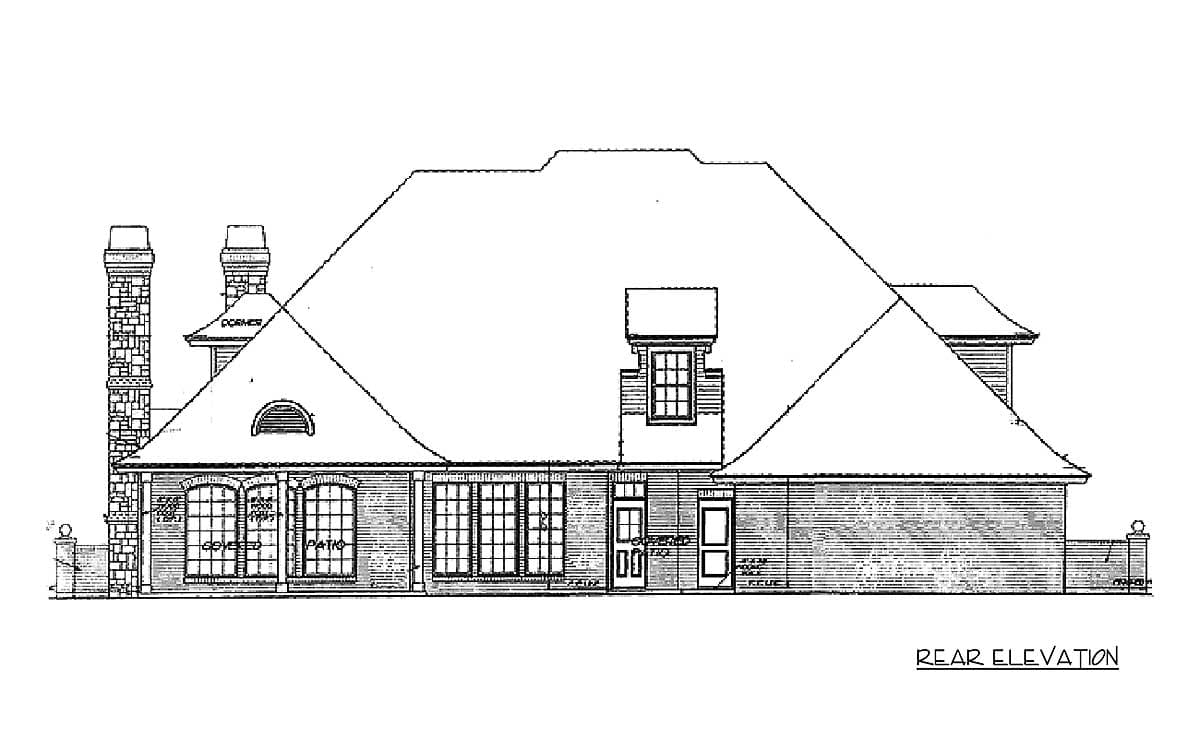

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Plan details



Classically French Country Style House Plan with Garage and Layout Options

  • 3,383

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • 8 Sets $1,535
  • PDF - Single-Build $1,685
  • CAD - Single-Build $2,610
  • View all purchase option online

About This Plan

  • This classic European house plan comes in side and rear garage options and in two different elevations. A popular house plan, all the versions share the same attractive features.
  • The large entry foyer opens to a formal living room with vaulted ceiling on one side and the formal dining room on the other.
  • Built-ins and an entertainment center await you in the great room with large fireplace and triple windows looking out the back. You'll also find plenty of natural light in the breakfast nook and kitchen, both open to the great room.
  • In the master wing lies the master bedroom with a sitting area and private lanai, Two walk-in closets and a luxurious master bath complete the suite..
  • Upstairs, three bedrooms with sloped ceilings each have their own walk-in closets. Two baths, a balcony, and a future bonus room that gives you expansion possibilities, complete this house plan.
  • Related Plans: Get an alternate exterior with house plan 48007FM. Get a side-entry garage with house plans 48001FM and 48026FM (same exterior) and a rear-entry garage with house plan 48058FM.

Floor Plans

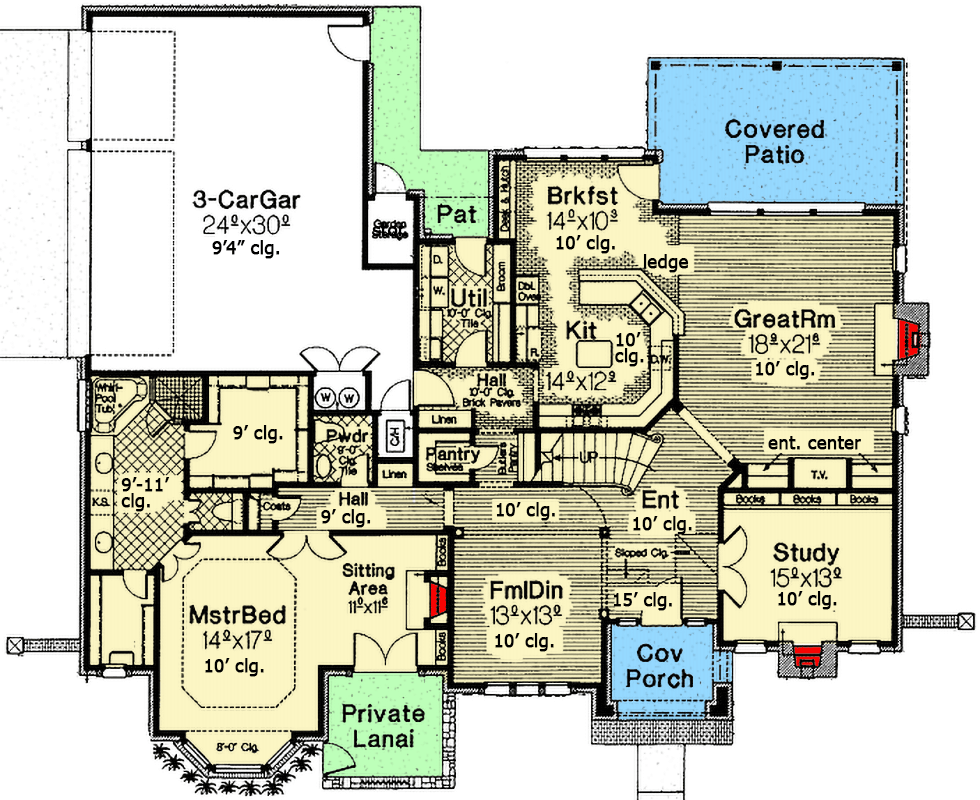

  • Main Level

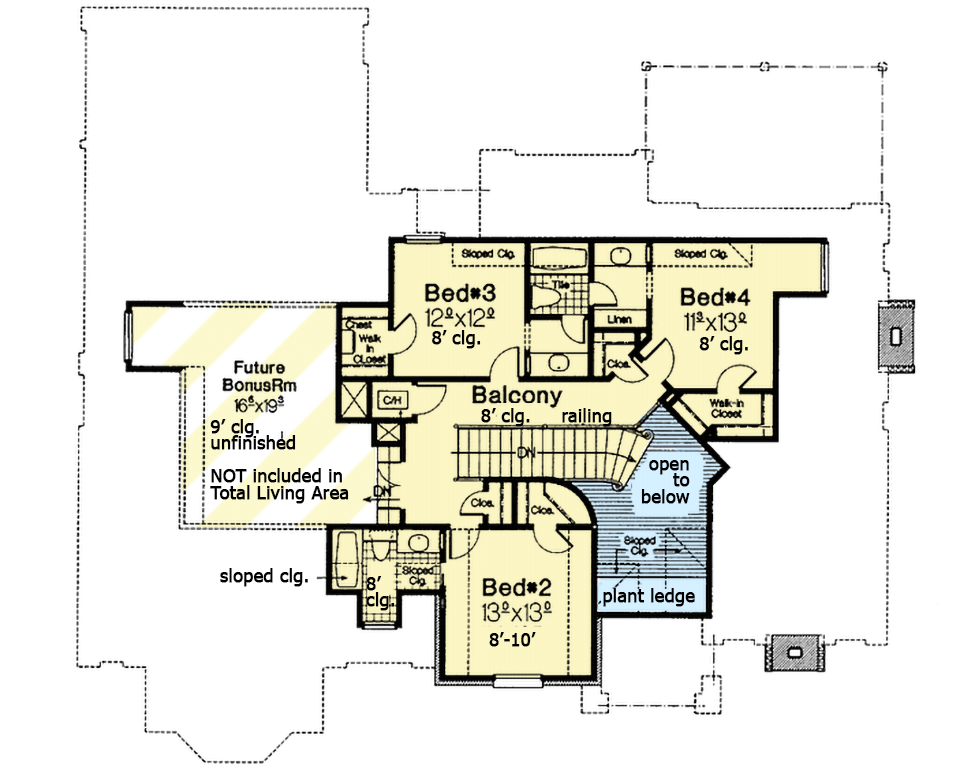

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,383 sq. ft.
  • 1st Floor: 2,431 sq. ft.
  • 2nd Floor: 952 sq. ft.
  • Bonus: 328 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 64' 3"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 830 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
