Clipped Gabled Craftsman Home Plan with Upstairs Master Suite

Plan 9302EL

  • 3,134

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Welcome to the home that has it all. This beautiful Craftsman Bungalow style house plan includes plenty of special features.
  • The open floor layout on the main floor includes an island kitchen and walk-through pantry, a large great room, formal dining room with fireplace, a pocket office and flex space for either a study or extra suite.
  • Upstairs you'll find a large owner's suite, laundry room and optional playroom as well as two bedrooms.
  • The spacious garage has room for 3-cars and is perfect for adding a workshop.
  • Related Plans: Get a smaller version (2,877 square feet) with house plans 9337EL, 93006EL and 93007EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

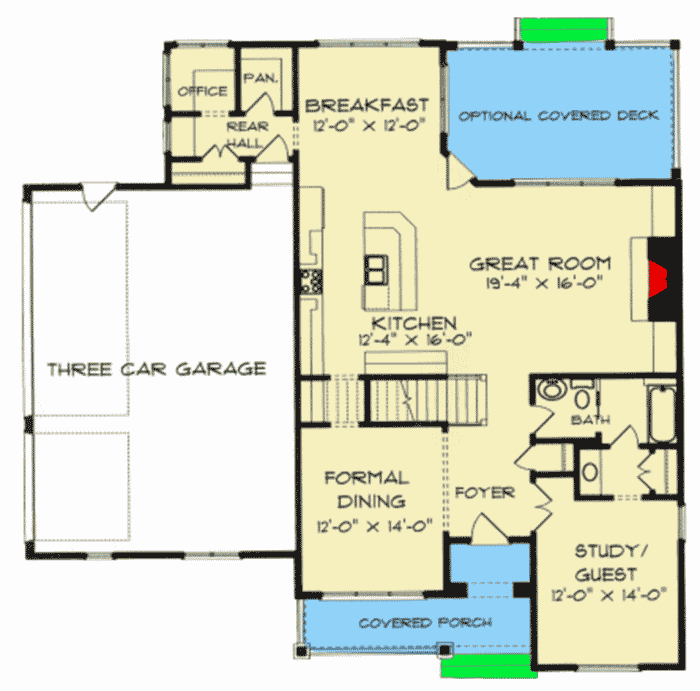

Clipped Gabled Craftsman Home Plan with Upstairs Master Suite - 9302EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

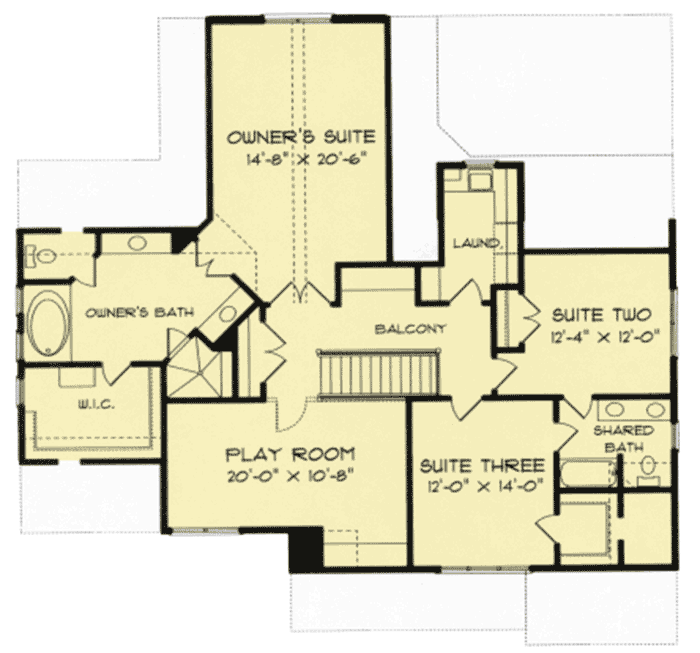

Clipped Gabled Craftsman Home Plan with Upstairs Master Suite - 9302EL floor plan - 2nd Floor
