Plan 65751BS Coastal Contemporary Duplex with a 2-Bed and 3-Bed Asymmetric Units

3,466 2 80' 0" 80' 2" 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Coastal Contemporary Duplex with a 2-Bed and 3-Bed Asymmetric Units

Plan 65751BS

  • 3,466

    Heated s.f.

  • 2

    Units

  • 80' 0"

    Width

  • 80' 2"

    Depth

  • This coastal contemporary house plan is designed on a slab foundation and has CMU (i.e. block) exterior walls. It gives you a total of 3,466 square feet of heated living space spread across two asymmetric units.
  • Unit A - on the left - gives you two bedrooms and a den and 1,575 square feet of heated living space. Unit B - on the right - gives you 3 beds and 1,891 square feet of heated living space.
  • Each unit has a split bedroom layout and a 2-car garage and private covered lanai in the back.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

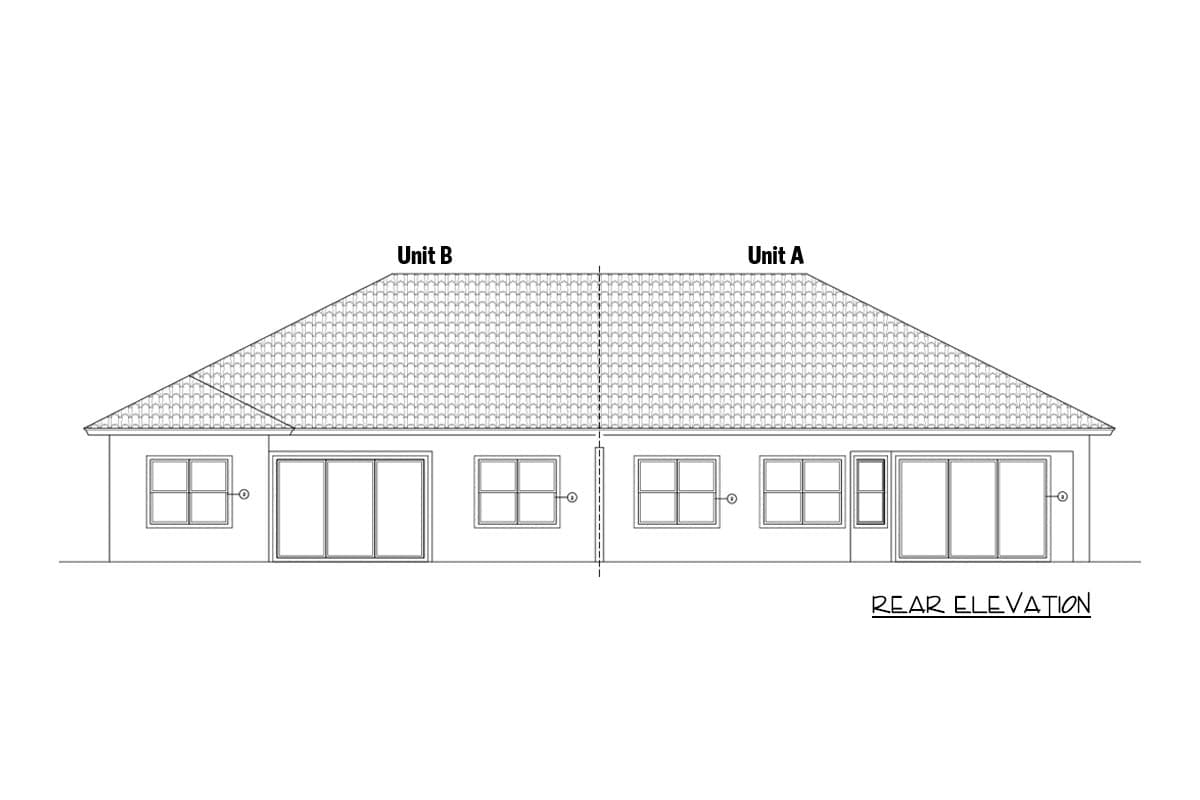

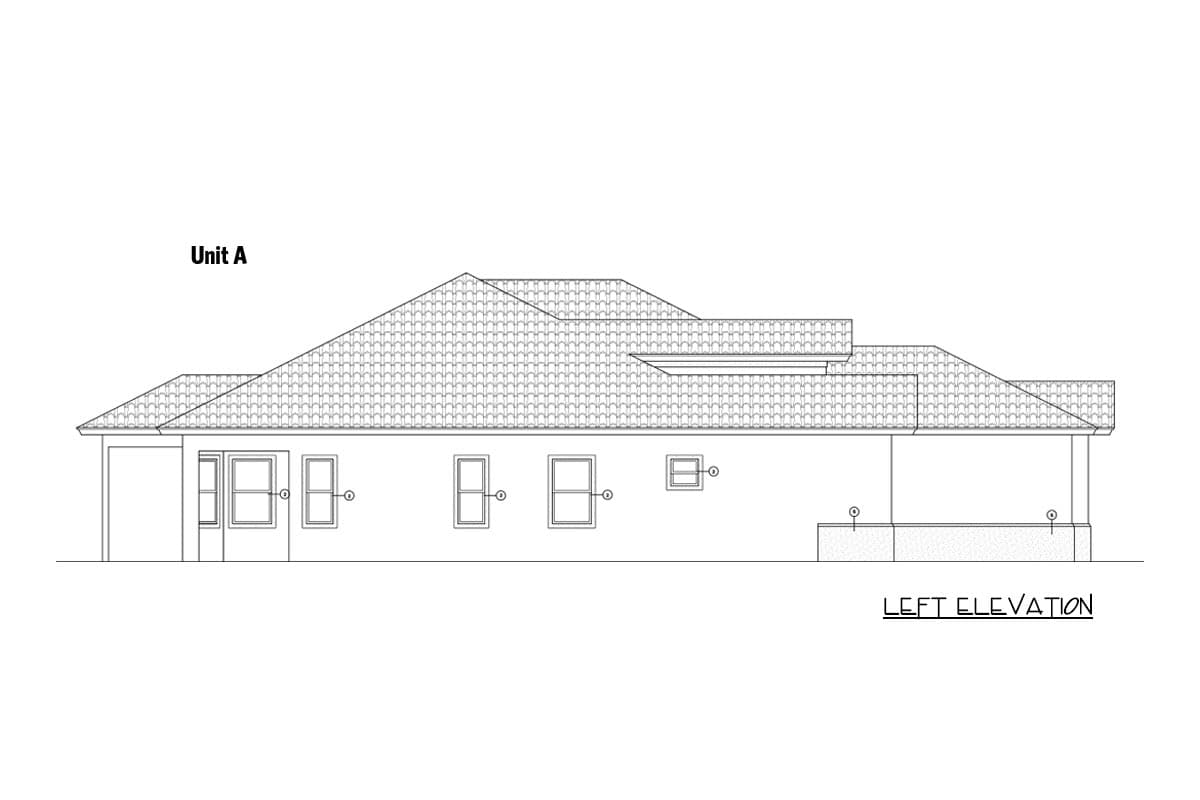

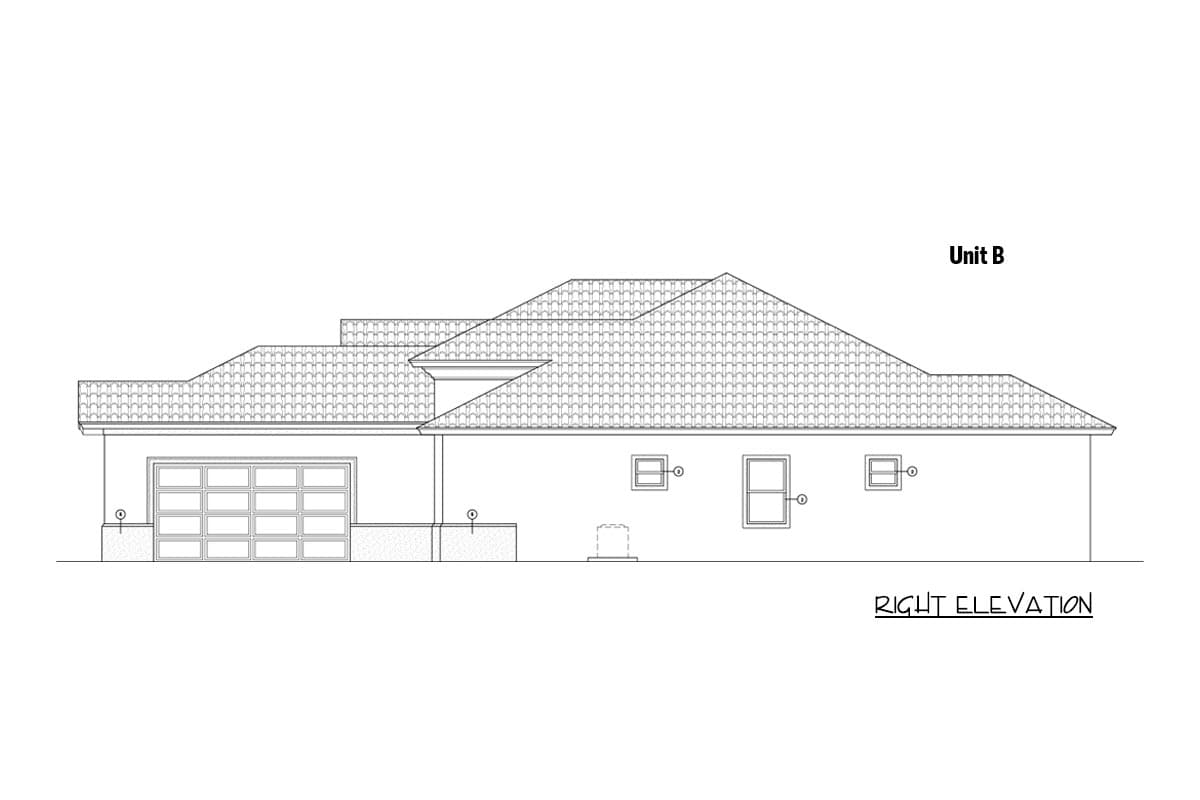

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

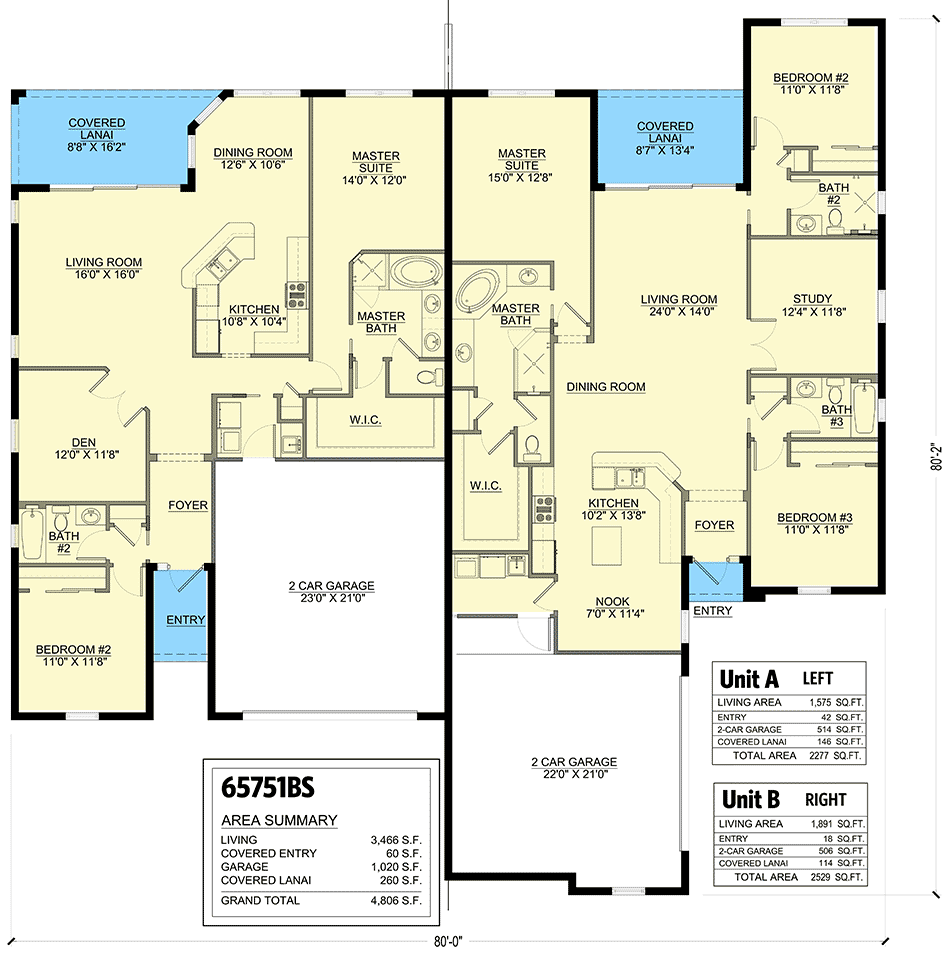

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Coastal Contemporary Duplex with a 2-Bed and 3-Bed Asymmetric Units - 65751BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,466 sq. ft.
  • 1st Floor: 3,466 sq. ft.
  • Lanai: 260 sq. ft.
  • Entry: 60 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 80' 2"
  • Max ridge height: 23' 2"

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Coastal Contemporary Duplex with a 2-Bed and 3-Bed Asymmetric Units

  • 3,466

    Heated s.f.

  • 2

    Units

  • 80' 0"

    Width

  • 80' 2"

    Depth

Buy This Plan
  • CAD + PDF - Single-Build $2,420
  • PDF - Single-Build $2,420
  • View all purchase option online

About This Plan

  • This coastal contemporary house plan is designed on a slab foundation and has CMU (i.e. block) exterior walls. It gives you a total of 3,466 square feet of heated living space spread across two asymmetric units.
  • Unit A - on the left - gives you two bedrooms and a den and 1,575 square feet of heated living space. Unit B - on the right - gives you 3 beds and 1,891 square feet of heated living space.
  • Each unit has a split bedroom layout and a 2-car garage and private covered lanai in the back.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,466 sq. ft.
  • 1st Floor: 3,466 sq. ft.
  • Lanai: 260 sq. ft.
  • Entry: 60 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 80' 2"
  • Max ridge height: 23' 2"

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 65751BS
View this and more for this plan by visiting www.architechtecturaldesigns.com/65751BS
|
