Plan 680097VR Coastal Contemporary Home Plan Under 1200 Square Feet On Piers with 2 Beds Plus Sleeping Loft

1,127 2-3 1 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Coastal Contemporary Home Plan Under 1200 Square Feet On Piers with 2 Beds Plus Sleeping Loft

Plan 680097VR

  • 1,127

    Heated s.f.

  • 2-3

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • This coastal contemporary house plan gives you 1,127 square feet of heated living set on piers with two bedrooms and a loft inside. The piers make it possible to park cars beneath the home and help prevent the home from flooding.
  • Peninsula seating at the U-shaped kitchen counters allows guests to keep the host company.
  • Two bedrooms on the main floor share a bath. A side-by-side washer and dryer are a nice touch.
  • A ladder in the family room takes you to a flexible 200 square foot loft above Bed 1.
  • Related Plans: Get an alternate version with house plans 68666VR, 68859VR, or 680168VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

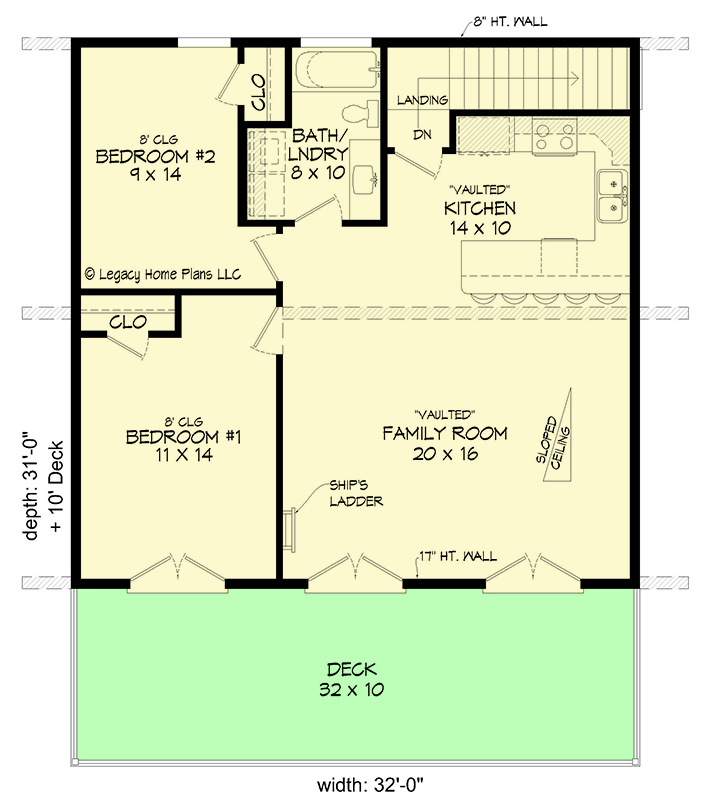

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Coastal Contemporary Home Plan Under 1200 Square Feet On Piers with 2 Beds Plus Sleeping Loft - 680097VR floor plan - Main Level

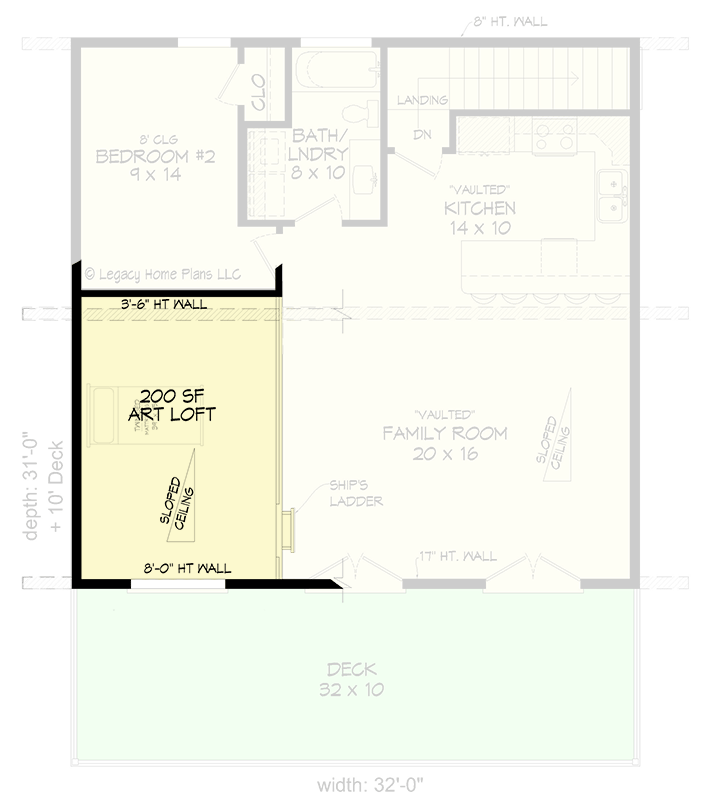

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Coastal Contemporary Home Plan Under 1200 Square Feet On Piers with 2 Beds Plus Sleeping Loft - 680097VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,127 sq. ft.
  • 1st Floor: 927 sq. ft.
  • 2nd Floor: 200 sq. ft.
  • Deck: 320 sq. ft.
  • Stairwell: 65 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 41' 0"
  • Max ridge height: 19' 6"

Garage

  • Type: Drive Under
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Coastal Contemporary Home Plan Under 1200 Square Feet On Piers with 2 Beds Plus Sleeping Loft

  • 1,127

    Heated s.f.

  • 2-3

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $975
  • 5 Sets $1,060
  • 5 Sets + PDF $1,183
  • CAD + PDF - Single-Build $1,425
  • View all purchase option online

About This Plan

  • This coastal contemporary house plan gives you 1,127 square feet of heated living set on piers with two bedrooms and a loft inside. The piers make it possible to park cars beneath the home and help prevent the home from flooding.
  • Peninsula seating at the U-shaped kitchen counters allows guests to keep the host company.
  • Two bedrooms on the main floor share a bath. A side-by-side washer and dryer are a nice touch.
  • A ladder in the family room takes you to a flexible 200 square foot loft above Bed 1.
  • Related Plans: Get an alternate version with house plans 68666VR, 68859VR, or 680168VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,127 sq. ft.
  • 1st Floor: 927 sq. ft.
  • 2nd Floor: 200 sq. ft.
  • Deck: 320 sq. ft.
  • Stairwell: 65 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 41' 0"
  • Max ridge height: 19' 6"

Garage

  • Type: Drive Under
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
Plan 680097VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680097VR
|
Need Help? 800-854-7852
|
Plan 680097VR
