Coastal Contemporary House Plan Under 2800 Square Feet with Elevator

Plan 765050TWN

  • 2,797

    Heated s.f.

  • 4

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This coastal contemporary house plan gives you front-access parking on the ground level with an elevator getting you to the top level is reserved for the shared living spaces to the two living levels above.
  • Discover three bedrooms on the main level, each with access to a porch or balcony. The primary delights in a spacious ensuite with an oversized shower and walk-in closet.
  • An open living space is revealed on the top level, along with a partially-covered deck for sun or shade while outdoors.
  • The island kitchen provides plenty of workspace when entertaining and a nearby pantry with natural light significantly increases storage space.
  • A dedicated storage room on the ground level helps store tools and lawn supplies, while an optional game room with a wet bar and full bath extends onto a covered porch.
  • Related Plans: Get a side-entry garage with house plans 765047TWN and 765048TWN.
  • DELIVERY NOTE: Please allow 5-7 business days for piling foundation or walkout basement delivery.

This designer's plans include the following:
  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

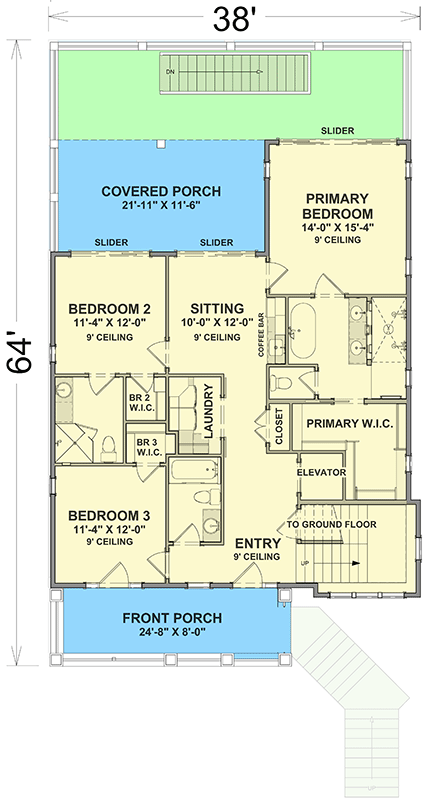

Coastal Contemporary House Plan Under 2800 Square Feet with Elevator - 765050TWN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Coastal Contemporary House Plan Under 2800 Square Feet with Elevator - 765050TWN floor plan - 2nd Floor

Lower Level With Optional Bonus Room ($150)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

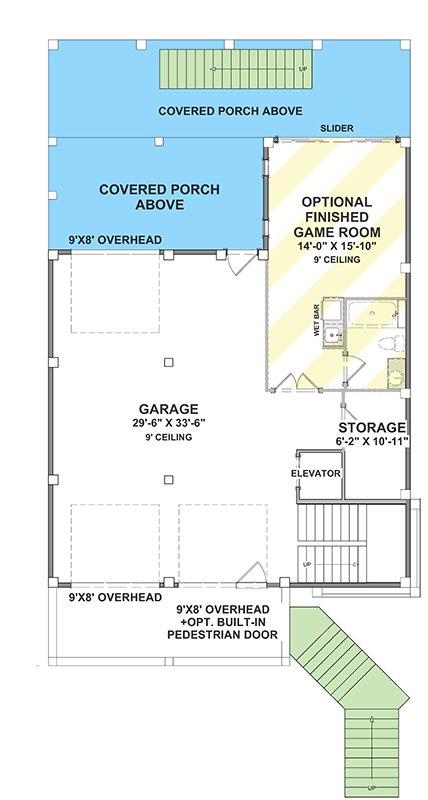

Coastal Contemporary House Plan Under 2800 Square Feet with Elevator - 765050TWN floor plan - Lower Level With Optional Bonus Room ($150)

Coastal Contemporary House Plan Under 2800 Square Feet with Elevator

  • 2,797

    Heated s.f.

  • 4

    Beds

  • 4 - 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level With Optional Bonus Room ($150)

Plan Details

Square Footage Breakdown

  • Total: 2,797 sq. ft.
  • 1st Floor: 1,469 sq. ft.
  • 2nd Floor: 1,328 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 64' 0"
  • Max ridge height: 37' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5

Garage

  • Type: Drive Under, Attached
  • Area: 756 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Pier
    • Optional Foundations: Walkout, Piling

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
