Plan 765048TWN
4-Bed Coastal Contemporary with Elevator Under 3100 Square Feet
Heated S.F.
3,089
Beds
4-5
Baths
3.5 - 4.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

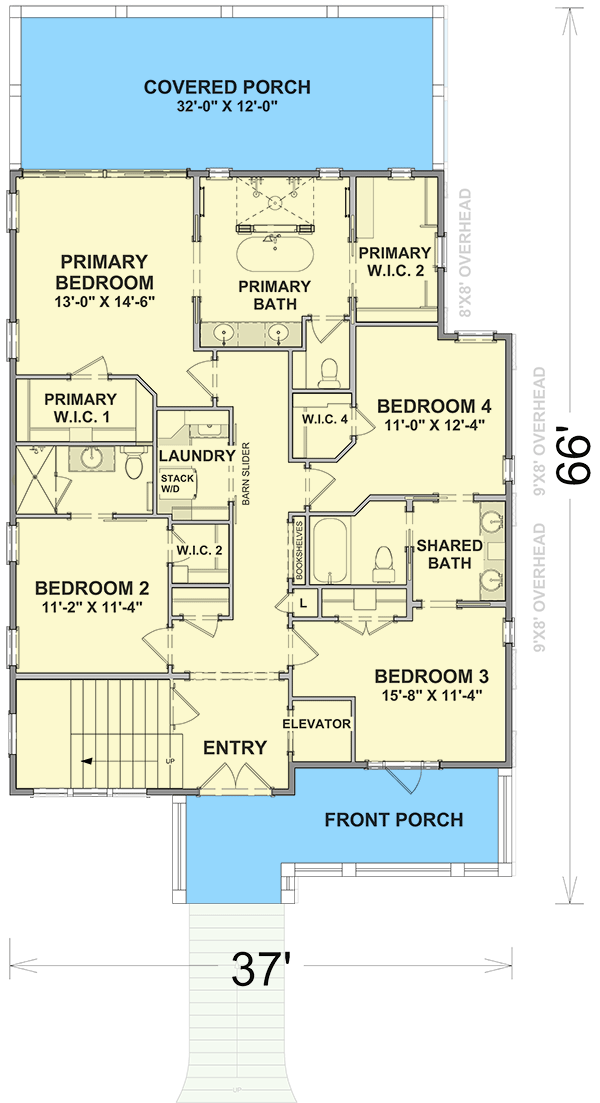

4-Bed Coastal Contemporary with Elevator Under 3100 Square Feet - 765048TWN floor plan - Main Level

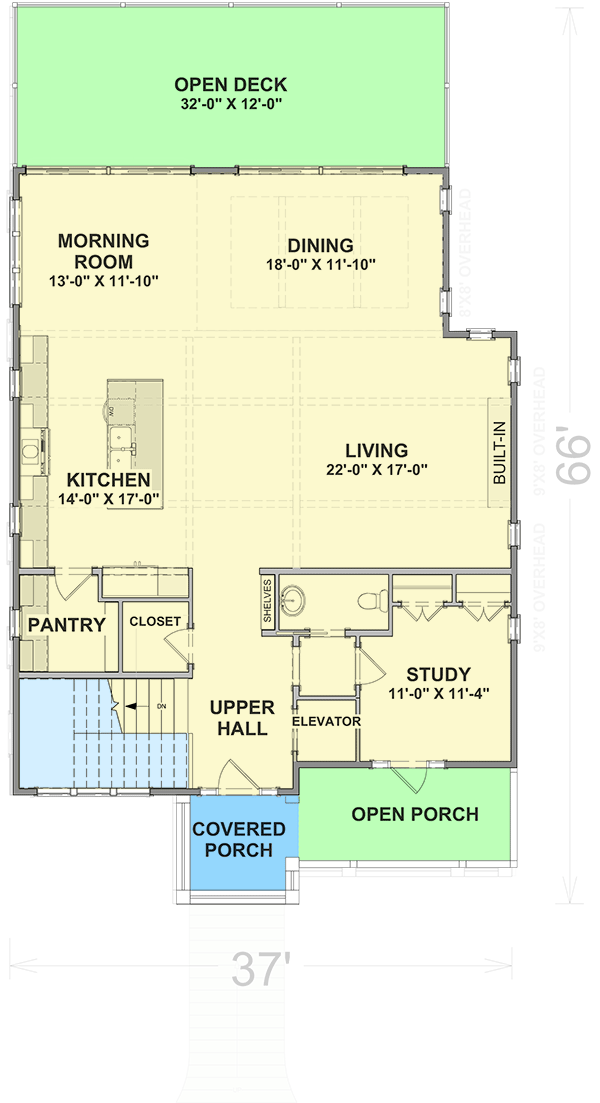

Second Level
Reverse Floor Plan
4-Bed Coastal Contemporary with Elevator Under 3100 Square Feet - 765048TWN floor plan - Second Level
Ground Level
Reverse Floor Plan

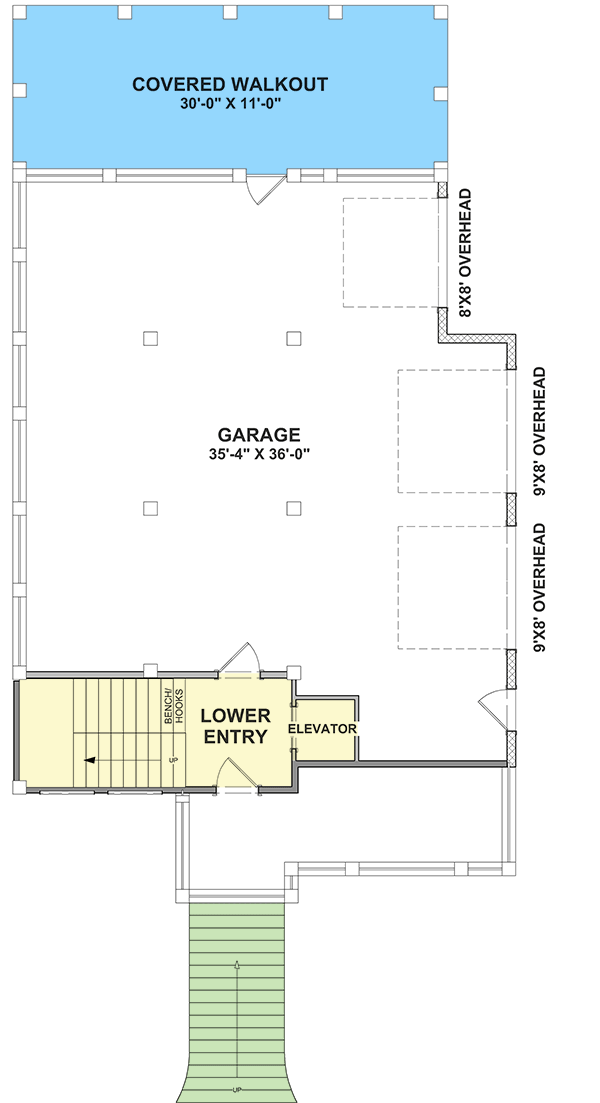

4-Bed Coastal Contemporary with Elevator Under 3100 Square Feet - 765048TWN floor plan - Ground Level
Second Level - Hall Bath Variation (Included)
Reverse Floor Plan

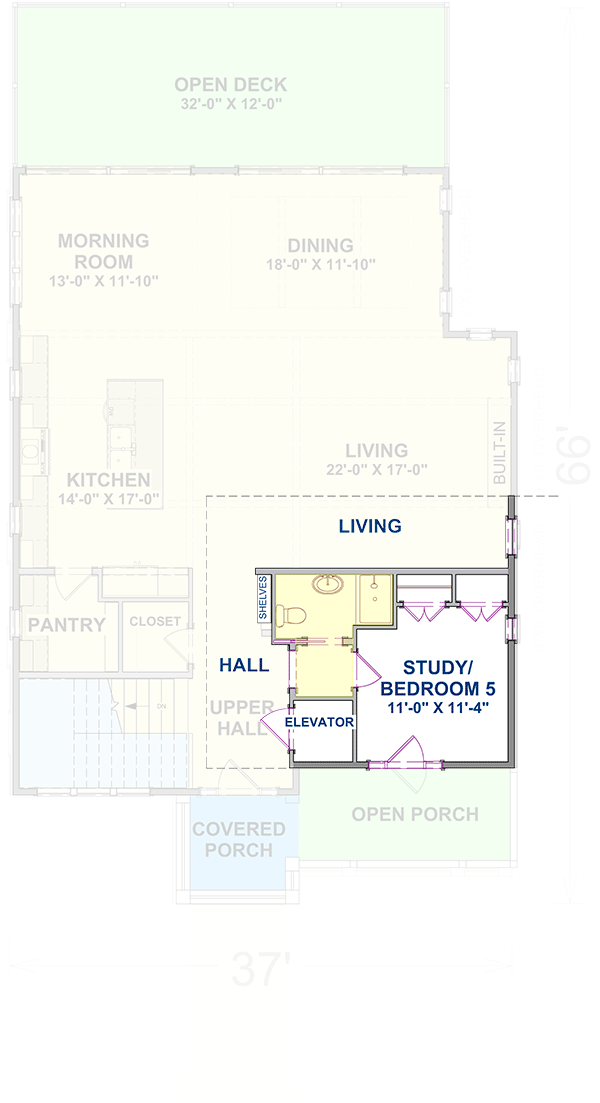

4-Bed Coastal Contemporary with Elevator Under 3100 Square Feet - 765048TWN floor plan - Second Level - Hall Bath Variation (Included)
Plan Details
  • This coastal contemporary house plan has shared living spaces on the second level arranged in a spacious open floor plan which takes advantage of any rearward views. Large, sliding doors extend the living space to a sizable, open deck.
  • A study on the second level lends a private space to work or find peace and quiet, and neighbors a powder bath and elevator.
  • The largest of the bedrooms on the main level is reserved for the homeowner, with an oversized sliding door leading to a private, covered porch. The ensuite boasts a freestanding tub in front of a two-person shower.
  • Three additional bedrooms are located on the main level; two share a Jack-and-Jill bath, and one includes a full bath.
  • The ground level is where you'll find three bays, two with 9' by 8' overehead doors and one with a 8' by 8' overhead door.
  • Related Plans: Get alternate versions with house plans 765047TWN and 765019TWN.
  • Delivery Note: Please allow 5-7 business days for walkout basement foundation.
What's Included
This designer's plans include the following:
  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans

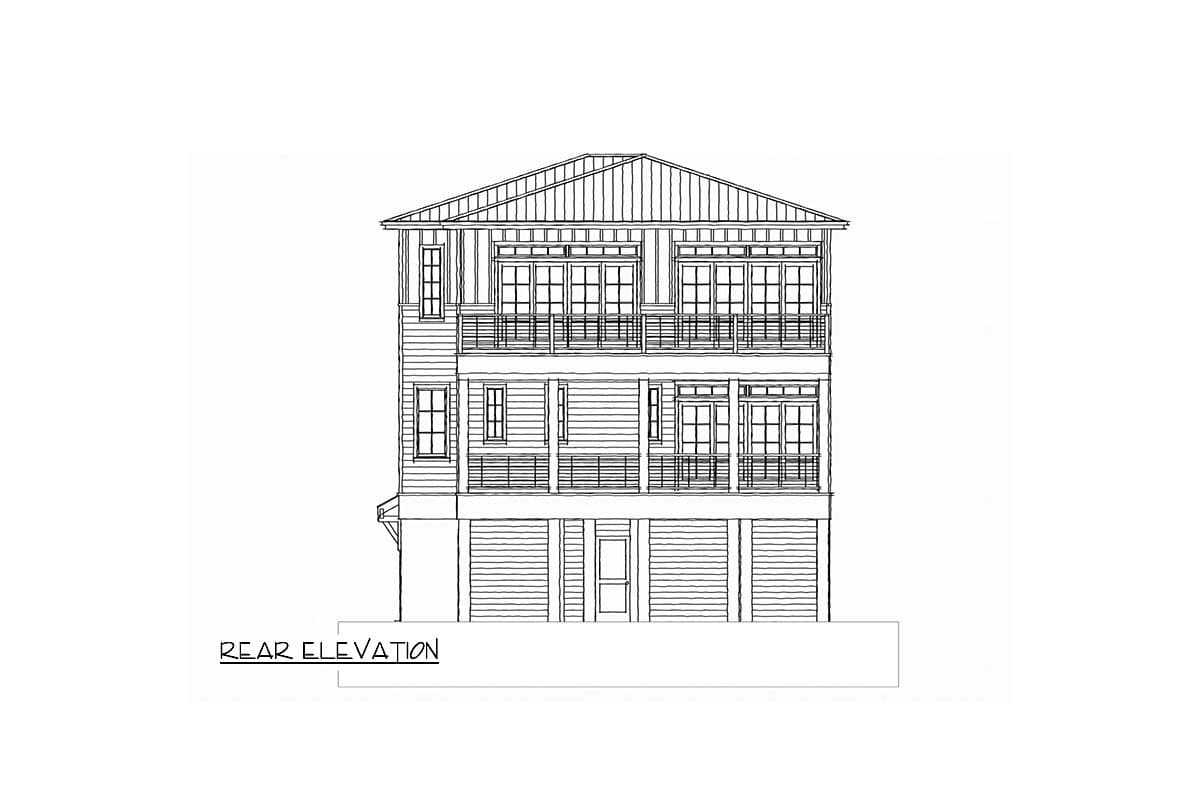

  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
