Plan 623631DJ

Coastal Contemporary Pool House Plan with Outdoor Kitchen and Bunk Room

Heated S.F.
481
Beds
0
Baths
2
Stories
2

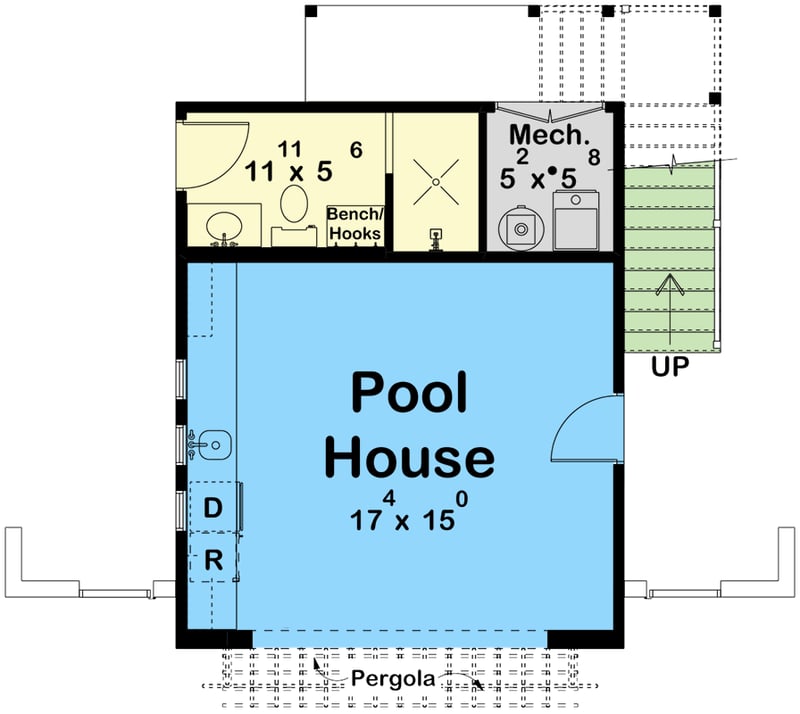

Floor Plan

Plan 623631DJ

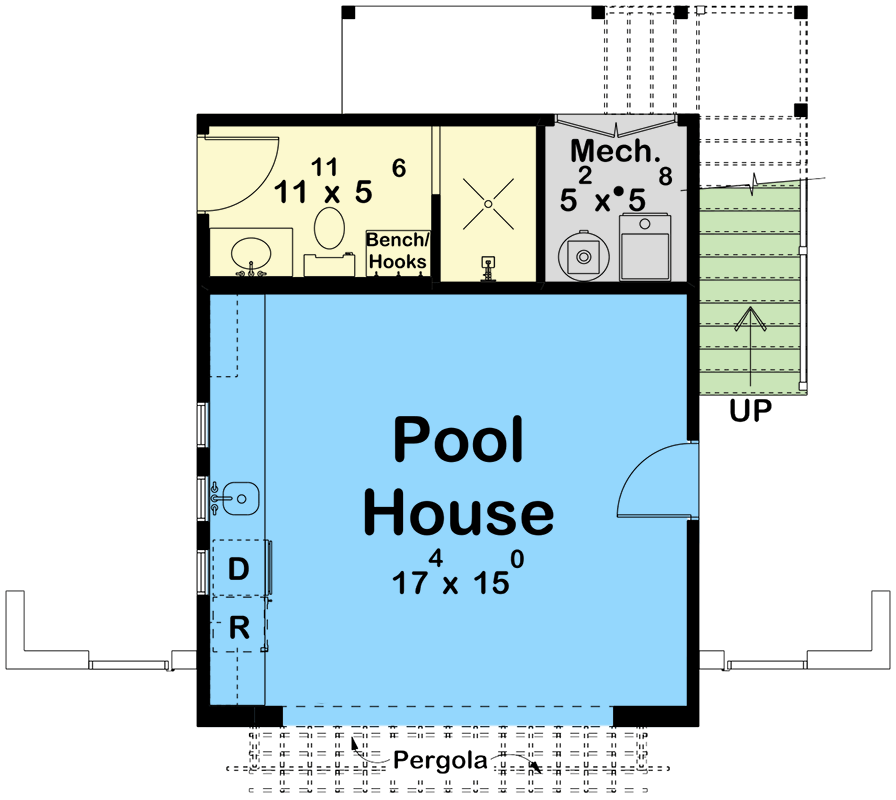

Floor Plan 1

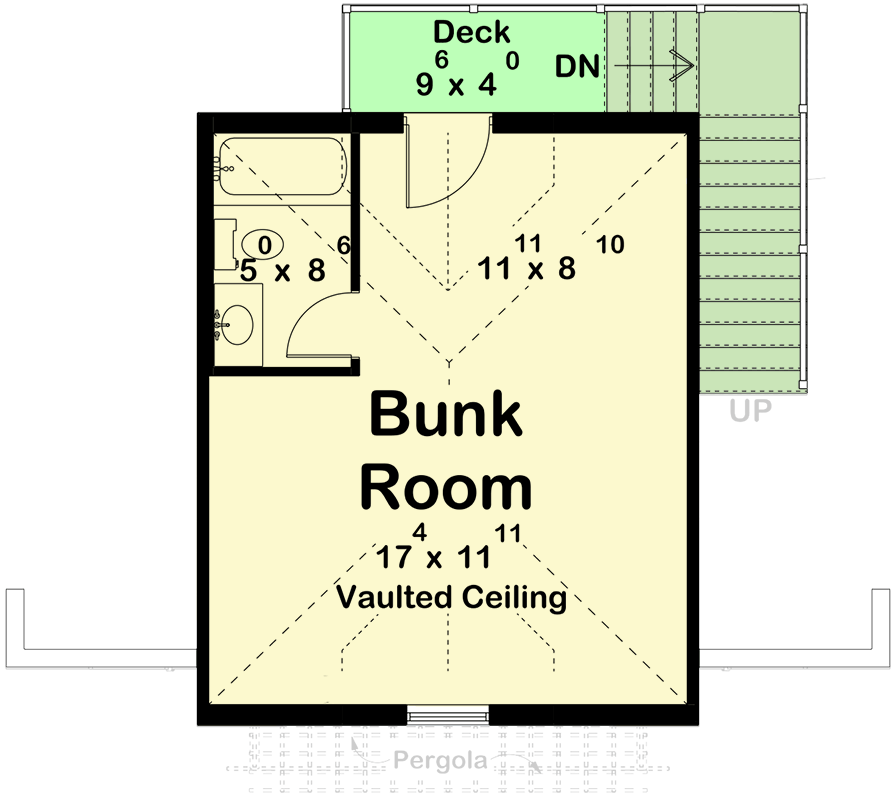

Floor Plan 2

Plan 623631DJ

M-F 9am-5pm EST |

1-203-761-8500

Plan 623631DJ: Coastal Contemporary Pool House Plan with Outdoor Kitchen and Bunk Room - Floor Plan - - Coastal Contemporary, Contemporary, Florida-Style

Plan 623631DJ: Coastal Contemporary Pool House Plan with Outdoor Kitchen and Bunk Room - Floor Plan - - Coastal Contemporary, Contemporary, Florida-Style

Plan Details

  • This 481 sq ft Coastal Contemporary House Plan features 2 full baths, an inviting Florida-style aesthetic, and a slab foundation.

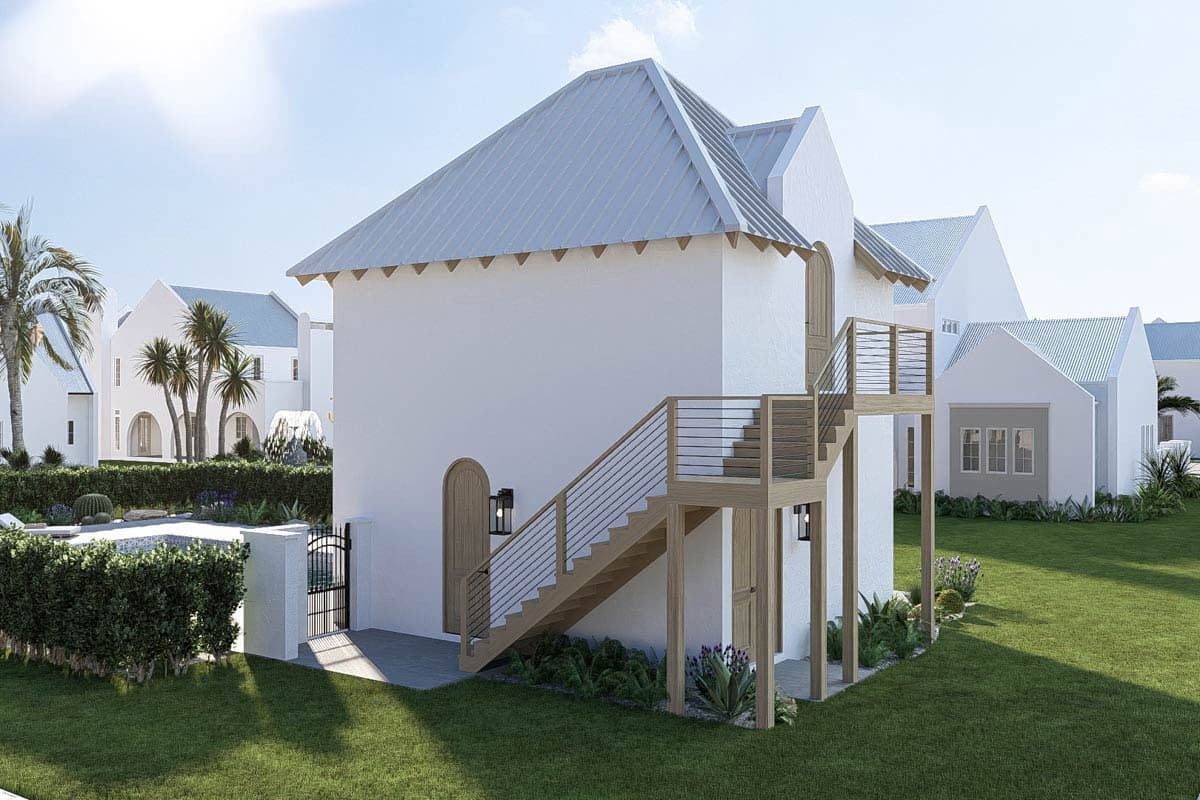

  • The arrival experience centers on the first floor's open-air outdoor kitchen, perfect for poolside entertaining, or guests can ascend the exterior stairs to the private upper level.

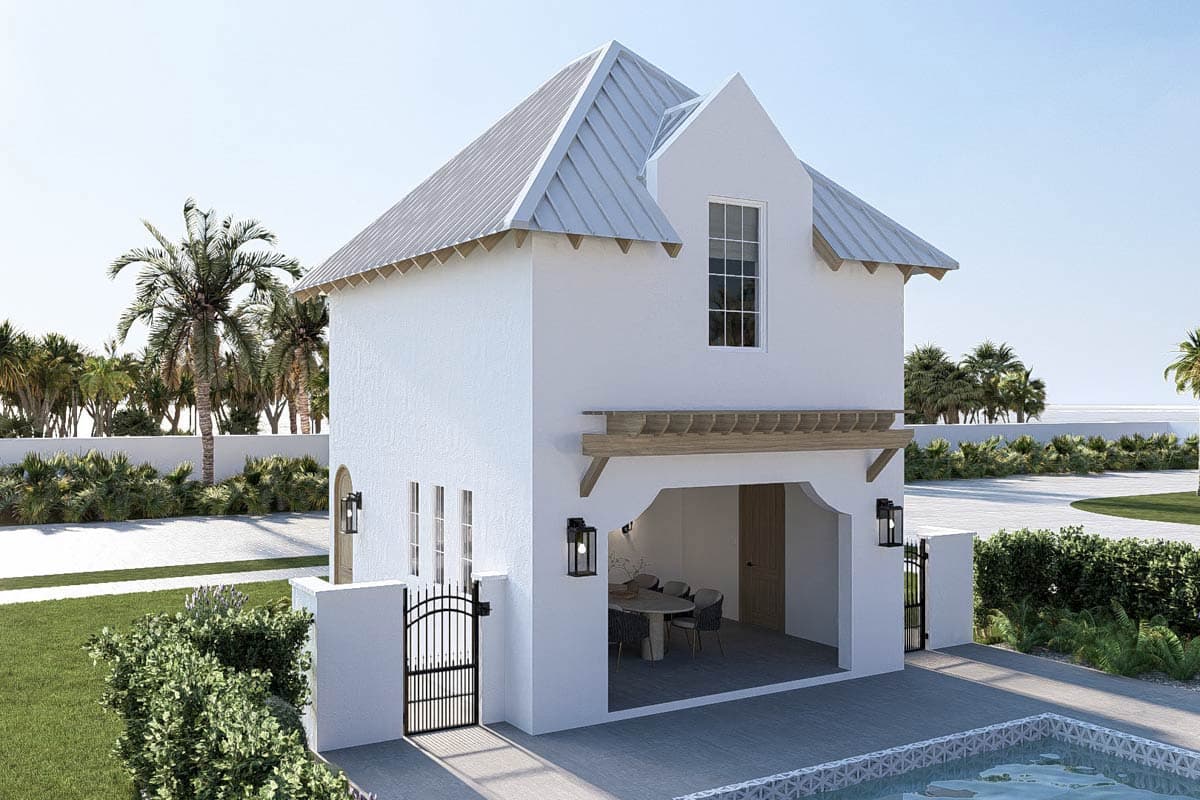

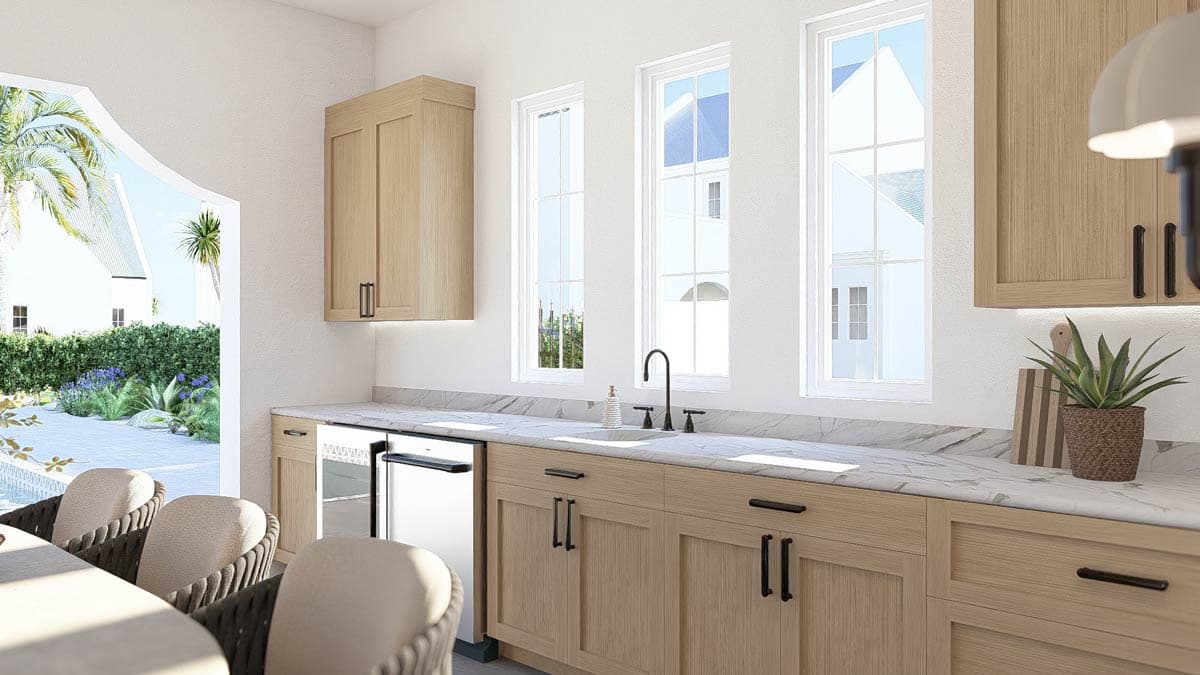

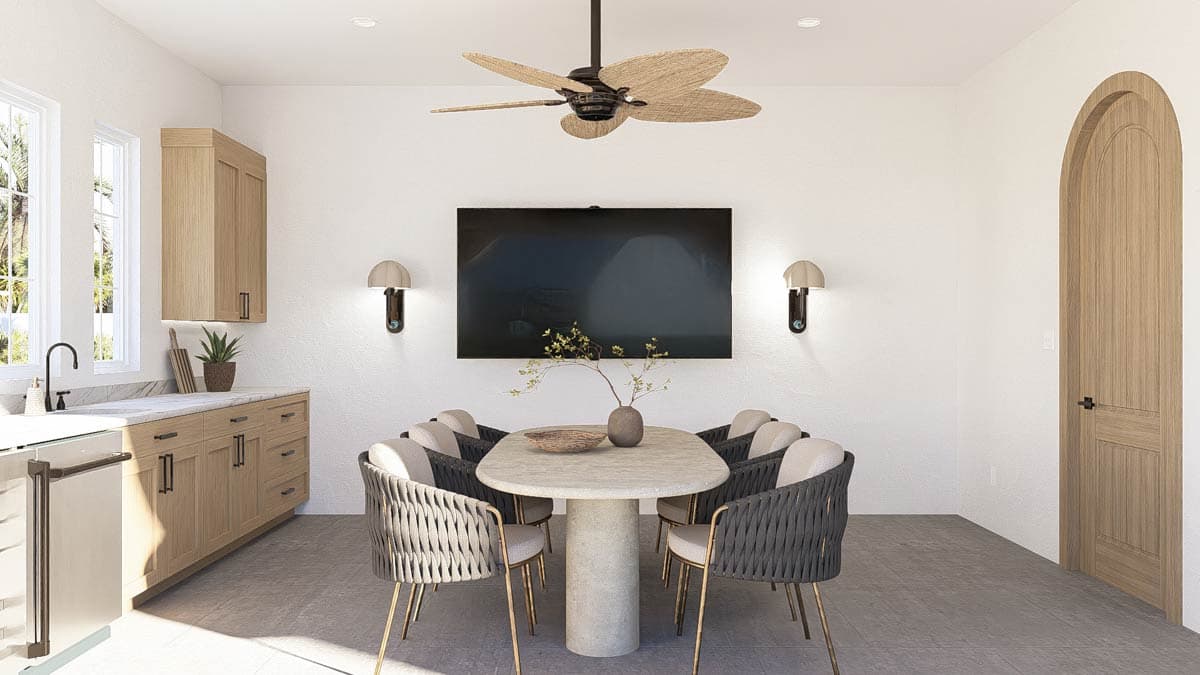

  • The main level hosts a full outdoor kitchen, seamlessly connecting to the pool area for al fresco dining and relaxed gatherings, while the second floor is thoughtfully designed for flexible guest accommodations.

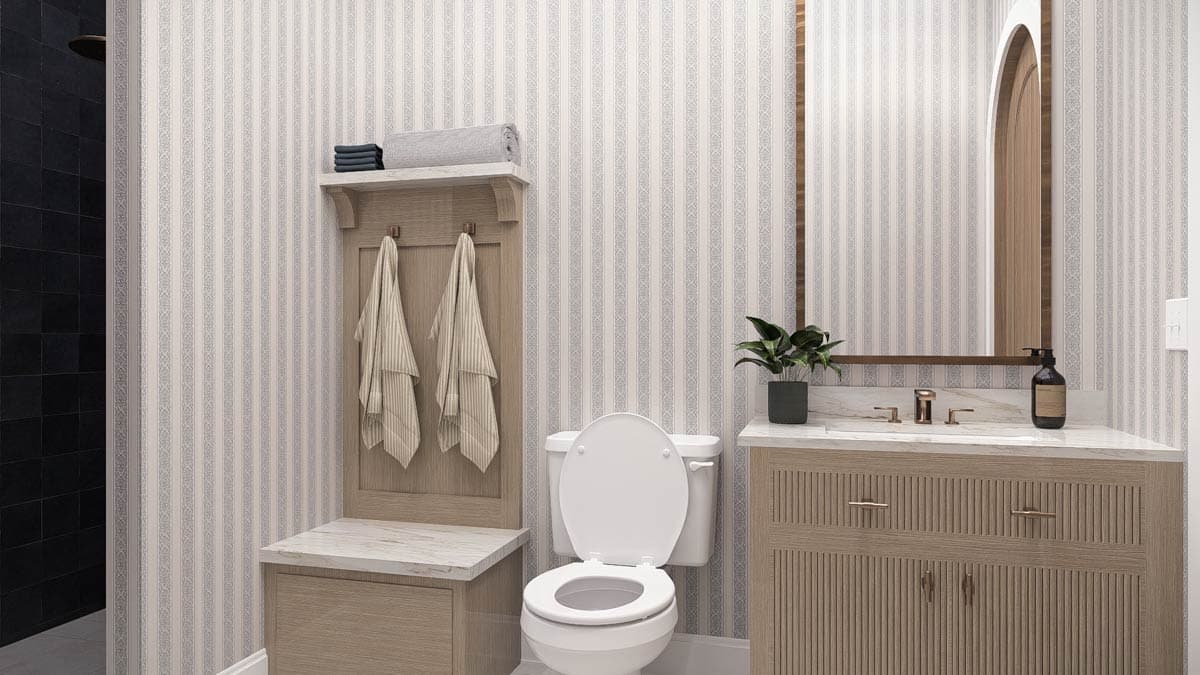

  • While not featuring traditional bedrooms, the plan includes two full bathrooms and a dedicated bunk room on the second floor, offering comfortable and private sleeping quarters for visitors.
  • Enjoy ample outdoor living with 282 sq ft of combined porch space, including the expansive first-floor outdoor kitchen that opens directly to the inviting poolside.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

481 sq. ft.

1st Floor

85 sq. ft.

2nd Floor

396 sq. ft.

Porch, Combined

282 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

26' 0"

Max Ridge Height

27' 7"

Ceiling Heights

First Floor

10'

Second Floor

6'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style

Special Features

Bunk Room

Outdoor Kitchen

Plan Collections

Pool House

Square Footage Breakdown

Total Heated Area

481 sq. ft.

1st Floor

85 sq. ft.

2nd Floor

396 sq. ft.

Porch, Combined

282 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

26' 0"

Max Ridge Height

27' 7"

Ceiling Heights

First Floor

10'

Second Floor

6'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style

Special Features

Bunk Room

Outdoor Kitchen

Plan Collections

Pool House
