Coastal Home Plan with Third Floor Family Room and Deck

Plan 62929DJ

  • 3,897

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • This coastal house plan that has a tough exterior built with CMU block wall construction that is perfect for homes facing the elements on the ocean. The front of the home is highlighted by its split load garage and wood accent beams. A trio of Juliet balconies adds a unique style to the facade of this home. The rear of the home features three levels of outdoor entertainment space including a covered lanai and two covered decks. Large windows on the rear of the home provide excellent waterfront views from anywhere in the house
  • Inside the home, the main level includes a rec area with built-in cabinets and access to the home's elevator. The second floor features the main living area. The kitchen, dining room, and great room are arranged in an open layout. The kitchen includes an island and a large pantry. Three bedrooms an also be found on the second floor including the master suite. The master suite features his/her vanities, an enclosed toilet area, and a walk-in closet.
  • The third floor includes a large family room with a covered deck overlooking the back and a fourth bedroom.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

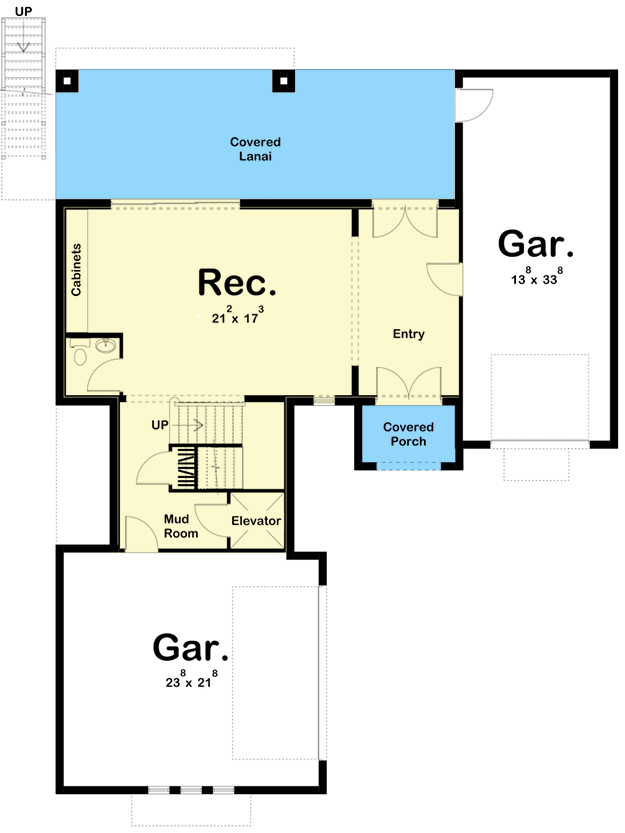

Coastal Home Plan with Third Floor Family Room and Deck - 62929DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

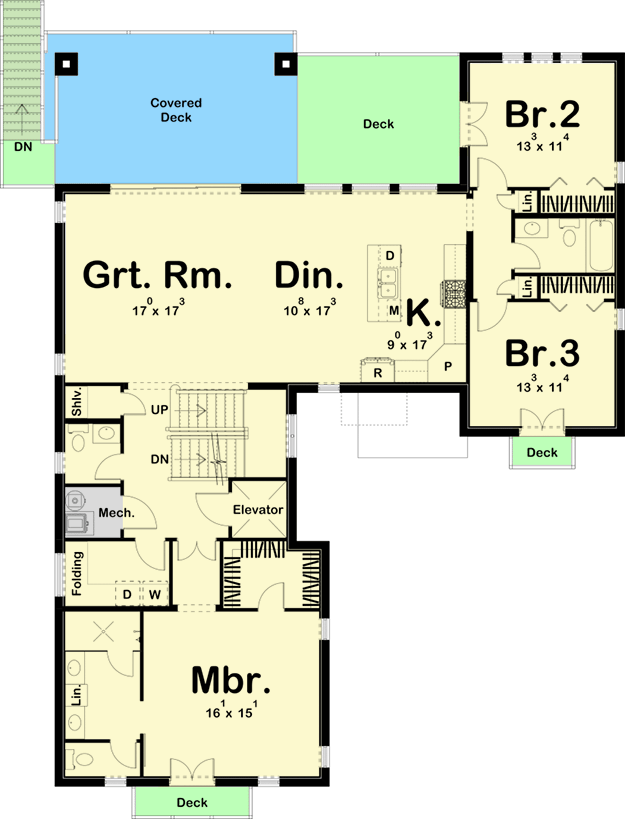

Coastal Home Plan with Third Floor Family Room and Deck - 62929DJ floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

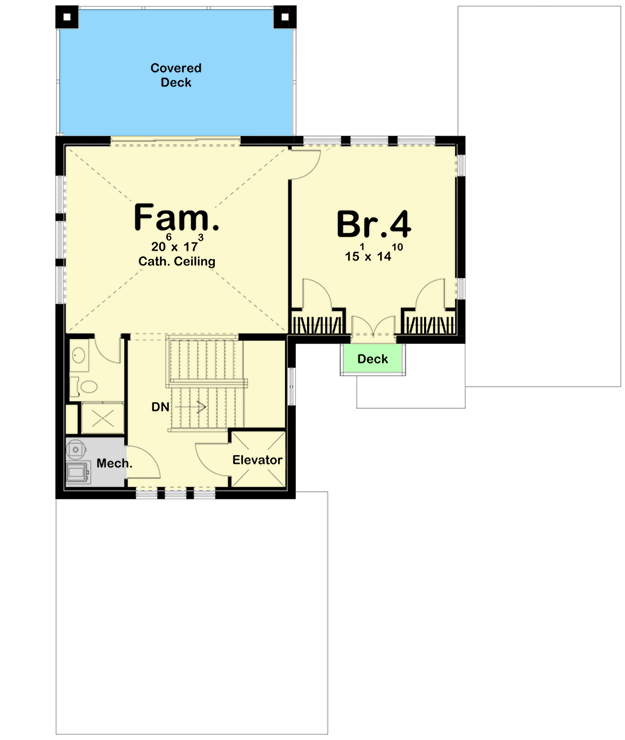

Coastal Home Plan with Third Floor Family Room and Deck - 62929DJ floor plan - 3rd Floor

Coastal Home Plan with Third Floor Family Room and Deck

  • 3,897

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,897 sq. ft.
  • Lower Level: 947 sq. ft.
  • 1st Floor: 2,005 sq. ft.
  • 2nd Floor: 945 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 67' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 1075 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): Block / CMU (main floor) or 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
