Plan 65688BS
Coastal Transitional Home Plan with Second-level Loft
Heated S.F.
3,702
Beds
4-5
Baths
4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

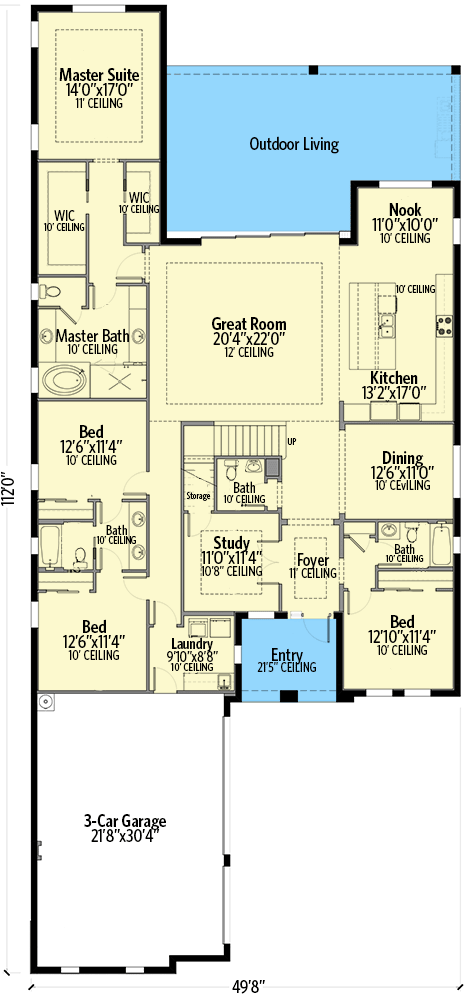

Coastal Transitional Home Plan with Second-level Loft - 65688BS floor plan - Main Level
2nd Floor
Reverse Floor Plan

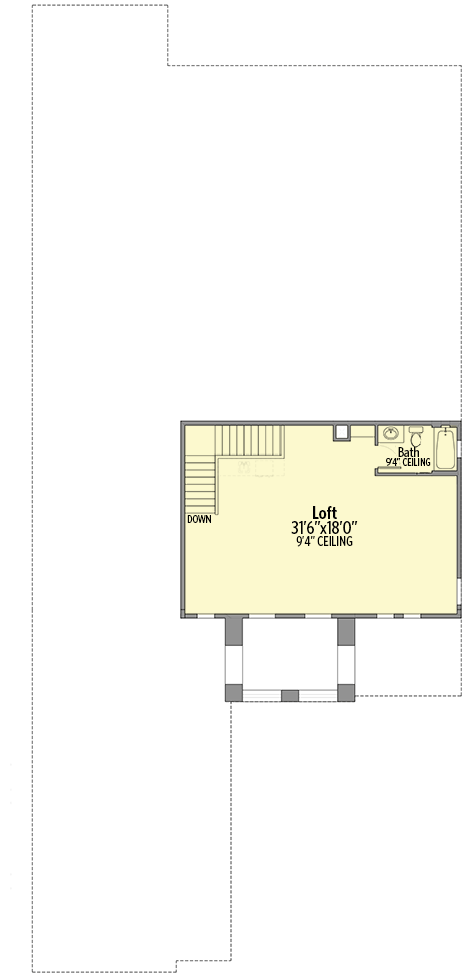

Coastal Transitional Home Plan with Second-level Loft - 65688BS floor plan - 2nd Floor
Optional Second Floor
Reverse Floor Plan

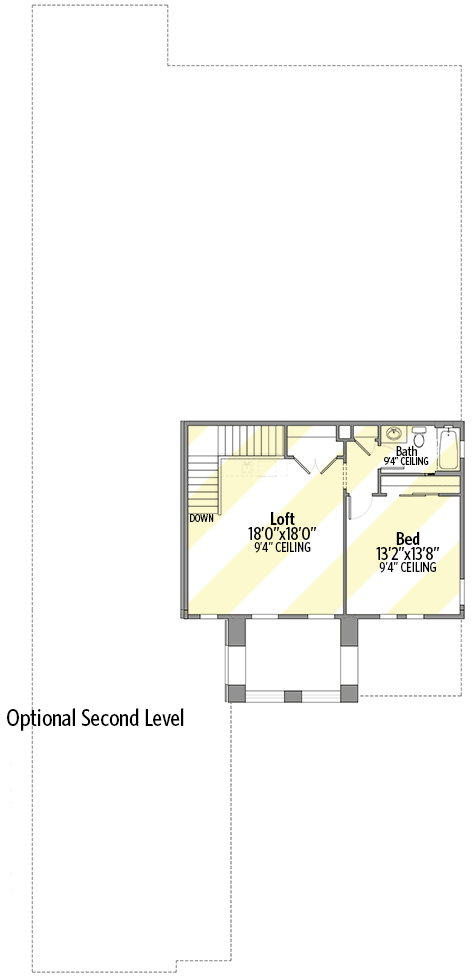

Coastal Transitional Home Plan with Second-level Loft - 65688BS floor plan - Optional Second Floor
Plan Details
  • A low-pitched hip and valley roof tops this two-story home plan, with wooden brackets supporting deep overhanging eaves.
  • Once past the threshold, a quiet study sits behind french doors to the left, across the foyer from a bedroom and full bath.
  • The spacious great room features 12' ceilings and an oversized sliding door that opens to the 596 sq ft covered lanai. Move into the kitchen to find a large island and plenty of workspace with a breakfast nook and formal dining room providing multiple options for meals.
  • Three bedrooms line the left side of the design, behind the 3-car garage that protrudes from the front of the home. The master is towards the rear and paired with a 5-fixture ensuite and 2 walk-in closets.
  • Utilize the entire second level as a loft with a full bath, or add a fifth bedroom.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida.
What's Included
Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
