Plan 21207DR

Comfortable Garage Apartment

Heated S.F.

1,068

Beds

2

Baths

1.5

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

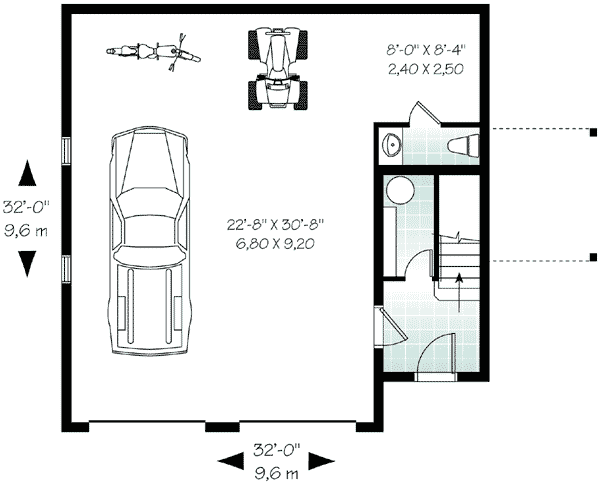

Comfortable Garage Apartment - 21207DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

Comfortable Garage Apartment - 21207DR floor plan - 2nd Floor

Plan Details

A big shed dormer with two windows brings light into this garage apartment.
The ground level has a powder room and warm foyer.
Stairs lead up to the main living area where you have two bedrooms that share a bathroom and a large open living space.
This plan would work well as guest quarters to your main home or as an income suite for renters.

What's Included

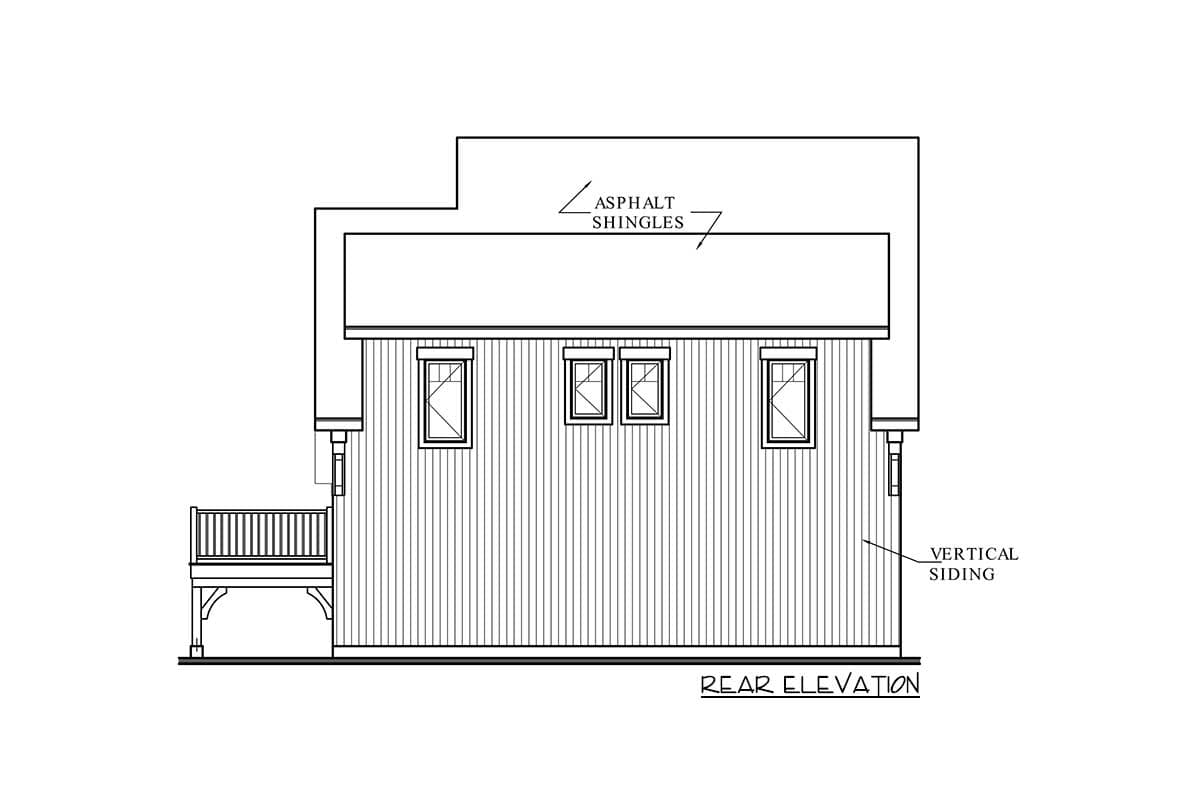

Elevations
Foundation Plan
Main Floor Plan
Upper Floor Plans (if applicable)
Roof Plan
Building Section
Construction Details
Typical Wall Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,068 sq. ft.

1st Floor:

140 sq. ft.

2nd Floor:

928 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

1

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

32' 0"

Depth:

32' 0"

Max Ridge Height:

28' 8"

Garage

Type:

Detached

Area:

855 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch:

10 on 12

Secondary Pitch:

6 on 12

Framing Type:

Truss

Architectural Style

Special Features

Jack & Jill Bath

Master Suite - 2nd Floor

Plan Collections
