Compact Carriage House Plan

Plan 21204DR

  • 992

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This compact guesthouse with a traditional layout has all of the living space situated on the upstairs floor.
  • The family room and the eat-in kitchen are opposite each other just off the top of the stairs.
  • In the back, the two bedrooms, each with a private balcony, share a full bathroom. Laundry facilities complete the plan.
  • The downstairs is devoted entirely to a two-car garage, which offers plenty of storage space.
  • Related Plan: For an alternate elevation, see 21564DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

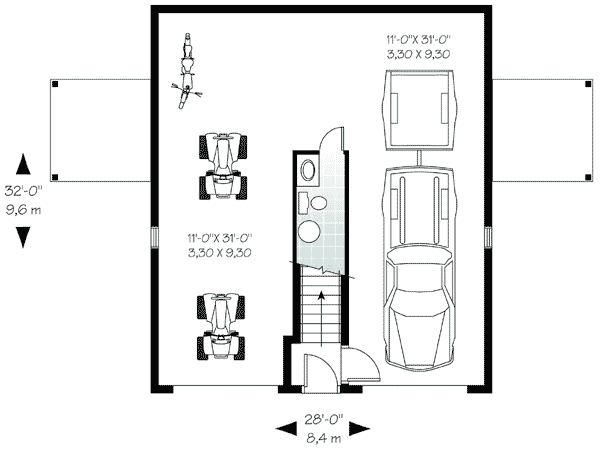

Compact Carriage House Plan - 21204DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Compact Carriage House Plan - 21204DR floor plan - 2nd Floor

Architectural Style

Plan Collections

Compact Carriage House Plan

  • 992

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 992 sq. ft.
  • 1st Floor: 96 sq. ft.
  • 2nd Floor: 896 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 32' 0"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Area: 800 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
