Flexible Carriage House Plan

Plan 21564DR

992
Heated s.f.
2
Beds
1.5
Baths
2
Stories
2
Cars

This compact guesthouse with a traditional layout has all of the living space situated on the upstairs floor.
The family room and the eat-in kitchen are opposite each other just off the top of the stairs.
In the back, the two bedrooms, each with a private balcony, share a full bathroom. Laundry facilities complete the plan.
The downstairs is devoted entirely to a two-car garage, which offers plenty of storage space.
Related Plan: For an alternate elevation, see 21204DR.

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Flexible Carriage House Plan - 21564DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

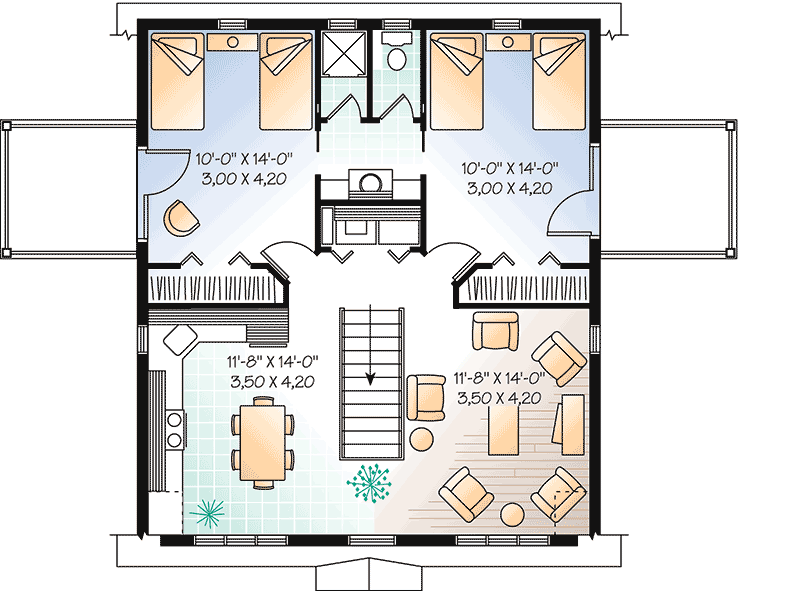

Flexible Carriage House Plan - 21564DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 992 sq. ft.
1st Floor: 96 sq. ft.
2nd Floor: 896 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 28' 0"
Depth: 32' 0"
Max ridge height: 26' 2"

Garage

Type: Detached
Area: 800 sq. ft.
Count: 2 Cars
Entry Location: Front

Roof Details

Framing Type: Truss

Architectural Style

Special features
