Plan 22656DR
Compact Contemporary Cottage with Upstairs Master Suite with Private Terrace and Bunk Room
Heated S.F.
741
Beds
2
Baths
1
Stories
2
Photos
What's Included
Plan Details

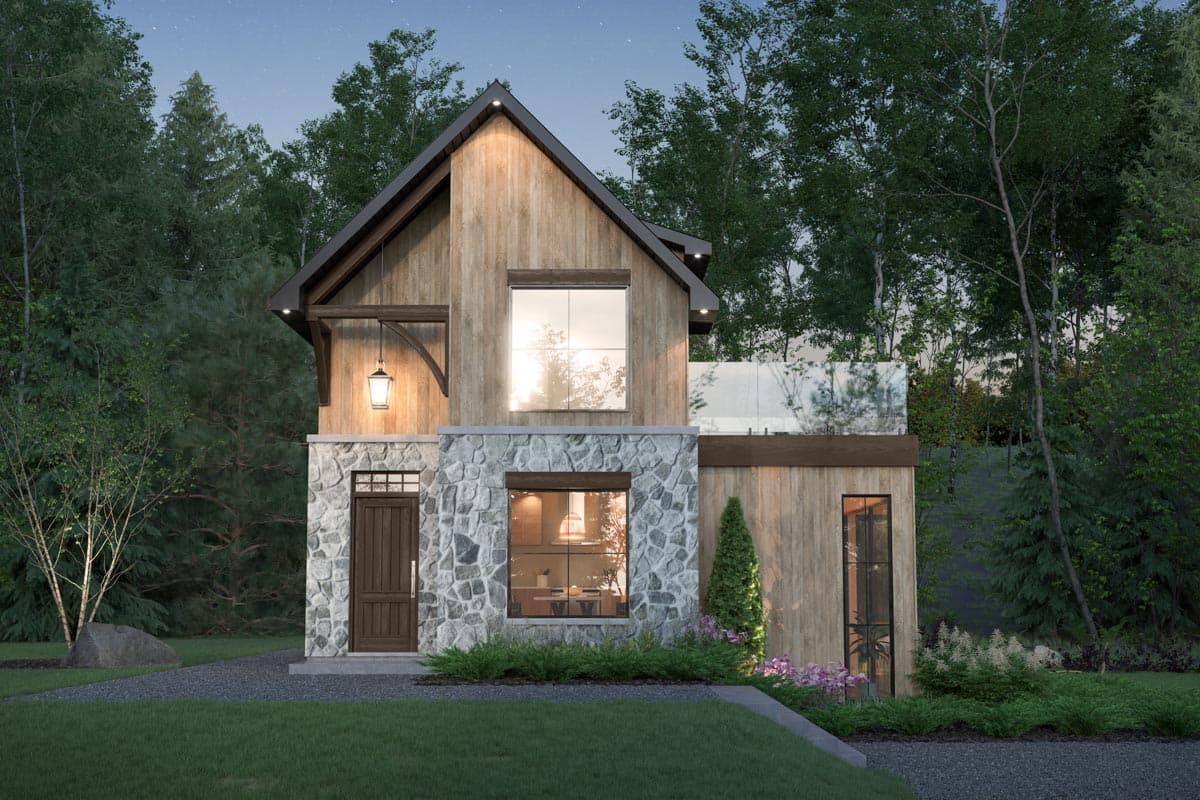

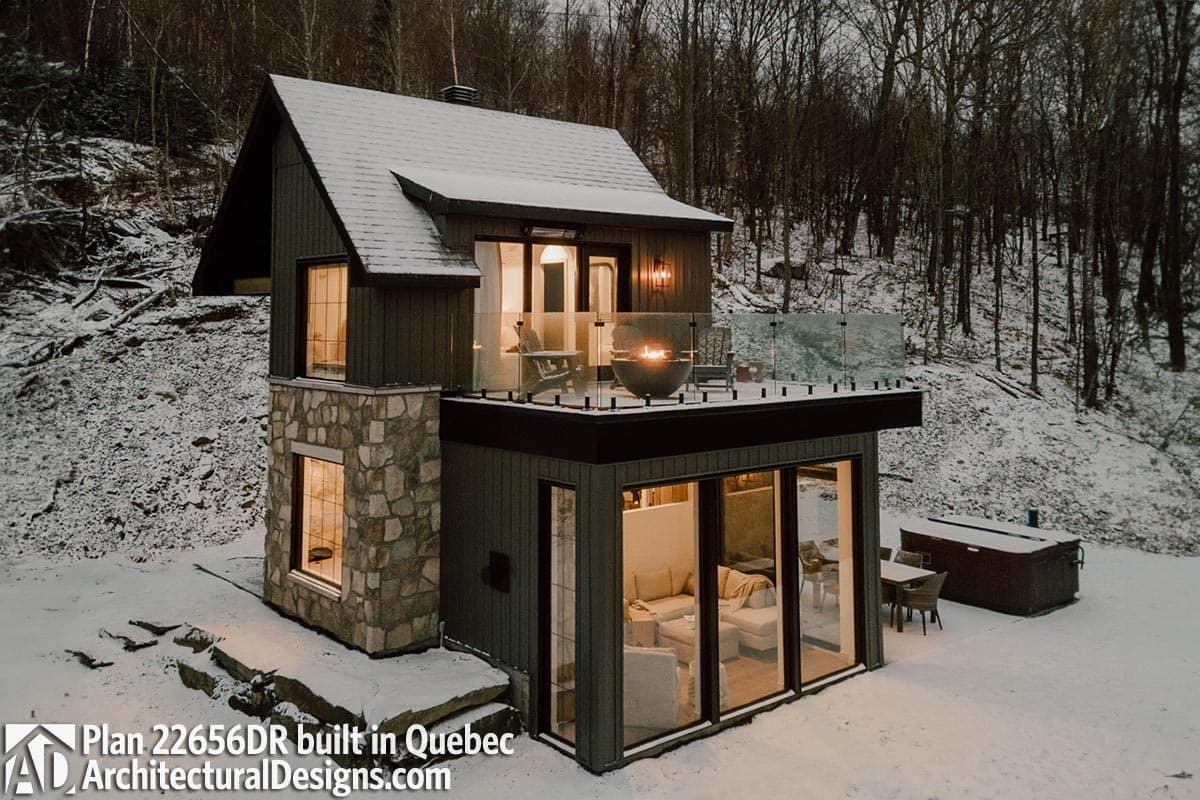

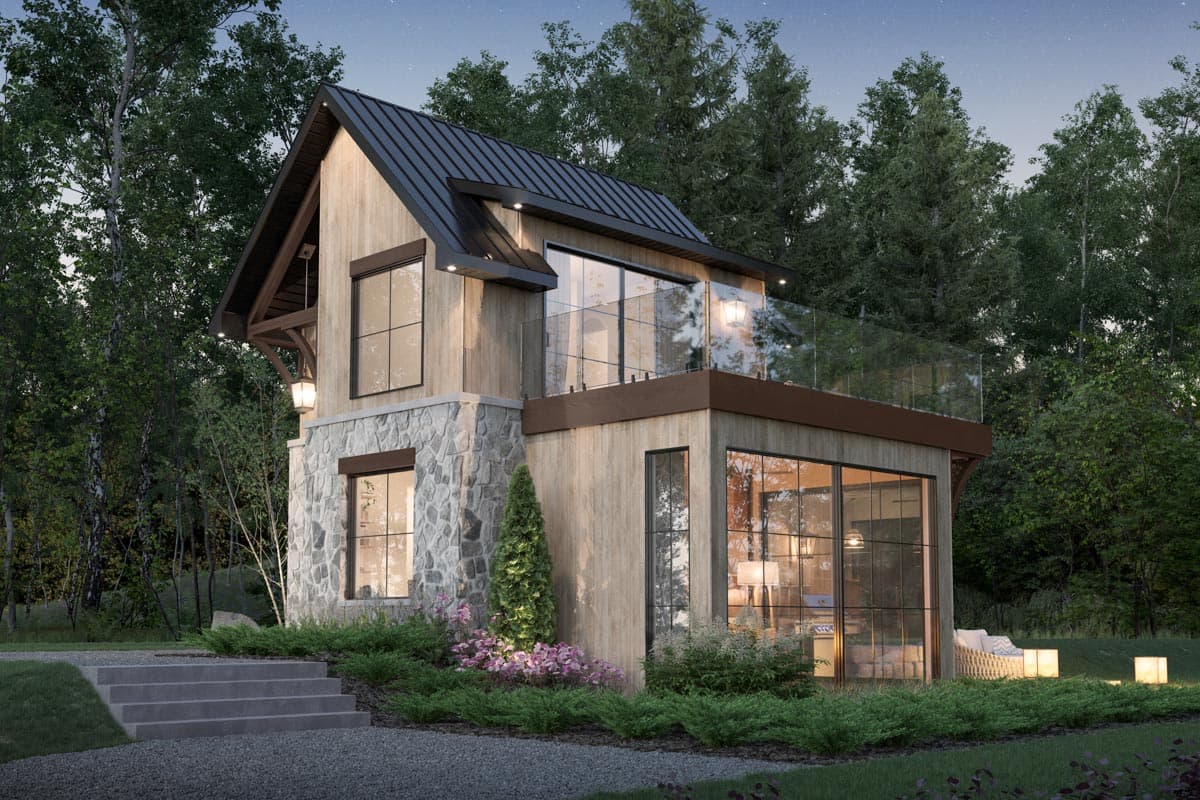

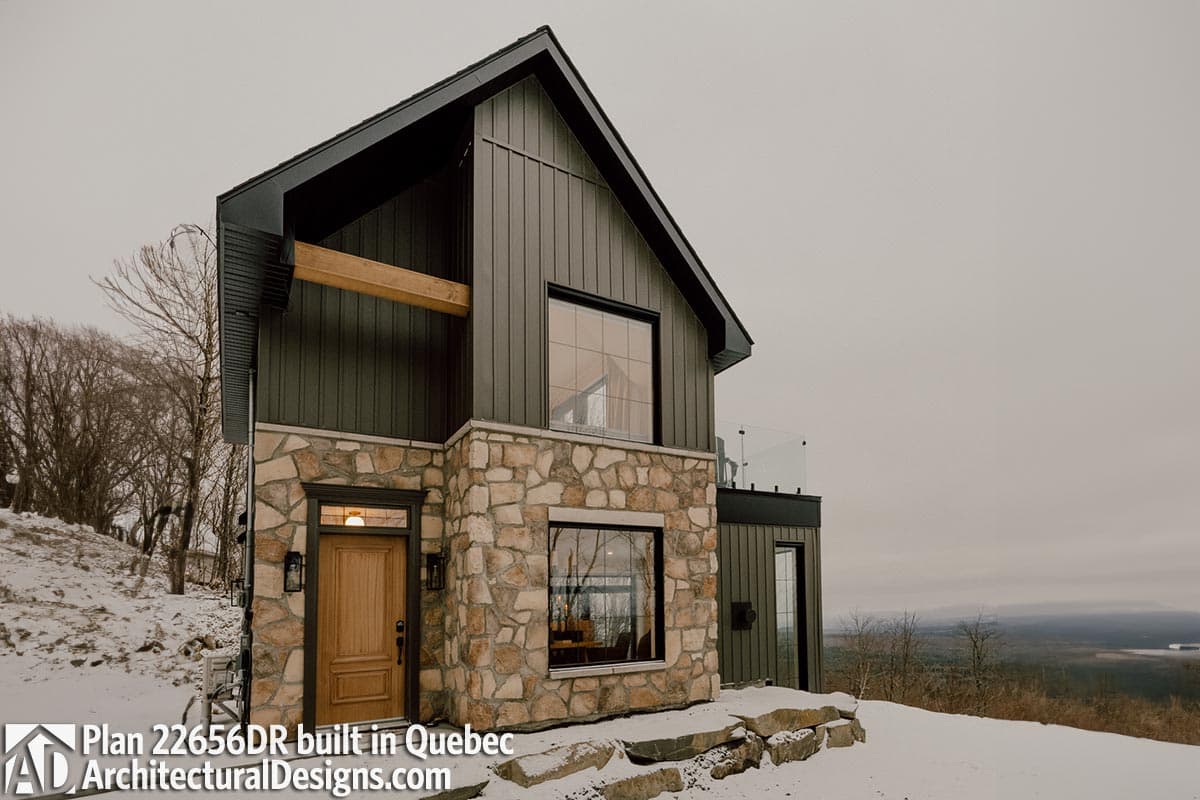

  • This compact contemporary cottage makes a great vacation home or rental property. Its stone and wood exterior give it a rustic feel and looks great in almost any setting. Inside, it gives you 741 square feet of heated living with the master suite and bunk room on the second floor.

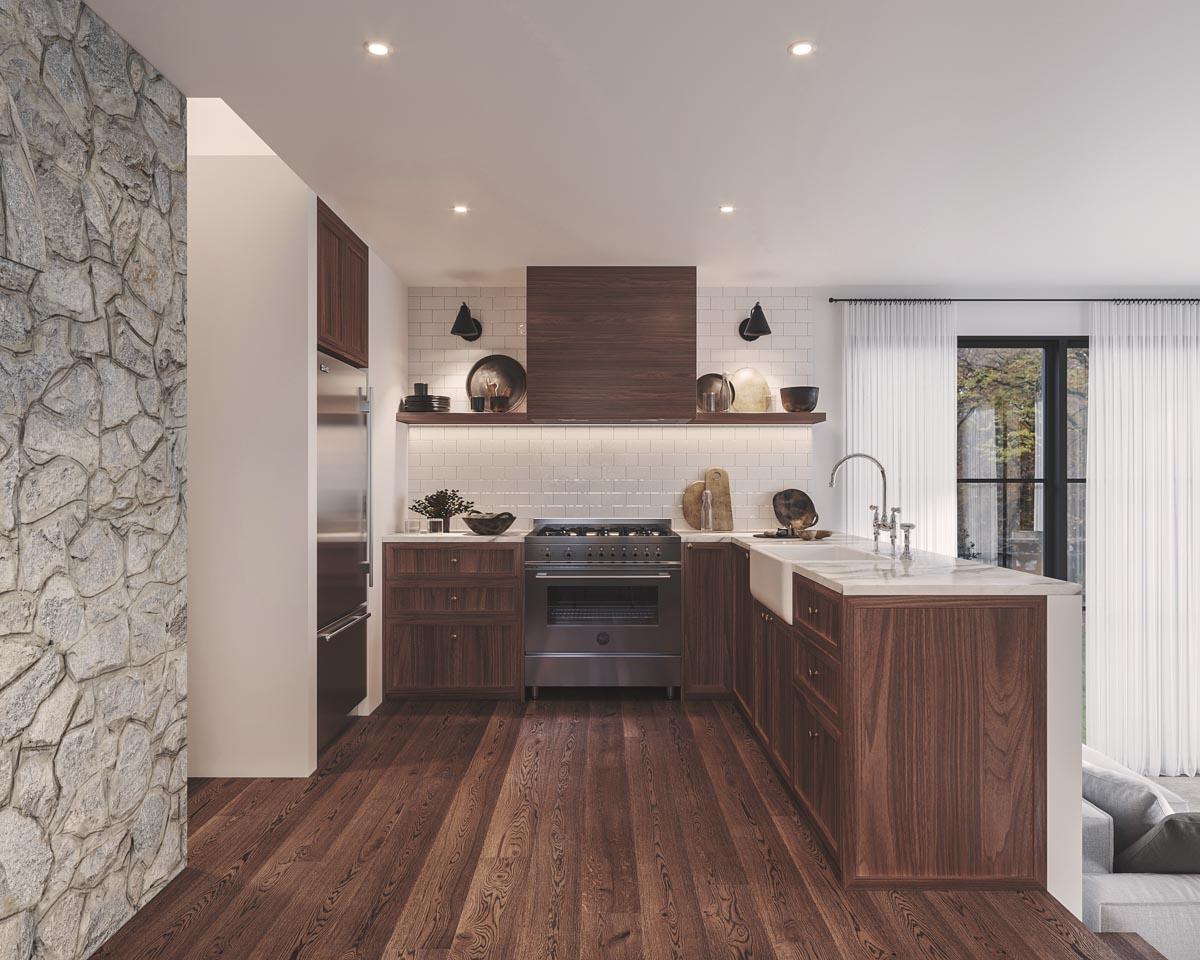

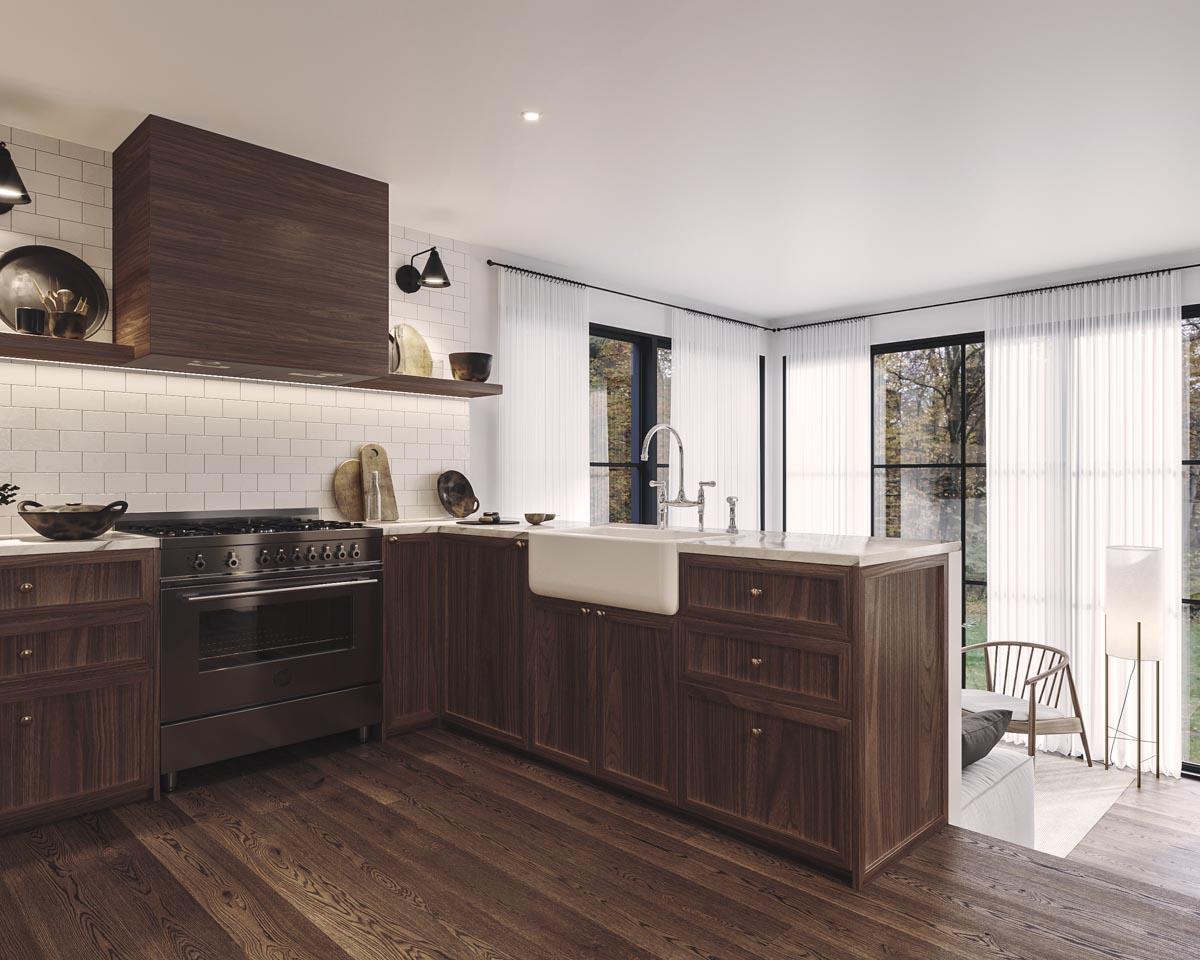

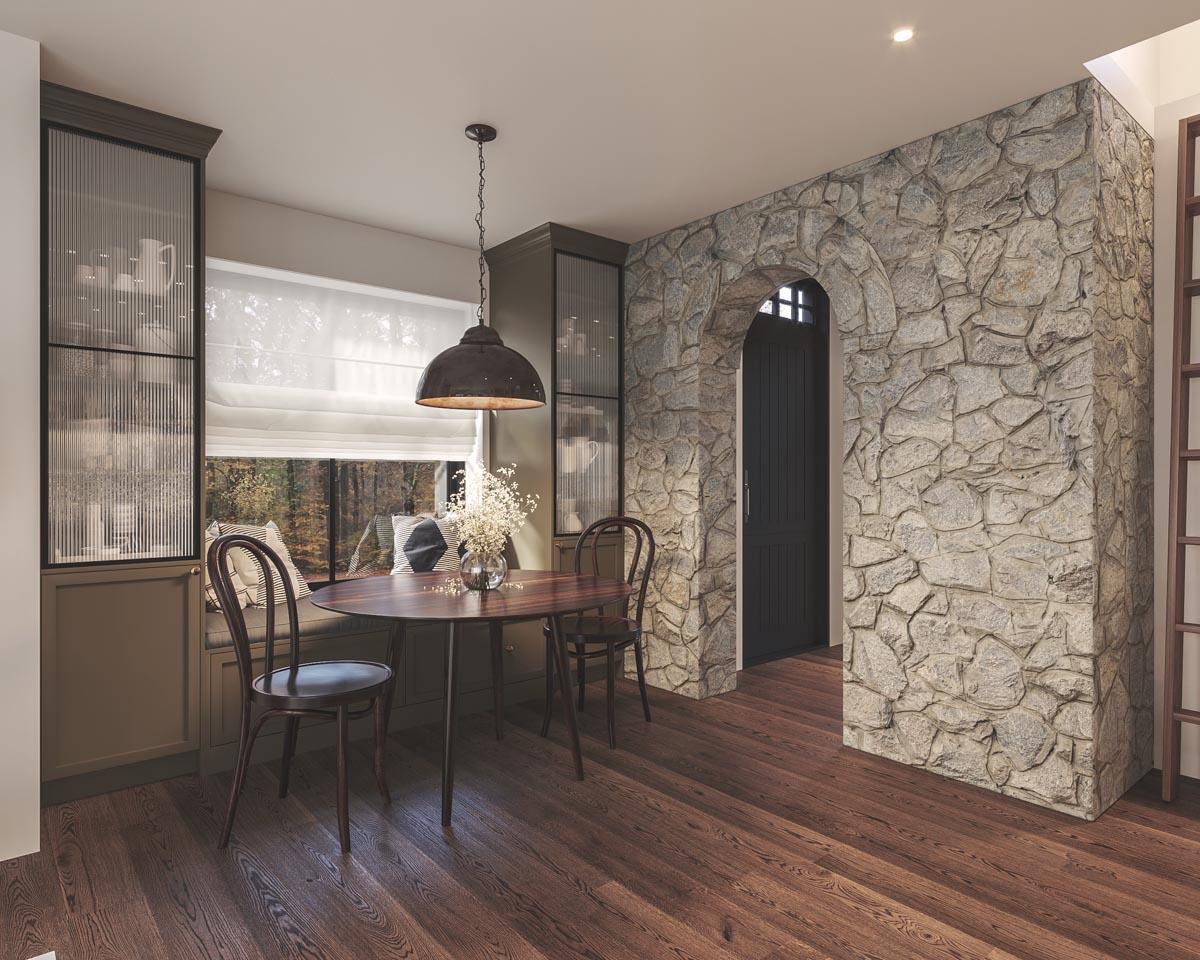

  • The front porch is sheltered and leads to an entrance with a small walk-in closet. Immediately to the right, a stone wall with an arch gives the rustic and warm tone found throughout the interior. The kitchen is of a good size and has all the attributes sought to make good meals there.

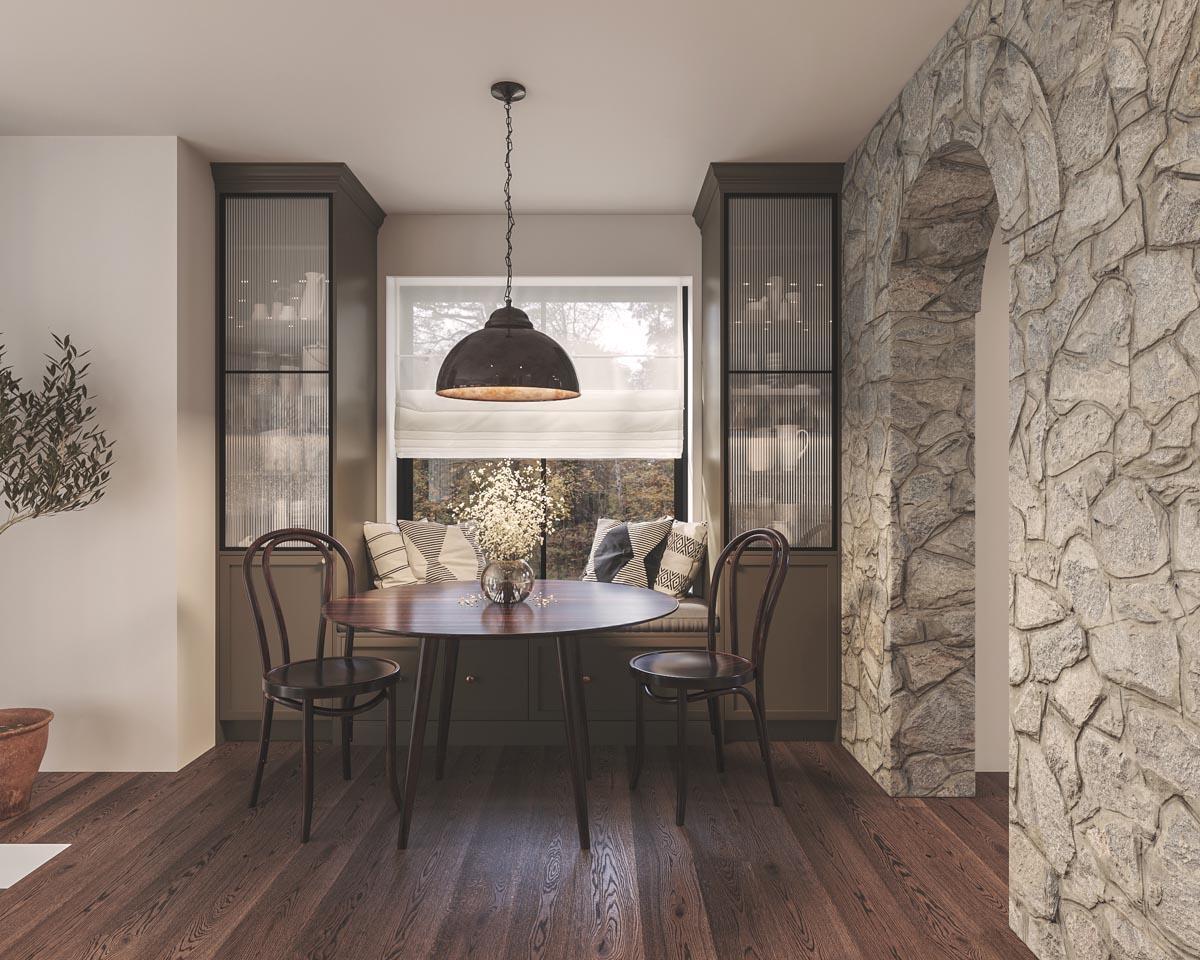

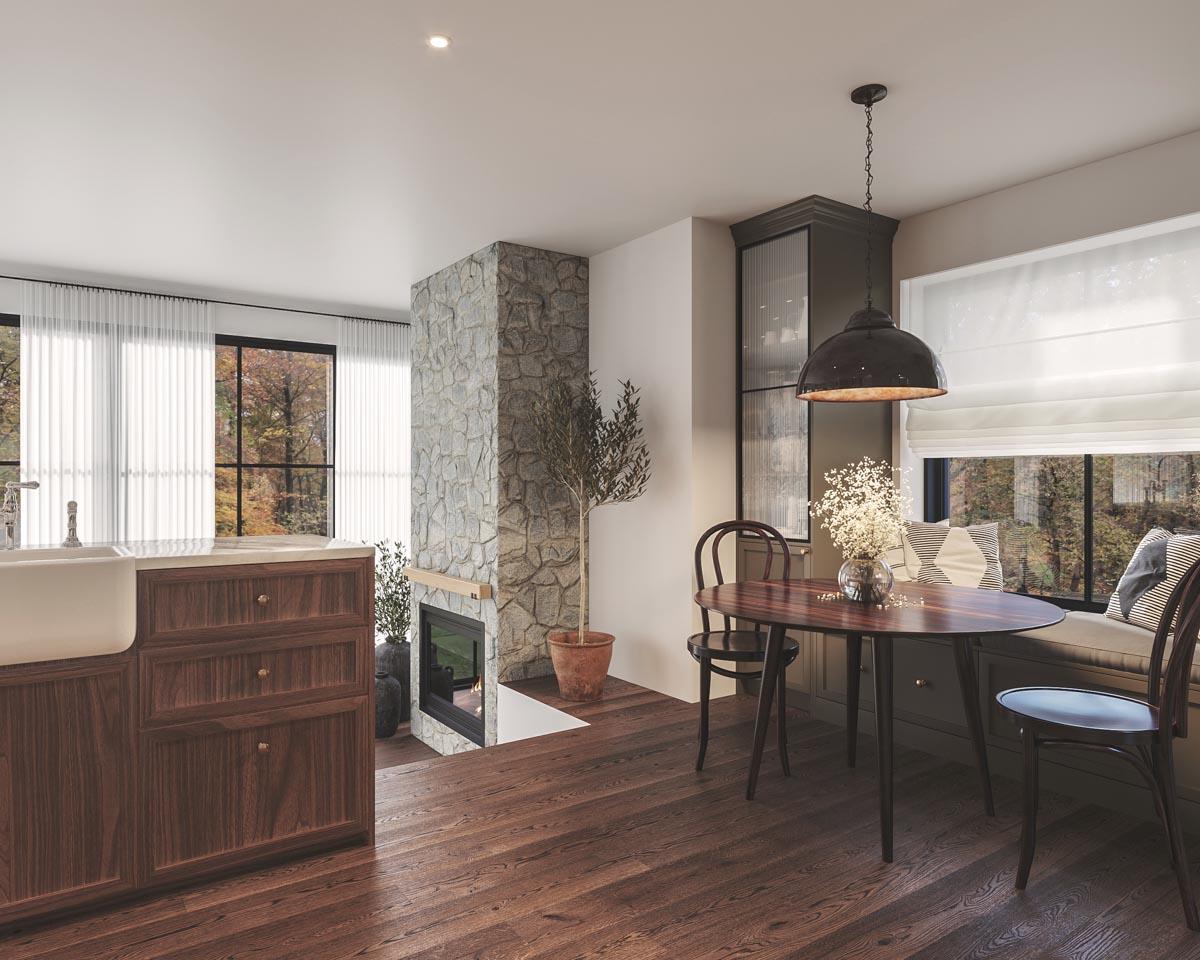

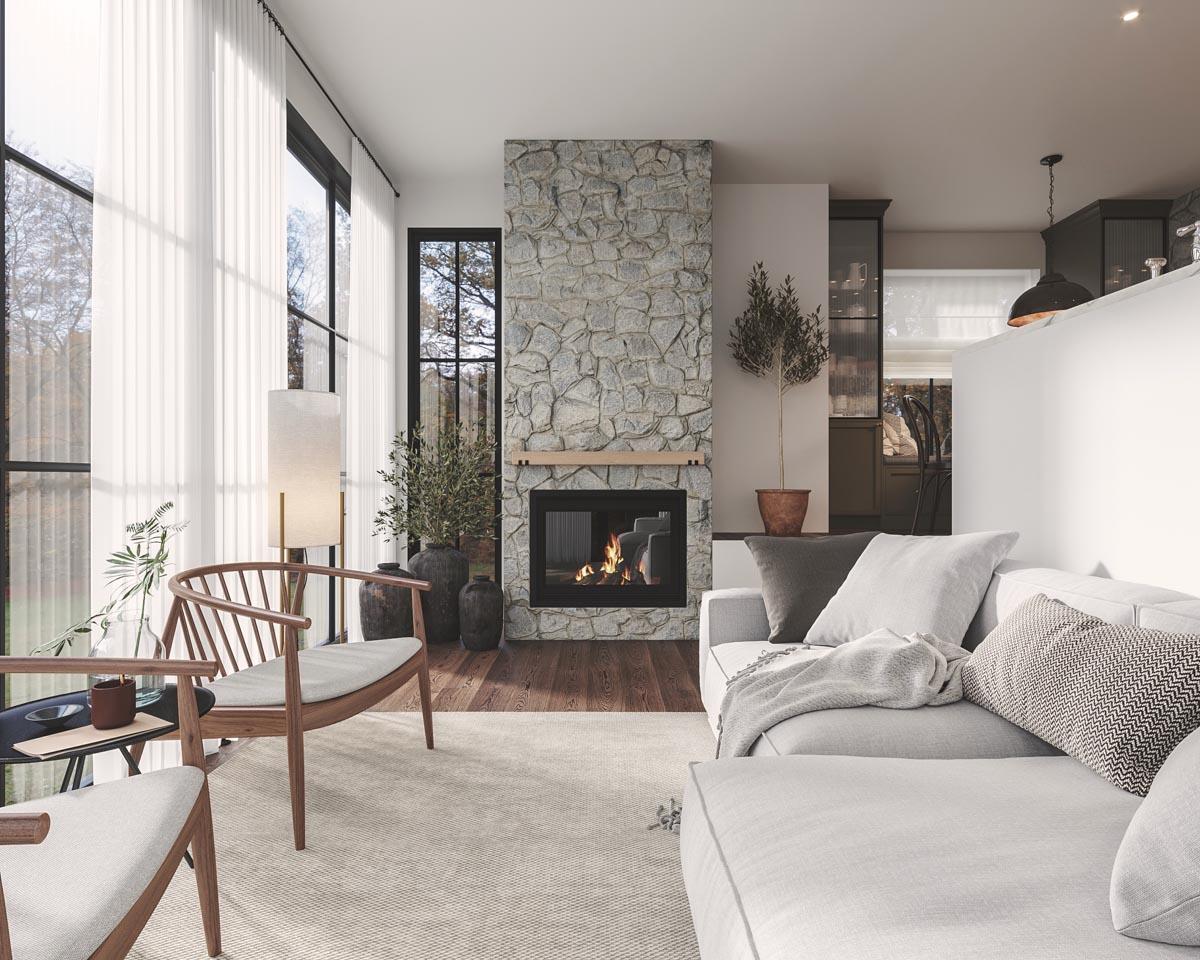

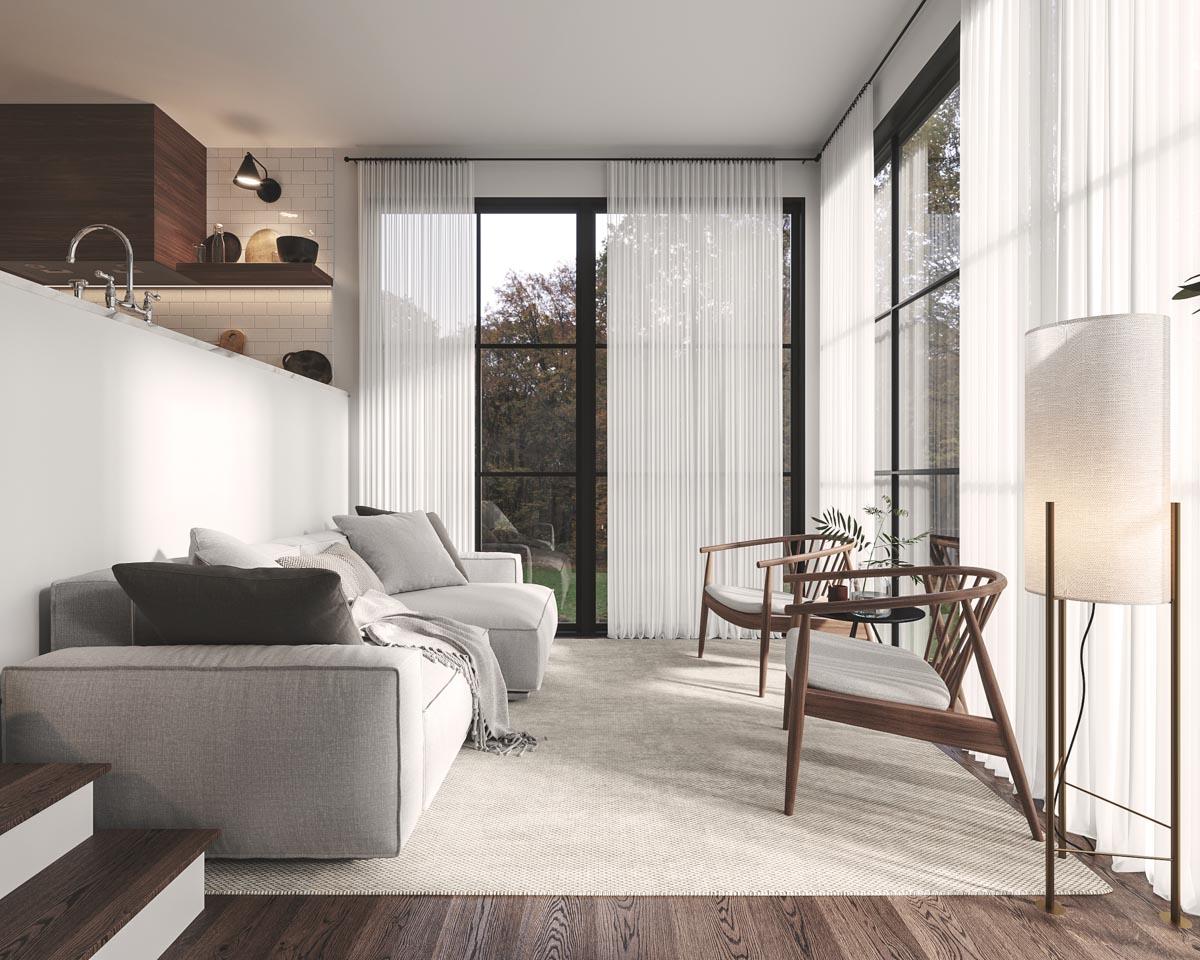

  • The dining room is large enough to comfortably accommodate 4 guests with its bench seat and chairs. The sunken living room has a ceiling of over 10' high as well as a fireplace and a window offering breathtaking views of the outside. It should be noted that the purchase of a sofa bed in the living room could make it possible to receive 2 additional people.

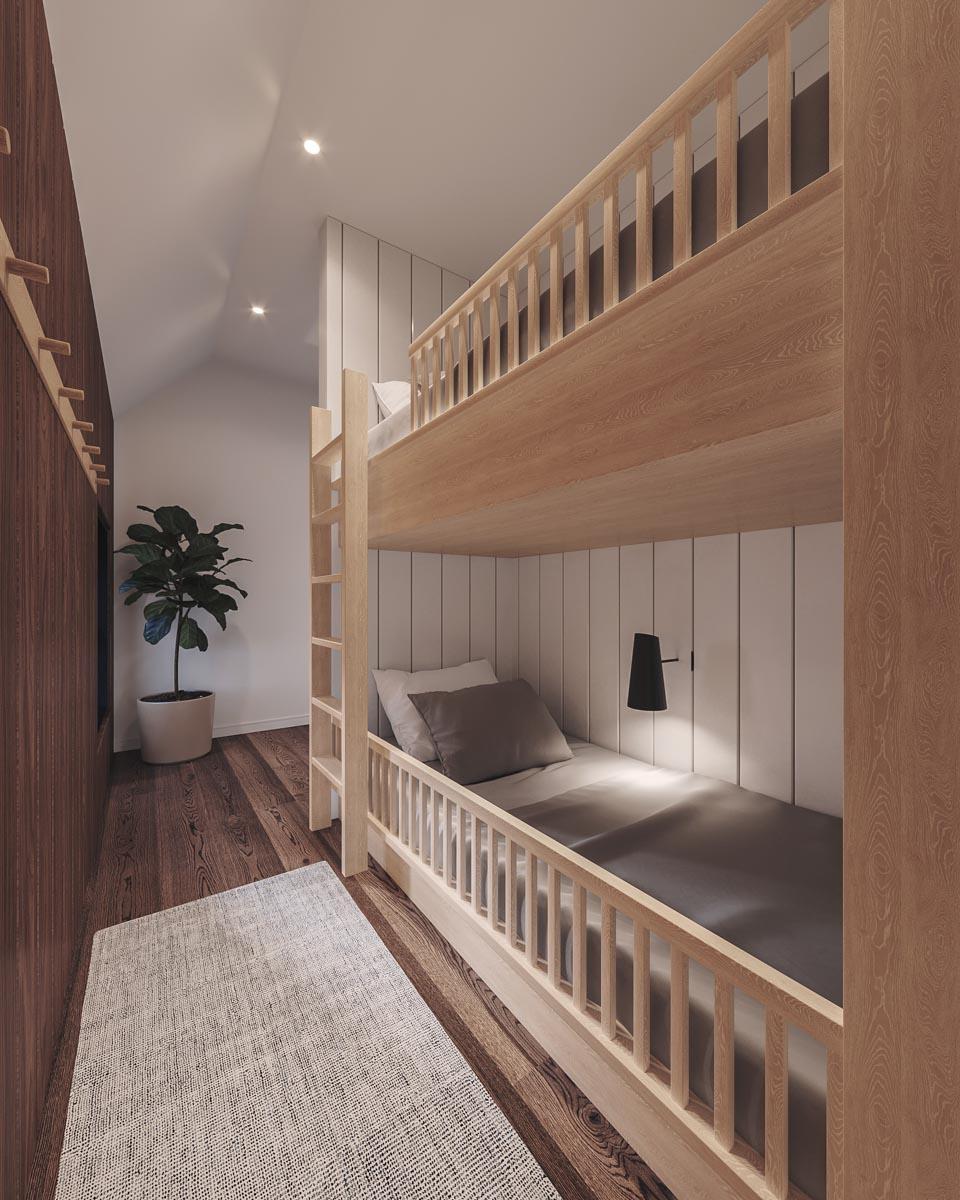

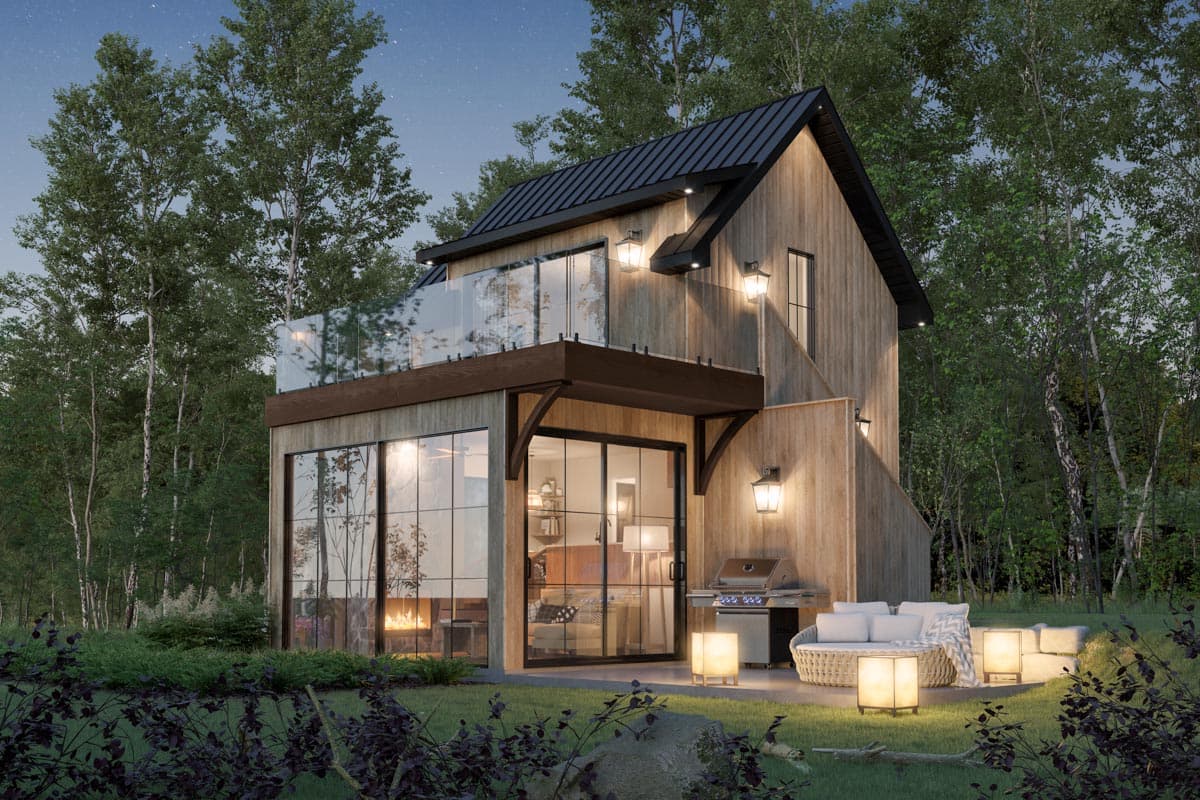

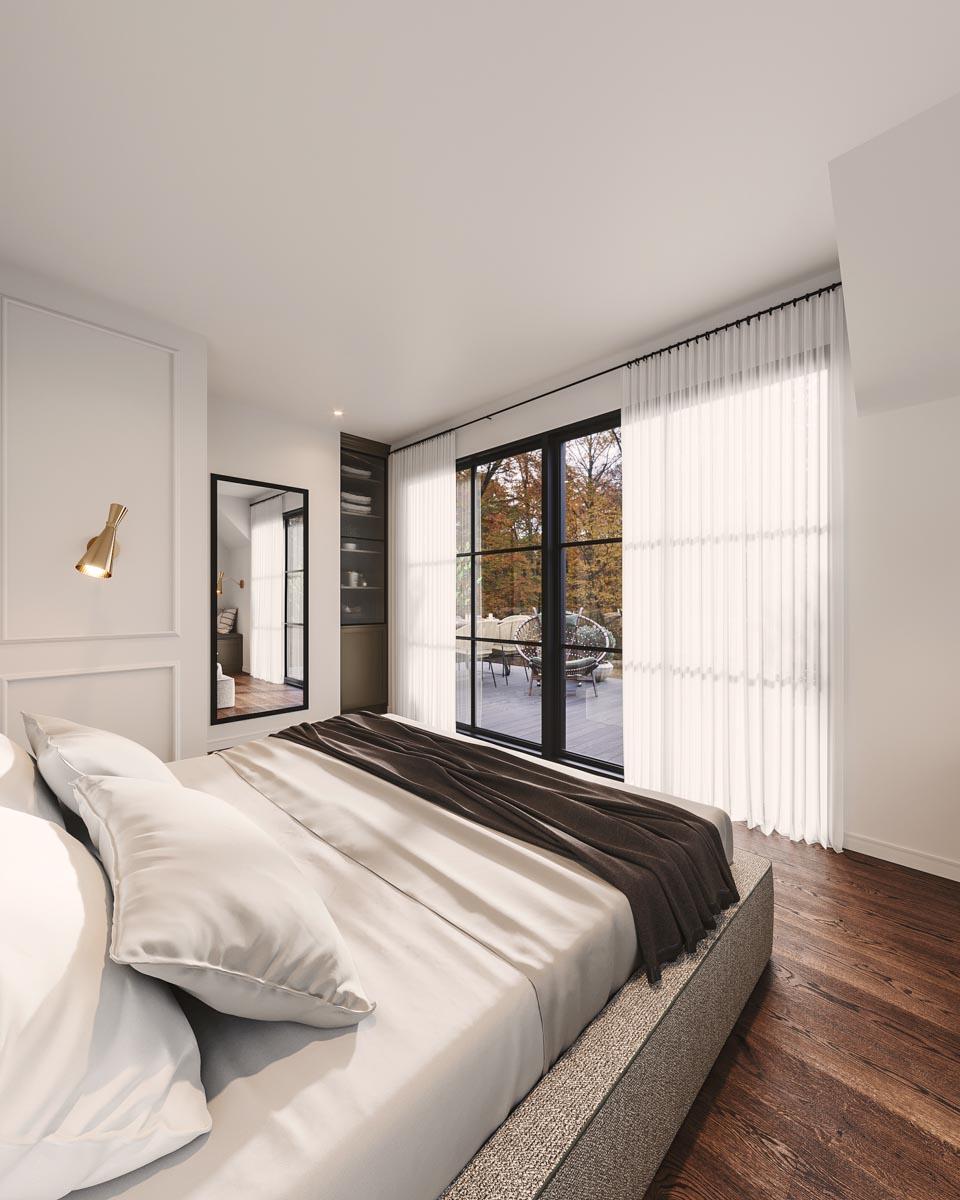

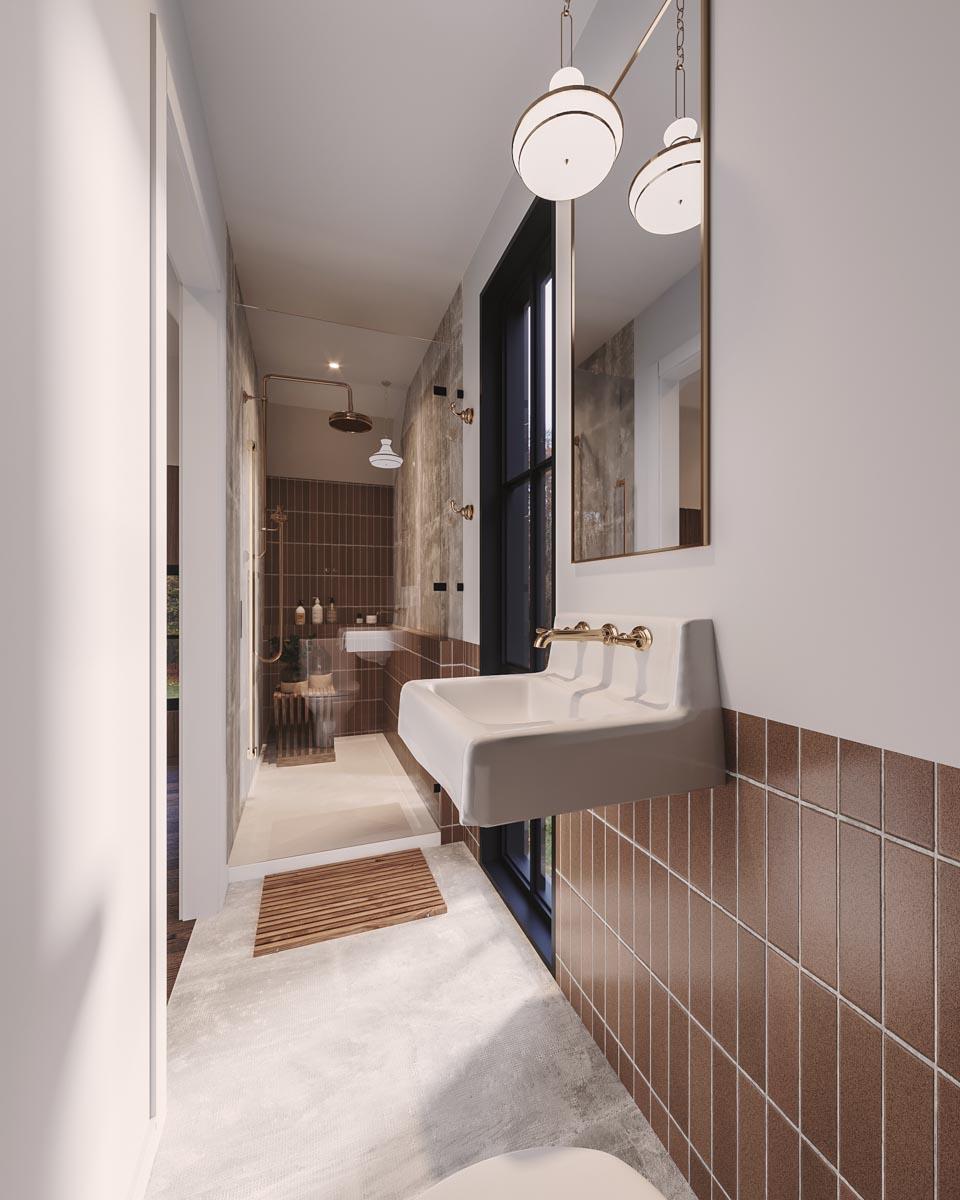

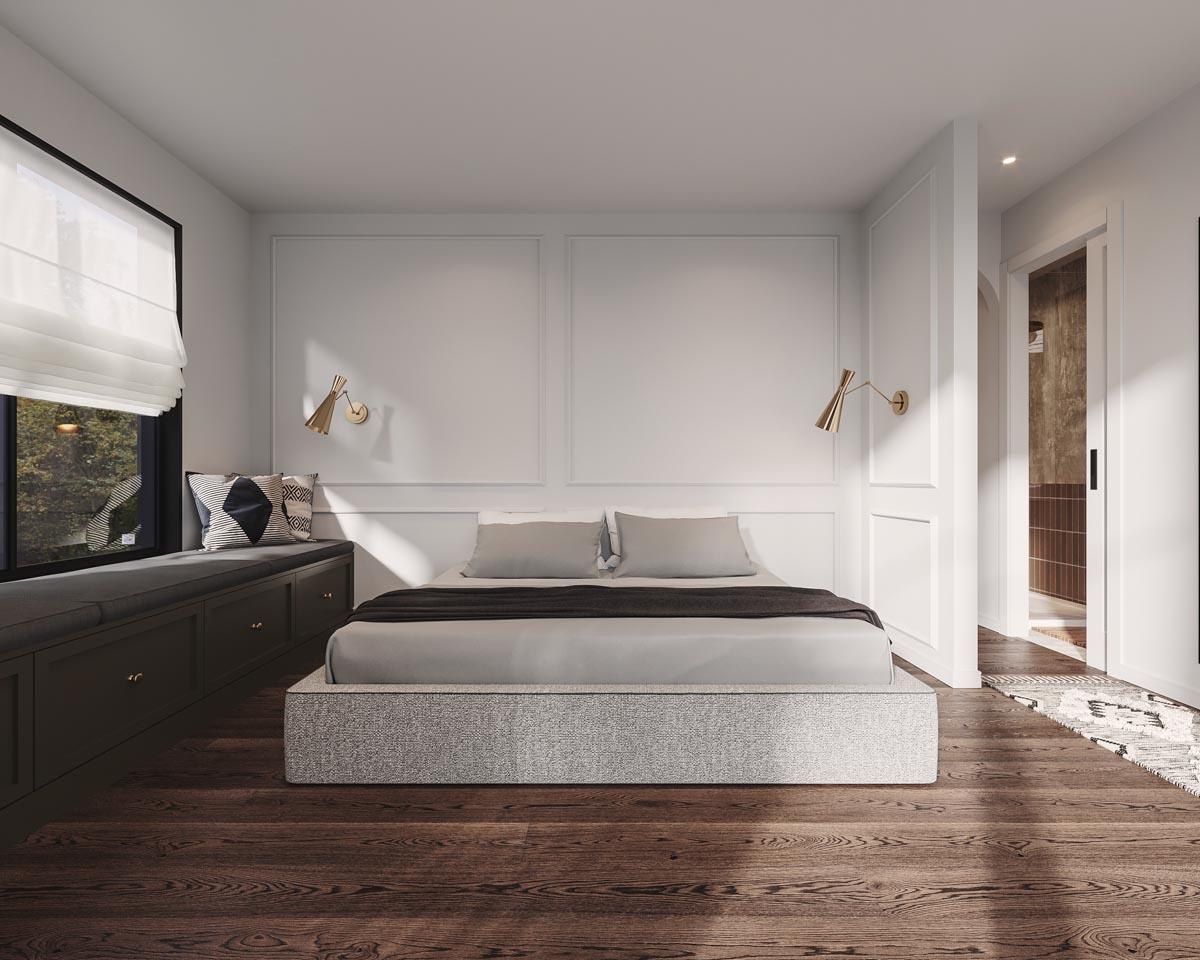

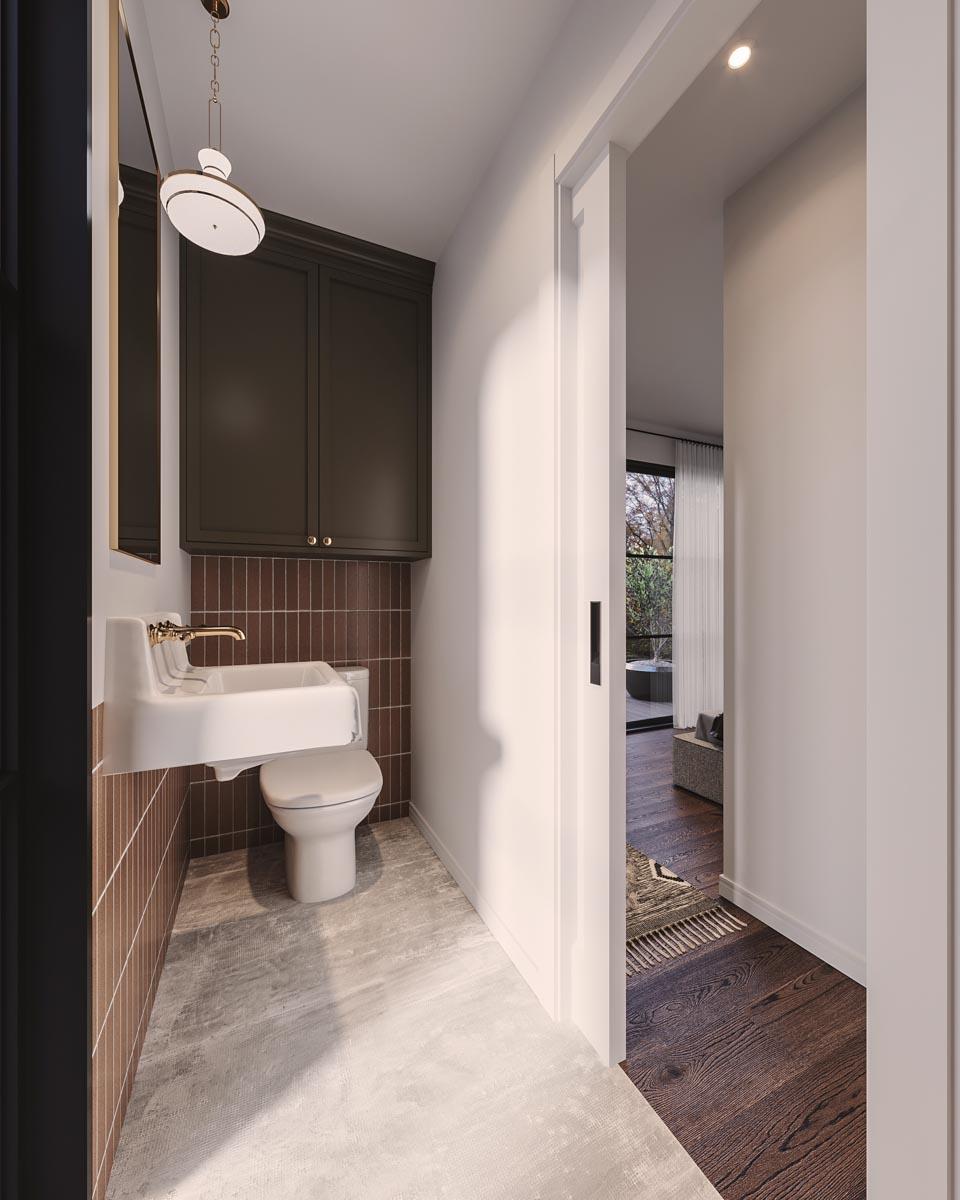

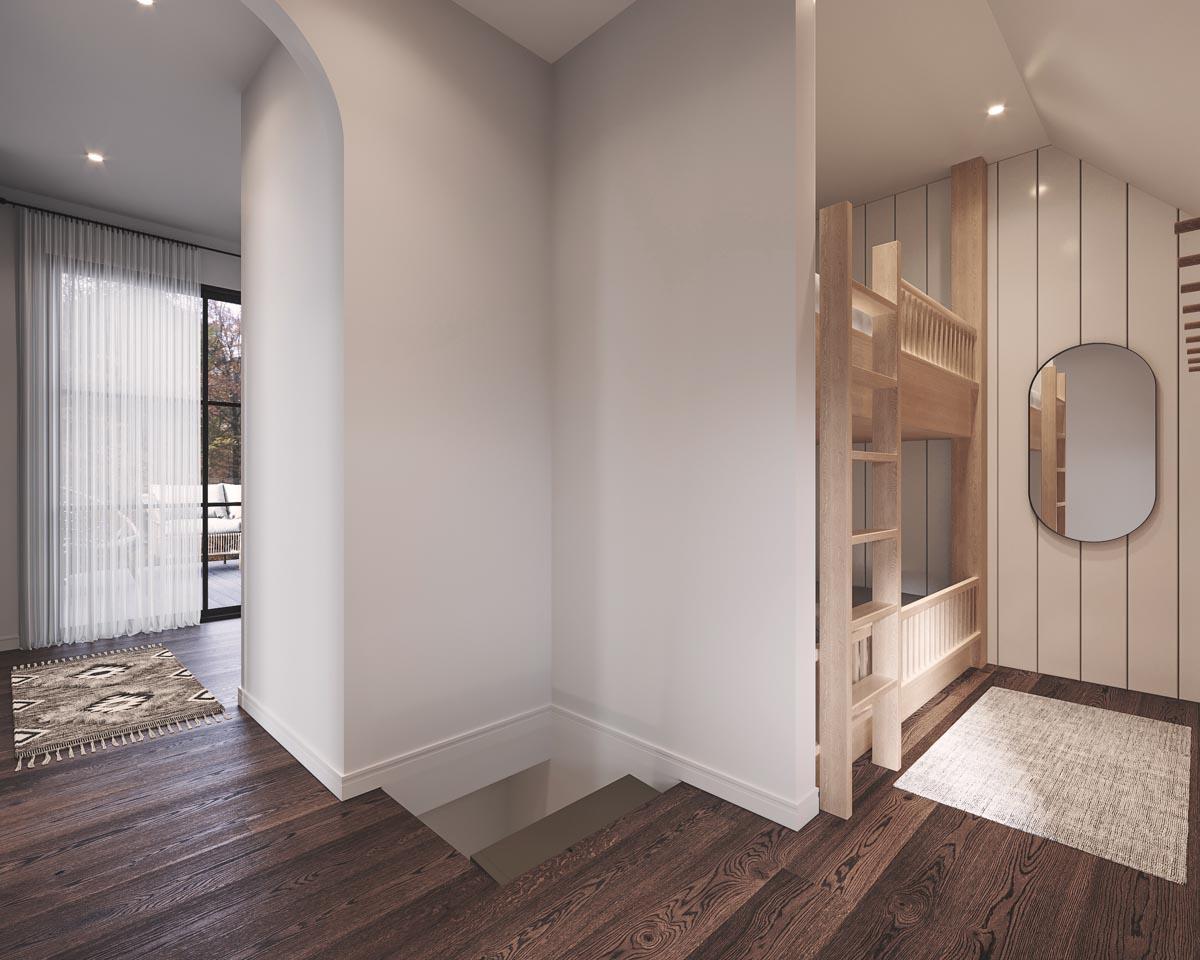

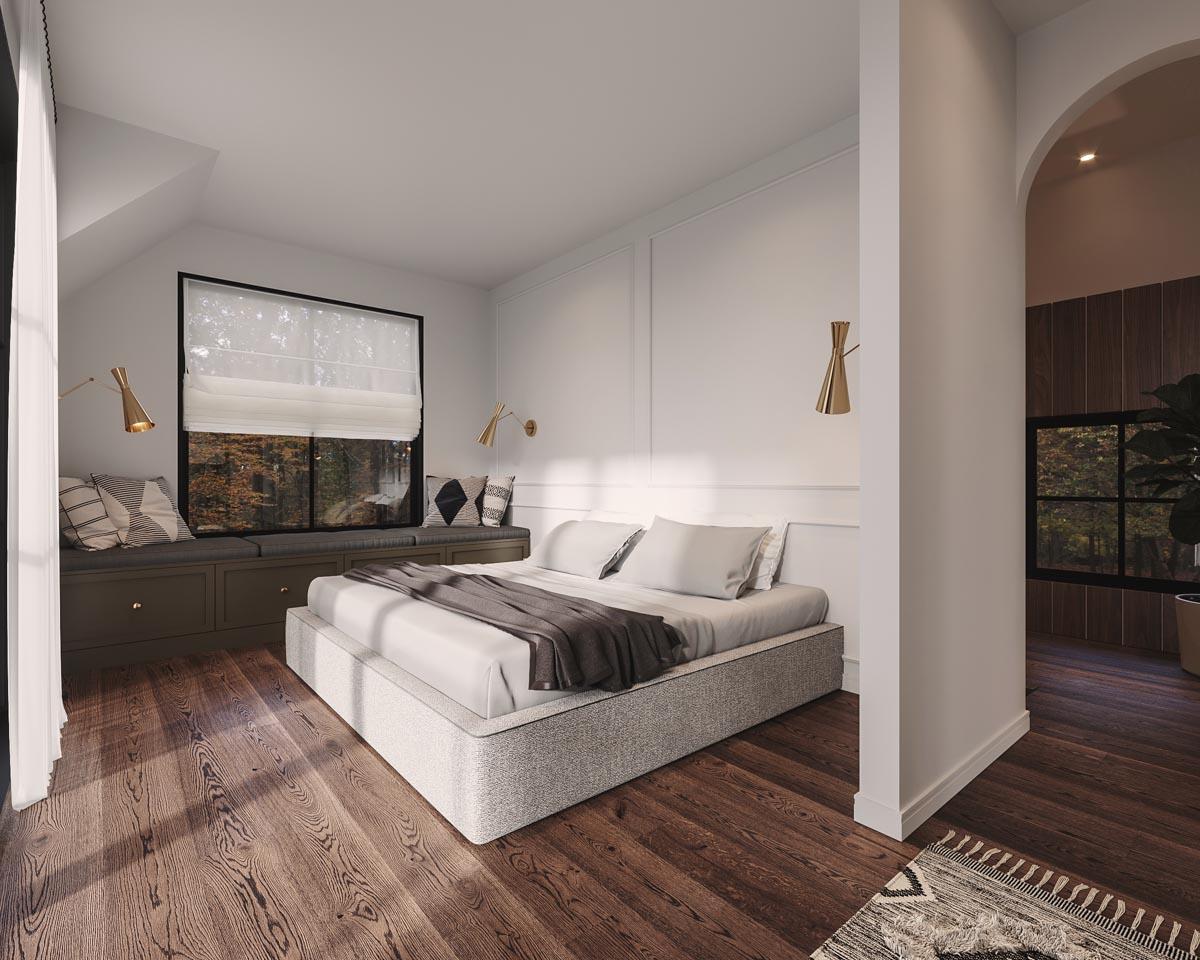

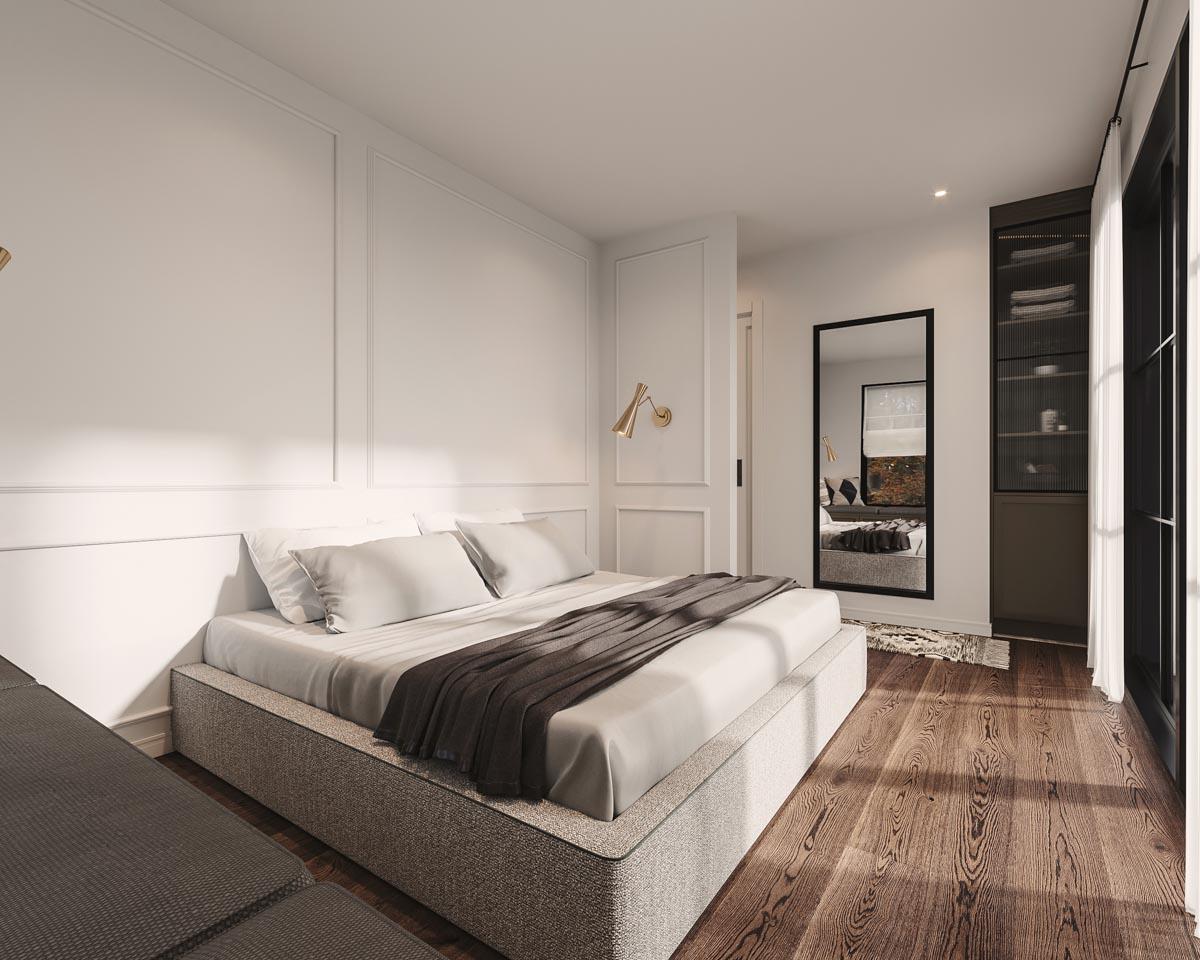

  • The upper floor is accessible by an outside staircase and also by a fun ladder located set back from the kitchen. On this level, we find the master bedroom which has its own outdoor terrace. A secondary bedroom with bunk beds will delight your children, or your guests! And finally, a shower room completes this floor.
  • The laundry room is located on the left side of the house and is accessed from the outside. In addition, it has a small section that can for example be used for storing gardening accessories.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact Contemporary Cottage with Upstairs Master Suite with Private Terrace and Bunk Room

  • 741

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

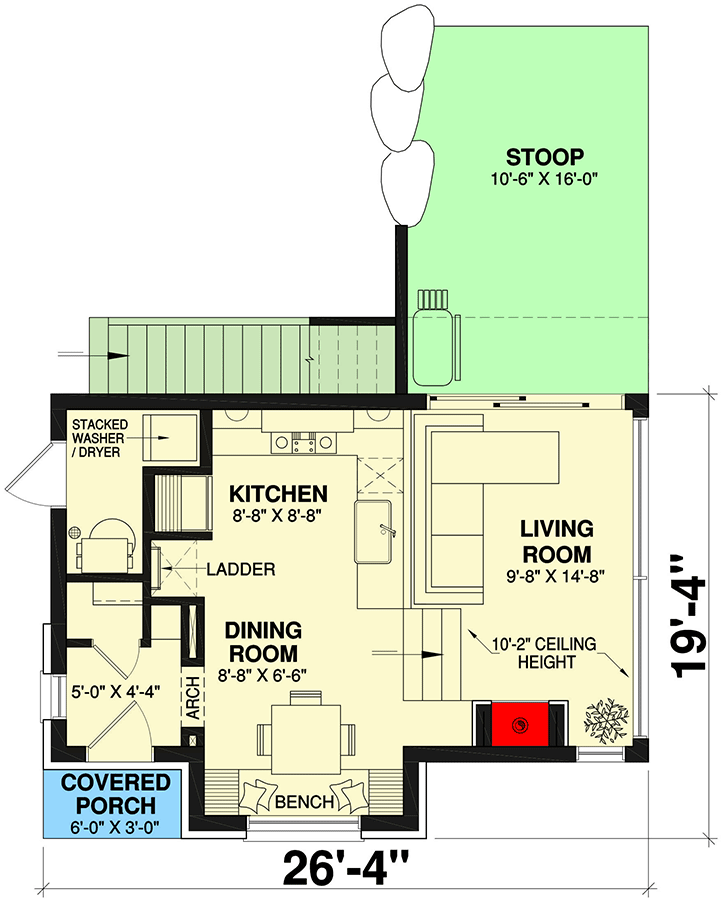

  • Main Level

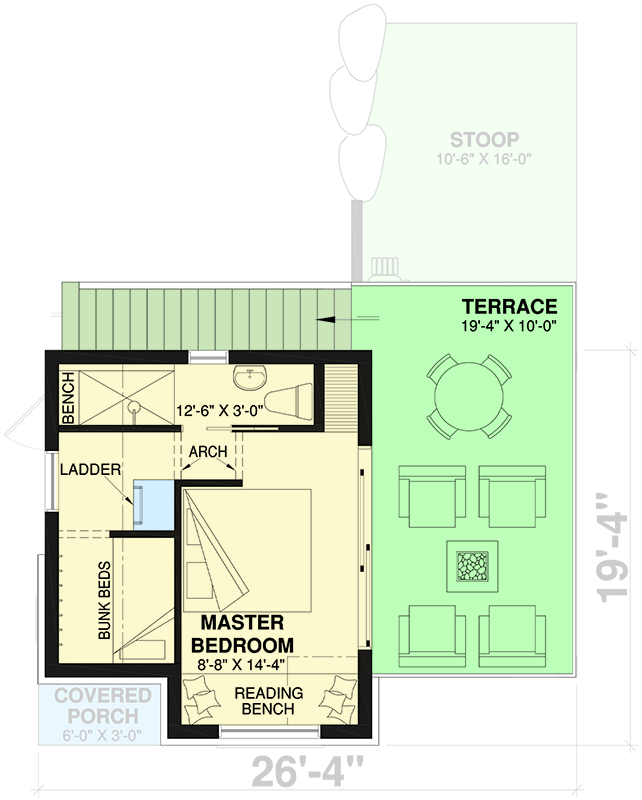

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 741 sq. ft.
  • 1st Floor: 455 sq. ft.
  • 2nd Floor: 286 sq. ft.

Dimensions

  • Width: 26' 4"
  • Depth: 19' 4"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Monolithic Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
