Compact Two-Story Northwest House Plan

Plan 80898PM

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • Blending three types of exterior materials creates an interesting look for this two-story Northwest house plan.
  • Less that 25' wide, the home fits well on a narrow lot.
  • The open layout makes the most of the square footage on the first floor, with sight lines that flow from room to room.
  • There's a walk-in pantry and sliding glass doors to get you out to the back yard.
  • All the bedrooms are upstairs, with a walk-in closet for the master suite.
  • The hall bathroom is large and has a big window to bring in light.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

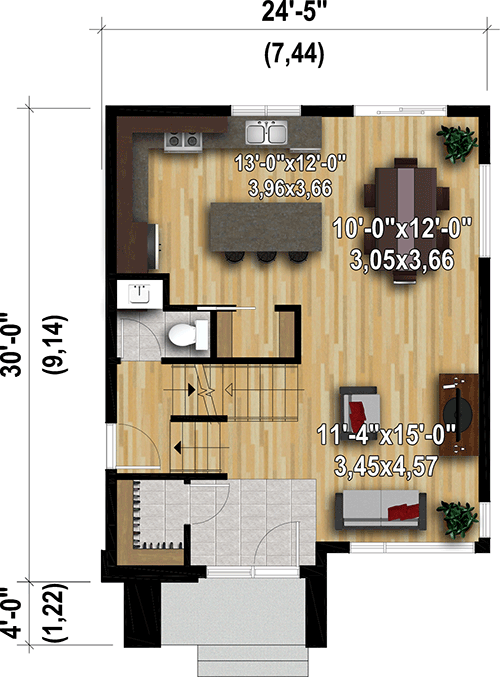

Compact Two-Story Northwest House Plan - 80898PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

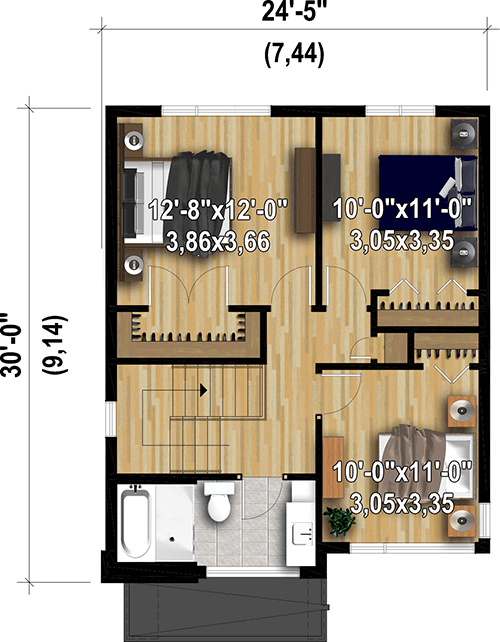

Compact Two-Story Northwest House Plan - 80898PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,400 sq. ft.
  • 1st Floor: 700 sq. ft.
  • 2nd Floor: 700 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 5"
  • Depth: 30' 0"
  • Max ridge height: 28' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Compact Two-Story Northwest House Plan

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $920
  • 5 Sets $965
  • 5 Sets + PDF $1,055
  • CAD + PDF - Single-Build $1,940
  • View all purchase option online

About This Plan

  • Blending three types of exterior materials creates an interesting look for this two-story Northwest house plan.
  • Less that 25' wide, the home fits well on a narrow lot.
  • The open layout makes the most of the square footage on the first floor, with sight lines that flow from room to room.
  • There's a walk-in pantry and sliding glass doors to get you out to the back yard.
  • All the bedrooms are upstairs, with a walk-in closet for the master suite.
  • The hall bathroom is large and has a big window to bring in light.
