Plan 666064RAF Contemporary 2-Family House Plan with a Drive-Under Garage

3,878 2 36' 64' 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary 2-Family House Plan with a Drive-Under Garage

Plan 666064RAF

  • 3,878

    Heated s.f.

  • 2

    Units

  • 36'

    Width

  • 64'

    Depth

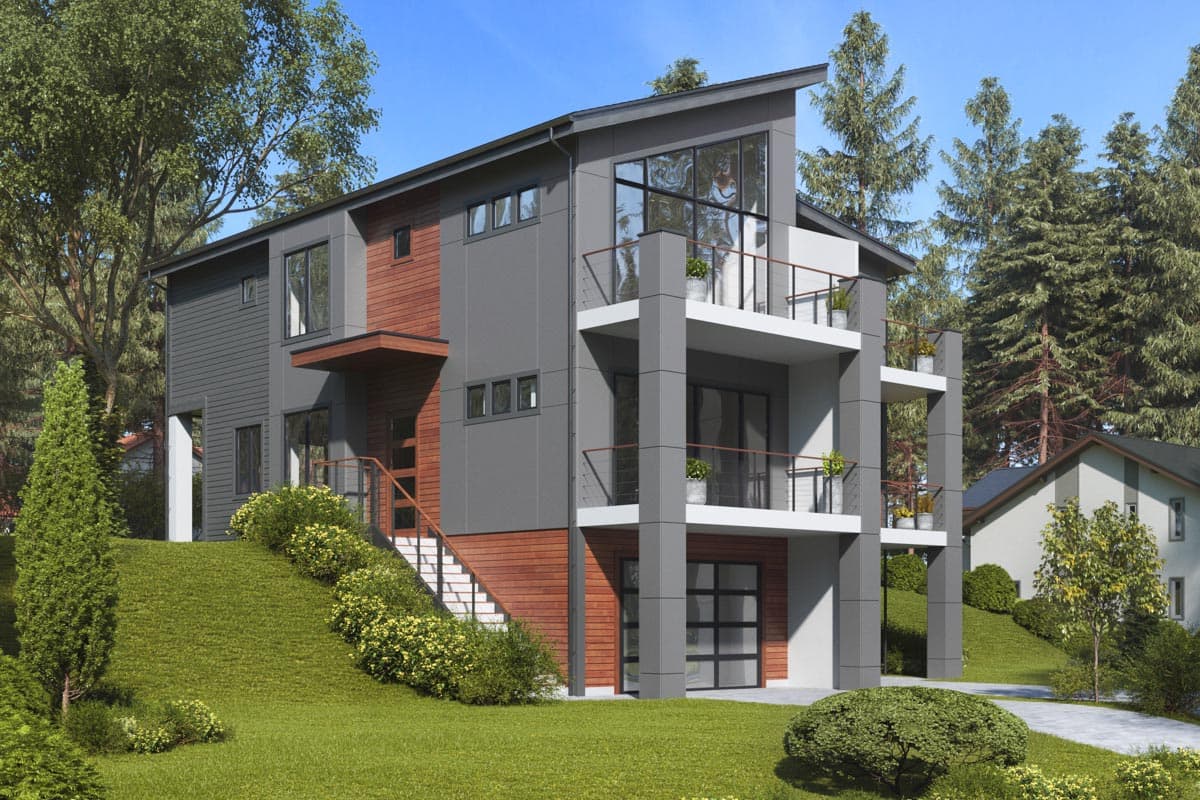

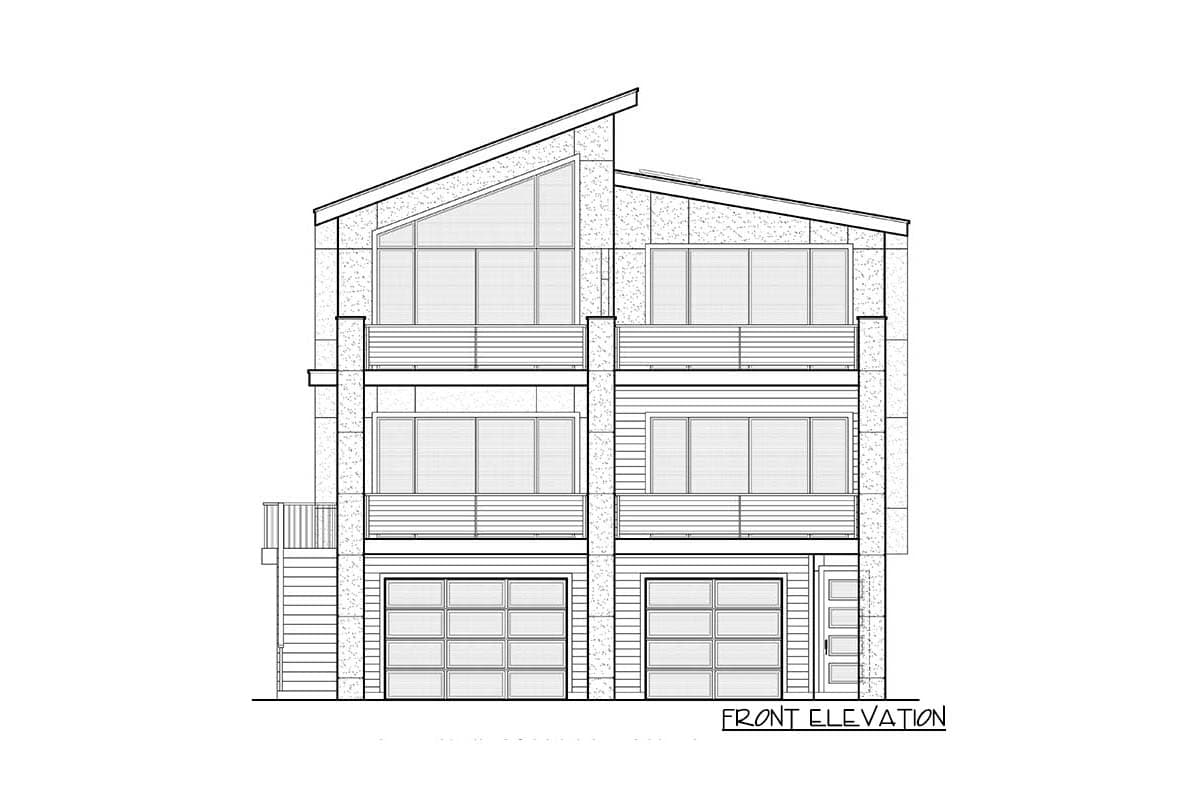

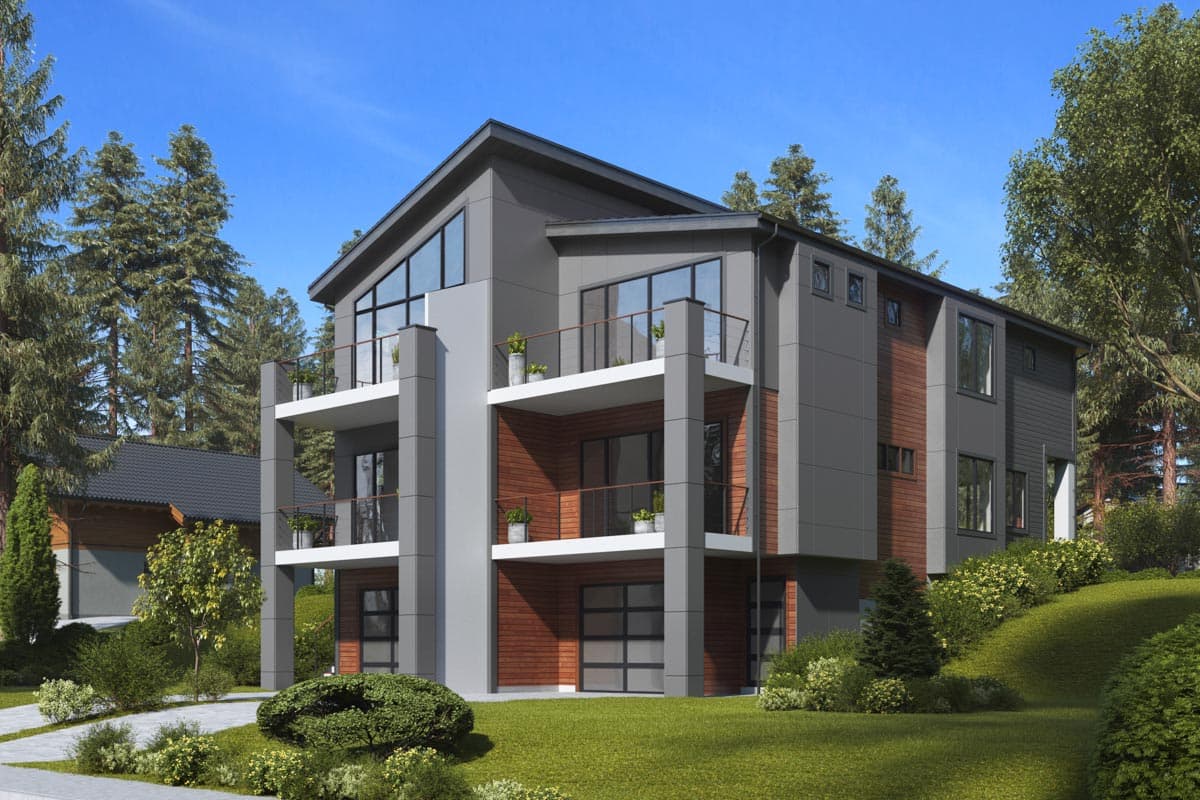

  • Glass adorns the front elevation of this contemporary, multi-family structure, allowing natural light to fill the main level and master suite, which resides on the second level. Two-story decks on the front of the structure provide ample outdoor living space for each unit.
  • The left unit gives you 2,056 square feet of heated living space (343 sq. ft. on the lower level, 826 sq. ft. on the first floor and 343 sq. ft. on the upper floor and a 425 sq. ft. garage) and the right unit gives you 1,822 square feet of heated living space (116 sq. ft. on the lower level, 823 sq. ft. on the first floor and 883 sq. ft. on the upper floor and a 616 sq. ft. garage)
  • The main level of each unit presents the shared living space in an open floor plan. A back patio is located off the kitchen, providing a great space to grill.
  • At the top of the stairs, french doors lead to the master bedroom, which includes sliding doors to an uncovered deck, a full bath, and walk-in closet.
  • Two additional bedrooms share a full bath, while one of the units includes a Jack-and-Jill bath. A vaulted reading loft offers a cozy space to cuddle up on the second level.
  • The lower levels of each unit differ slightly. One units includes a single-car garage with a pass-through laundry room leading to a recreation room, and the other unit offers a 2-car tandem garage with a laundry room.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans

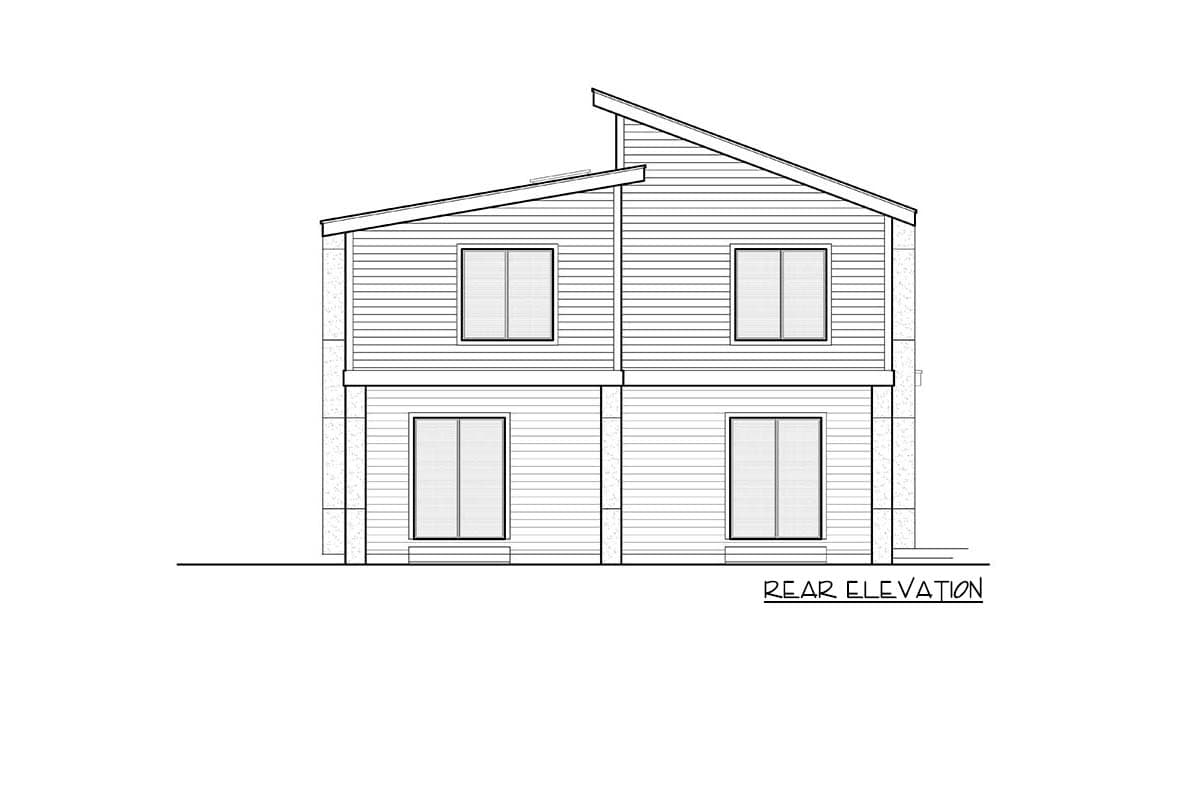

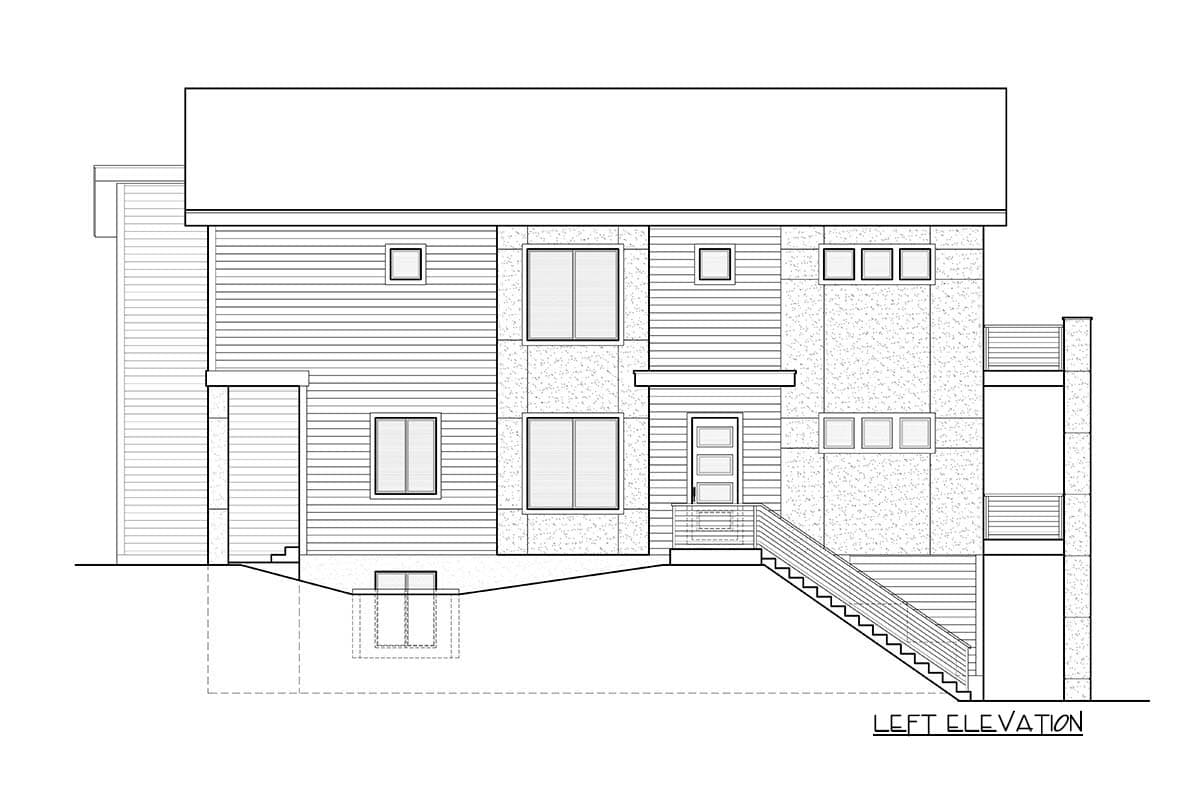

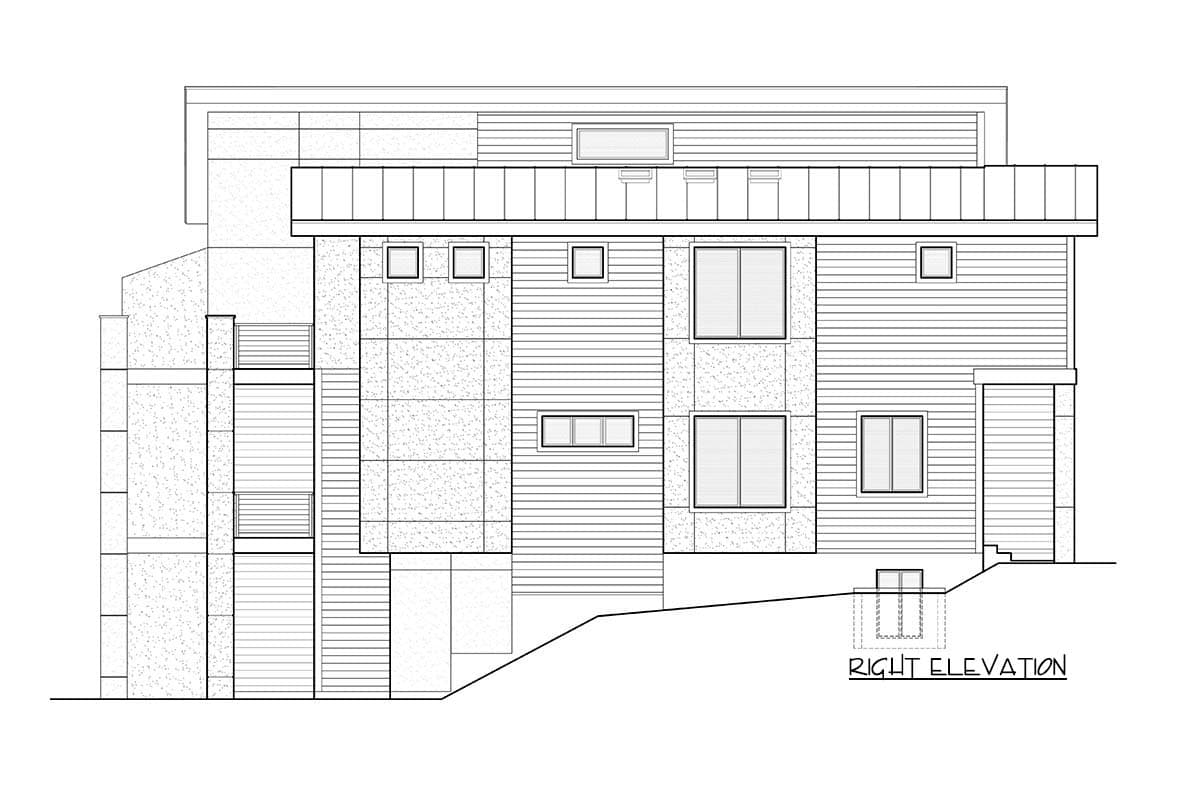

  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

A
2,056 sqft
3 beds
3 full baths
1 half bath
sqft
18' w 64' d 40' 3" h
B
1,822 sqft
3 beds
3 full baths
1 half bath
sqft
18' w 64' d 40' 3" h

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

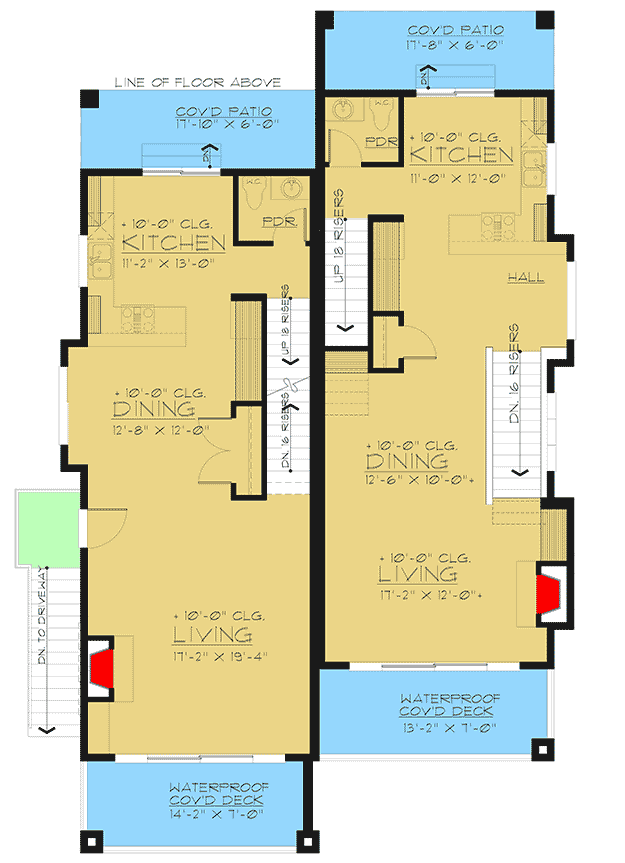

Contemporary 2-Family House Plan with a Drive-Under Garage - 666064RAF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

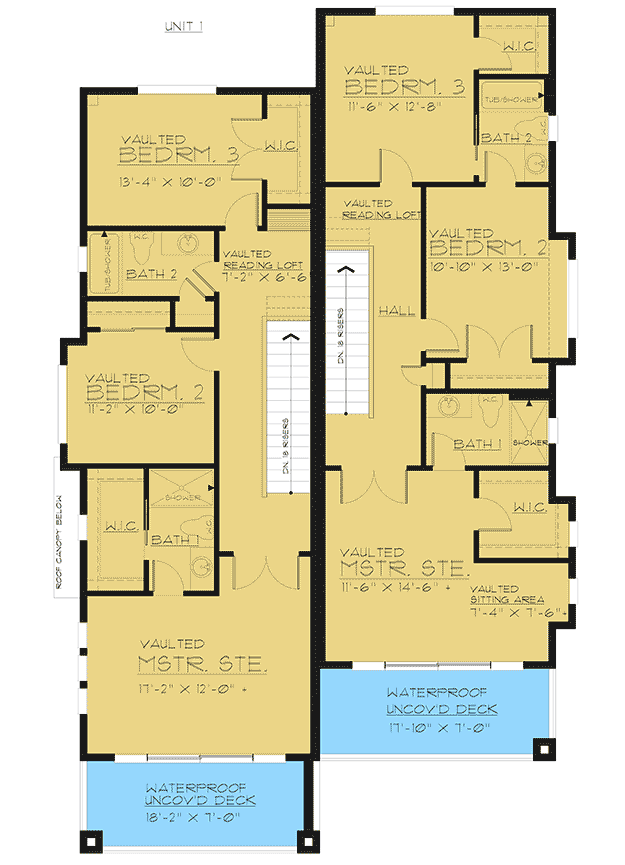

Contemporary 2-Family House Plan with a Drive-Under Garage - 666064RAF floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

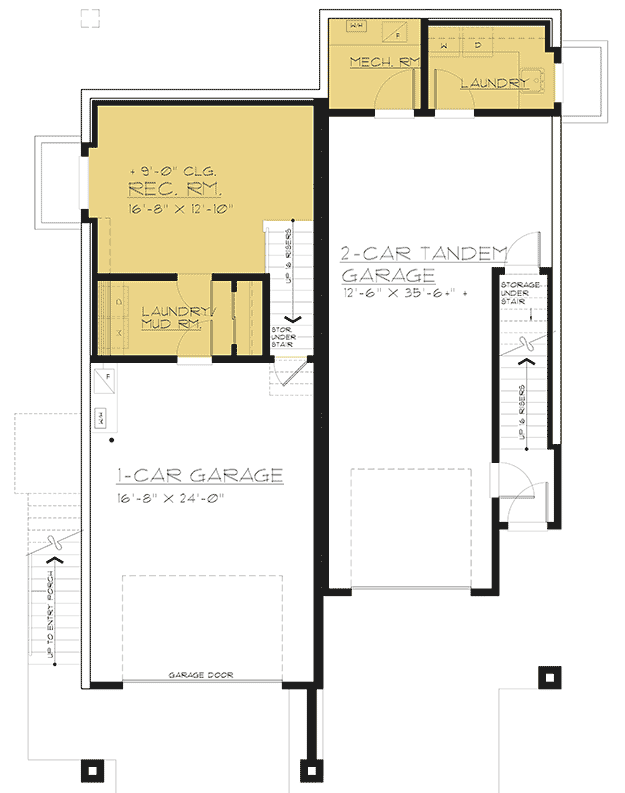

Contemporary 2-Family House Plan with a Drive-Under Garage - 666064RAF floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,878 sq. ft.
  • Lower Level: 459 sq. ft.
  • 1st Floor: 1,649 sq. ft.
  • 2nd Floor: 1,770 sq. ft.
  • Balcony / Veranda: 502 sq. ft.
  • Porch, Combined: 214 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 64' 0"
  • Max ridge height: 40' 3"

Garage

  • Type: Drive Under
  • Area: 1041 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4.5 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary 2-Family House Plan with a Drive-Under Garage

  • 3,878

    Heated s.f.

  • 2

    Units

  • 36'

    Width

  • 64'

    Depth

Buy This Plan
  • PDF - Single-Build $1,939
  • 5 Sets $2,239
  • 8 Sets $2,389
  • CAD - Single-Build $3,684
  • View all purchase option online

About This Plan

  • Glass adorns the front elevation of this contemporary, multi-family structure, allowing natural light to fill the main level and master suite, which resides on the second level. Two-story decks on the front of the structure provide ample outdoor living space for each unit.
  • The left unit gives you 2,056 square feet of heated living space (343 sq. ft. on the lower level, 826 sq. ft. on the first floor and 343 sq. ft. on the upper floor and a 425 sq. ft. garage) and the right unit gives you 1,822 square feet of heated living space (116 sq. ft. on the lower level, 823 sq. ft. on the first floor and 883 sq. ft. on the upper floor and a 616 sq. ft. garage)
  • The main level of each unit presents the shared living space in an open floor plan. A back patio is located off the kitchen, providing a great space to grill.
  • At the top of the stairs, french doors lead to the master bedroom, which includes sliding doors to an uncovered deck, a full bath, and walk-in closet.
  • Two additional bedrooms share a full bath, while one of the units includes a Jack-and-Jill bath. A vaulted reading loft offers a cozy space to cuddle up on the second level.
  • The lower levels of each unit differ slightly. One units includes a single-car garage with a pass-through laundry room leading to a recreation room, and the other unit offers a 2-car tandem garage with a laundry room.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,878 sq. ft.
  • Lower Level: 459 sq. ft.
  • 1st Floor: 1,649 sq. ft.
  • 2nd Floor: 1,770 sq. ft.
  • Balcony / Veranda: 502 sq. ft.
  • Porch, Combined: 214 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 64' 0"
  • Max ridge height: 40' 3"

Garage

  • Type: Drive Under
  • Area: 1041 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4.5 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
