Plan 737049LVL Contemporary 2-Story House Plan with Garage Workshop

Contemporary 2-Story House Plan with Garage Workshop

Plan 737049LVL

  • 2,712

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • The shed style roof on this Contemporary, two-story house plan masterfully blends traditional architecture with a modern appeal.
  • Once inside, discover a den (or home office) with a walk-in closet, across the hall from a full bathroom.
  • A fireplace anchors the great room that opens to the eat-in kitchen. Sliding doors grant access to a rear porch, and the free-flowing kitchen presents an island and walk-in pantry.
  • Upstairs, the master suite is the largest of the four bedrooms and paired with a 5-fixture bath and walk-in closet. A leisure loft and laundry room complete the second level.
  • The hobbyist will appreciate the extra-deep garage that can be used for storage or as a workshop; a drop zone greets you upon entering the home.
  • Related Plan: Get an alternate exterior with house plan 737048LVL.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections

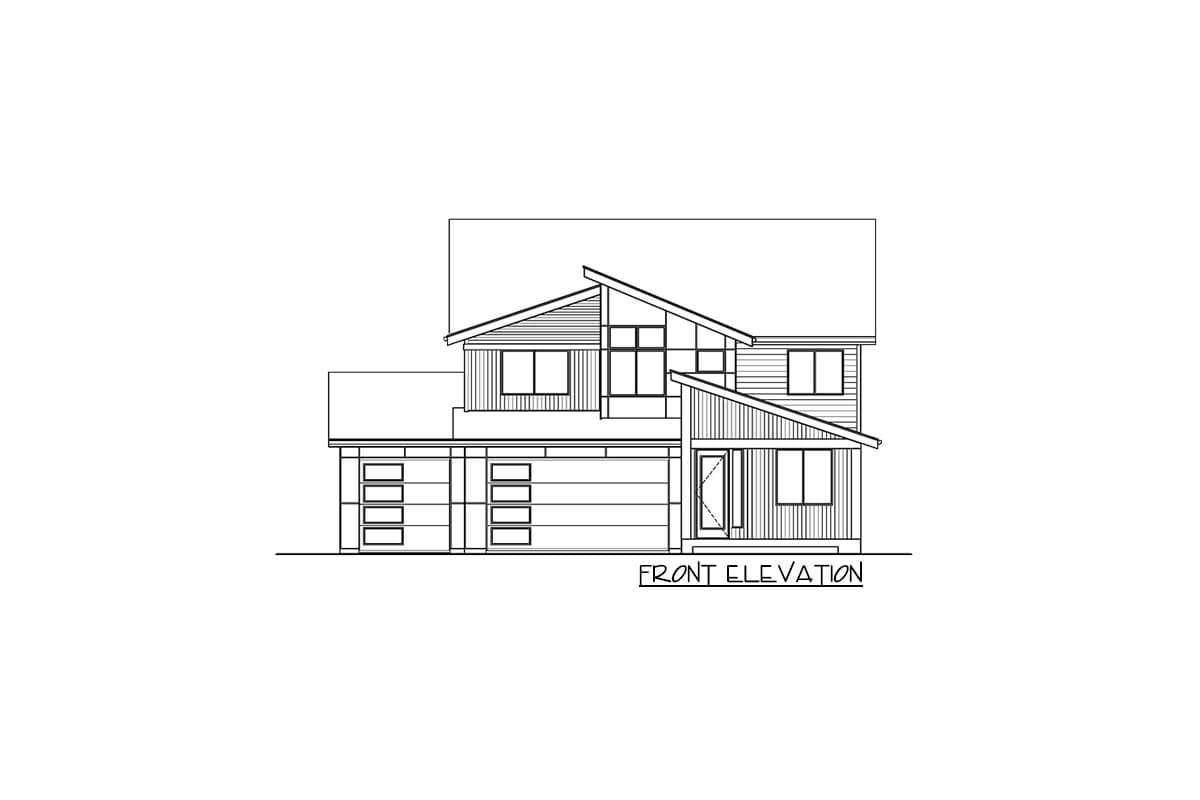

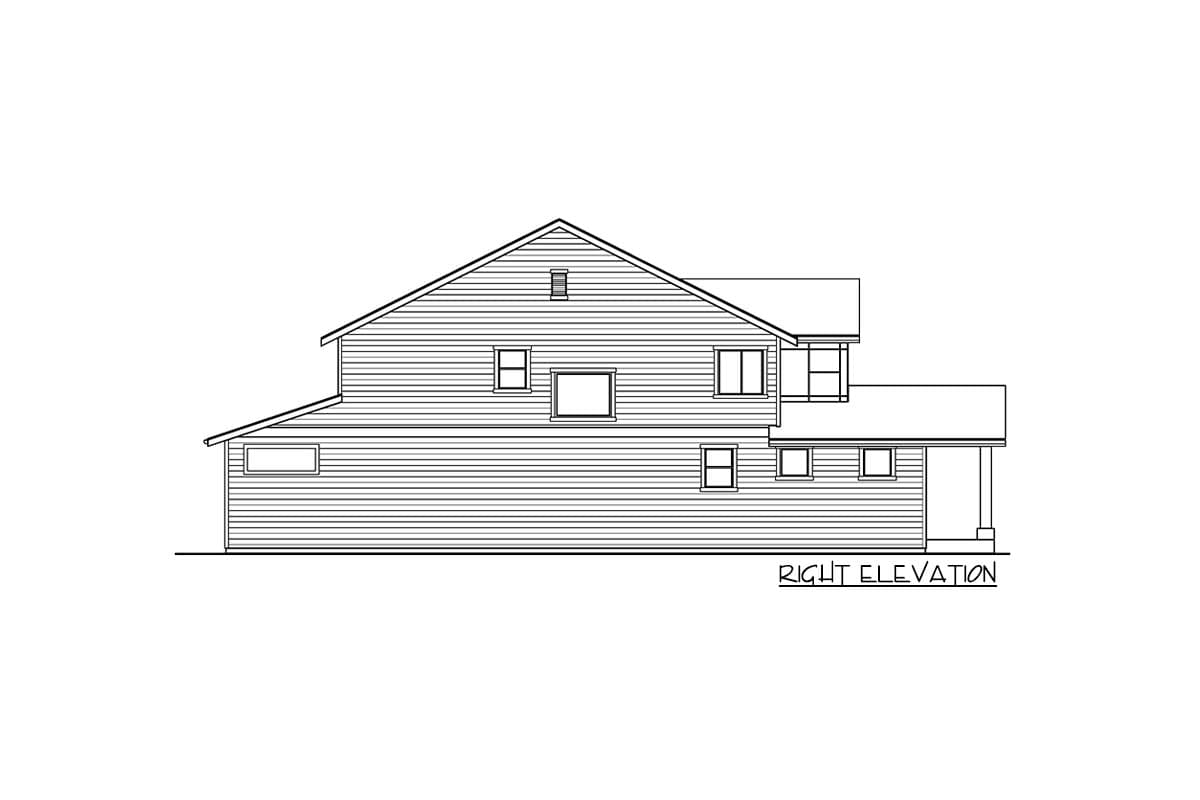

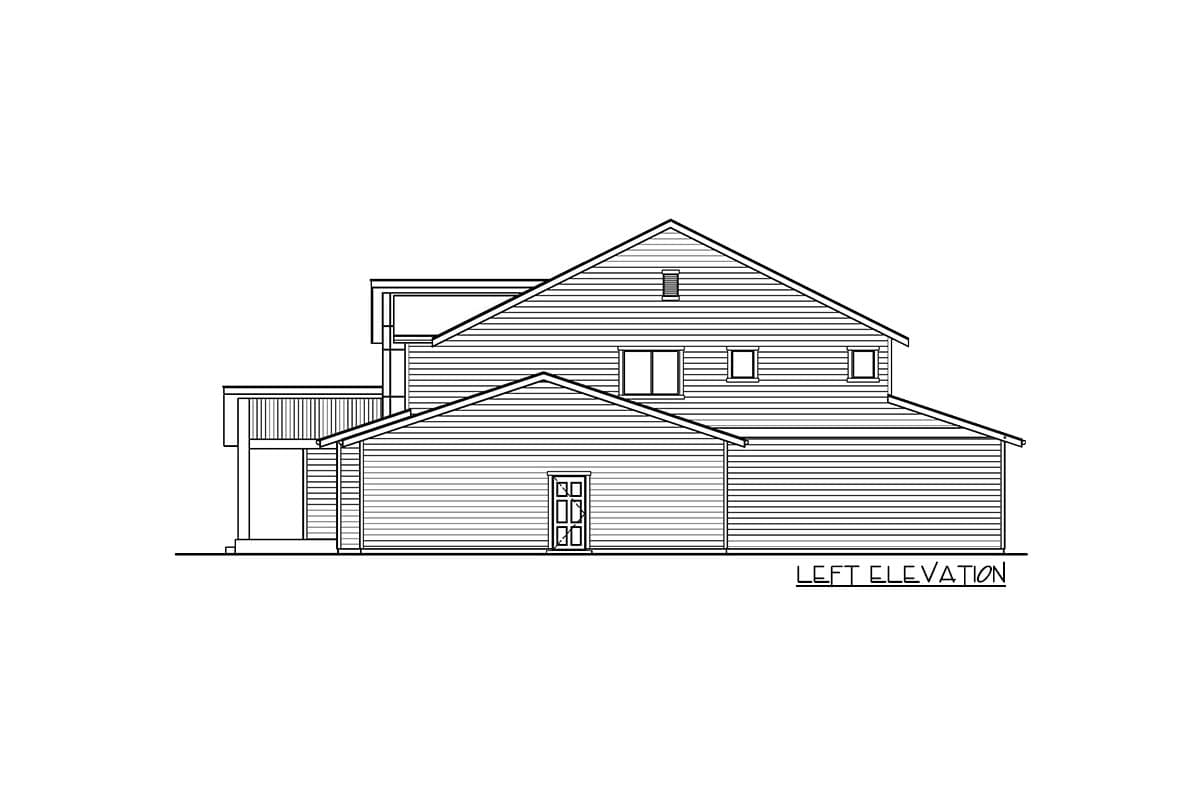

Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

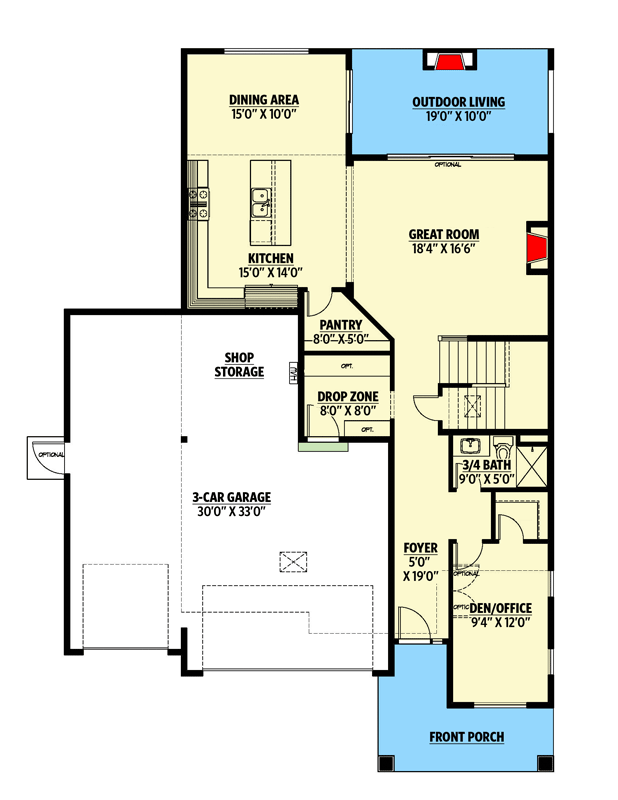

Contemporary 2-Story House Plan with Garage Workshop - 737049LVL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

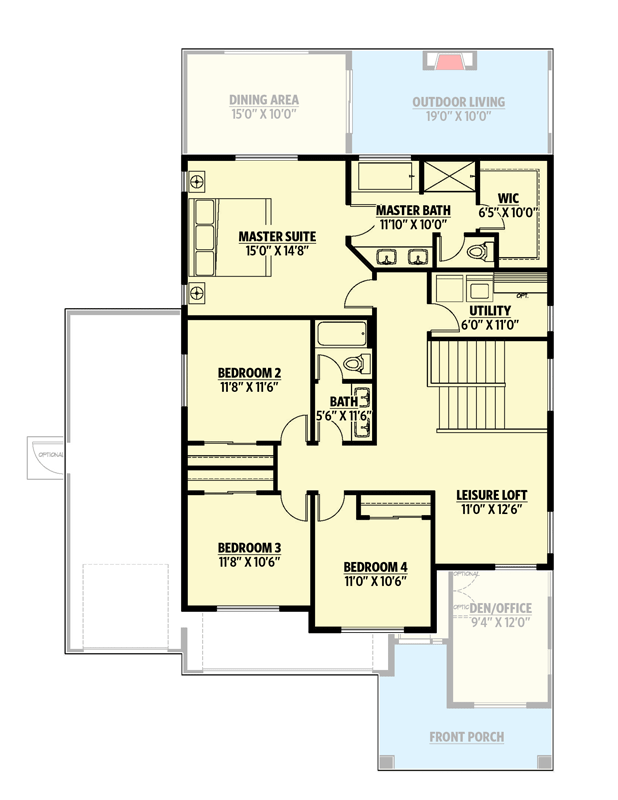

Contemporary 2-Story House Plan with Garage Workshop - 737049LVL floor plan - 2nd Floor

Plan details

Contemporary 2-Story House Plan with Garage Workshop

  • 2,712

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • CAD - Single-Build $2,200
  • View all purchase option online

About This Plan

  • The shed style roof on this Contemporary, two-story house plan masterfully blends traditional architecture with a modern appeal.
  • Once inside, discover a den (or home office) with a walk-in closet, across the hall from a full bathroom.
  • A fireplace anchors the great room that opens to the eat-in kitchen. Sliding doors grant access to a rear porch, and the free-flowing kitchen presents an island and walk-in pantry.
  • Upstairs, the master suite is the largest of the four bedrooms and paired with a 5-fixture bath and walk-in closet. A leisure loft and laundry room complete the second level.
  • The hobbyist will appreciate the extra-deep garage that can be used for storage or as a workshop; a drop zone greets you upon entering the home.
  • Related Plan: Get an alternate exterior with house plan 737048LVL.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,712 sq. ft.
  • 1st Floor: 1,226 sq. ft.
  • 2nd Floor: 1,486 sq. ft.
  • Porch, Front: 134 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 68' 0"
  • Max ridge height: 34' 9"

Garage

  • Type: Attached
  • Area: 920 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
