Plan 801119PM Contemporary 2-Story Lake House Plan with Open Concept Layout

3,099 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary 2-Story Lake House Plan with Open Concept Layout

Plan 801119PM

  • 3,099

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

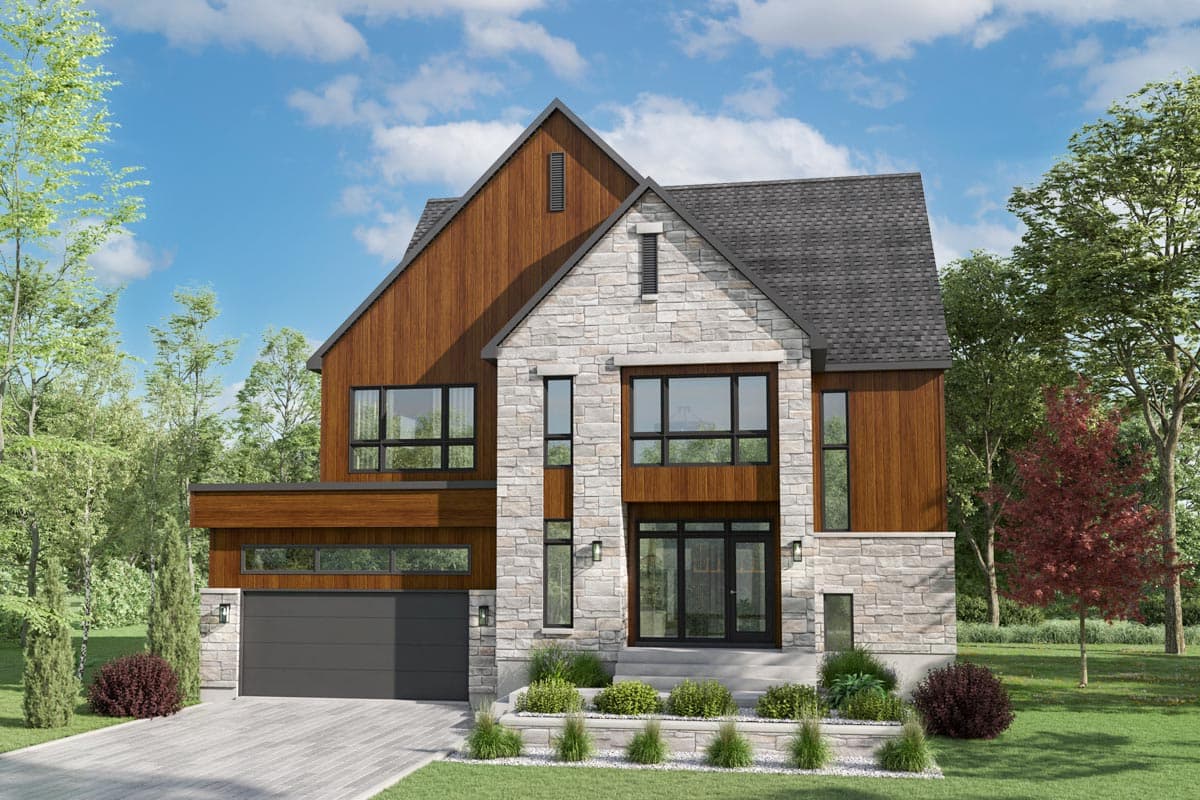

  • This contemporary 2-story lake house plan has a modern look with loads of windows giving you views of your surroundings. The home plan gives you 3 bedrooms - all upstairs - 2.5 baths and 3,099 square feet of heated living.
  • A 2-car garage (479 square feet) accesses the home through a mudroom with closet and the foyer has a large closet as well.
  • The first floor is all open-concept and open to above and has a living room with a fireplace, a dining room as well a kitchen with an island and a walk-in pantry. A washroom, a laundry room and a reading room or office completes the floor.
  • Three bedrooms - all with walk-in closets - are on the second floor. The master bedroom has a private bathroom while the other two share another bathroom. There is also a reading corner nearby.
  • NOTE: Please allow up to 15 business days for delivery.

Plan sets include the following:

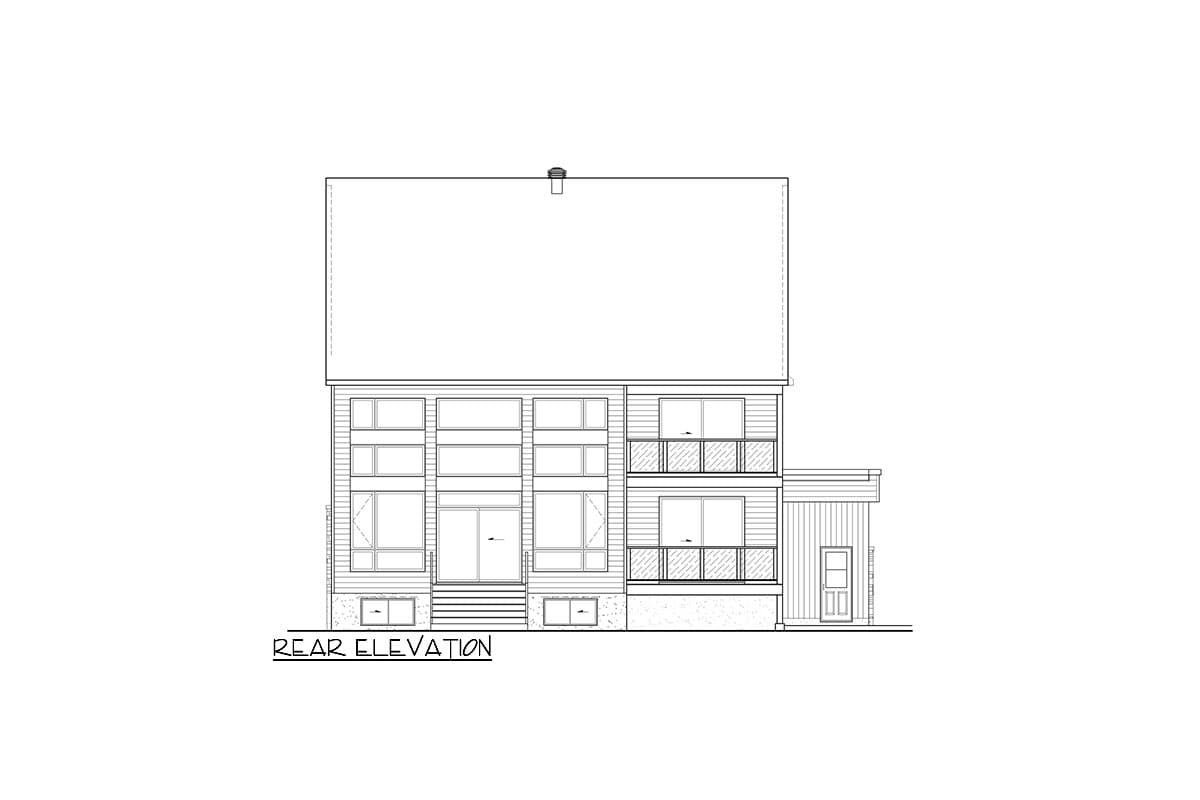

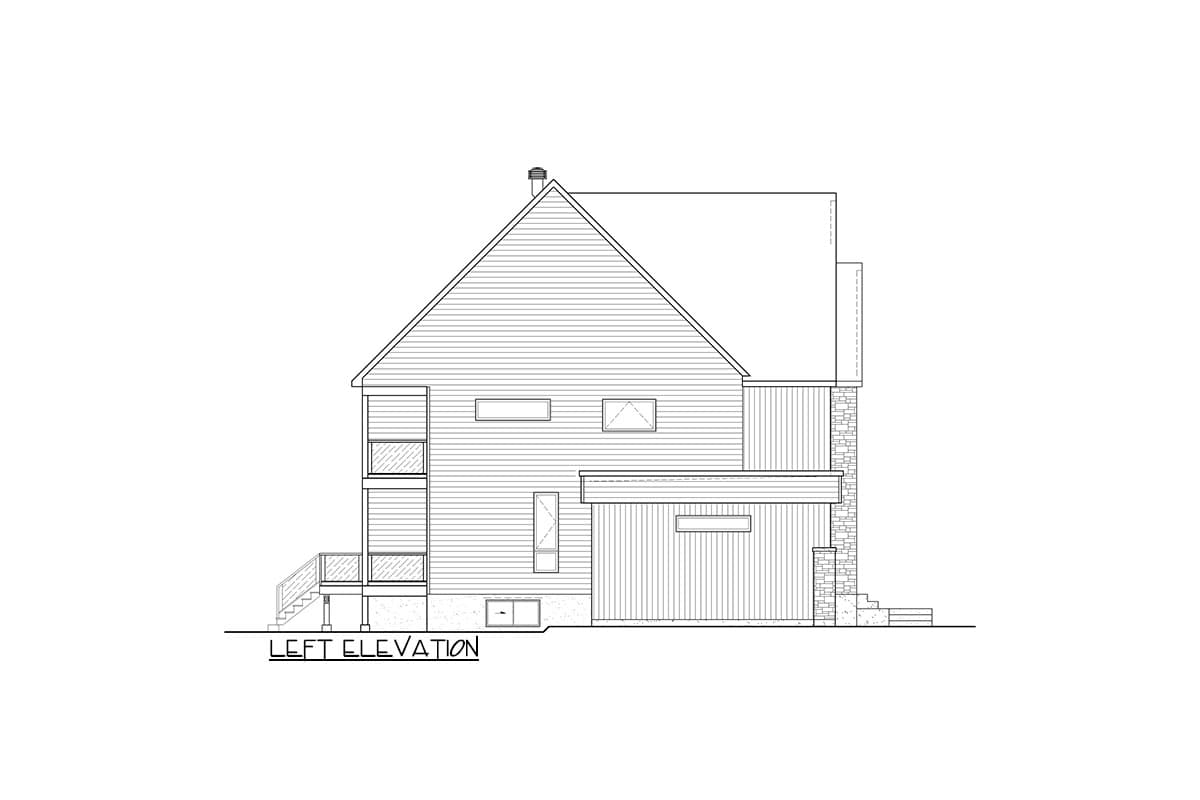

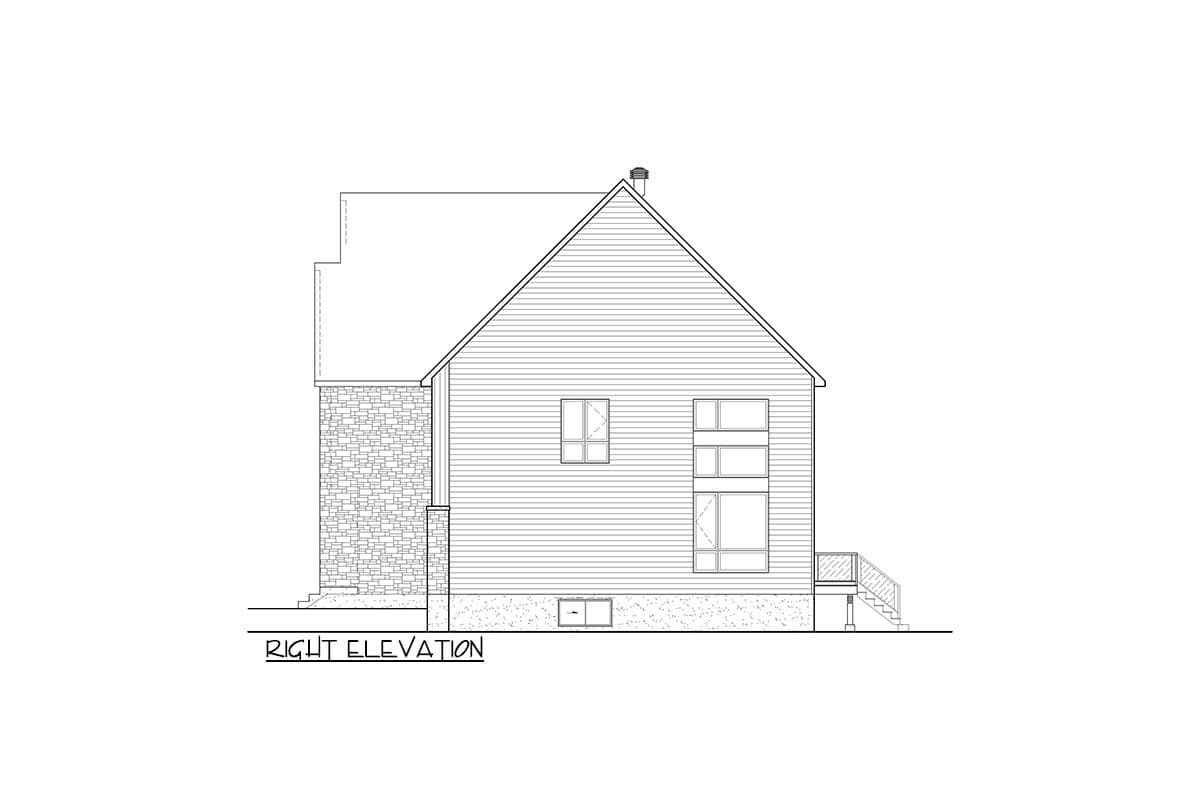

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

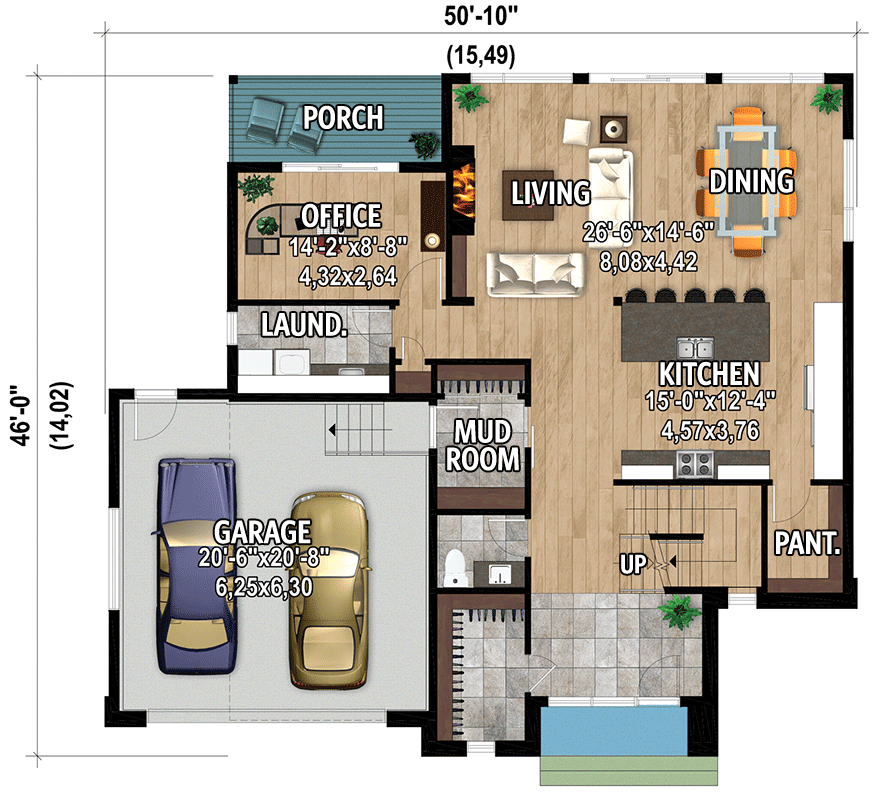

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary 2-Story Lake House Plan with Open Concept Layout - 801119PM floor plan - Main Level

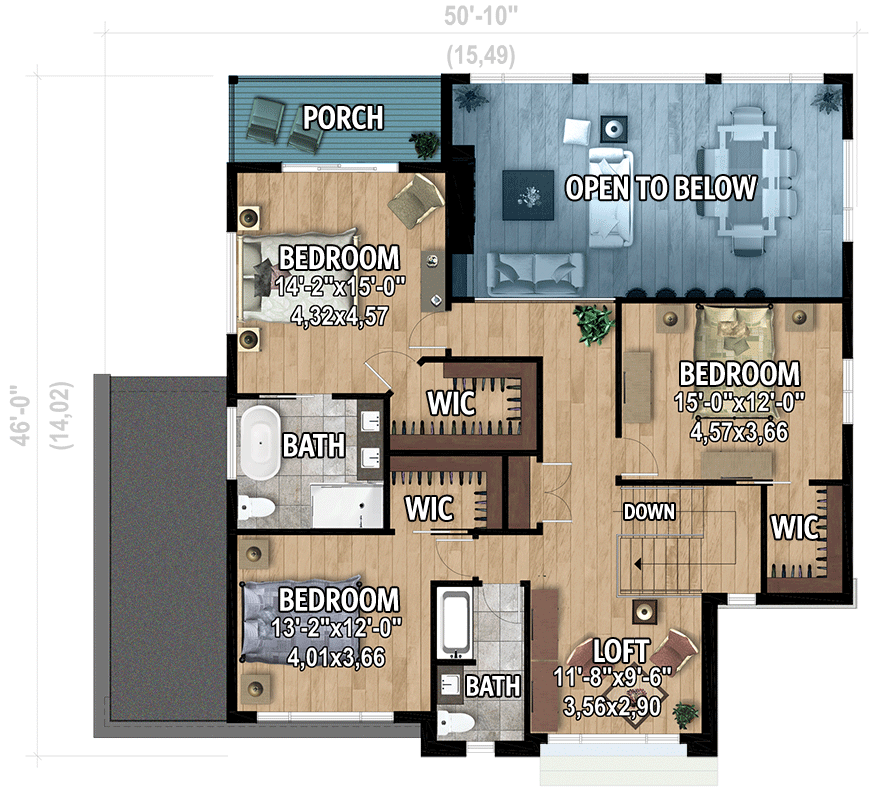

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary 2-Story Lake House Plan with Open Concept Layout - 801119PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,099 sq. ft.
  • 1st Floor: 1,391 sq. ft.
  • 2nd Floor: 1,708 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 10"
  • Depth: 46' 0"
  • Max ridge height: 42' 2"

Garage

  • Type: Attached
  • Area: 479 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Contemporary 2-Story Lake House Plan with Open Concept Layout

  • 3,099

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,395
  • 5 Sets + PDF $1,540
  • 5 Set + PDF + Materials List $1,680
  • CAD + PDF - Single-Build $2,370
  • View all purchase option online

About This Plan

  • This contemporary 2-story lake house plan has a modern look with loads of windows giving you views of your surroundings. The home plan gives you 3 bedrooms - all upstairs - 2.5 baths and 3,099 square feet of heated living.
  • A 2-car garage (479 square feet) accesses the home through a mudroom with closet and the foyer has a large closet as well.
  • The first floor is all open-concept and open to above and has a living room with a fireplace, a dining room as well a kitchen with an island and a walk-in pantry. A washroom, a laundry room and a reading room or office completes the floor.
  • Three bedrooms - all with walk-in closets - are on the second floor. The master bedroom has a private bathroom while the other two share another bathroom. There is also a reading corner nearby.
  • NOTE: Please allow up to 15 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,099 sq. ft.
  • 1st Floor: 1,391 sq. ft.
  • 2nd Floor: 1,708 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 10"
  • Depth: 46' 0"
  • Max ridge height: 42' 2"

Garage

  • Type: Attached
  • Area: 479 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
