Contemporary 3 Bed House Plan Under 3500 Square Feet with Angled 3-Car Garage
Heated S.F.
3,448
Beds
3
Baths
3
Stories
2
Cars
3
What's Included
Plan Details
  • An angled 3-car garage (1,089 square feet) comes off the front of this contemporary house plan with modern farmhouse inspiration that gives you 3 beds, 3 baths and 3,448 square feet of heated living.
  • Extend your enjoyment to the outside on the covered patio in back with a fireplace, accessible from the 2-story great room. There is also an uncovered patio which is accessible from the dining room.
  • A home office located off the foyer makes a great work-from-home space.
  • All 3 bedrooms are on the second floor as is laundry for your convenience.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

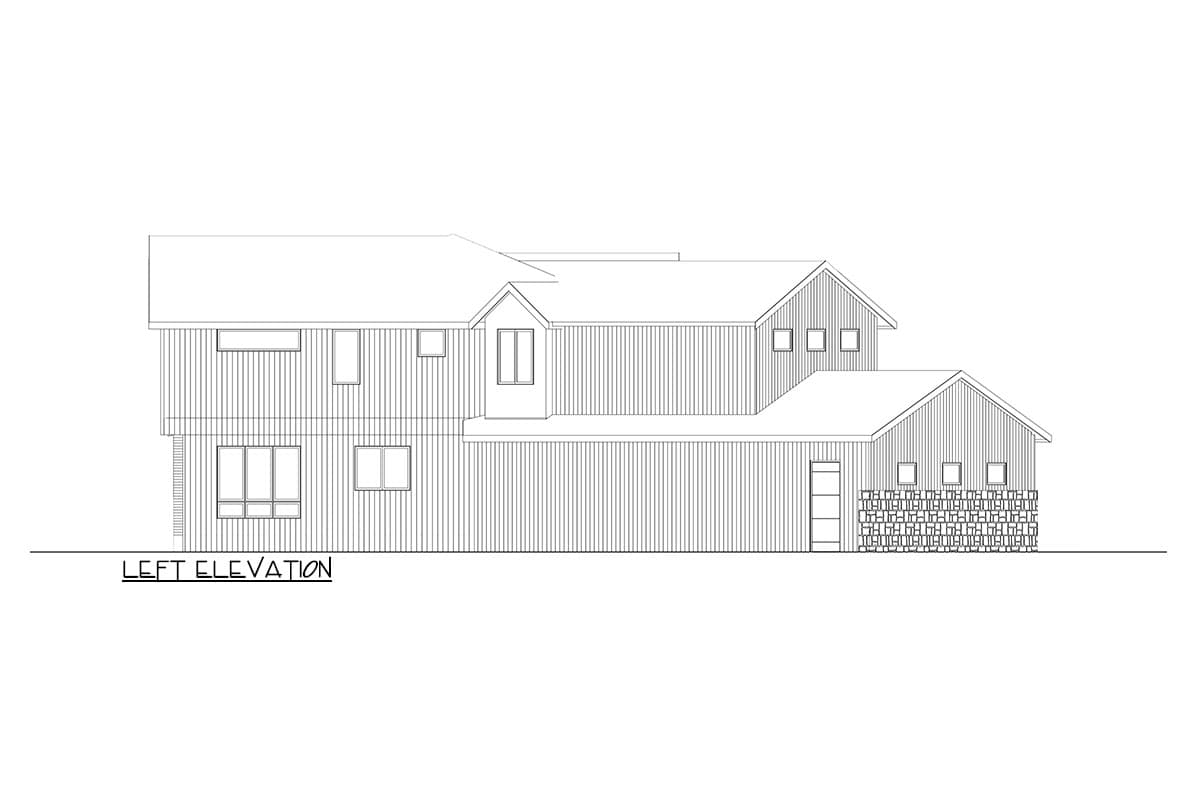

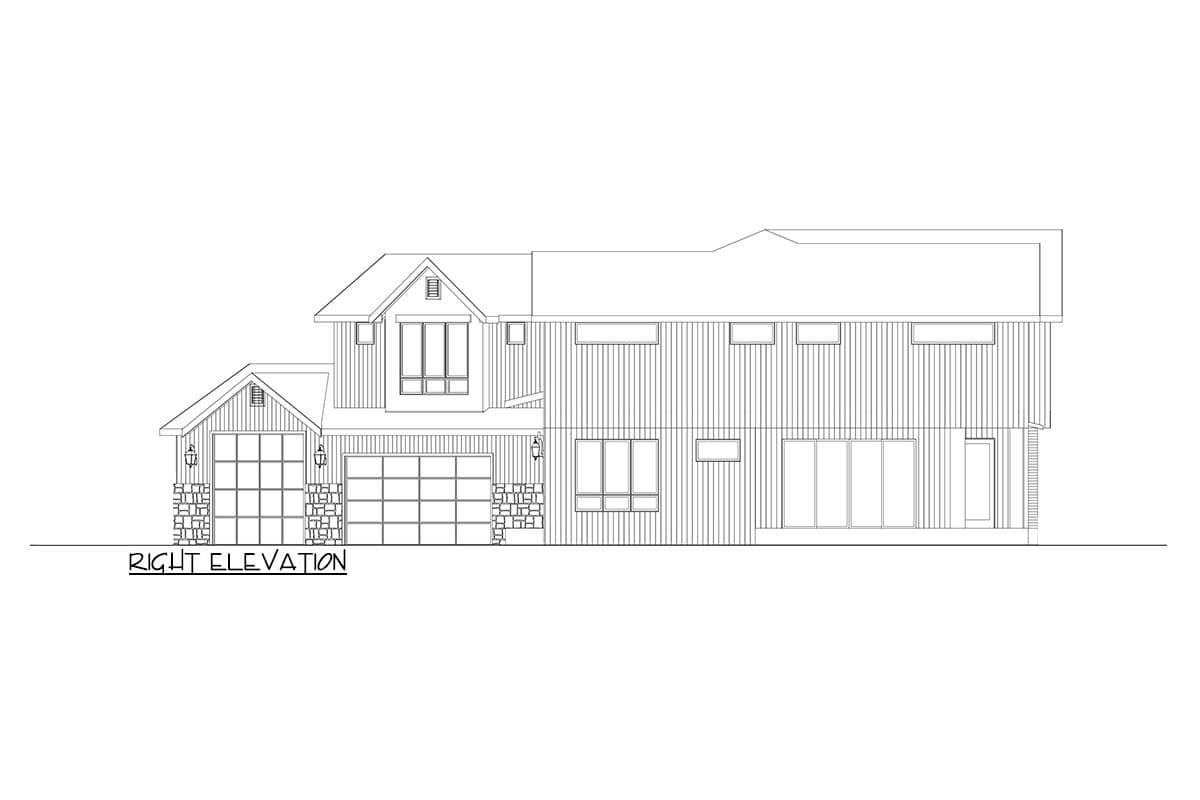

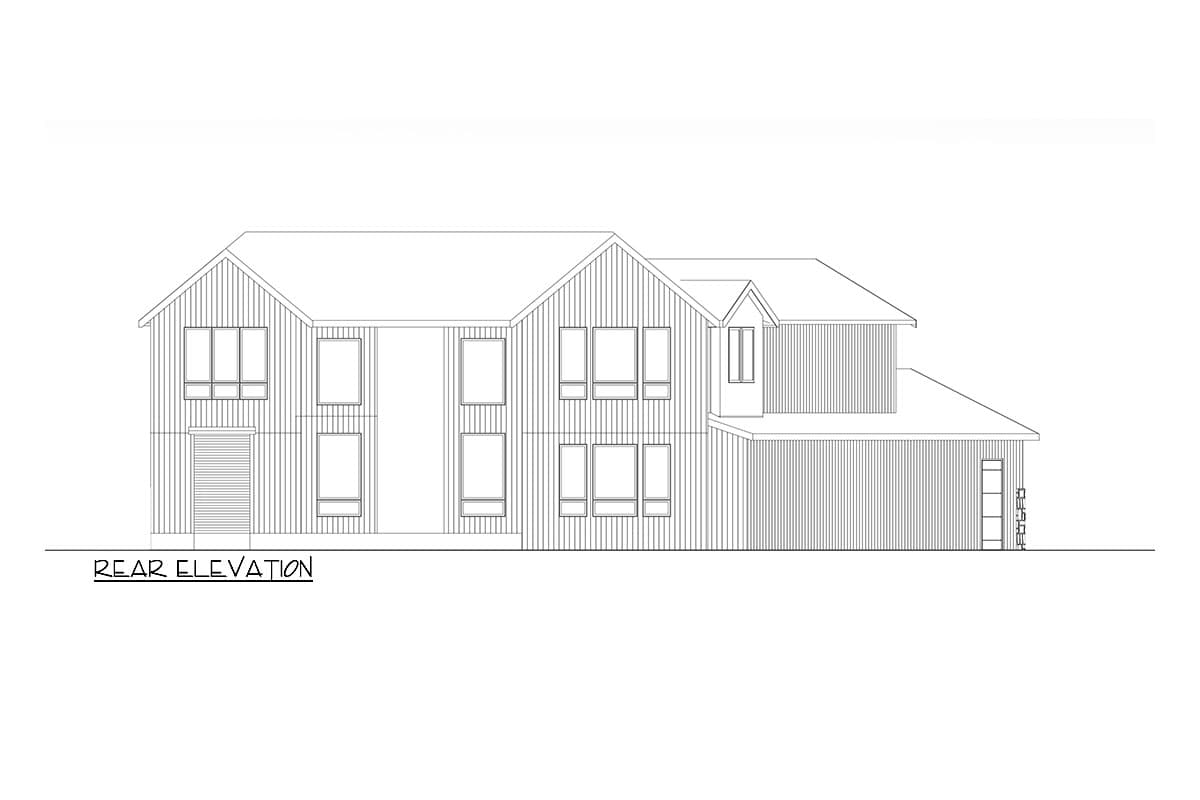

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary 3 Bed House Plan Under 3500 Square Feet with Angled 3-Car Garage

  • 3,448

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

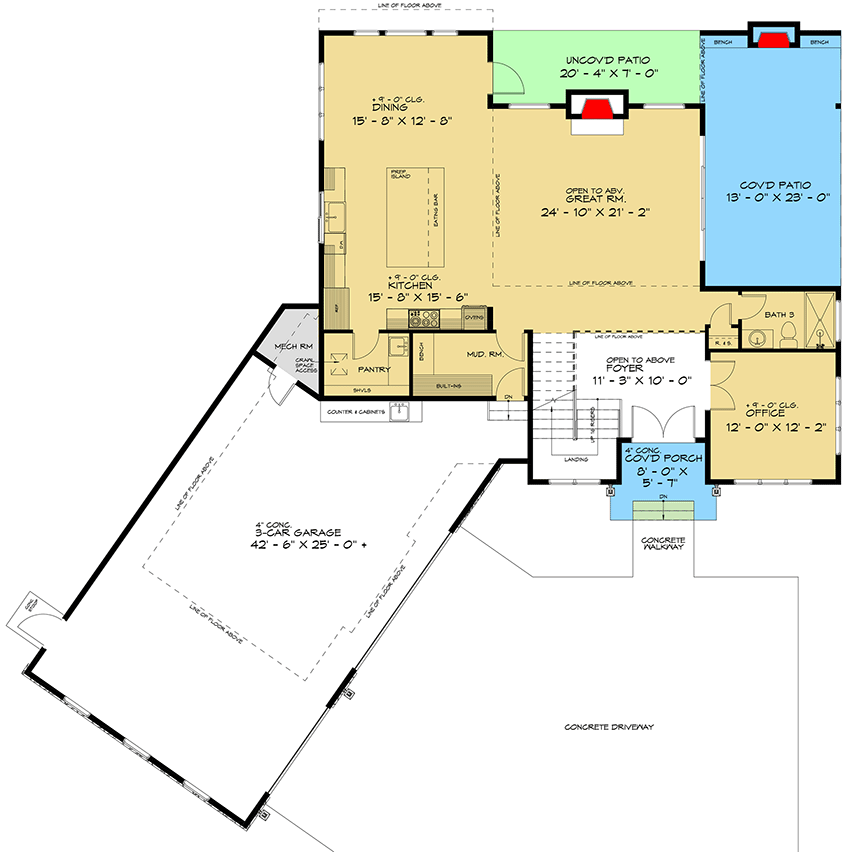

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,448 sq. ft.
  • 1st Floor: 1,562 sq. ft.
  • 2nd Floor: 1,886 sq. ft.
  • Uncovered Patio: 139 sq. ft.

Dimensions

  • Width: 78' 3"
  • Depth: 76' 6"
  • Max ridge height: 29' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 1089 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0" Great Room 19' 6" Foyer 19' 6"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
